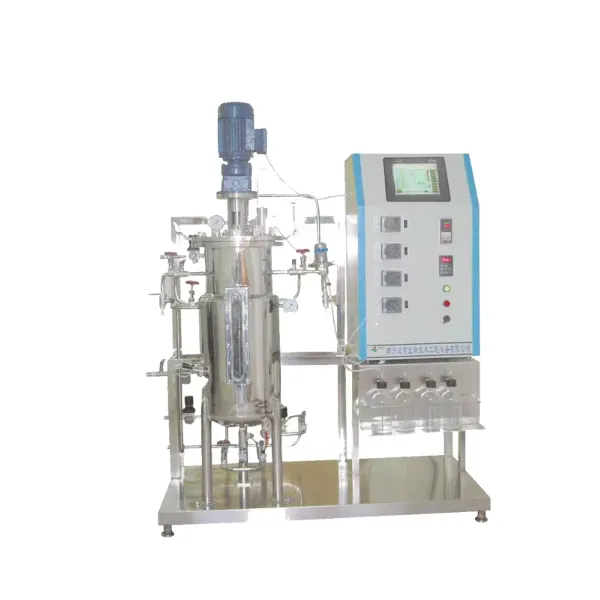

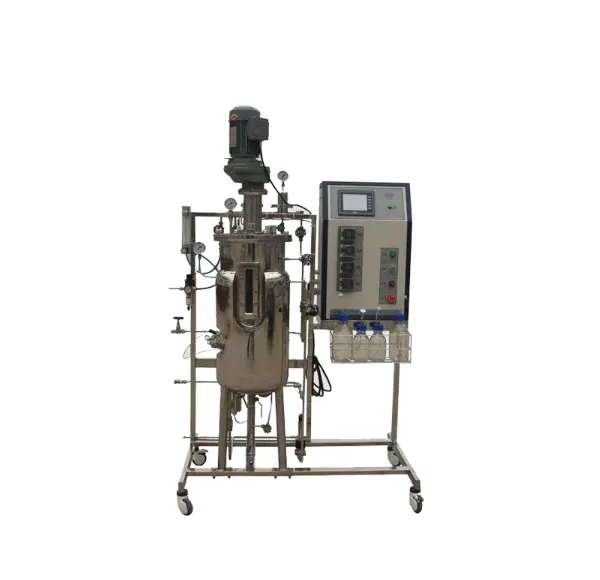

Machine Introduction
Capcity: 5L-20000L
Pressure: 0.1Mpa-0.6Mpa
Rotate speed: 50-200/400rpm
Agitator type: Mechanical agitator
Material: Contacting parts is made by SS316,other parts is made by SS304
Surface finishes:
Inside surface Ra0.28μm - 0.4μm by mechanical polishing or electropolishing
Outside surface Ra0.6μm - 0.8μm by satin finishing
Feature:
1. Fermentors can be sterilized easily by sterilizable -in -place
2. Large 10.4" colourful simens touch screen simplifier entering set points and provides displays of parameter.
3. Advanced software to make it easy for operation and understanding.
4. Stainless steel vessel, piping and control cabinet has long life
5. Excellent stability and convenient to operate
6. Modular design provide system flexibility
7. Small footprint to minimize space requirement
8. Opening piping frame with plenty of space between valves and piping, make it easy for operation and maintenance
Technical patameters
| Model | GY-196 |
| Working volume | 3-20000L |
| Filling volume | 65-75% |
| Material | Wetted parts are SS316L, and others are SS304. Vertical type with sight glass. |
| Surface finish |
Internal surface is 0.28-0.6μm by mechanical polishing, (passivation or electro-polish are optional) outside surface is 0.4-0.8μm by satin finish. |
| Pressure |
Working pressure inside vessel: 0.2mpa Design pressure inside vessel: 0.25mpa Working pressure inside jacket: 0.3mpa Design pressure inside jacket: 0.35mpa Pressure can be also designed according to client’s detail requirement. |
| Agitator |
1.Fermentor use SEW motor reducer mechanical agitator with two layer six blade impeller, one layer defamer and four baffles. chanical seal (single or double mechanical seal) 4.speed range: 50-400rpm (it depends on the size of the vessel) |
| Configuration of vesse |
1. Using alcohol flame inoculation 2.sterile sampling vale and bottom valve 3.PH, DO, temp. sensor on lower side, side glass, top with foam and level probe, and 12v sight glass with lamp, etc. |
| Construction |
Floor-type One fermentor vessel with one control system (Siemens PLC and HMI) |
| Operating panel | Chinese and English version |
PACKAGE
Standard export carton or wooden cases packing.
DELIVERY TIME:
7-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
