Factory Wholesale High Quality Candle Making Machine for Smooth Seamless Candles From Indian Exporter
US$ 67550.00
≥1 Set
Key Specifications
Get Latest Price
Condition:
New
place of origin:
Shanghai, China
brand name:
Genyond
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Shanghai Genyond Automatic Candle Making Machine Small Used Candle Machine /candle Making Machines in South AfricaUS$ 67640.00MOQ: 1 Set -
Automation Extruder Candle Pouring Machine Candle Making Machinery Candle Maker MachineUS$ 67706.00MOQ: 1 Set
-
Candle Machine Price Fully Automatic Filling Process Candle Making Production LineUS$ 67860.00MOQ: 1 Set
-
Fully Automatic Quality Source Candle Making Machine Fully AutomaticUS$ 67910.00MOQ: 1 Set
-
High Quality Wax Candle Machine / Automatic Best Candle Making MachineUS$ 68080.00MOQ: 1 Set
Condition
New
place of origin
Shanghai, China
brand name
Genyond
production capacity
10000~12000pcs/h
video outgoing-inspection
Provided
machinery test report
Provided
core components
PLC, Gearbox, Motor, Pressure Vessel
dimension(l*w*h)
5800*7600*3000mm
warranty
1 Year
Name
Automatic Rod Candle Production Line
Product name
Rod Candle/candle
Material
304 Stainless Steel
Capacity
10000~12000pcs/h
Candle Size
Candle Size Selectable
Model
GY-RC
Power
22KW
Voltage
220V/380V
After-sales Service Provided
Online Support
Usage
candle factory
Marketing Type
Hot Product 2019
Warranty of core components
3 Years
Applicable Industries
Manufacturing Plant
Showroom Location
None
Weight
4500

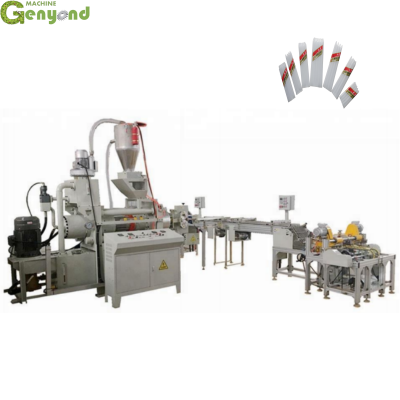

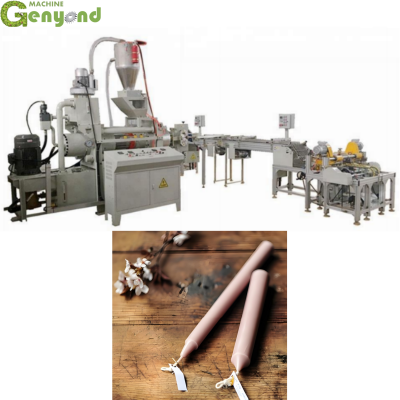

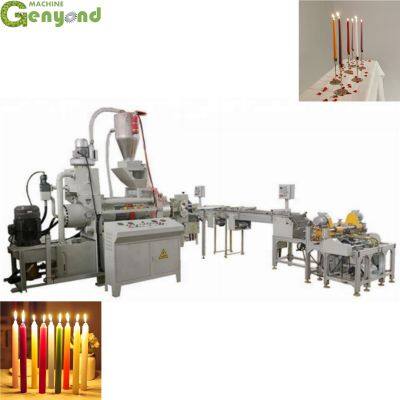

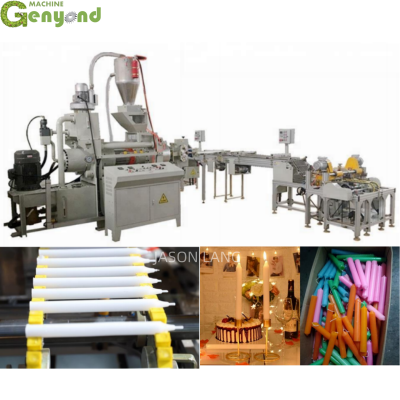

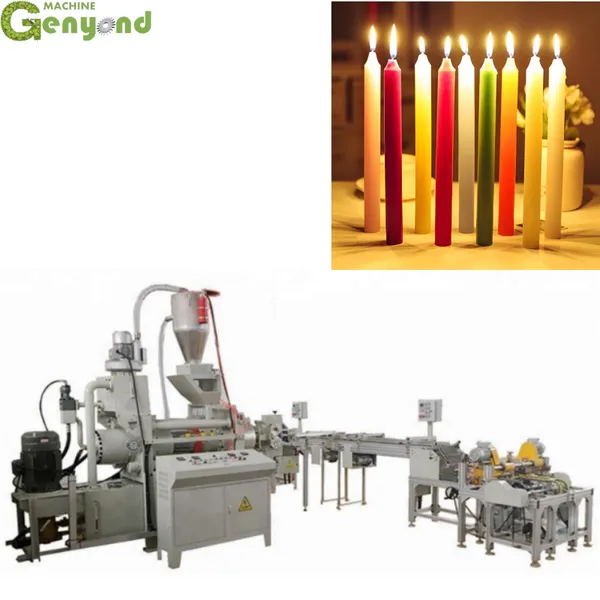

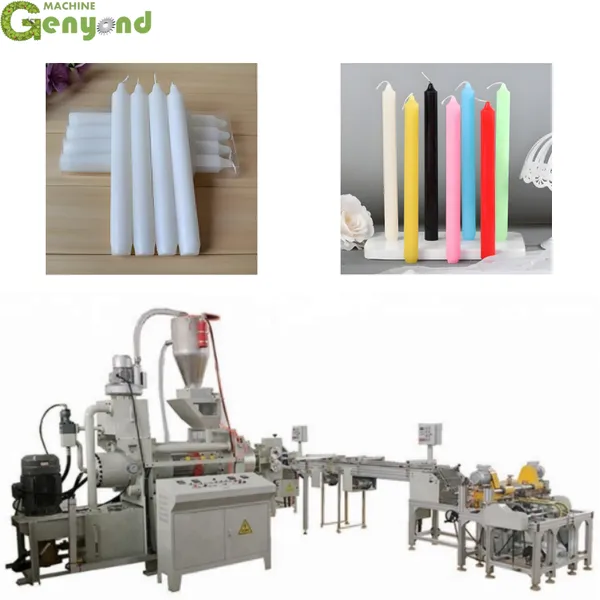

Product Description
Application
This machine uses more than 56 degrees centigrade of fully refined or semi-refined paraffin wax granular or wax
powder or wax slab as raw material. It can directly extrude straight round rod candle and straight stripe candle. The shape of the top and tail of the candle can be changed according to demand, and it can also be used for squeezing Φ30- Φ50mm large diameter pillar candle.
powder or wax slab as raw material. It can directly extrude straight round rod candle and straight stripe candle. The shape of the top and tail of the candle can be changed according to demand, and it can also be used for squeezing Φ30- Φ50mm large diameter pillar candle.
Features
1. It can automatically complete the production process of feeding, extruding, trimming and outputting.
2. It is easy and quick to change the diameter, length and shape of the candle head.
2. It is easy and quick to change the diameter, length and shape of the candle head.
3. Simultaneous extrusion of the wick and the candle can control the tightness of the wick to ensure the burning time and burning stability of the candle.
4. With production metering function, you can check the output at any time.
5. Adopting plunger hydraulic system, PLC command programming reciprocating automatic operation, frequency conversion regulation and trimming, the overall equipment operation is stable and reliable.
Working principle
The extruder squeezes wax powder in a batch mode. The piston extrudes the wax powder into a wax
strip (with a wick). When the piston returns, the wax powder is injected and the piston presses again to make the wax strip. The wax strip is cut into a wax rod of the required length by a cutting wheel.
strip (with a wick). When the piston returns, the wax powder is injected and the piston presses again to make the wax strip. The wax strip is cut into a wax rod of the required length by a cutting wheel.
Product Paramenters
Name |
Automatic Rod Candle Making Machine |
Capacity |
10000~12000pcs/h |
Power |
22kw/380v |
Dimension |
5800*7600*3000mm |
Weight |
4500kg |
The size range of the candle |
Diameter: Φ12-25mm Length: 100-300mm
|
Wax core blank |
Φ30-Φ50mm Length: (manual positioning and division)
|
