Super fine pulverizer grinding machine

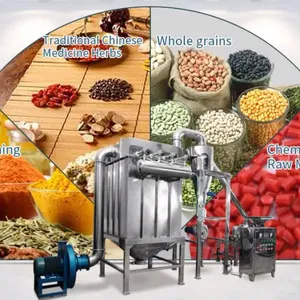

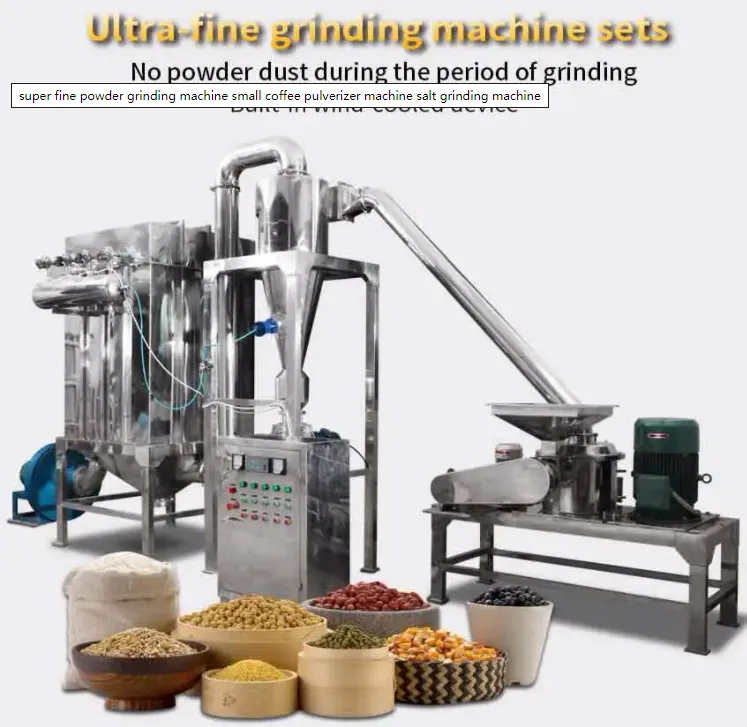

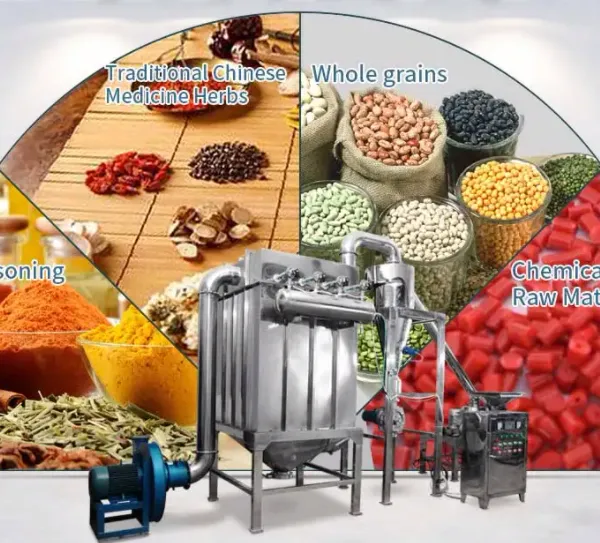

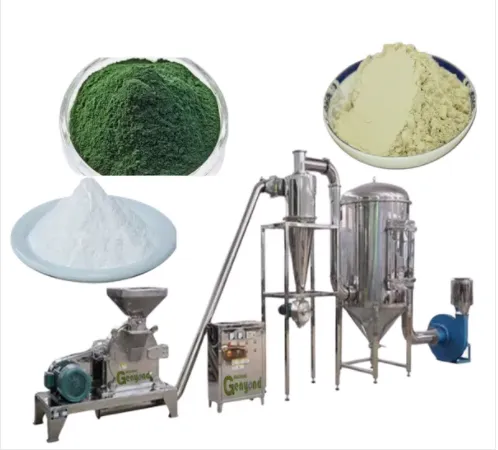

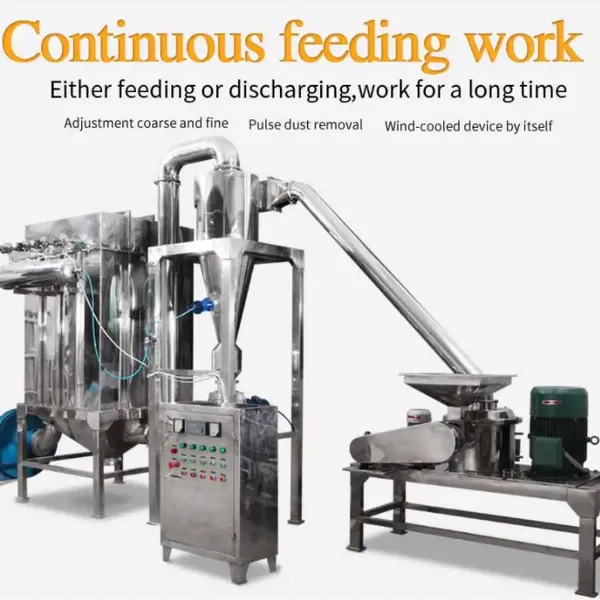

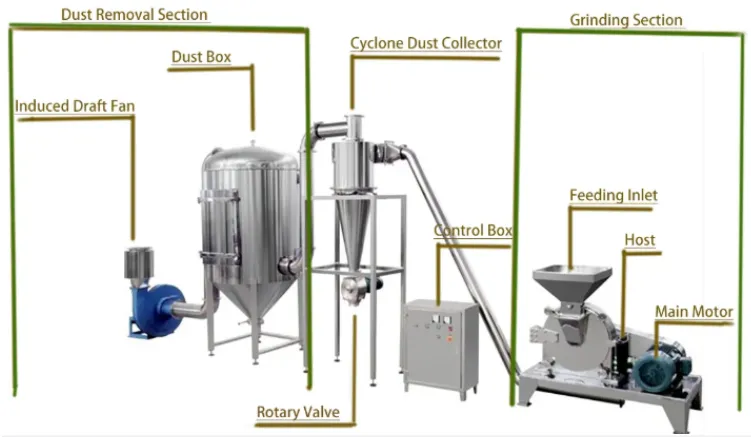

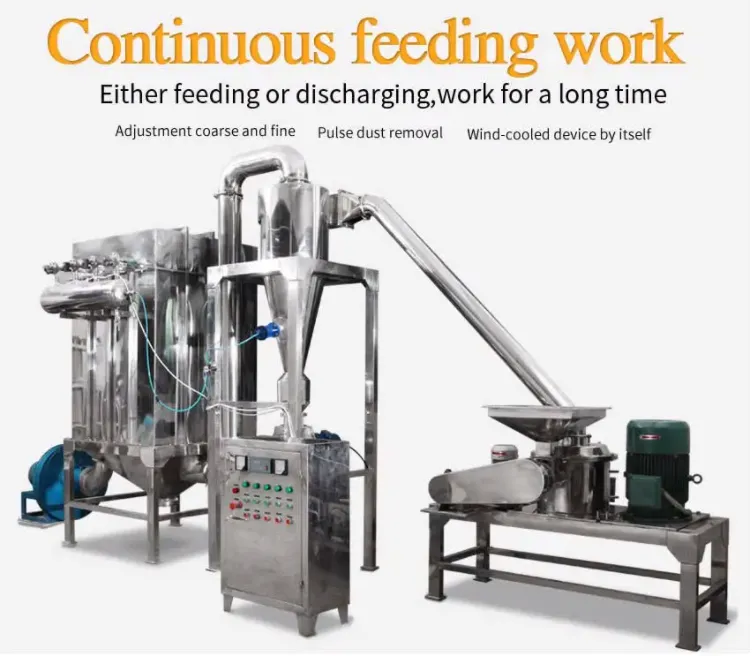

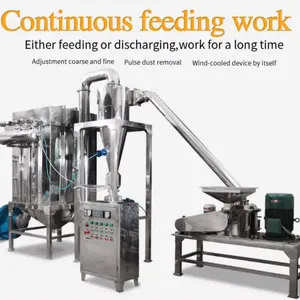

This is our ultrafine grinder, consisted of the crusher part, cyclone, dust collecting box, blower and electrical cabinet. It can be used to grind sugar, turmeric, ginger, rice into very fine powder. For sugar grinding, the output size can be 100~1000mesh fine powder. For ginger and garlic grinding, the output size can be 60~200mesh fine powder. For leaf grinding, the output size can be 100-200mesh.
Advantages: make very fine powder, no need sieve or mesh, make powder evenly and continuous powder making process.
Description
Main Usage

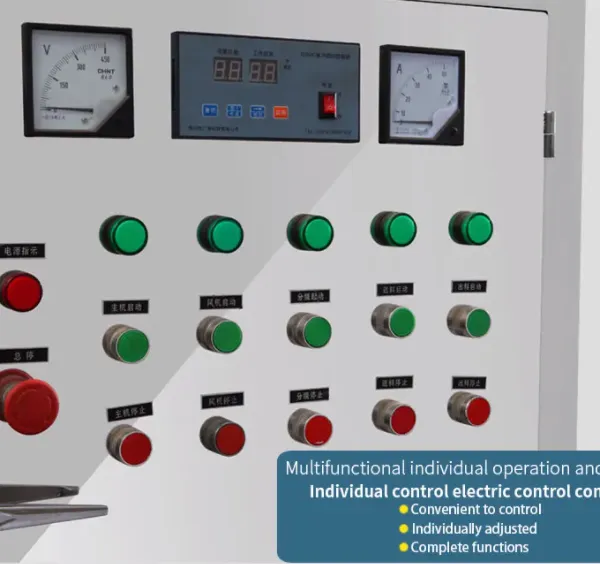

This machine is made up of three parts: main machine, auxiliary machine and electric control box.
It has properties of wind selection, having no sieve or net, and an even granularity of the processed material.
The production process going on continuously and the machine can undertake grinding of chemical products, foodstuff, medicine, medicament, cosmetics, plastic, dyestuff, resin, grain, etc.
Working Method
The material enters the grinding chamber via the funnel and spiral conveyor where it is sheared and broken by the fastrotating blades. The power passes the guide ring and enters the classification chamber.
As the classification wheel is in revolution, both the air force and centrifugal force act on the powder.
As the particles whose diameters are greater than the critical diameter (diameter of the classification particles) have a great mass, they are thrown back into the grinding chamber to be ground again,
while the particles whose diameters are smaller than the critical diameter enter the cyclone separator and bagtype collector via the material exit pipe be means of negative pressure wind conveyance.
The discharge material meets the requirement for the product.
|
product Name |
Micron fine powder grinder grinding machine Impact grinder |
|||||
|
Model |
WFJ-15 |
WFJ-20 |
WFJ-30 |
WFJ-60 |
WFJ-80 |
WFJ-100 |
|
Capacity(kg/h) |
60-150 |
150-300 |
150-400 |
200-500 |
300-1000 |
800-1300 |
|
Size of input granules(mm) |
≤10 |
≤12 |
≤15 |
≤20 |
≤20 |
≤20 |
|
Crushing Fineness(mm) |
80-500(Adjustable ) |
|||||
|
Motor power(kw) |
13.5 |
22 |
46 |
84.15 |
102 |
122 |
|
Speed of principal axis(rpm) |
≈6000 |
≈4800 |
≈3800 |
≈2800 |
≈2800 |
≈2800 |
|
Overall Size(L*W*H) |
4200*1000*2600 |
4700*1200*2700 |
6640*1300*3960 |
7500*2300*4530 |
8200*2500*4600 |
9200*2600*5000 |
|
Weight(kg) |
980 |
1300 |
1500 |
4200 |
4200 |
4200 |
