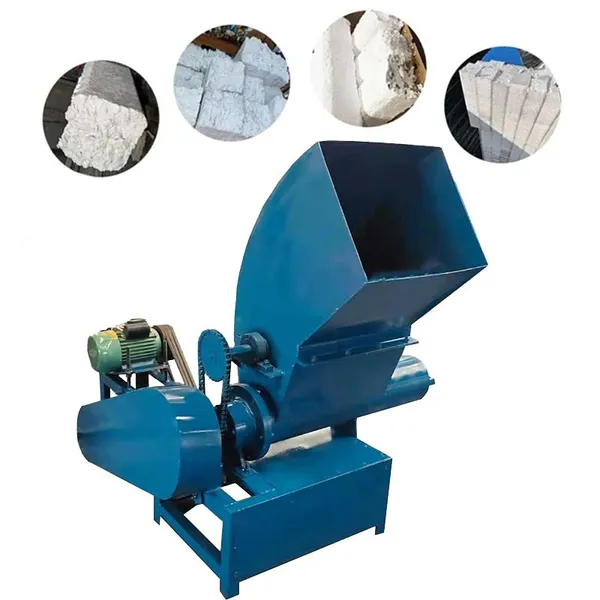

Help CenterEPS Foam Densifier Eps Foam Hot Melt Machine for Sale
Product Spotlights
Related Products
-
Foam Recycling Machine Vertical Foam Hot Melt Machine for Waste EPS Product RecyclingUS$ 1000 - 1153MOQ: 1 Set -
High Yield Vertical Foam Hot Melt Machine Waste Foam Recycling EquipmentUS$ 1000 - 1153MOQ: 1 Set
-
Stainless Steel Foam Melting Machine for EPP Waste Processing in Automotive IndustryNegotiableMOQ: 1 Set
-
Portable Foam Melting Machine With 220V 5kW Motor for Small Workshop ApplicationsNegotiableMOQ: 1 Set
-
Foam Melting Machine With Dual Heating Zones and Temperature Control for PU Foam ProcessingNegotiableMOQ: 1 Set
Performance characteristics

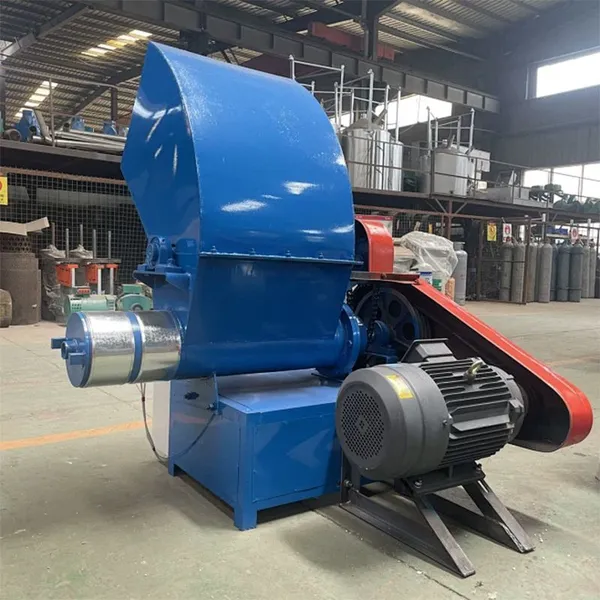

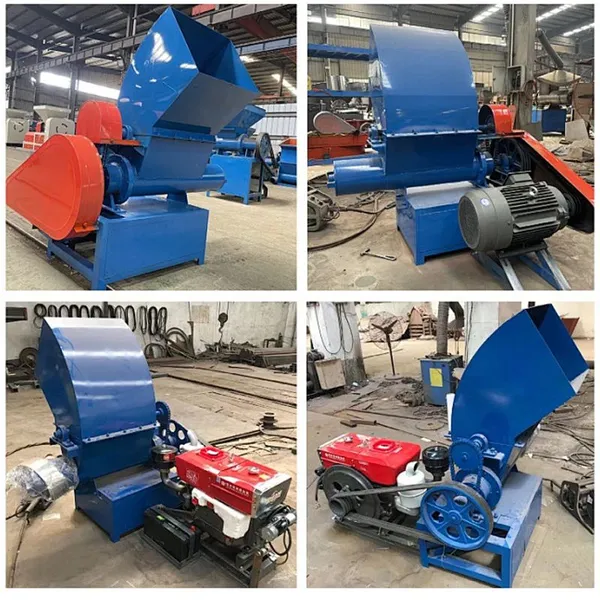

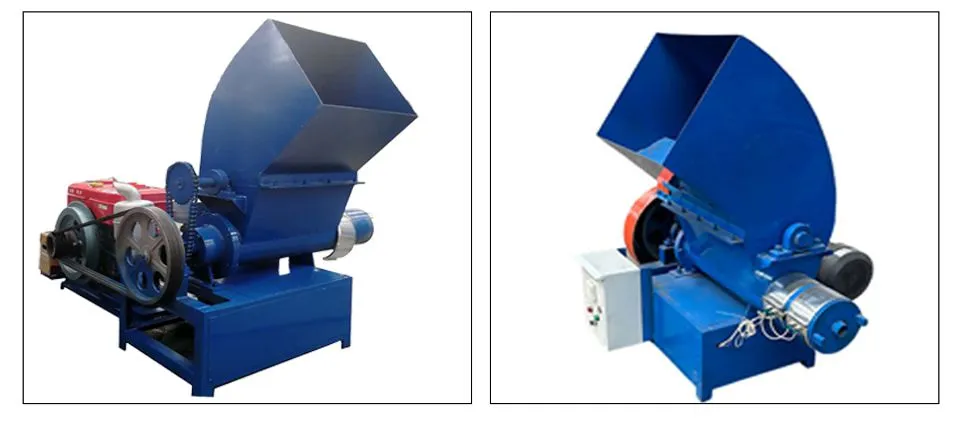

Foam making block machine(foam hot melt machine) is a waste foam, such as: foam fast food box, cake box, foam packaging material,insulation material and foaming material, reticulated white pollution garbage, etc. Plasticized, squeezed into a braid, convenient for transportation and sales.

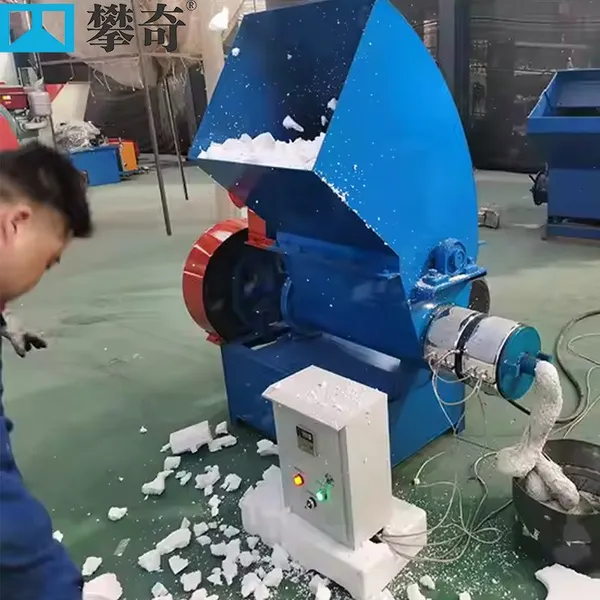

1,Waste foam is fed into a hopper, where high-speed rotating blades cut and pulverize it into fine fragments.
2,The pulverized foam is then pushed towards the outlet by a screw. As the barrel volume gradually decreases, the pressure on the material increases dramatically, generating significant frictional heat between the foam fragments and the barrel/screw.
3,With the assistance of an electric heating coil on the outer wall of the barrel, the temperature rapidly rises to the foam's melting point.
4,The molten viscous liquid is then forcefully extruded from a die at the front of the machine by the screw, forming strips.

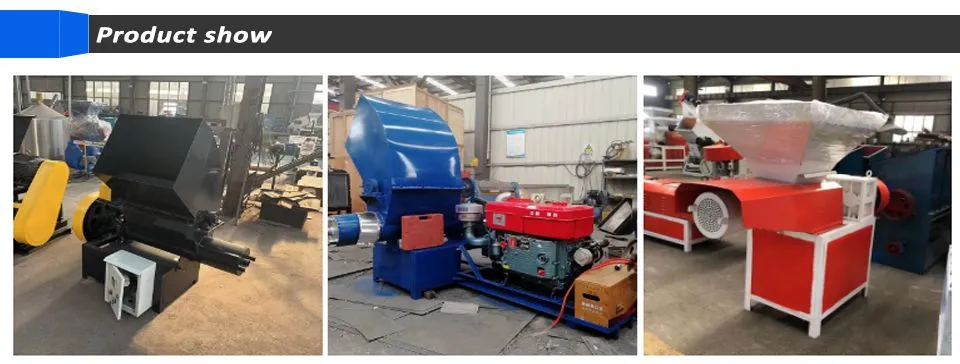

Product Details

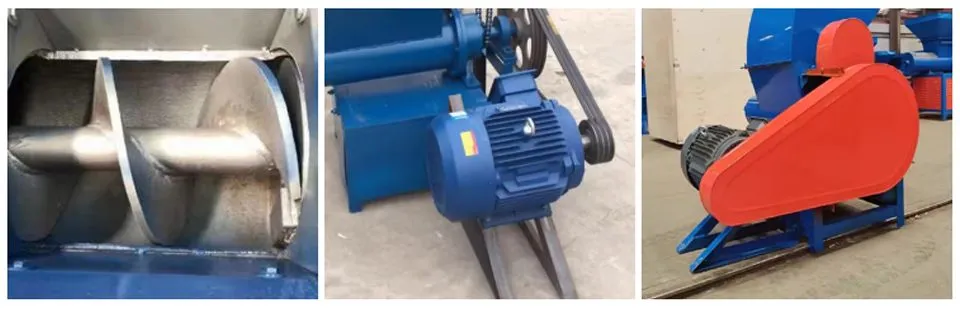

Thickened screws
Thickened screws have deeper grooves or special designs that can hold and transport more foam material, ensuring full and uniform melting and avoiding the appearance of incompletely melted particles
Pure copper motor
It adopts a national standard pure copper motor, which is of high quality, low noise, high temperature resistance, stable
operation, long service life and high load capacity.
protective cover
The protective cover provides a relatively stable environment for the transmission system, reducing temperature fluctuations and
dust accumulation, and helping it maintain optimal operating conditions.
| Model | Motor power (Kw) | Voltage(v) | Production capacity (kg/h) |
| PQ-220 | 15 | 380 | 100-150 |
| PQ-800 | 18.5 | 380 | 150-200 |
| PQ-1000 | 18.5 | 380 | 200-250 |

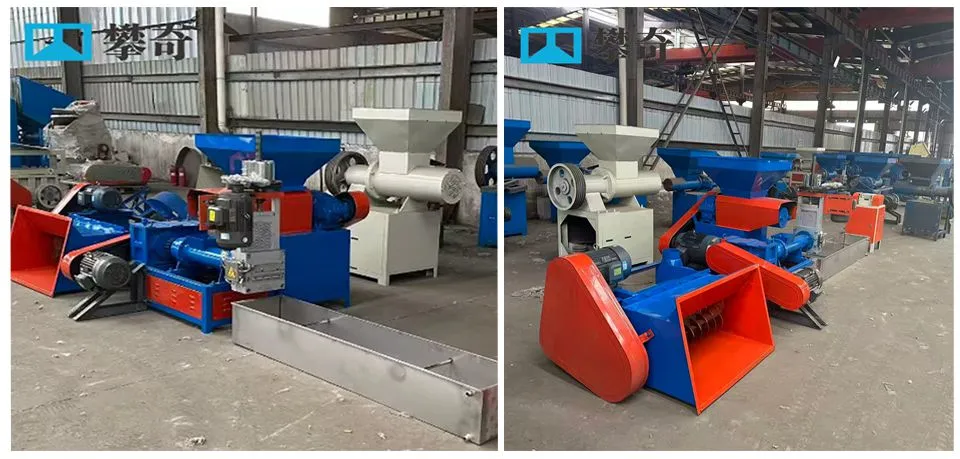

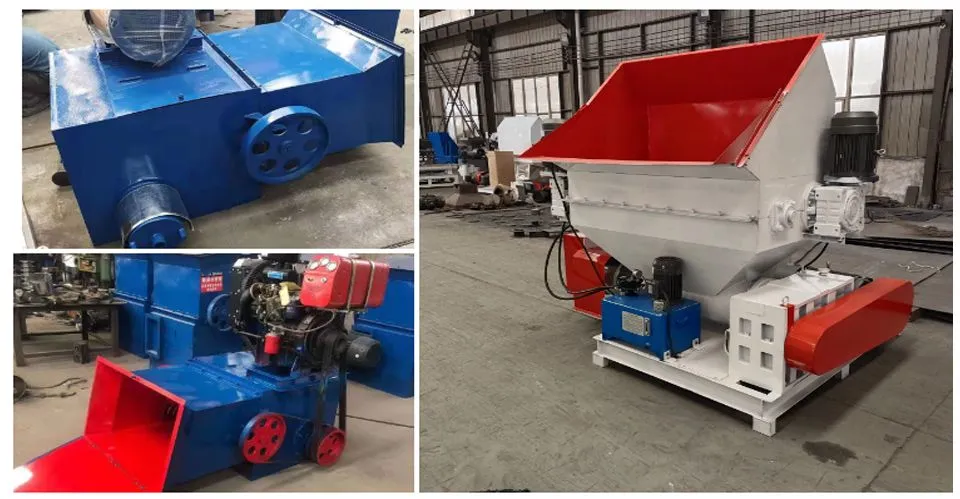

Modular equipment, configured as needed
We specialize in providing complete foam recycling production lines, from pretreatment to deep regeneration, and can flexibly match your specific needs to create a highly efficient and profitable recycling system for you.
We offer one-stop solutions: If you already have some steps in the process, or your business focuses on a particular stage, each of our machines can operate independently:

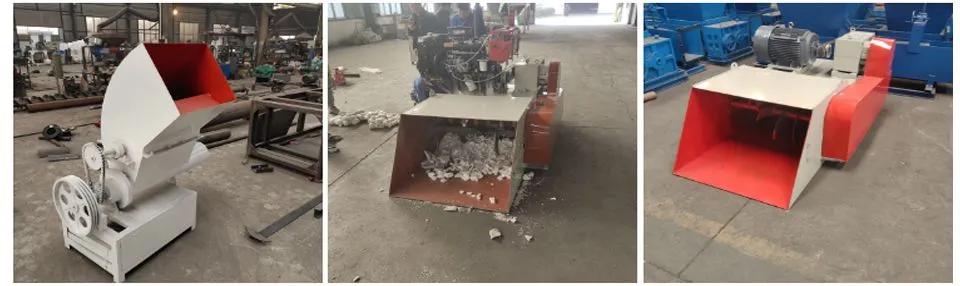

1,Foam Crusher: A powerful tool for crushing lightweight, large pieces of foam
2,Foam Melting Machine: Significantly reduces volume through heating, facilitating storage and transportation
3,Foam Cold Press: Physical compression, energy-efficient, and maintains material properties
4,Foam Granulator: The core conversion equipment, transforming foam into reusable granular raw materials.
Henan Panqi Heavy Industry Technology Co., Ltd.
Henan Panqi Heavy Industry Technology Co., Ltd. is a high-tech enterprise specializing in the R&D, manufacturing, and sales of equipment for the resource recovery and treatment of solid waste. Deeply rooted in the environmental protection machinery field, the company is driven by technological innovation and customer-oriented, committed to providing global customers with efficient, energy-saving, and stable full-line equipment and one-stop system solutions for foam recycling and treatment. Panqi Heavy Industry offers professional equipment for the entire process from foam recycling, volume reduction, to regeneration, with a complete product line covering customers of different sizes and needs. Bestselling products include foam hot melt machines, foam cold press machines, foam crushers, and foam granulators.
Q1.Are you a manufacturer, trading company or a third party?
A:We are a manufacturer, located in Located at Miaowang Road, Xingyang, Zhengzhou,Henan, China. Warmly welcome to visit our company.
Q2: How is the quality of your machines?A: Our products are manufactured strictly according to national and international standards, and each machine undergoes testing before leaving the factory.
Q3: What is your lead time?
A: In-stock items: 7-10 days; Mass production: 15-30 days.
Q4: What is the warranty period?
A: One year.
Q5:Does your company supply spare parts?
A:We provide spare parts at the lowest cost.
