Shanghai Peanut Butter Maker From Genyond Food Processing Machinery
US$ 20500.00
≥1 Set
Key Specifications
Get Latest Price
Warranty:
1 year
Power:
10kw
brand name:
Genyond
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Commercial Peanut Butter Production Line IndustrialUS$ 29000.00MOQ: 1 Set -
Genyond 200kg/H Peanut Butter Making Machine/Almond Production LineUS$ 20100.00MOQ: 1 Set
-
Genyond Grinding Machine Powder Dry Banana/apple Powder Grinding Machinery With Different MeshUS$ 6000.00MOQ: 1 Set
-
Industrial Universal Herb Grinder Automatic Superfine Chilli Grinder Food Powder Spice Grinding MachineUS$ 5090.00MOQ: 1 Set
-
Manufacture Fruit Vegetable Powder Making Machine for Sale Chili Chilli Spices Vegetable Garlic Powder Making Grinding MachineUS$ 6100.00MOQ: 1 Set
Warranty
1 year
brand name
Genyond
dimension(l*w*h)
3500*1500*2200mm
place of origin
Shanghai, China
automatic grade
Automatic
voltage
220v/380v
power
10kw
Capacity
200kg/h, 200kg/h
key machines
Baking Oven, Fryer, Mixer
product type
Grain Products, Vegetables, Fruit
Weight (KG)
1000
Applicable Industries
Food & Beverage Factory
Raw material
Nuts, peanut
Product name
peanut butter making machine
Certification
CE ISO
Advantage
Easy Operation High Efficiency
After-sales Service Provided
Online Support
Final product
peanut butter
Product Description
This peanut butter grinder machine is using different shape of stators and rotors, crushing under the high circumgyration. Grinding the material through cutting, milling, high- frequent-shaking. The distance between stators could be adjusted and grinding by recirculation. This machine has many advantages. Compacted structure, stable working, low noise, rust-proof, easy to clear and maintain.
We can get smooth and fine peanut butter by this machine.

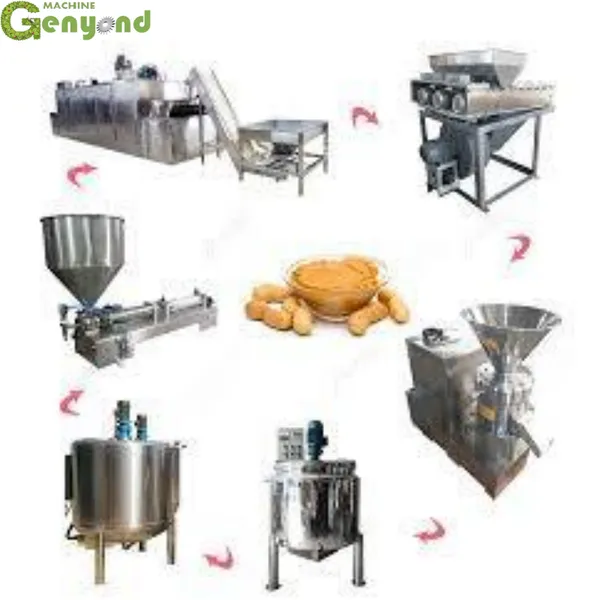

Brief Introduction of each machine:
1, Oven baker: to bake peanuts.
2, Cooling zone: use the principle of pulled out of heat by the fan , cooling the baked peanut.
3, Peeling machine:peeling the peanuts after drying and baking, in the process peanut meat and skin automatically separated to ensure
4, The quality of peanut after peeling.
5, Conveying picking belt: selection of the unqualified peanut and food debris.
6, Coarse grinder: grinding peanuts initially.
7, Ultrafine grinder: after coarse grinding peanuts for further grinding, to further improve the processing fineness.
8, Condensing machine: the cool grinded peanut butter .
9, Gas removing tank: degassing before filling the peanut butter .
10, Filling: The filling and packaging.

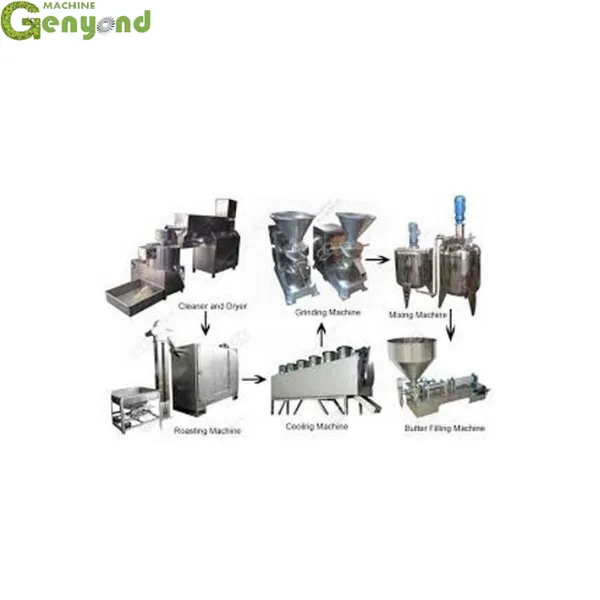

Processing flow chart:
raw materials(peanut) → stone and foreign matters remover → Baking → Cooling→ peeling → picking → coarse grinding → deployment → fine grinding → cooling → degassing → filling .
Equipment list:
Oven baker, cooling zone, peeling machine ,conveying picking belt , coarse grinder , ultrafine grinder , condensing machine , gas removing tank , filling machine .
Product Specification
Model |
GY-PB100 |
GY-PB200 |
GY-PB500 |
GY-PB1500 |
Output size |
2-50 Micro |
2-50 Micro |
2-50 Micro |
2-50 Micro |
Capacity |
100-150kg/h |
200-300kg/h |
500kg/h |
1500kg/h |
Voltage |
380v,50hz |
380v,50hz |
380v,50hz |
380v,50hz |
Power |
8kw |
15kw |
20kw |
30kw |
Die of rotor |
100mm |
130mm |
200mm |
250mm |
Size |
3500*1600*1800mm |
4000*1600*1900mm |
5000*1700*1950mm |
6000*1900*2000mm |
Weight |
800kg |
1000kg |
1500kg |
2000kg |

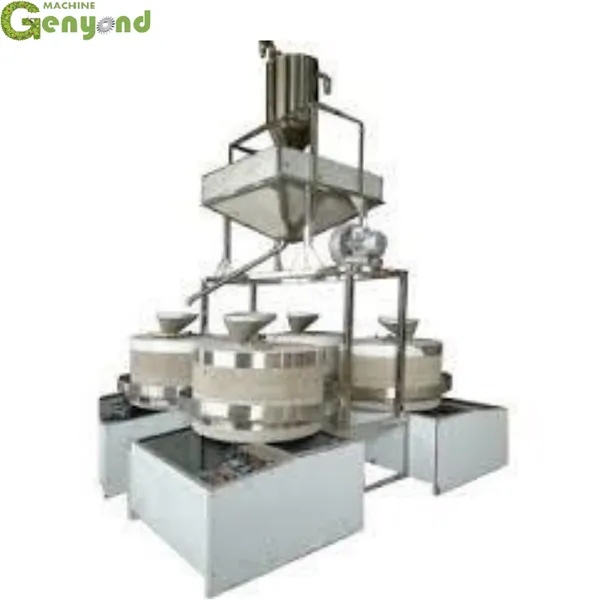

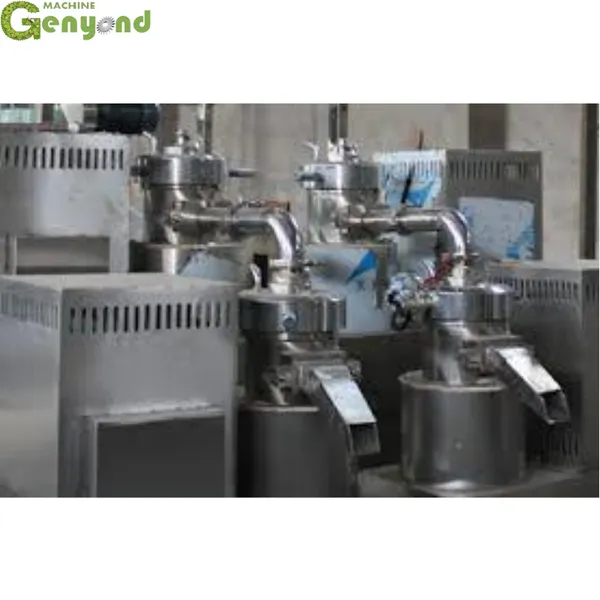

Machine picture
