Help CenterAutomatic 500kg/h Peanut Butter/Paste/Jam Production Line/Processing Machine
Related Products
-
Shanghai Butter Bean Sesame Groundnut Pistachio Peanut Paste Maker Peanut Butter Making Machine PlantUS$ 8000.00MOQ: 1 Set -
Genyond Commercial Peanut Butter Maker Machine/peanuts Butter Production LineUS$ 29100.00MOQ: 1 Set
-
Shangai Small Peanut Butter Making MachineUS$ 9000.00MOQ: 1 Set
-
China Wholesale Custom Fruit Jelly Equipment\jelly Production Process Line\ Coconut Jelly Candy Making Production LineUS$ 89000.00 - 99000.00MOQ: 1 Set
-
Small Scale Peanut Butter Production Plant / Peanut Butter Processing MachineUS$ 47000.00 - 55000.00MOQ: 1 Set

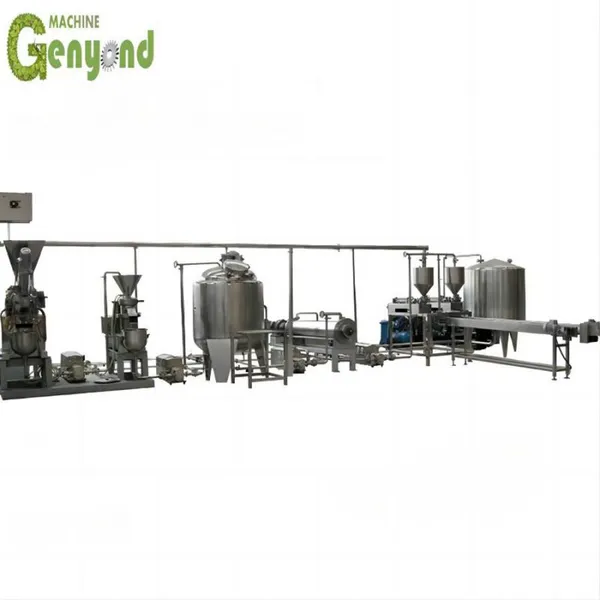

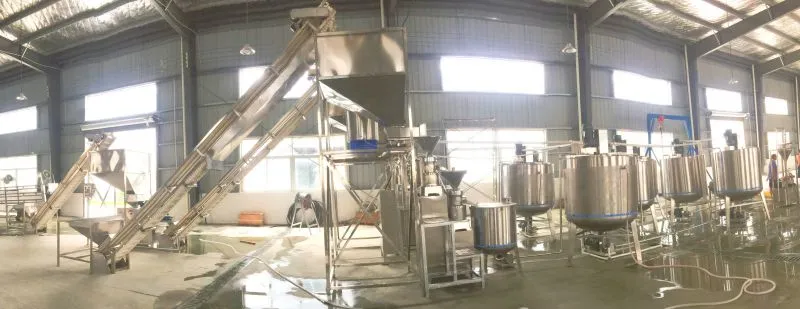

peanut butter production line
Model of the peanut butter processing machine
|
Model |
GY-80 |
GY-130 |
GY-180 |
GY-240 |
|
Output size |
2-50 Micro |
2-50 Micro |
2-50 Micro |
2-50 Micro |
|
Capacity |
30-40kg/h |
200-250kg/h |
400-450kg/h |
1000-1500kg/h |
|
Voltage |
380v,50hz |
380v,50hz |
380v,50hz |
380v,50hz |
|
Power |
4kw |
15kw |
22kw |
37kw |
Flow chart: of peanut butter production line :
Roasting -- Cooling -- Peeling -- Selecting -- Milling -- Mixing -- Cooling -- De-gasing -- filling
Roasting:
Batch roaster’s working temperature is 200-210 ºC, 20-30minutes.
Cooling:
Peanut will be send cooling belt to cool.

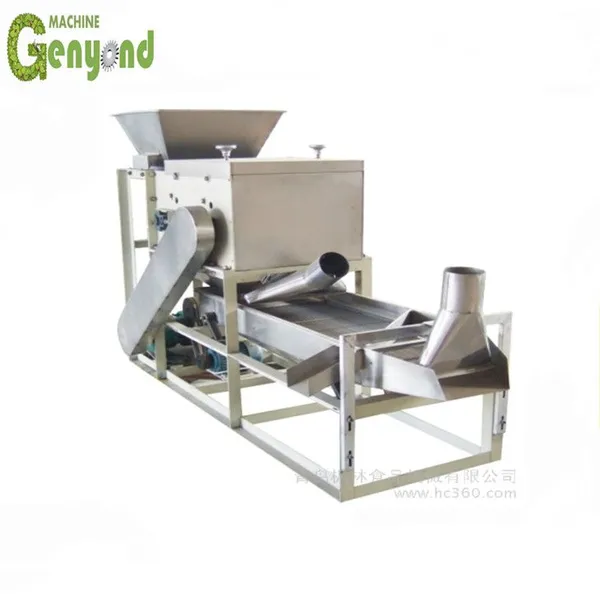

Peeling:
Put the roasted peanuts into peeler to take off the red skin, the double rollers will frication the red skin, the simple cyclone system will suck the red skins, most of them will be put in half-piece, then fall to the selecting conveyor, the over-roasted and un-blanched peanut kernel is picked up by manual or mechanical.
Primary grinding:
Using steel grinder to make the first grinding;
Second grinding:
Using colloid grinder to make the second grinding, the fineness of grinding is
controlled below 7um, temperature of grinding is controlled below 68℃.
Mixing:
Make the butter more homogeneous.
Cooling:
The butter through second grinding should be cooled immediately.
The temperature should go down 45℃.
Degasser:
Take out the air from peanut butter.
Storage tank:
Settling down in the storage tank till the temperature drop to air
temperature.
Packing:
By the filling machine, the finished peanut butter is packed into 200g/500g/1000g bottle.
