Product Display

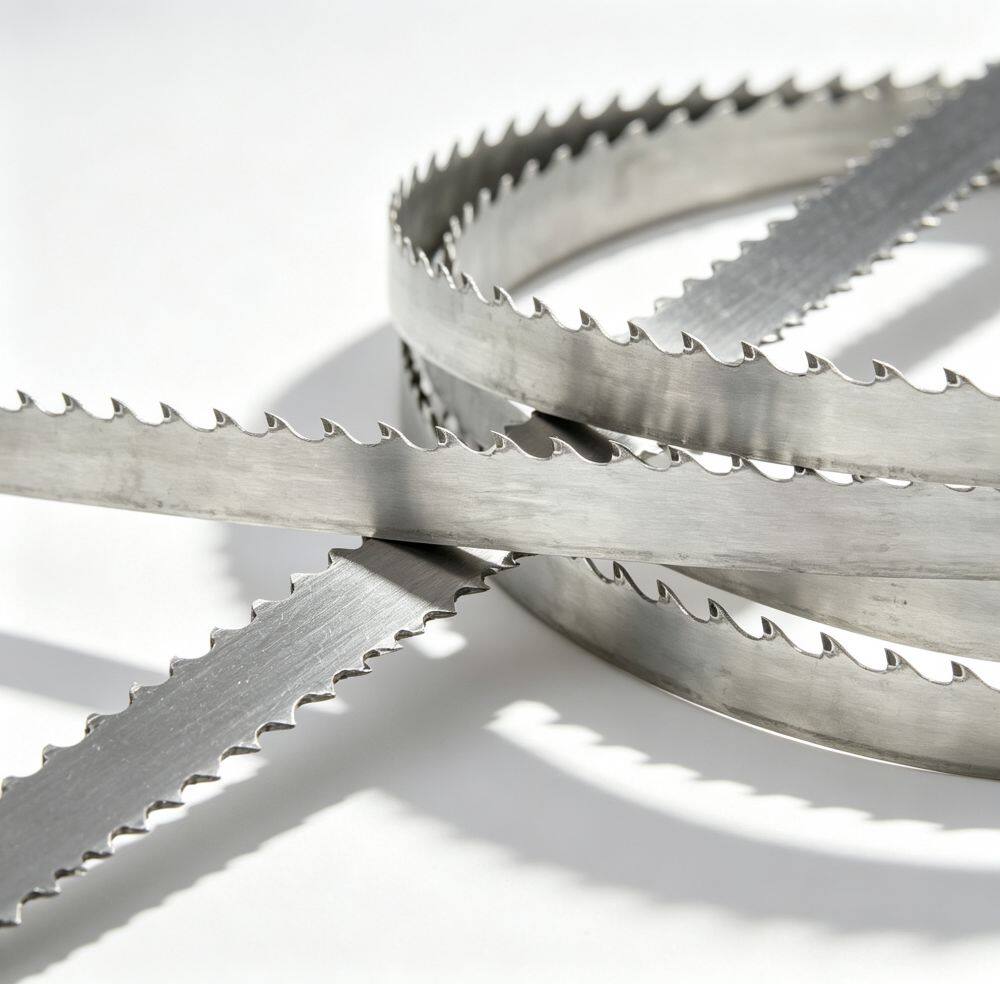

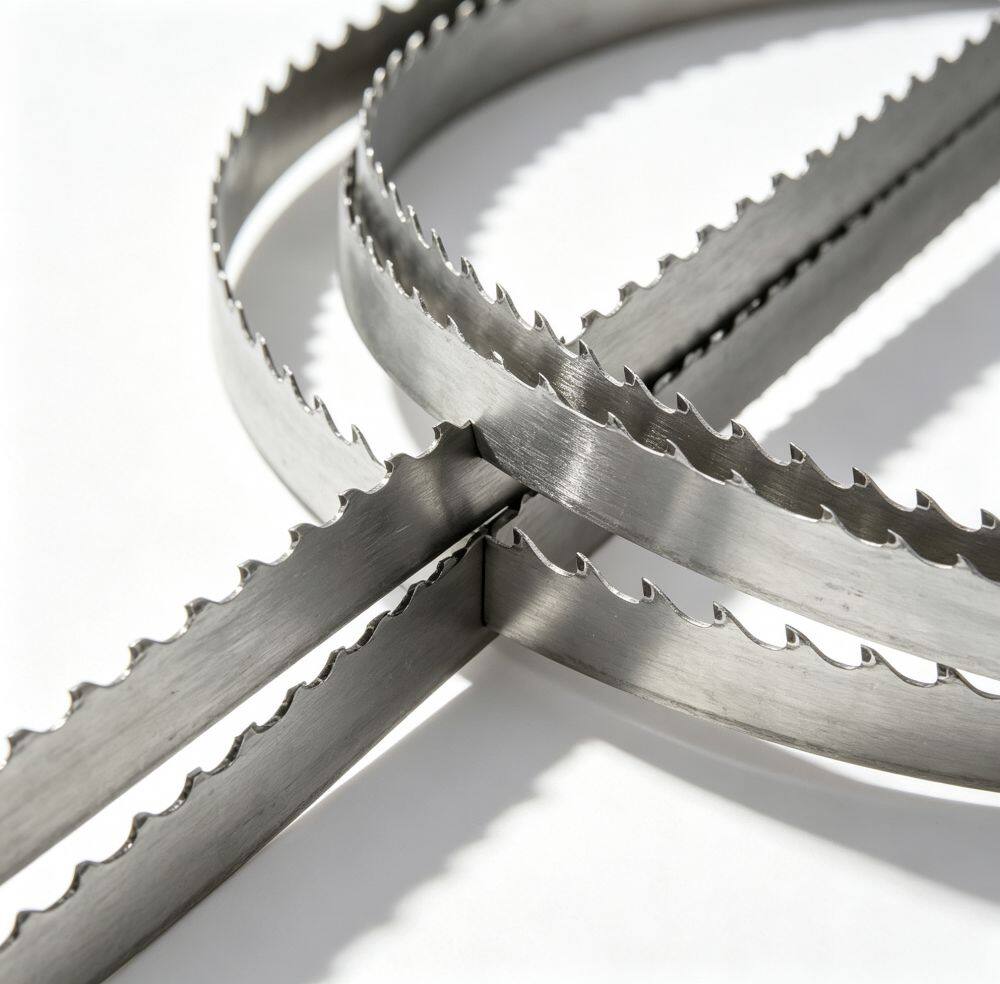

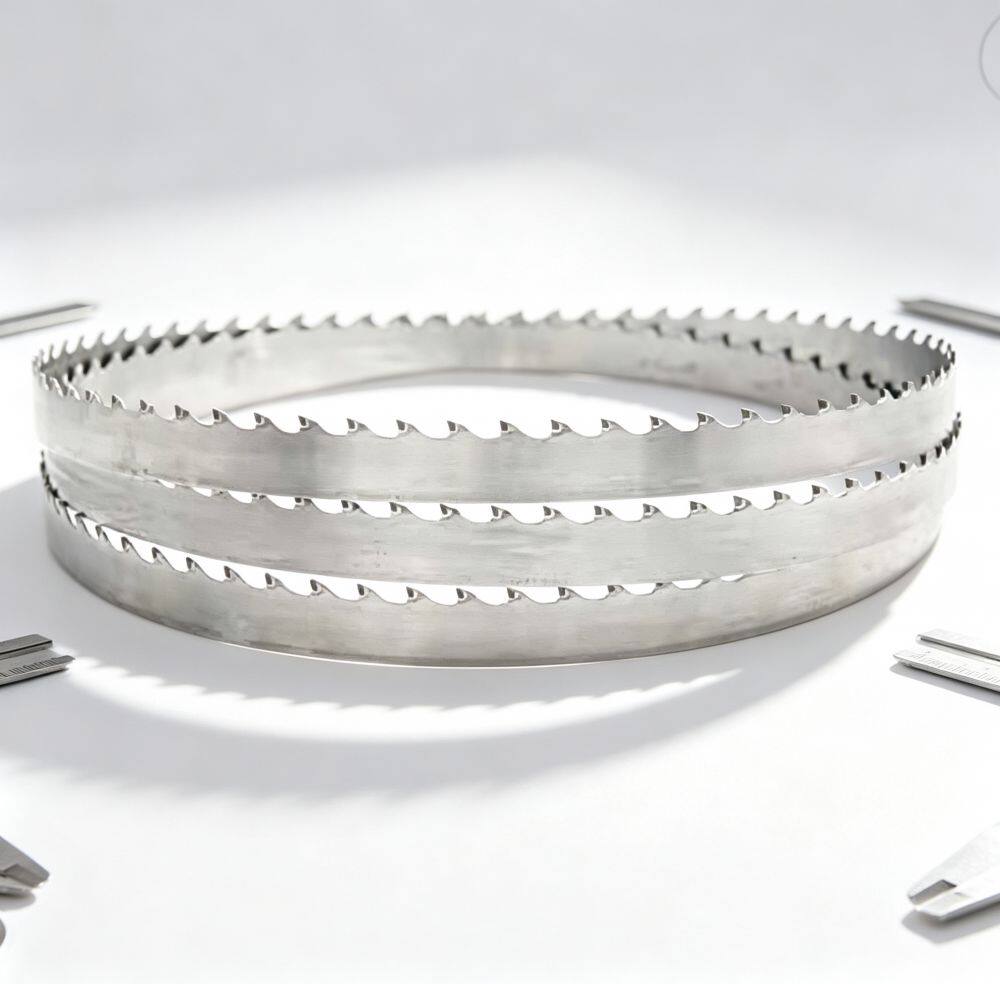

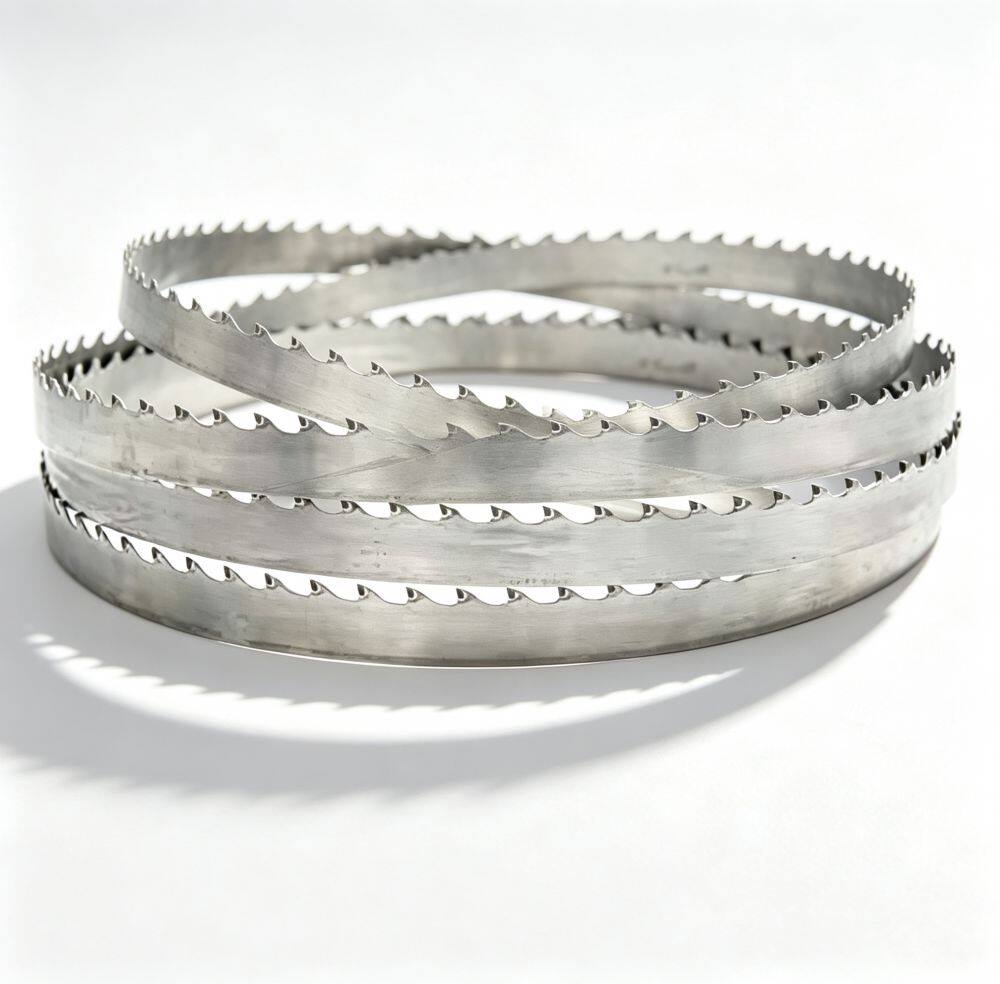

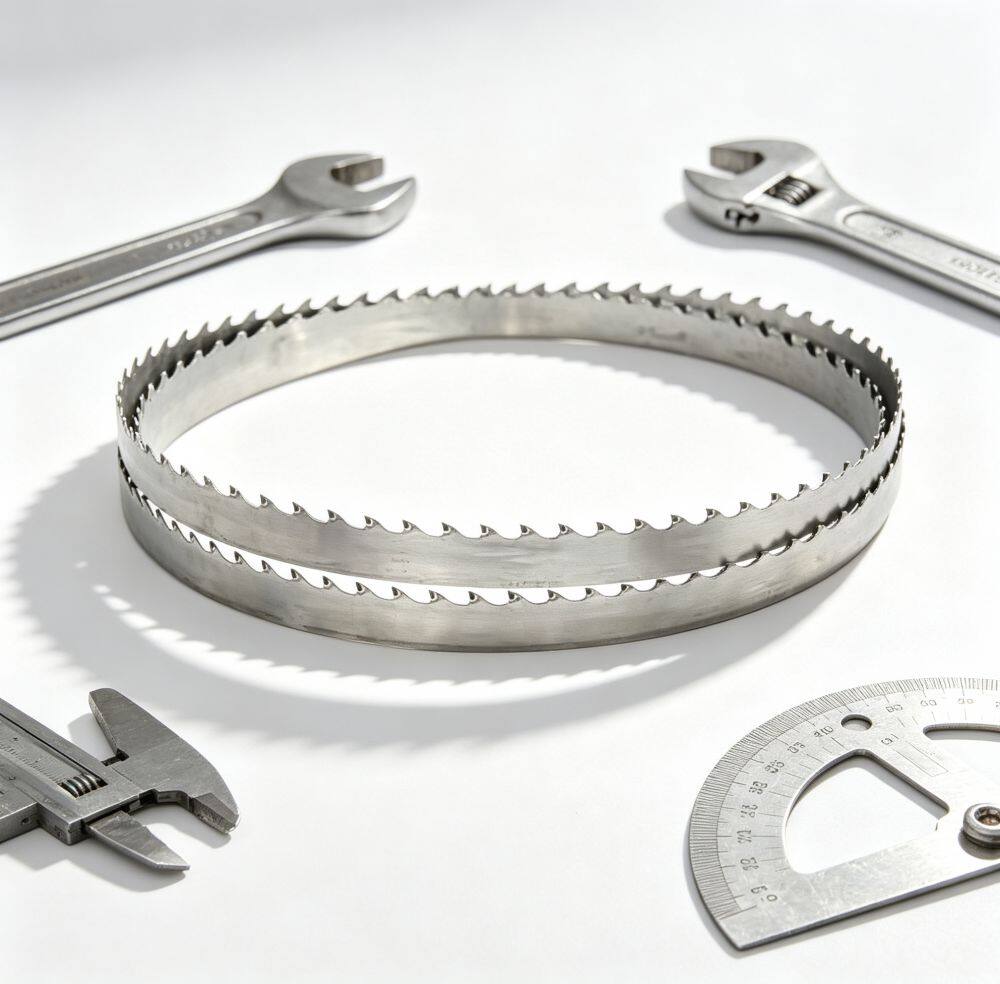

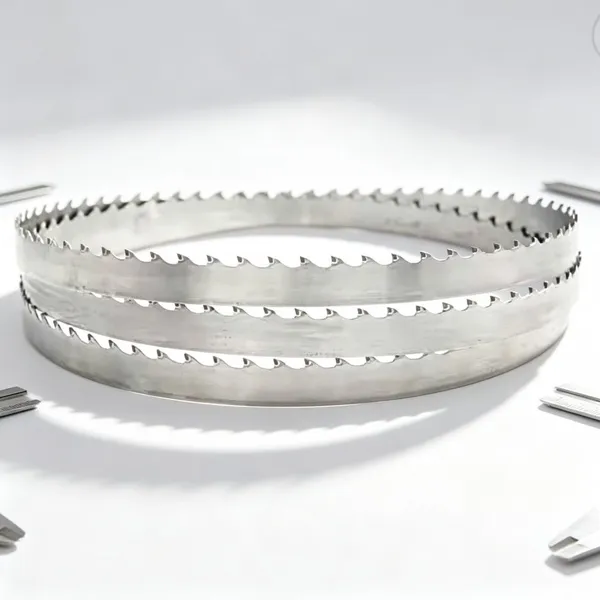

Band Saw Blade for Professional Wood Cutting
Premium quality industrial band saw blade designed for precise and efficient wood cutting operations. Manufactured using high-grade 75Cr1 steel with advanced laser welding technology, this blade delivers exceptional performance and durability for professional woodworking applications.
The blade features precision-ground teeth for clean, smooth cuts with minimal material waste. Standard 4623mm length with 0.9mm width and kerf, compatible with most industrial band saw machines.
Key Attributes
| Attribute | Value |
|---|---|
| Product Name | Band Saw Blade |
| Type | Band Saw Blade |
| Blade Material | 75Cr1 |
| Blade Length | 4623mm |
| Blade Width | 0.9mm |
| Kerf | 0.9mm |
| Application | Wood Cutting |
| Grade | Industrial |
| Process Type | Laser Welded |
| Customized Support | OEM, ODM, OBM |
| Place of Origin | Hebei, China |
| Brand Name | AOMJING |
Technical Specifications
| Parameter | Specification |
|---|---|
| Total Length | 4623mm |
| Blade Width | 0.9mm |
| Blade Thickness (Kerf) | 0.9mm |
| Body Material | 75Cr1 |
| Process Type | Laser Welded |
| Grade | Industrial |
| Maximum Operating Speed | Up to 1500 m/min |
| Recommended Speed | 800-1200 m/min (hardwood), 1000-1500 m/min (softwood) |
| Tooth Hardness | HRC 58-62 |
Lead Time
| Quantity (pieces) | Lead Time (days) |
|---|---|
| 1-10 | 7 |
| 11-100 | 7 |
| 101-200 | 15 |
| >200 | To be negotiated |
Applications
Suitable Materials:
Solid Wood: Hardwood and softwood species including Oak, Maple, Pine, Spruce, Cedar
MDF Board: Standard, moisture-resistant, fire-retardant MDF
Plywood: Softwood plywood, hardwood plywood, marine plywood, birch plywood
Chipboard: Standard and melamine-faced particle board
Ecological Panels: Bamboo composite, recycled wood fiber panels
Melamine Boards: Melamine-faced MDF and chipboard
Industry Applications:
Furniture manufacturing facilities
Woodworking workshops
Sawmills and timber processing plants
Construction industry
DIY and hobbyist projects
Material & Construction
Body Material: 75Cr1 High-Carbon Steel
High carbon content for excellent hardness and edge retention
Chromium addition enhances corrosion resistance and hardenability
Superior fatigue and wear resistance
Optimal toughness resists breakage under impact
Construction Method: Laser Welded
Precision welding with minimal heat-affected zone
Superior joint strength matching base material
Clean finish without spatter or defects
Reliable performance under high-speed operation
Key Features & Advantages
1. Superior Durability
75Cr1 steel provides exceptional wear, fatigue, and impact resistance. Extended blade life reduces operational costs and replacement frequency.
2. Precision Cutting
Laser-welded construction and precision-ground teeth ensure accurate, clean cuts with minimal deviation.
3. Minimal Kerf Loss
0.9mm thin kerf design reduces material waste, maximizing yield from raw materials.
4. Versatile Application
Handles diverse cutting tasks and material types without frequent blade changes.
5. High-Speed Performance
Premium materials and precision manufacturing allow higher operating speeds and increased production output.
Customization Services
OEM Service: Manufacture blades to your specifications and branding
ODM Service: Design and develop blades based on your requirements
OBM Service: Complete private label solutions
Customizable Parameters:
| Parameter | Options |
|---|---|
| Blade Length | 1000mm to 8000mm+ |
| Blade Width | 6mm to 80mm |
| Blade Thickness | 0.4mm to 1.2mm |
| TPI | 3 to 24 TPI |
| Tooth Set | Regular, Wavy, Raker |
Quality Assurance
Material certification with mill test certificates
In-process inspection during production
Dimensional verification at multiple stages
Non-destructive weld quality testing
Performance testing under actual cutting conditions
100% final inspection before packaging
Packaging & Shipping
Standard Packaging:
Coiled and secured with protective bands
Anti-corrosion paper wrapping
Sturdy cardboard boxes or wooden cases
Shipping Information:
| Parameter | Details |
|---|---|
| Port | Tianjin Port, China |
| Incoterms | FOB |
| Payment Terms | T/T |
Safety & Maintenance
Proper Use:
Use blades within specified speed ranges
Ensure proper blade tension before operation
Inspect blades for damage before each use
Maintenance:
Clean blades after each use
Store in dry environment
Inspect for wear or damage regularly
About Manufacturer
Hebei Qiaoran Precision Tools Co., Ltd. is a professional cutting tool manufacturer based in Hebei Province, China. We specialize in high-quality saw blades for industrial applications, serving furniture manufacturers, woodworking workshops, and sawmills worldwide.
