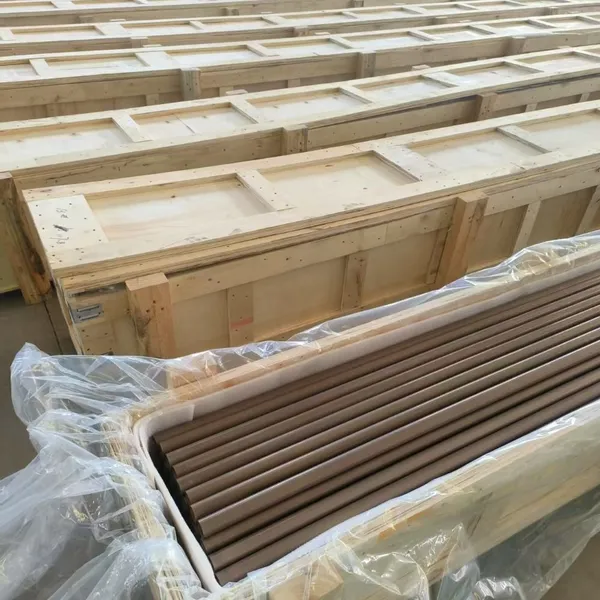

Help CenterC70600 (UNS C70600l) Bar/Plate/Tube/Strip/Wire, Spot Stock & Custom, ASTM B111/B466 Standard, Marine Grade Corrosion Resistant
Product Spotlights
Related Products
-
C71500 Copper Nickel Alloy Bar/Plate/Tube/Strip/Welding Wire, Spot Stock & Custom, ASTM Standard, Marine Corrosion ResistanceUS$ 13 - 40MOQ: 100 Kilograms -
C10100, C10200, C10300, C10400 Pure Copper Bars & Tubes for Electrical Busbars, Heat Exchange Pipes and Vacuum Electronic ComponentsNegotiableMOQ: 1 Metric Ton
-
C10500, C10700, C10800 Silver-Bearing Oxygen-Free Copper Rods & Sheets for Busbars, Semiconductor Heat Sinks and Vacuum ComponentsNegotiableMOQ: 1 Metric Ton
-
C11000, C11020, C11030 Electrolytic Tough Copper Sheets & Rods for Conductive Parts, Stamping Hardware and Heat Exchange FittingsNegotiableMOQ: 1 Metric Ton
-
C11100, C11300, C11400 ETP Copper Strips & Bars for Electrical Conductors, Stamped Hardware and Heat Exchange TubingNegotiableMOQ: 1 Metric Ton
C70600 is the most widely used 90/10 copper‑nickel (cupronickel) alloy, also known as BFe10-1-1 in China. It is a wrought, iron‑modified alloy renowned for its excellent seawater corrosion resistance, good mechanical properties, and cost‑effectiveness.
Nominal Composition (wt%, ASTM B111)
Cu: Balance (≈89%)
Ni + Co: 9.0–11.0% (primary alloying element)
Fe: 1.0–1.8% (critical for erosion‑corrosion resistance)
Mn: 0.5–1.0% (deoxidizer, improves hot workability)
Zn: ≤1.0%
Pb: ≤0.05%
Other impurities: ≤0.5% total
Key Properties
Corrosion Resistance:
Outstanding resistance to seawater, brackish water, and chloride environments; low corrosion rate (
Excellent resistance to erosion‑corrosion, pitting, and biofouling in marine service
Stable protective oxide film formed in seawater
Mechanical Properties (Typical, Annealed O60):
Tensile strength: 275–360 MPa
Yield strength: 105–140 MPa
Elongation: ≥28%
Hardness: 45–75 HB
Cold‑worked (H80): Tensile up to 585 MPa, Yield up to 485 MPa
Physical:
Density: 8.94 g/cm³
Thermal conductivity: ~29 W/(m·K)
Melting range: 1099–1146°C (2010–2095°F)
Good thermal stability up to 300°C
Fabrication:
Excellent cold formability, good hot formability, and excellent weldability
Machinable with standard tooling; suitable for bending, flaring, and deep drawing
Typical Applications
Marine & Offshore: Shipbuilding, seawater cooling systems, condensers, heat exchangers, piping, valves, pumps, and offshore platform components
Desalination: Evaporator tubes and brine heaters
Power Generation: Condenser tubes for power plants
Chemical Processing: Corrosion‑resistant piping and equipment for mild chemical environments
General Engineering: Heat exchangers, plumbing, and fittings requiring seawater resistance
Equivalent Grades & Standards
UNS: C70600
China: BFe10-1-1 (GB/T 5231, GB/T 8890)
Europe: CW352H / CuNi10Fe1Mn (EN 12451)
Germany: 2.0872
Japan: C7060
Standards: ASTM B111, B122, B151, B466; ASME SB111, SB466; EEMUA 146
