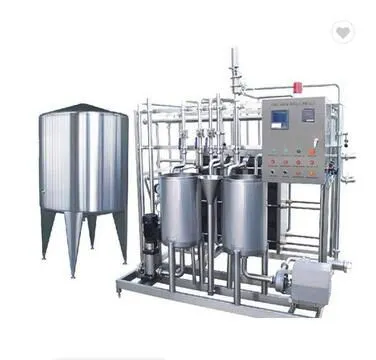

Automatic Sterilized Milk Processing Plant New Used Condition Steam Sterilization Equipment PLC Pump Core Components for Farm
US$ 35000.00
≥1 Set
Key Specifications
Get Latest Price
brand name:
Genyond
place of origin:
Shanghai, China
Application:
Industry
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Pressure Retort Sterilization Equipment for Food FactoriesUS$ 5000.00 - 5500.00MOQ: 1 Set -
New Sterilizer Machine for Food Processing LineUS$ 9000.00 - 9500.00MOQ: 1 Set
-
High Temperature Sterilization GENYOND Brand Sterilizer MachineUS$ 11800.00 - 12200.00MOQ: 1 Set
-
Food Machine Sterilizer Equipment With PLC ControlUS$ 9500.00 - 9900.00MOQ: 1 Set
-
High Quality Retort for Canned Food IndustryUS$ 9500.00 - 10200.00MOQ: 1 Set
brand name
Genyond
place of origin
Shanghai, China
Application
Industry
condition
New
dimension(l*w*h)
5000*3000*8000
key selling points
Automatic
Other Characteristics
Horizontal
power
3.5kw
Sterilization Method
Steam
Temperature range
135°C
voltage
380V
warranty
1 Year
weight
500
After-sales Service Provided
Engineers available to service machinery overseas
Product Overview

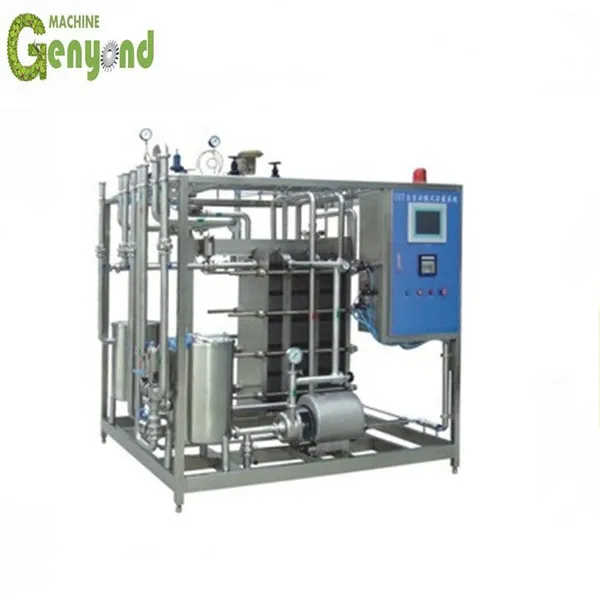

Field of application: In dairy and other liquid food industries. The plate heat exchanger unit is designed for pasteurizing and cooling of milk and juice. The pasteurization temperature is typically 72 – 120C for 12-30s seconds holding.
Standard design: The unit is pre-assembled and tested before it leaves the factory. The installation on site only require
connection to external service such as product inlet and outlet, water, steam, air and electricity.
The unit comprises:
- Frame work
- Set of plate heat exchangers with
Regenerating section
Pasteurization section
Hot water section
Cooling section
- Balance tank
- Product pump
- Holding tube
- Hot water pump
- Control panel with:
PLC controller
Color HMI interface
Alarm for high and low temperature
Alarm for high temperature and low flow in hot water section
Start/stop buttons for pumps
Indicator and record for control of pasteurizing temperature
- Set of internal pipes, valves and fittings
The unit is designed for CIP via recirculation over the balance tank and dosing of chemicals automatically.
Features & Advantages
1.Modular system for complete flexibility
2. Pre-assembled and factory-tested
3. Automatic control
4. Less product loss
5. Integration with existing control system
6. Skid-mounted for flexible relocation
Parameters
Temperature profile: 4°C→65°C→85°C / 15S→10°C→4°C
Standard design: The unit is pre-assembled and tested before it leaves the factory. The installation on site only require
connection to external service such as product inlet and outlet, water, steam, air and electricity.
The unit comprises:
- Frame work
- Set of plate heat exchangers with
Regenerating section
Pasteurization section
Hot water section
Cooling section
- Balance tank
- Product pump
- Holding tube
- Hot water pump
- Control panel with:
PLC controller
Color HMI interface
Alarm for high and low temperature
Alarm for high temperature and low flow in hot water section
Start/stop buttons for pumps
Indicator and record for control of pasteurizing temperature
- Set of internal pipes, valves and fittings
The unit is designed for CIP via recirculation over the balance tank and dosing of chemicals automatically.
Features & Advantages
1.Modular system for complete flexibility
2. Pre-assembled and factory-tested
3. Automatic control
4. Less product loss
5. Integration with existing control system
6. Skid-mounted for flexible relocation
Parameters
Temperature profile: 4°C→65°C→85°C / 15S→10°C→4°C
PRODUCT SPECIFICATIONS
Model |
Capacity |
Heat exchange area(m²) |
Power(kw) |
Steam consumption (kg/h) |
dimension(L×W×H) mm |
Weight (kg) |
GY16-BS-0.5 |
0.5t/h |
5 |
5.2 |
52 |
1200×1200×1500 |
790 |
GY16-BS-1 |
1 t/h |
8 |
5.2 |
60 |
1500×1500×1800 |
880 |
GY16-BS-2 |
2 t/h |
13 |
6 |
104 |
1800×2000×1800 |
980 |
GY26-BS-3 |
3 t/h |
20 |
6 |
156 |
2000×2000×2200 |
1080 |
GY26-BS-4-5 |
4-5 t/h |
30-45 |
8 |
260 |
2250×2000×2200 |
1250 |
GY26-BS-6-8 |
6-8 t/h |
35-50 |
8 |
400 |
2250×2000×2200 |
1250 |
GY26-BS-10 |
10 t/h |
60 |
11 |
520 |
2800×2000×2200 |
1650 |
GY35-BS-15 |
15 t/h |
75 |
11 |
780 |
3000×2200×2200 |
2150 |
GY35-BS-20 |
20 t/h |
80 |
11 |
945 |
3300×2200×2200 |
PRODUCT CONFIGURATION
