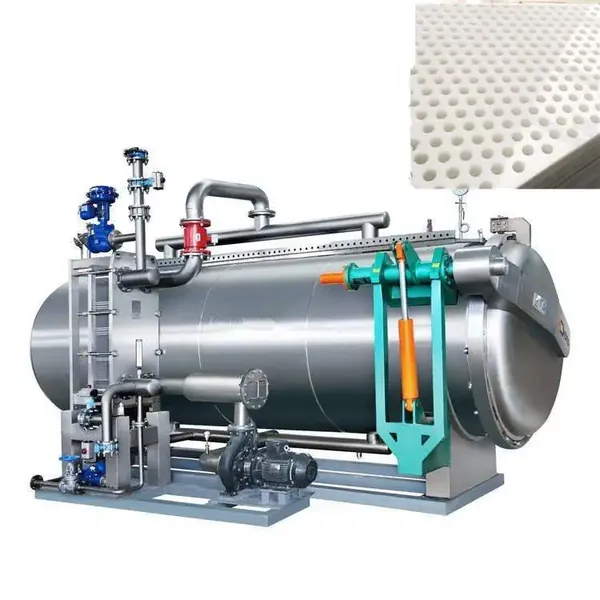

Help CenterShanghai Tin Can Food Mushroom Steam Retort Machine
Related Products
-
Shanghai 25x-Food Sterilizer Autoclave for Tin Can Food Efficient Food SterilizerUS$ 7800.00MOQ: 1 Set -
Shanghai Water Spraying Autoclave Retort Sterilizer for Canned Food Efficient Food Sterilizer Can AutoclaveUS$ 7800.00MOQ: 1 Set
-
Shanghai Customizable Autoclave Sterilization Machine for Food Made for Optimal SterilizersUS$ 7800.00MOQ: 1 Set
-
Shanghai Food Retort Sterilizer Machine With Retort Pouch for Food ProcessingUS$ 50000.00MOQ: 1 Set
-
Shanghai Automatic Double Door Water Bath Retort for Pouch Beverage Sterilization MachineUS$ 50000.00MOQ: 1 Set
Different kinds retort sterilizer, including rotary retort, water immersion retore, shower retort, mutifunctional retort machine
We have many kinds of retort sterilizer:

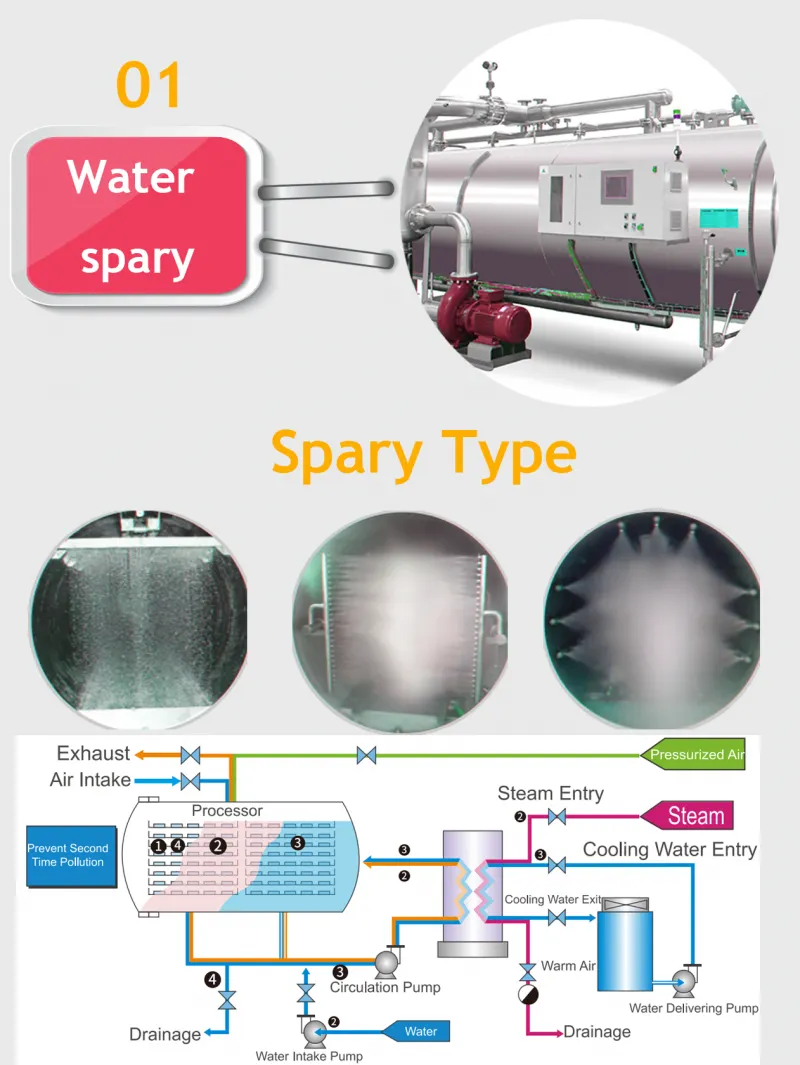

1) Hot water spray retort: the machine performs various types of high-pressuresterilization. Sterilization is achieved through the use of non-atomized
hot waterdroplets. The sterilized comprises a retort that is capable of receiving
multiple trays ofmaterials, a pressurized air intake system for introducing
pressurized airinto the retort, an exhaust system and multiple spray units capable
of sprayingliquid such that at least one spray unit is disposed adjacent
to each tray ofmaterial. It is further defined to include a heat exchanger and
a pump forremoving the liquid from the retort, passing it through the heat exchanger
and deliveringthe liquid to the spray units.
2) rotary retort:
retort sterilizeris specially designed to sterilize foods in pouches and flexible
plasticcontainers such as pop cans, plastic bottles, glass bottles and heating
bags. Showerspray retort sterilizer sprays high pressured hot water to the packaging
food by nozzleslocated at the processing tank.
3) water immersion retort : water imersion retorts are specially
designed tosterilize foods in pouches and flexible plastic containers.
It shall be ensured that all pouches arepositioned in the water flow to give
Features of product :
1.Don't need exhaust,save steam consumping and work without noisy. Save steam 18%(comparing with hot water immersion autoclave and steam autoclave)
2.Do not need heat exchanger,direct heating and direct cooling.Speed up the heating and cooling process. Save the costs for maintenance of heat exchanger.
3.Creat a quiet and comfortable operating environment.
4.Sterilizing process is controlled by F-value.Temperature and time of sterilizing could be adjustable according to the requirement of the differtent food so that maintain the same sterilizing effects.
5.Four pieces of mobile deteciting probe are equipped with the autoclave,operators can monitor the F-value of food center and exam the heat distribution inside the autoclave, get the time when tempreature reach the center of food from its surface at any time(heat penetration)
Model list
|
Model |
GY-PL-09 |
GY-PL-10 |
GY-PL-12 |
GY-PL-14 |
GY-PL-15 |
|||||||
|
Chamber Length (mm) |
900 |
1800 |
1800 |
2400 |
2700 |
1800 |
2700 |
3600 |
4000 |
4000 |
5000 |
6000 |
|
CaPacity (m3) |
0.78 |
1.35 |
1.80 |
2.16 |
2.4 |
2.60 |
3.70 |
4.80 |
6.89 |
7.97 |
9.73 |
11.50 |
|
Body Thickness (mm) |
4 |
4 |
4 |
4 |
4 |
5 |
5 |
5 |
6 |
6 |
6 |
6 |
|
Installed Power (kw) |
6 |
7 |
8.5 |
10 |
12 |
13.5 |
15.5 |
18.5 |
26 |
26 |
37 |
45 |
|
Designing Pressure (mpa) |
0.35 |
0.35 |
0.35 |
0.35 |
0.35 |
0.35 |
0.35 |
0.35 |
0.35 |
0.35 |
0.35 |
0.35 |
|
Designing Temp. (°C) |
147 |
147 |
147 |
147 |
147 |
147 |
147 |
147 |
147 |
147 |
147 |
147 |
|
Voltage (v) |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
|

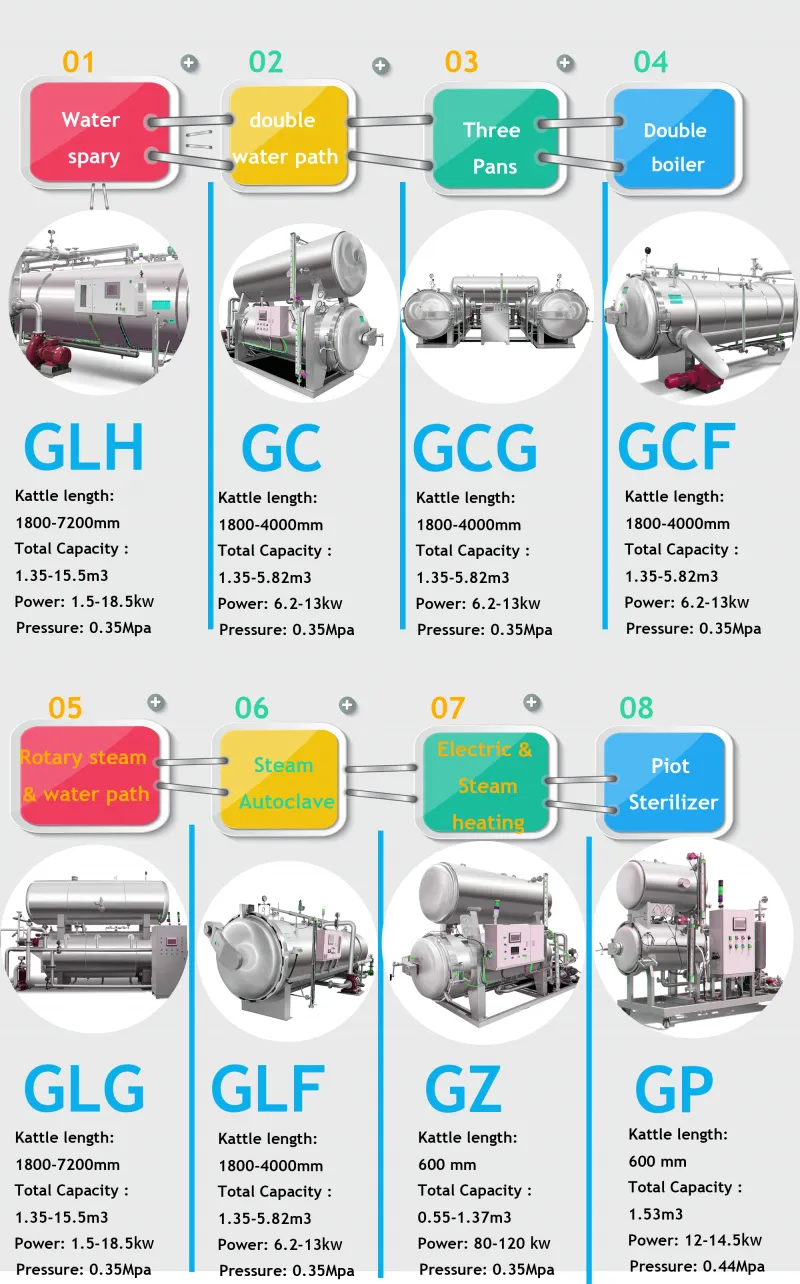

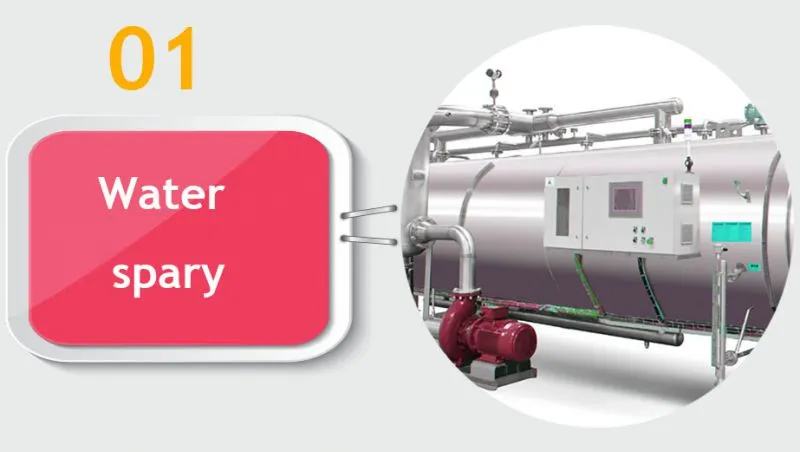

01 Water spray type retort Application:
Can be used for all kinds of heat-resistant packing material: I. Plastic container: pp bottles, HDPE bottles II. Soft package: aluminum foil bag, transparent bag, vacuum bag, high temperature cooking bag etc III. Metal container: tin cans, aluminum can. IV. Glass products. |
|

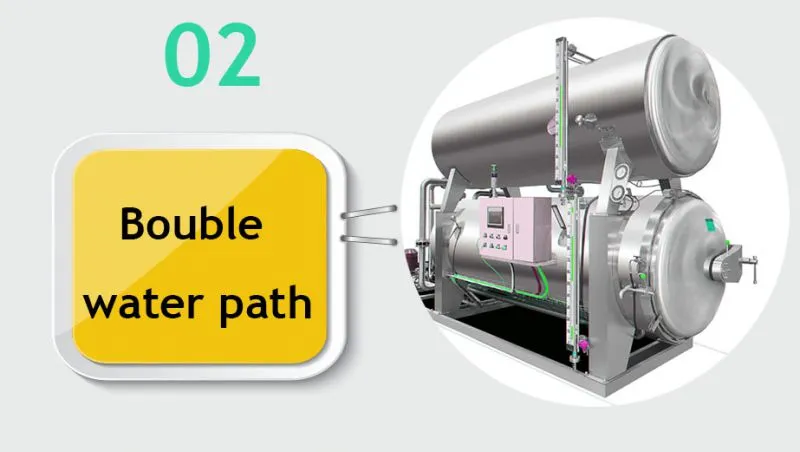

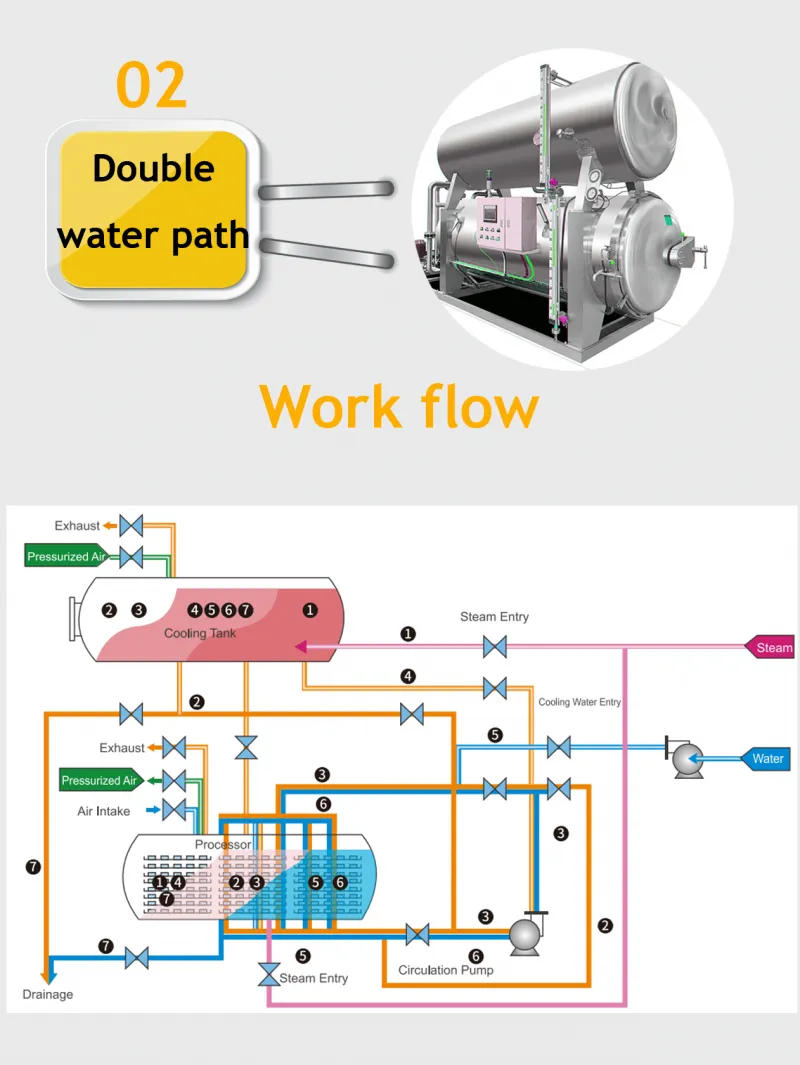

| 02 Double water-bath type retort scope of application: I. Metal container: tinplate cans, aluminum can, PE Bottle II. Flexible packaging products: aluminum foil bags, high-temperature cooking bag. |
|

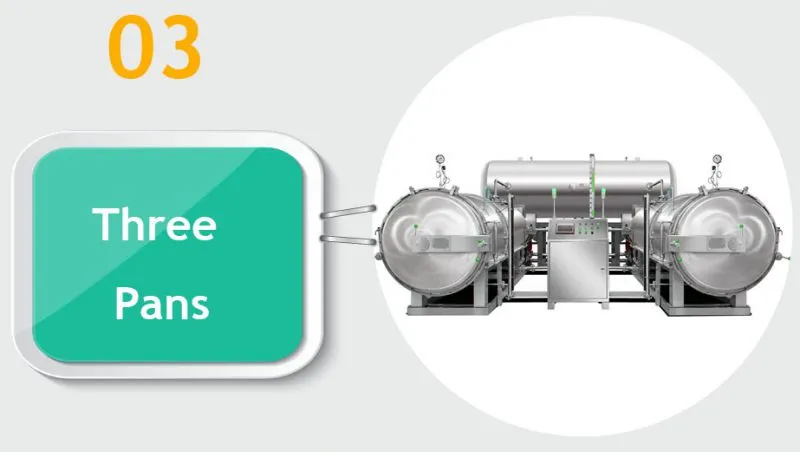

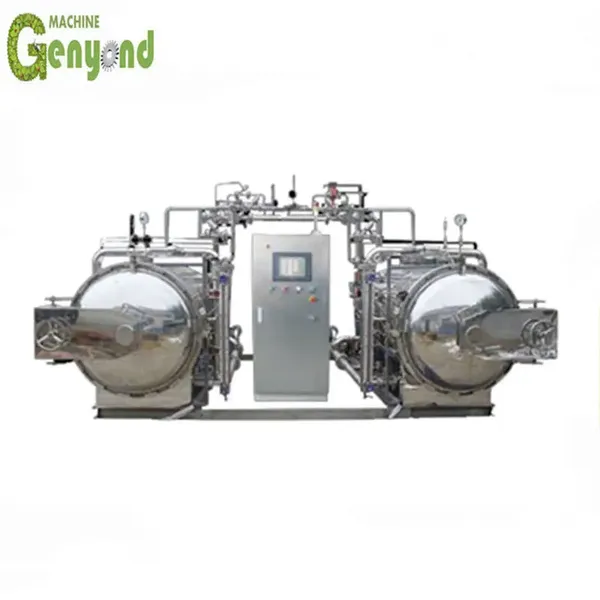

| 03 Three pan series water-bath type retort scope of application: I. Metal container: tinplate cans,aluminum can,PE Bottle. II. Flexible packaging products: aluminum foil bags, high-temperature cooking bag. |
|
|
04 Automatic continus corn sterilization pot scope of application
Frozen corn |
|
|
05 steam rotary retort Application scope:
Metal containers: tin cans. Plastic containers: plastic bowl. |
|
| 06 Steam autoclave retort application: Metal containers: tin cans. Plastic containers: plastic bowl. |
|
| 07 Electric Heating Spraying Type High Temperature And High Pressure Sterilizing Kettle Glass container Metal container Plastic container Soft bag packing |
|
| 08 Piot Sterilizer Laboratory type Application: Glass container Metal container Plastic container Soft bag packing |
|
