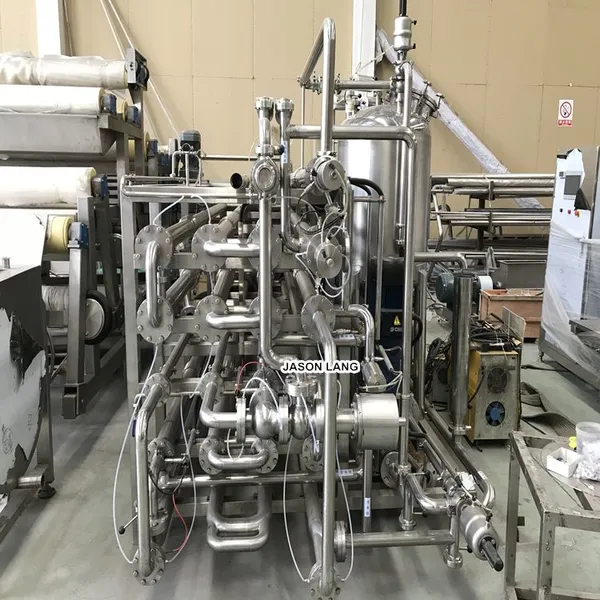

Fruit Juice Uht Tubular Sterilizer/ Fruit Paste Tube in Tube Sterilizer Hot Selling
US$ 10200.00
≥1 Set
Key Specifications
Get Latest Price
Material:
304 Stainless Steel
Type:
Tube Sterilizer
processing:
Sterilizer
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Genyond 316 Stainless Steel Coconut Uht Tube Pasteurizer Juice Sterilization Machine Tubular SterilizerUS$ 10150.00MOQ: 1 Set -
Shanghai Factory Tube Uht Farm Dairy Sterilizer for SaleUS$ 10090.00MOQ: 1 Set
-
Stable Bracket UHT Pasteurizer Sterilizer Used Dairy Milking Equipment Milk Pasteurization MachineUS$ 19000.00MOQ: 1 Piece
-
316 Stainless Steel 57L HPP High Pressure Juice Process Sterilization MachineUS$ 483070.00MOQ: 1 Set
-
Manufacturer Vertical Autoclave Sterilizer 50l 75l 100l 150 Liter Medical Sterilization Equipment for Laboratory Canned SterilizerUS$ 19000.00MOQ: 1 Piece
processing
Sterilizer
video outgoing-inspection
Provided
machinery test report
Provided
core components
PLC, Motor, Pump
place of origin
Shanghai, China
brand name
Genyond
model number
GY-TS
Processing Type
Milk
voltage
220V/380V
weight
1000 KG
dimension(l*w*h)
3000*1800*2200mm
warranty
1 Year
Product name
Tubular Sterilizer
Name
Uht Milk Sterilization Machine
Capacity
1000-5000L/H
Keywords
Uht Milk Sterilizer Machine
Suitable For
Milk, Juice
Advantage
Low Consumption High Efficiency
Certificate
CE
Application
Milk Products
Product Description
Introduction:
This equipment is suitable for continuous sterilization of fruit juice, tea beverage, milk beverage or similar materials. It can conduct high temperature instantaneous sterilization on the materials, and carry out rapid sterilization in a very short time, so as to ensure that the nutrients of the materials are not damaged or lost, and the color of the products does not change.
The main body of the tube sterilization system is divided into heat recovery section, preheating section, sterilization temperature holding section and cooling section. The whole sterilization process is fully automatic control, and the sterilization temperature can be set flexibly by human-computer interface. During the production, the temperature difference between the upper and lower sterilization temperature should not exceed 0.5 ℃. It is equipped with a pressure multifunctional tank, which can buffer materials and backflow during production, and can be used as CIP cleaning tank after production.
The equipment adopts high-end configuration, easy to operate, set sterilization parameters, one key operation. The sterilization process is completed automatically without human intervention. With CIP / SIP system, the pipeline is sterilized at 125 ℃ after sterilization before production. All joints and connection points of sterilizer pipe are aseptic protected to ensure product quality strictly. With heat recovery system, it can save 30% energy than the same type of equipment. The material pipeline is connected by flange.
Usages:
Suitable for milk, juice drinks, alcohol and other heat-sensitive liquid heating, sterilization, insulation and cooling process requirements.
Specific Scope: dairy products, yogurt, soy milk, sterilized milk, ice cream, UHT milk, tea drinks, purified water, juice drinks, functional beverages, vegetable protein drinks, carbonated beverages, syrups, beer, wine, soy sauce, vinegar and so on.
Processing Flow
Technical flow design:
For aseptic filling: 5ºC→65ºC(homogenizer)→137ºC(3-5S)→20ºC-25ºC.
For hot filling:5ºC→65ºC(homogenizer)→115ºC/125ºC(5-15S)→88ºC-90ºC
For normal filling:5ºC→65ºC(homogenizer)→115ºC/125ºC(5-15S)→75ºC-78ºC
Application
This machine is used to perform continuous sterilization on juice and beverage, milk, and similar products.
This system can be connected with homogenizer and degasser.
Tubular sterilizer performs the hot processing on the liquid foods and beverage.
Features
Compared to the other model, it has the following characteristics:
1. High heat efficiency, 90% of heat can be reused after the product be processed;
2. Temperature difference between the product and the heating medium is small, so the heating is even; the heating tubular adopts wave pipes, the material and the medium are both in flow;
3. It is full automatic, can automatically control the CIP cleaning, self sterilizing, and the whole procedures steps; all the
procedures are recorded and controllable.
4. It is precise and reliable in sterilizing temperature control; all the affecting factors such as steam pressure, steam flow
rate, product flow rate are all controllable;
5. The inner layer of the product tube adopts advanced polish procedure, all tubes are designed and made to support fully
cleaning, self sterilizing ensures the system at aseptic state;
6. The system is strong safety, the fittings all adopts good performance and quality reliable materials,it is designed to value the safety of both operator and machine;
7. The main parts such as product pump, hot water pump, all kinds of valves, elements of the electrics are all of world known brands.. With self sterilize system;
For aseptic filling: 5ºC→65ºC(homogenizer)→137ºC(3-5S)→20ºC-25ºC.
For hot filling:5ºC→65ºC(homogenizer)→115ºC/125ºC(5-15S)→88ºC-90ºC
For normal filling:5ºC→65ºC(homogenizer)→115ºC/125ºC(5-15S)→75ºC-78ºC
Application
This machine is used to perform continuous sterilization on juice and beverage, milk, and similar products.
This system can be connected with homogenizer and degasser.
Tubular sterilizer performs the hot processing on the liquid foods and beverage.
Features
Compared to the other model, it has the following characteristics:
1. High heat efficiency, 90% of heat can be reused after the product be processed;
2. Temperature difference between the product and the heating medium is small, so the heating is even; the heating tubular adopts wave pipes, the material and the medium are both in flow;
3. It is full automatic, can automatically control the CIP cleaning, self sterilizing, and the whole procedures steps; all the
procedures are recorded and controllable.
4. It is precise and reliable in sterilizing temperature control; all the affecting factors such as steam pressure, steam flow
rate, product flow rate are all controllable;
5. The inner layer of the product tube adopts advanced polish procedure, all tubes are designed and made to support fully
cleaning, self sterilizing ensures the system at aseptic state;
6. The system is strong safety, the fittings all adopts good performance and quality reliable materials,it is designed to value the safety of both operator and machine;
7. The main parts such as product pump, hot water pump, all kinds of valves, elements of the electrics are all of world known brands.. With self sterilize system;
Product Specification
Model |
Capacity |
Sterilization temperature |
Power |
Voltage |
GY-TS500 |
500L/H |
65~130℃ |
5kw |
220V/380V |
GY-TS1000 |
1000L/H |
65~130℃ |
10kw |
220V/380V |
GY-TS2000 |
2000L/H |
65~130℃ |
15kw |
220V/380V |
Details Images
