Different kinds retort sterilizer, including rotary retort, water immersion retore, shower retort, mutifunctional retort.
We have many kinds of retort sterilizer:

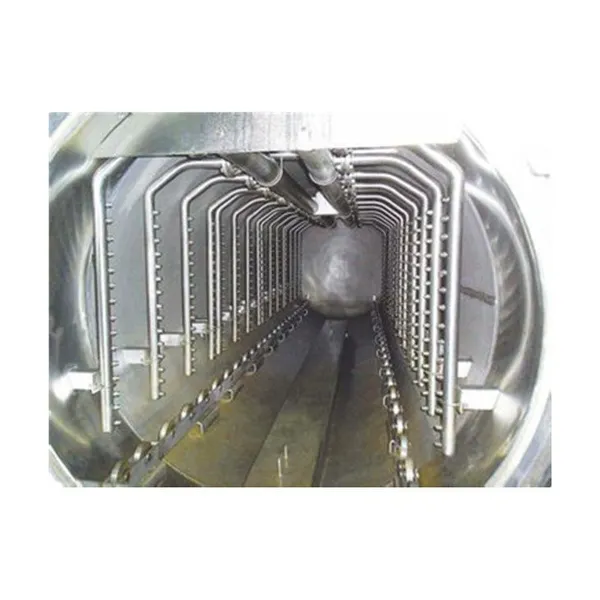

1) Hot water spray retort: the machine performs various types of high-pressuresterilization. Sterilization is achieved through the use of non-atomized
hot waterdroplets. The sterilized comprises a retort that is capable of receiving
multiple trays ofmaterials, a pressurized air intake system for introducing
pressurized airinto the retort, an exhaust system and multiple spray units capable
of sprayingliquid such that at least one spray unit is disposed adjacent
to each tray ofmaterial. It is further defined to include a heat exchanger and
a pump forremoving the liquid from the retort, passing it through the heat exchanger
and deliveringthe liquid to the spray units.
2) rotary retort:
retort sterilizeris specially designed to sterilize foods in pouches and flexible
plasticcontainers such as pop cans, plastic bottles, glass bottles and heating
bags. Showerspray retort sterilizer sprays high pressured hot water to the packaging
food by nozzleslocated at the processing tank.
3) water immersion retort : water imersion retorts are specially
designed tosterilize foods in pouches and flexible plastic containers.
It shall be ensured that all pouches arepositioned in the water flow to give
Features of product :
1.Don't need exhaust,save steam consumping and work without noisy. Save steam 18%(comparing with hot water immersion autoclave and steam autoclave)
2.Do not need heat exchanger,direct heating and direct cooling.Speed up the heating and cooling process. Save the costs for maintenance of heat exchanger.
3.Creat a quiet and comfortable operating environment.
4.Sterilizing process is controlled by F-value.Temperature and time of sterilizing could be adjustable according to the requirement of the differtent food so that maintain the same sterilizing effects.
5.Four pieces of mobile deteciting probe are equipped with the autoclave,operators can monitor the F-value of food center and exam the heat distribution inside the autoclave, get the time when tempreature reach the center of food from its surface at any time(heat penetration)
Model list
|
Model |
GY-PL-09 |
GY-PL-10 |
GY-PL-12 |
GY-PL-14 |
GY-PL-15 |
|||||||
|
Chamber Length (mm) |
900 |
1800 |
1800 |
2400 |
2700 |
1800 |
2700 |
3600 |
4000 |
4000 |
5000 |
6000 |
|
CaPacity (m3) |
0.78 |
1.35 |
1.80 |
2.16 |
2.4 |
2.60 |
3.70 |
4.80 |
6.89 |
7.97 |
9.73 |
11.50 |
|
Body Thickness (mm) |
4 |
4 |
4 |
4 |
4 |
5 |
5 |
5 |
6 |
6 |
6 |
6 |
|
Installed Power (kw) |
6 |
7 |
8.5 |
10 |
12 |
13.5 |
15.5 |
18.5 |
26 |
26 |
37 |
45 |
|
Designing Pressure (mpa) |
0.35 |
0.35 |
0.35 |
0.35 |
0.35 |
0.35 |
0.35 |
0.35 |
0.35 |
0.35 |
0.35 |
0.35 |
|
Designing Temp. (°C) |
147 |
147 |
147 |
147 |
147 |
147 |
147 |
147 |
147 |
147 |
147 |
147 |
|
Voltage (v) |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly.
A satisfying project will be given; A long-term cooperation will come.
