High Quality Industrial Freeze Dryer Machine
US$ 13000.00
1 - 4 Set
US$ 12500.00
≥5 Set
Key Specifications
Get Latest Price
Type:
Vacuum Freeze-drying Equipment
type:
Vacuum Drying Equipment
Drying Capacity (kg):
10, 5, 15, 25, 30, 20
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stainless Steel Food Vegetable Fruit Dehydrator Machine for SaleUS$ 11500.00 - 11800.00MOQ: 1 Set -
GENYOND Brand CE Certificate Freeze Dryer MachineUS$ 11800.00 - 12200.00MOQ: 1 Set
-
Low-energy Freeze Dryer Machine for Fruit and VegetableUS$ 12500.00 - 12800.00MOQ: 1 Set
-
Food Vegetable Fruit Dehydrator Freeze Dryer Machine for PromotionUS$ 12800.00 - 13200.00MOQ: 1 Set
-
CE Certificate Vacuum Drying Equipment for Food IndustryUS$ 10000.00 - 12580.00MOQ: 1 Set
type
Vacuum Drying Equipment
Drying Capacity (kg)
10, 5, 15, 25, 30, 20
application
Food Processing
place of origin
Shanghai, China
brand name
GENYOND
voltage
220 V, 380 V, 110 V, 480 V
power(w)
300 W
dimension(l*w*h)
2150*1280*2000MM
key selling points
Automatic, Multifunctional, High Safety Level, Competitive Price, Energy Saving
warranty
1 Year
weight (kg)
200
machinery test report
Provided
video outgoing-inspection
Provided
core components
Bearing, Pump, Gear
heating method
Gas Heating, Electric Heating, Steam Heating, Oil Heating
material
SUS304, SUS304L, SUS316, SUS316L
Operating System Language
English
Product name
Dryer Machine
Name
Industrial Freeze Dryer Machine
Function
Food Vegetable Fruit Dehydrator
After-sales Service Provided
Online Support
Dryig process
Continuous Automatic Drying
MOQ
1 Set
Certification
CE Certificate
Package
Wooden Case
Brand
GENYOND
Product Introduce

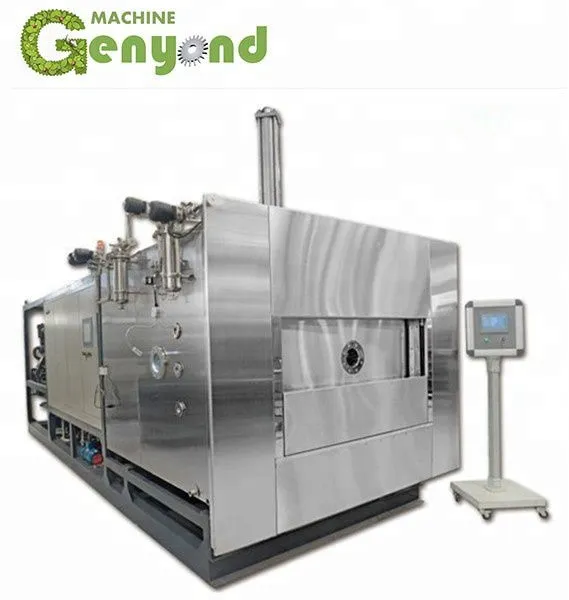

High Quality Industrial Freeze Dryer Machine
1.Drying adopts radiation heat exchange, with uniform temperature and high heat exchange efficiency; Conduction heating method without directly placing product trays on heating plates
4.Short downtime between drying batches and increased production output.
5.The condensation capacity of cold hydrazine remains constant, and the ice layer of cold hydrazine remains at 3-5mm, resulting in high condensation efficiency and low energy consumption;
2.The raw materials are pre frozen to below -18 ℃ using an external dedicated quick freezing device; Directly freezing without using the internal heat transfer shelf of the tank;
3.The multi cold hydrazine system ensures the lowest operating cost of the equipment.
4.Short downtime between drying batches and increased production output.
5.The condensation capacity of cold hydrazine remains constant, and the ice layer of cold hydrazine remains at 3-5mm, resulting in high condensation efficiency and low energy consumption;
Product Specification
Specification |
LG-1 |
LG-5 |
LG-10 |
LG-20 |
LG-30 |
LG-50 |
LG-100 |
Shelf area |
1 ㎡ |
5 ㎡ |
10 ㎡ |
20 ㎡ |
30 ㎡ |
50 ㎡ |
100 ㎡ |
Input capacity |
10kg |
50kg |
100kg |
200kg |
300kg |
500kg |
1000kg |
Shelf number(Layers) |
4+1 |
6+1 |
8+1 |
8+1 |
13+1 |
15+1 |
15+1 |
Shelf spacing |
60mm |
60mm |
65mm |
80mm |
90mm |
90mm |
90mm |
Max. Water capture/batch |
≥60kg/h |
≥60kg/h |
≥120kg/h |
≥200kg/h |
≥500kg/h |
≥800kg/h |
≥1600kg/h |
Cooling water |
/ |
10m³/h |
20m³/h |
40m³/h |
60m³/h |
80m³/h |
160m³/h |
