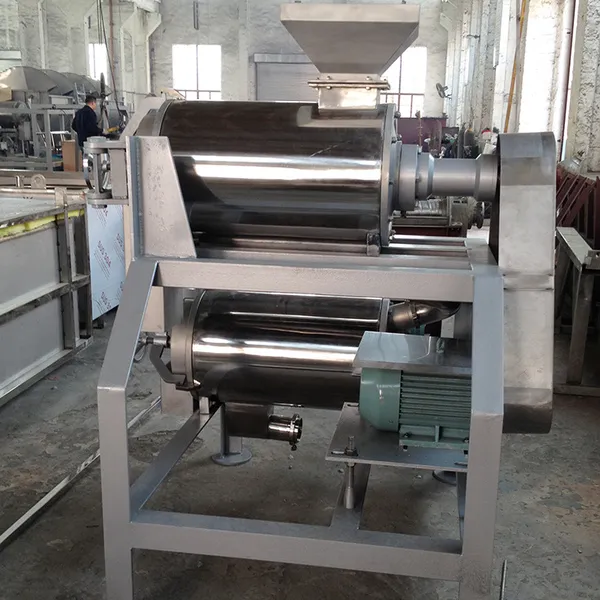

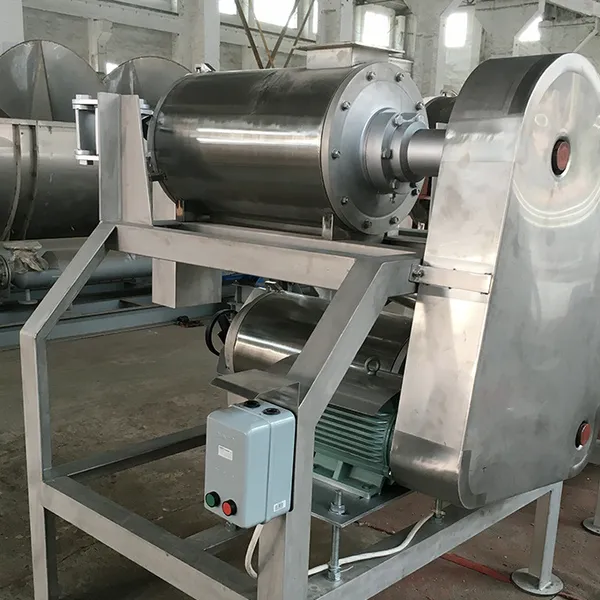

Help CenterFully Automatic Fresh Mango Processing Machine for Puree Juice
Related Products
-
Shanghai Genyond Mango Processing Machine for Dry ChipsUS$ 15.00MOQ: 1 Set -
Factory Shanghai Coffee Extraction Plant Spray Dryer Freeze Dryer Machine Instant Coffee Production LineUS$ 700000.00 - 800000.00MOQ: 1 Set
-
Pizza Base Making Press Maker Bakery Stainless Steel Oven Machine PricesUS$ 20000.00MOQ: 1 Set
-
Full-automatic Candle Machine Candle Extrusion Extruder Extruding Forming Packing Equipment Candle Production Line Process PlantUS$ 68500.00MOQ: 1 Set
-
Natural Honey Bee Processing Making Machine With Good PriceUS$ 6000.00MOQ: 1 Set
Process:

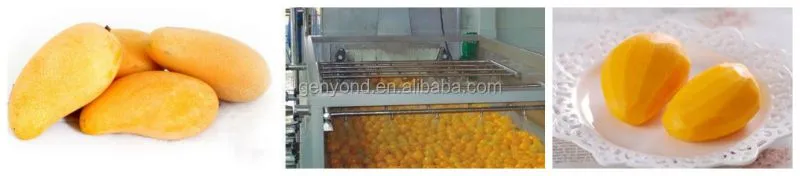

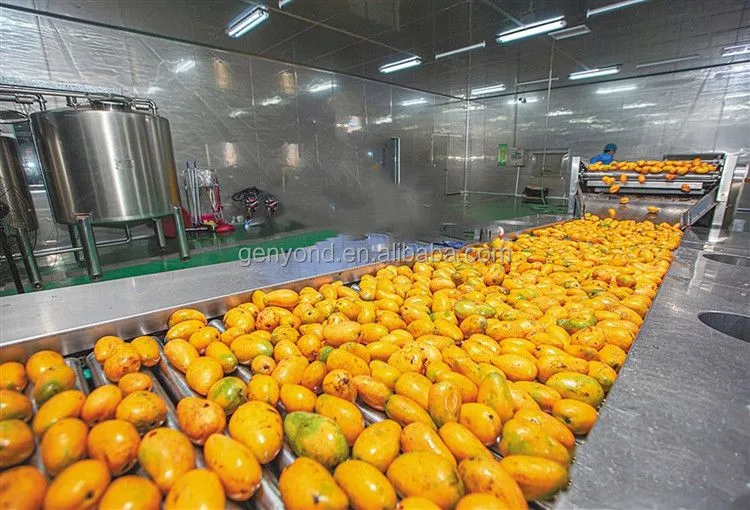

Fresh mango → washing → peeling →cutting / pit removing → slicing → drying / sterilizing →cooling →packing
Mango cutting machine is used to separate the mango into two even/ equal halves before slicing. There are 4 cutters in the machine.
It's also suitable to cut olive/ pear/ apple/ tomato etc.
We have the whole set of mango processing machine: mango peeler+mango cutter machine+mango slicer machine.
Model and parameter of mango bar stripping machine:
|
Model |
Power |
Capacity |
Dimension mm |
Remarks |
|
Peeling machine TYQ-460 |
3kw, 380V, 3 phase |
2 t/h |
1100*680*900 |
Fast speed |
|
Cutting machine TYQ-305 |
2.2kw 380V, 3 phase |
2-4 t/h |
1100*680*900 |
Stainless structure |
|
Slicing machine TYQ-460 |
0.75kw,380V, 3 phase |
1 t/h |
1000*580*900 |
The thickness is adjustable between 2-10mm |

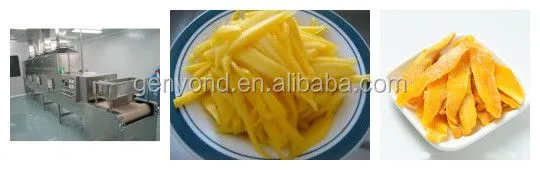

Microwave food dryer is a such dryer which is used of microwave to reduce the raw material. Unlike other external heating drying, microwave food dryer can dry the raw material from internal and external at the same time. Using this method, microwave food dryer can save drying time and avoid the raw material becoming metamorphism or coking at the overheat environment. The drying effect is very good, especially for the heat sensitive food.
The Technical Parameter of Microwave Food Dryer:
|
Product Name |
Microwave food dryer |
|
Device type |
Transmission belt |
|
Microwave frequency |
2450±50MHz |
|
Power |
20-200kw |
|
Size |
(10-42)m*1.1m*1.7m |
|
Transmission speed |
0-5m/s |
|
Input voltage |
Three-PhaseAC 380V |
|
Weight |
1.3T-18t |
|
Cabinet color |
Silver white |
|
The whole material |
Industrial grade stainless steel |
|
Microwave leakage limit |
≤1mW/cm² |
|
Ambinet teme perature |
-10-40°c |
|
working time |
24 hours |
The Main components of Microwave Food Dryer:
1.Microwave generator system
2.Microwave box
3.Temperature controlling system
4.Humidity controlling system
5.Transmission system
6.PLC and touch screen control system
7.Humidity discharging system
8.Electrical cabinets
9.Cooling system
10.Hot air recycling and circulatory system
