APLICATION:

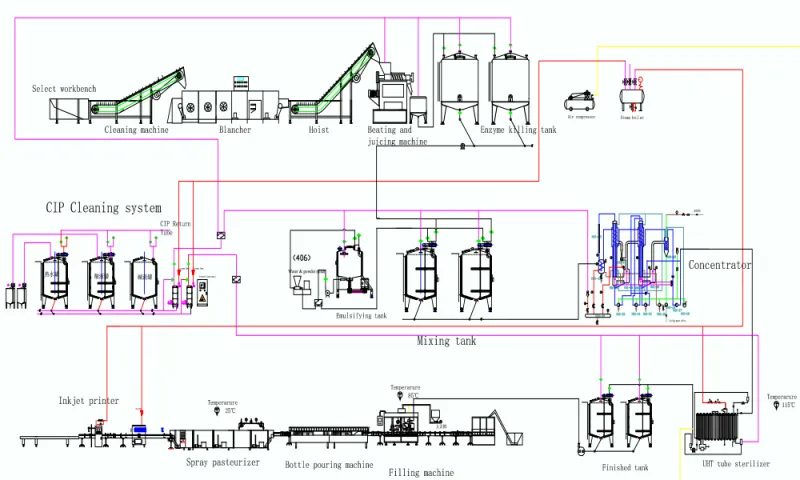

Tomato concentrate production line consists of five main parts: fresh tomato receiving
system, fresh tomato washing and sorting system, crushing and refining system,

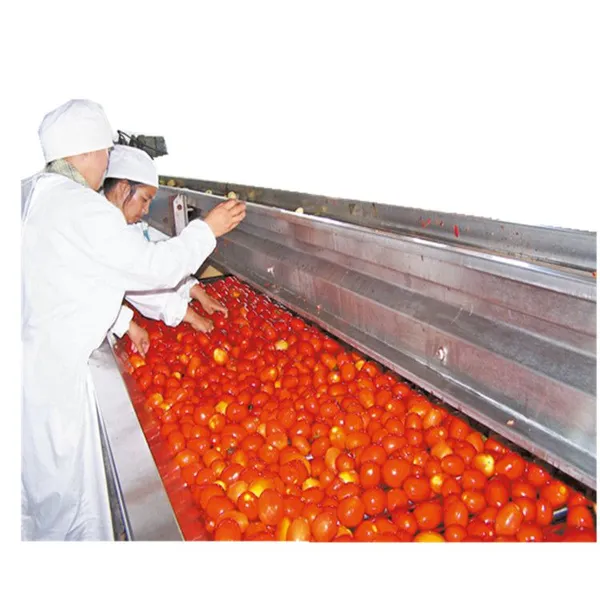

concentration system, sterilization system. Washing the fresh tomato, enhancing, sorting,
crushing and refining, concentrated sterilizing, aseptic filling into big drums. The production
line’s feature can finish a large amount of products within a very short fresh tomato maturity
period. Normal packing style are 220L and 1200L aseptic drum. And this production line can
do the similar fruit and vegetable products, such as pepper, pumpkin, carrot and etc.
ADVANTAGE:
Designed through absorbing main advantages of same products at home and abroad, the production line can adjust blanching time and temperature of vegetables as well as conveying speed so as to achieve an optimal treatment effect of various vegetables.
Featured by stable operation, reliable performance, economic energy consumption, small land area, simple use and convenient maintenance the equipment can be both operated singly and used in combination with others.

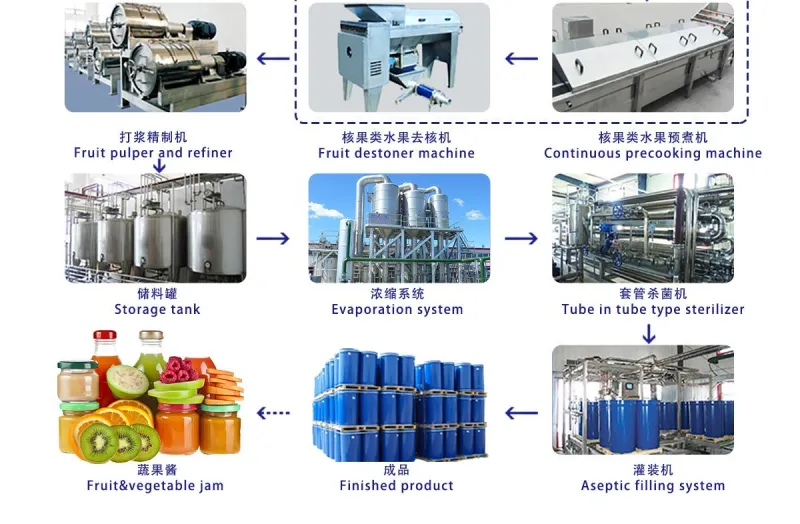

PROCESSING FLOW FOR REFERENCE:
include lifting winnowing machine---sorting machine---grading machine---spray cleaning machine---brush roller cleaning machine---air-dryer---drying machine--- sterilization machine, etc
Main equipment:

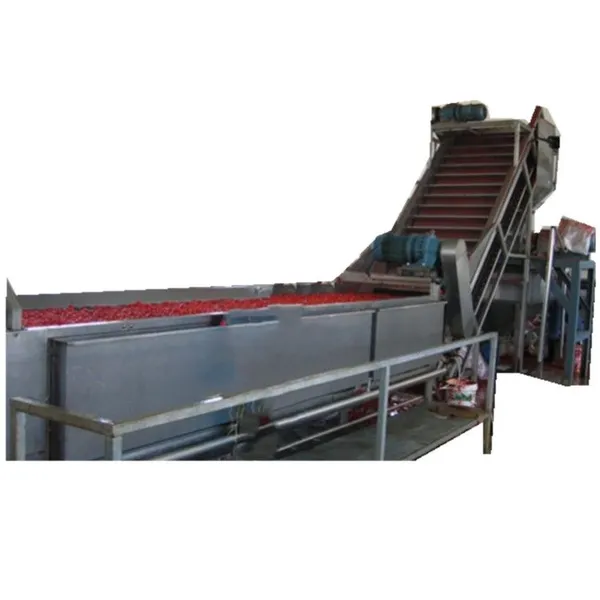

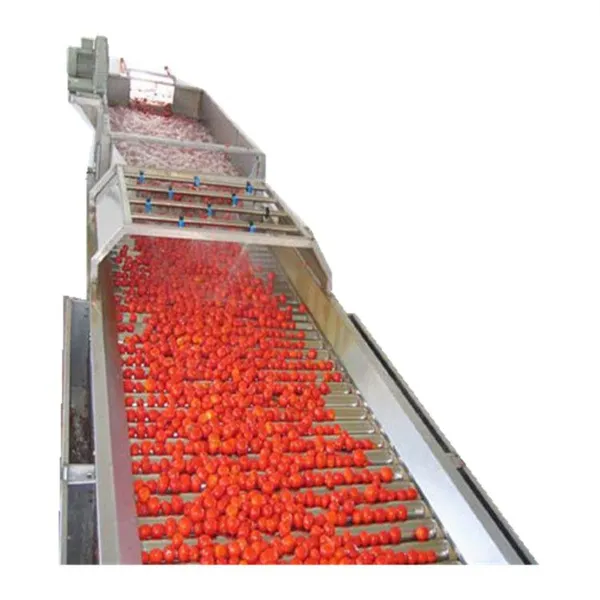

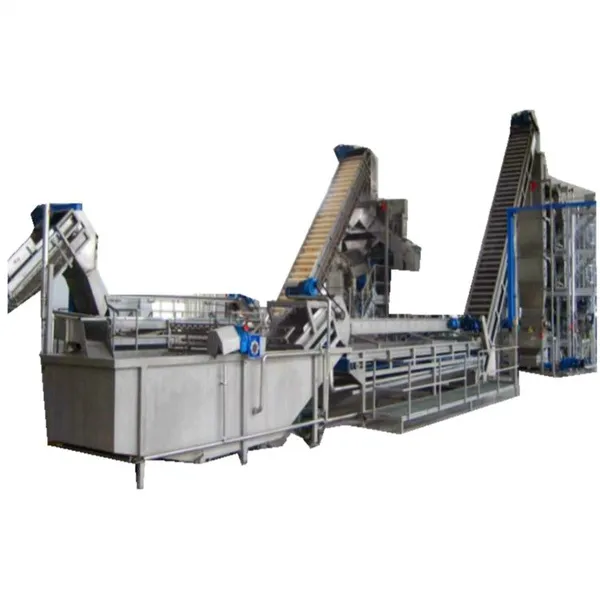

1. Fruits receiving and washing system
2. juice extractor, pulping machine

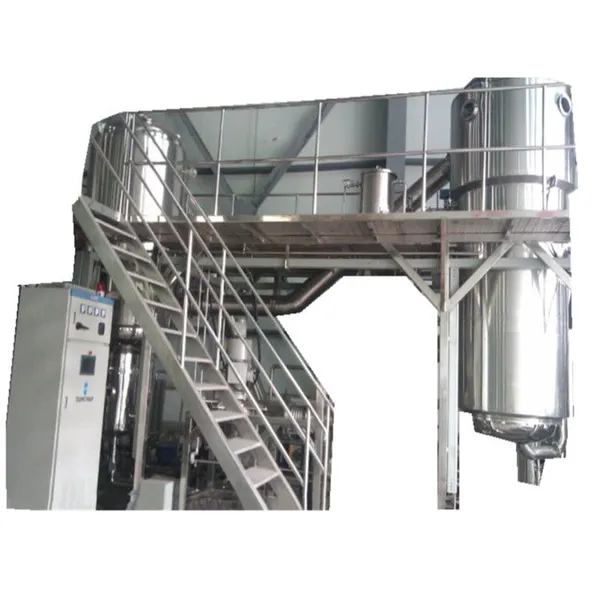

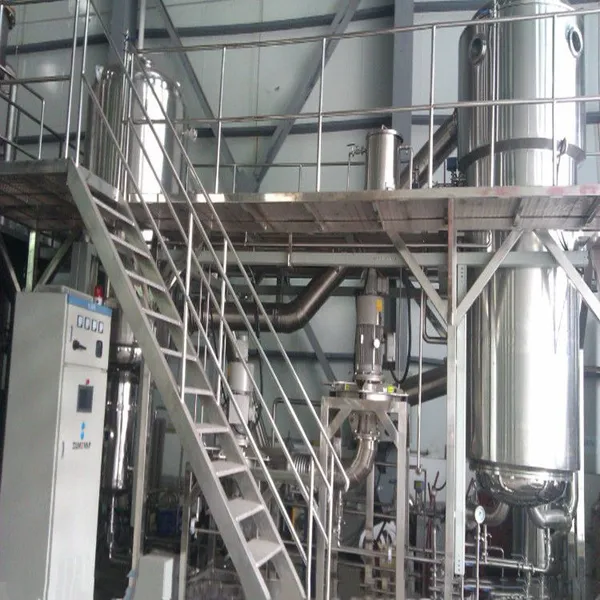

3. Juice/paste preparation system
4. sterilization machine
5. filling and packing machine
6. water treatment plant
7. CIP cleaning system,
Characteristics:
1. it can carry out washing pulp filling, liquid juice filling and capping in one machine.
2. it is very convenient to change diverse sizes of bottles by means of advanced bottle neck clamping & bottle suspending technology.
3. Advanced programmable PLC is equipped to control the main machine. Working speed can be adjusted by frequency conversion device.
|
Raw material: |
|
|
|
|
|
|
20T/D - 2000T/D |
|
|
|
|
|
|
|
|
|
