inulin from dahlia tubers processing line
Capacity 500-1000T output inulin per year .
15-18T topinambur extract 1T inulin power.
A complete set of production technology mature and stable, has been successful for several enterprises industrialization production.High purity (> 90%) inulin yield high, Jerusalem artichoke unit consumption is low;Scientific technological equipment selection, equipment, one-time investment and operating costs are low;The whole process of cleaner production process, no "three wastes" emissions: Jerusalem artichoke slag by-products processed into feed (meal) Jerusalem artichoke, nanofiltration membrane dialysis fluid by concentrated by-product production fructose syrup, Jerusalem artichoke cleaning wastewater after processing cycle reuse;The production of this product (inulin) whose physical and chemical and health indicators has reached the international advanced level.
Inulin production services a full range of production process design, plant layout design;Debug process equipment selection, equipment process, operator training guidance;Ion exchange, membrane separation, spray drying and other equipment manufacturing, installation and commissioning operation;The whole or partial production line equipment, process of manufacture;By-products of Jerusalem artichoke slag feed and fructose syrup device technology and design;Production waste water treatment standard discharge or reuse;Service commitment: design production technology mature reliable, to ensure the success of the once put into production;Production of the finished product quality to ensure that meet the international advanced level.
Inulin and fructo-oligose meaning and purpose :
Confirmed by a number of well-known domestic and foreign universities and medical research.
Inulin and super low poly fructose is the effect of bifidobacterium proliferation of human body, is a functional substances beneficial to human body, it is to regulate the body's balance, the recovery of gastrointestinal function, promote metabolism, preventing various diseases and to maintain a healthy body has a very important role, is the most representative of the typical 21st century human health products.Inulin as a natural functional edible polysaccharide, precursor has biological activity such as water soluble dietary fiber and physiological function,
Therefore has been widely used in low quantity of heat, low sugar, low fat foods.In addition, the use of Jerusalem artichoke plants such as tubers preparation of inulin, then through enzymatic hydrolysis directly
Producing high purity fructose, have the advantages of simple process, high conversion rate, pure of the product.
Processing Chart :
1-1. Red line: Raw Topinambur -----washing----shredder----hot water soak elevator----The decoloring, neutralization, removing impurity------Ion cross desalination purification-----Nanofiltration enrichment and purification-------Falling film evaporator concentration-----spray drying (powder) .
1-2. Yellow line: Nanofiltration enrichment and purification -------Industry RO concentration------A by-product of Fructose syrup.
1-3. Pink line: Hot water soak elevator-----press----hot air system----drying ----A by-product of feed.
Main production equipoment:
(1) inulin
Cleaning and peeling and slicing equipment
Extraction, decolorizing tank

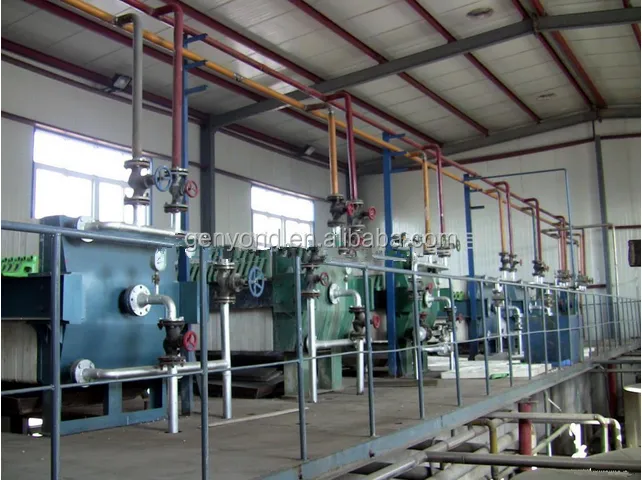

Filter press

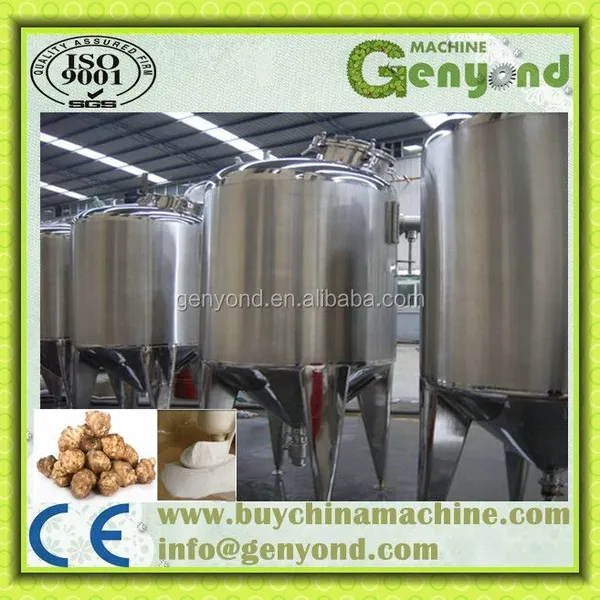

Storage tank
Vacuum concentrator
The spray drying equipment
(2) low poly fructose and high purity fructose (plus)
Air compressor
Seeds cans
Fermentation tank
The centrifuge
Air purification device
(3) other: pumps, pipes, valves, packaging machinery, sterilization equipment and testinginstruments,etc.
Welcome to visit us and order !
