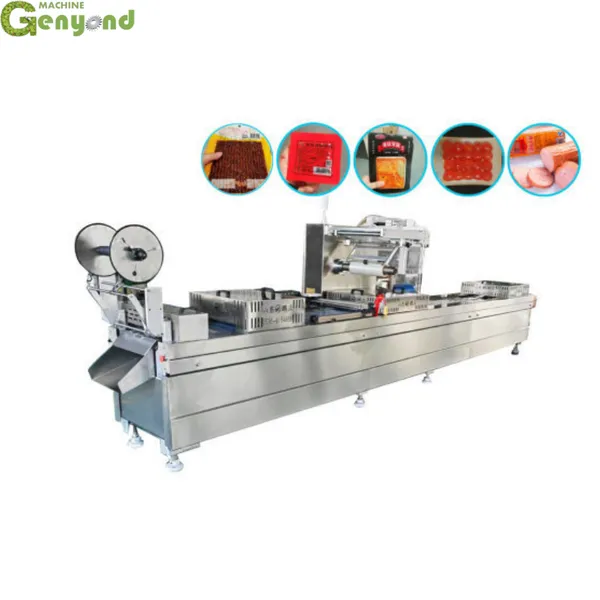

Shanghai Genyond Automatic Thermoforming Vacuum Packaging Machine
US$ 10030.00
≥1 Set
Key Specifications
Get Latest Price
Warranty:
12 monthes
Power:
5KW
video outgoing-inspection:
Provided
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sales Automatic High Speed Food Thermoforming Vacuum Packaging MachineUS$ 30420.00MOQ: 1 Set -
CE Certified Fully Automatic Flexible Film Rigid Film Thermoforming Vacuum Packaging Machine for Food Chemical ProductsUS$ 15000.00MOQ: 1 Set
-
Betel Nut Automatic Continuous Stretch Film Vacuum Packaging Machine Beef Jerky Vacuum Packaging Machine Source ManufacturerUS$ 10900.00MOQ: 1 Set
-
Aseptic Pouch Milk Packing MachineUS$ 10000.00MOQ: 1 Set
-
8000-9000 Bags / h Aseptic Pouch Milk Packing MachineUS$ 10000.00MOQ: 1 Set
Warranty
12 monthes
video outgoing-inspection
Provided
machinery test report
Provided
core components
PLC, Engine, Gearbox, Motor, Pressure Vessel, Gear
application
Food, Machinery & Hardware
packaging type
Bags, Film
packaging material
Plastic, Paper
automatic grade
Automatic
Driven Type
Electric
Voltage
220V/380V, 220V/380V
place of origin
Shanghai, China
brand name
GENYOND
dimension(l*w*h)
2000*1400*1600mm
warranty
1 Year
key selling points
Long Service Life
VACUUM PUMP
BUSCH
Weight (KG)
500
Product name
Automatic vacuum packaging machine
After-sales Service Provided
Engineers available to service machinery overseas
Materials
304 stainless steel
Certification
CE ISO
Usage
Vacum Packing
Function
Vacuum Food Storage System
Advantage
Easy Operation High Efficiency
Product Description
Genyond Automatic Thermoforming Vacuum Packaging Machine can continuously finish the procedure of film forming, automatic or manual products feeding, vacuuming, sealing, cutting, etc.; it will skin pack the product.
It is widely used to skin pack the products like kinds of snacks, meat, medical products, hardware, medical equipment, etc.
It adopts removable moulds which enable single machine to meet different sizes of moulds.
It equips with recycling device for waste film and ensure healthy environment.
It works with sensor for accurate positioning. It is available for vanish-film or color film to pack.
Automatic Thermoforming Vacuum Packaging Machine can continuously finish the process including film thermoforming, automatic or manual feeding, automatic vacuum, gas flushing, sealing, ink-jet printing(optional), side cutting(easy tearing notches), etc. This model applies to vacuum, gas flushing and skin packing of food, meat, sea food, fruit, vegetable, medical supplies, hardware and so on.
Product Paramenters
Model |
GY-AVP420 |
Voltage |
380V/50HZ (3PH) |
Power |
9kw |
The Width Upside Film |
396mm |
The Width Downside Film |
422mm |
Chamber Dimension (L×W) |
400×(200-400)mm |
Vacuum Pump Rate |
100m3/h |
The Largest Tension Depth |
80mm |
External Dimension (L×W×H) |
5000*810*1700mm |
Weight |
1500kg |
