20000-160000 Pcs Per Hour Capacity Soft Tube Blowing Machine

20000-160000 Pcs Per Hour Capacity Soft Tube Blowing Machine photo-1
20000-160000 Pcs Per Hour Capacity Soft Tube Blowing Machine photo-2
20000-160000 Pcs Per Hour Capacity Soft Tube Blowing Machine photo-3
20000-160000 Pcs Per Hour Capacity Soft Tube Blowing Machine photo-4
20000-160000 Pcs Per Hour Capacity Soft Tube Blowing Machine photo-5
20000-160000 Pcs Per Hour Capacity Soft Tube Blowing Machine photo-6
US$ 10000.00 ≥1 Set
Key Specifications
Get Latest Price
Weight (KG):
10000
function:
FILLING, Wrapping, Labeling, Capping, Coating, Sealing, Boxing
application:
Food, Beverage, Commodity
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Weight (KG) 10000
function FILLING, Wrapping, Labeling, Capping, Coating, Sealing, Boxing
application Food, Beverage, Commodity
packaging type Cartons, Cans, Bottles, Barrel, Stand-up Pouch, Bags, Film
packaging material Plastic, Paper, Metal, Glass, Wood
automatic grade Automatic
driven type Electric
place of origin shanghai
brand name genyond
dimension(l*w*h) custom
warranty 3 Years
key selling points Multi Color
machinery test report Provided
Video outgoing-inspection Provided
core components Motor, PLC
After-sales Service Provided Video Technical Support

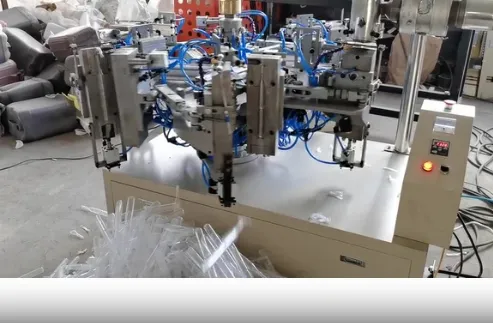

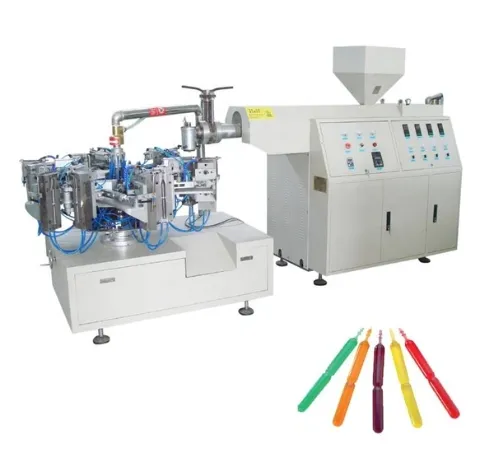

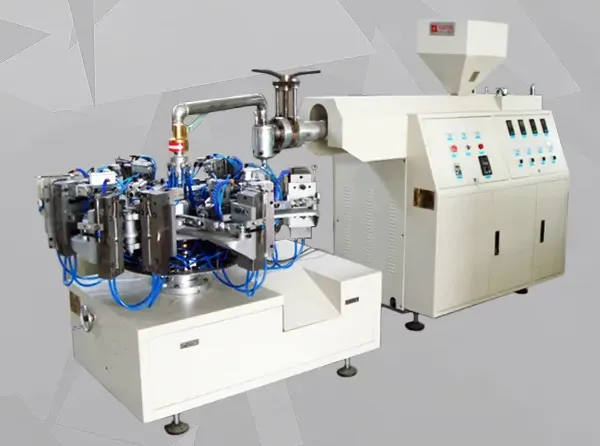

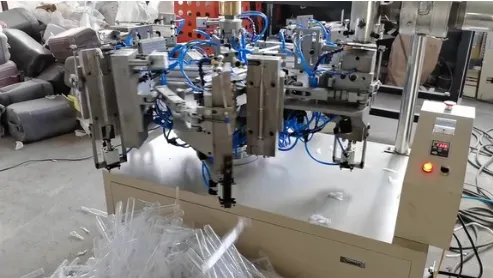

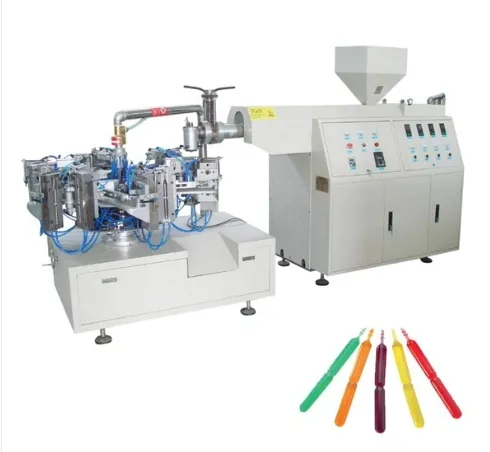

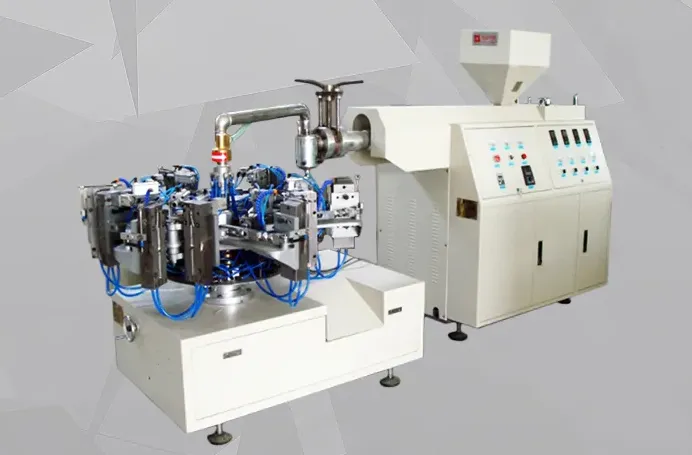

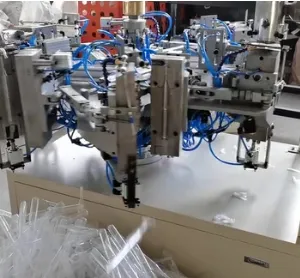

Soft tube blowing machine for ice pop

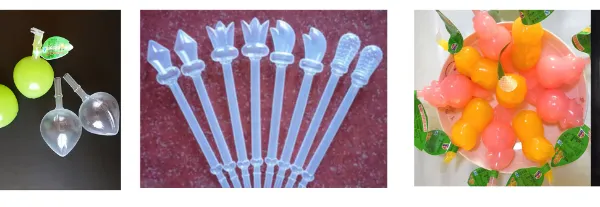

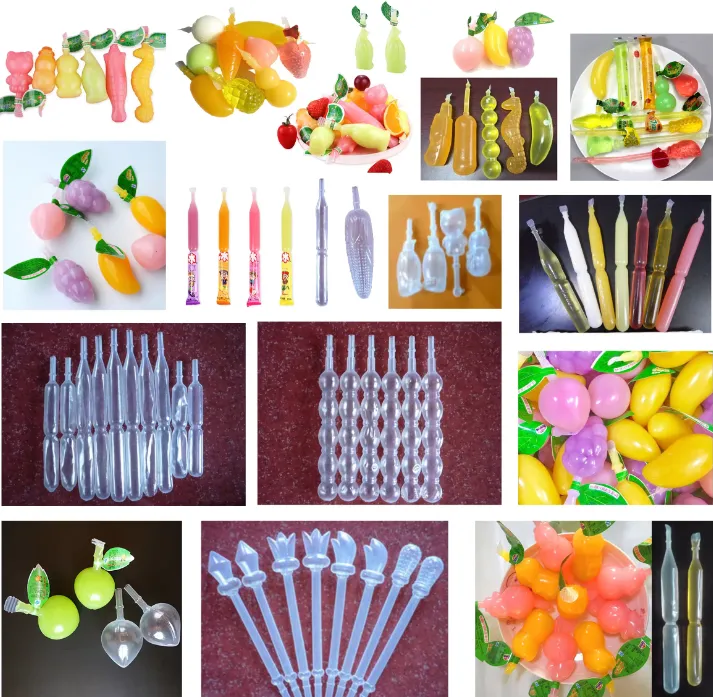

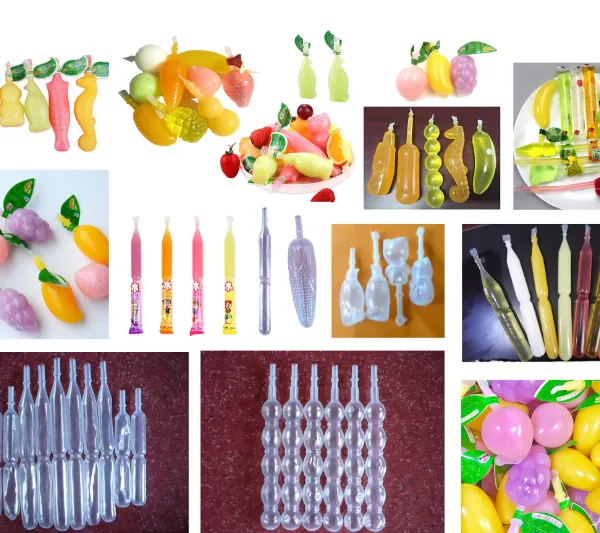

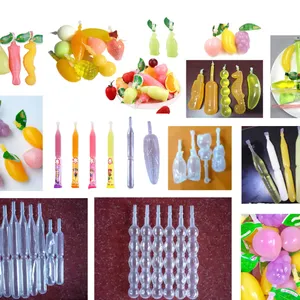

This machine is mainly suitable for plastic package with being blown up from side, such as the plastic bottles for eye-drop, fruit juice, milk, medicine, cosmetic etc. The machine adopts screw extruding blow molding technology in its extruder. And it is adopted auto-control temperature and FM activator. The machine is combined with electro motion, pneumatic power and mechanism. The main character of this machine is its simplicity & stabilization of operation. It has been famous for its excellent performance, low maintenance ratio, less consumption of electricity & low noise. May match according to the correlation product this aircraft truncates the mouth equipment automatically.

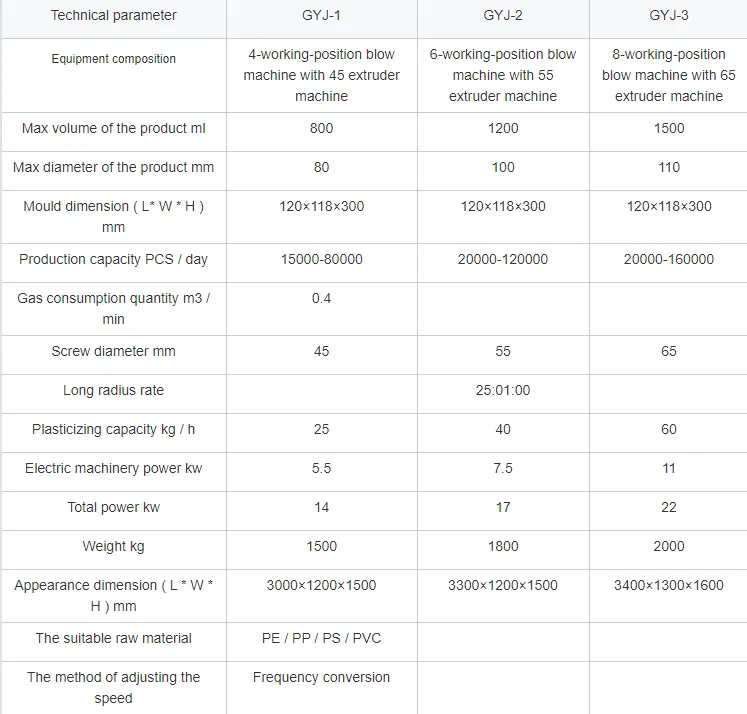

Technical parameter
GYJ-1
GYJ-2
GYJ-3
Equipment composition
4-working-position blow machine with 45 extruder machine
6-working-position blow machine with 55 extruder machine
8-working-position blow machine with 65 extruder machine
Max volume of the product ml
800
1200
1500
Max diameter of the product mm
80
100
110
Mould dimension ( L* W * H ) mm
120×118×300
120×118×300
120×118×300
Production capacity PCS / day
15000-80000
20000-120000
20000-160000
Gas consumption quantity m3 / min
0.4

Screw diameter mm
45
55
65
Long radius rate

25:01:00

Plasticizing capacity kg / h
25
40
60
Electric machinery power kw
5.5
7.5
11
Total power kw
14
17
22
Weight kg
1500
1800
2000
Appearance dimension ( L * W * H ) mm
3000×1200×1500
3300×1200×1500
3400×1300×1600
The suitable raw material
PE / PP / PS / PVC

The method of adjusting the speed
Frequency conversion
