Fire Extinguisher Cylinder Production Machine/ Co2 Filling Machine
US$ 11000.00
≥1 Set
Key Specifications
Get Latest Price
application:
Machinery & Hardware
packaging type:
Bottles
packaging material:
Metal
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fire Rating Pure Water Extinguish DCP ABC Dry Chemical Power Afff Foam Fire Extinguisher Filling MachineUS$ 12000.00MOQ: 1 Set -
Genyond Factory Fire Extinguisher Powder Filling Machine, Dry Powder Filling MachineUS$ 13300.00MOQ: 1 Set
-
Automatic Fire Extinguisher Spray Aerosol Filling MachineUS$ 15000.00MOQ: 1 Set
-
Fire Extinguisher Nitrogen Filling Machine Fire Extinguisher Refill MachineUS$ 16000.00MOQ: 1 Set
-
Automatic Dry Powder Carbon Dioxide Fire Extinguisher Filling Machine With Screw Cap and Labeling MachineUS$ 17000.00MOQ: 1 Set
application
Machinery & Hardware
packaging type
Bottles
packaging material
Metal
automatic grade
Automatic
driven type
Hydraulic
Voltage
220 V, 380 V
place of origin
shanghai
brand name
Genyond
dimension(l*w*h)
3200*1200*1800mm
warranty
1 Year
key selling points
Long Service Life
filling material
Powder
filling accuracy
99.9%
machinery test report
Provided
video outgoing-inspection
Provided
core components
Motor, PLC, Engine
filling nozzle
4
After-sales Service Provided
Online support, Online support
Name
Automatic dry powder fire extinguisher filling line
Product name
Dry powder fire extinguisher
Capacity
500 bottles/h
Material
304 Stainless Steel
Certification
CE ISO
Suitable for
Powder Granule Filling Packing Machine
Advantage
Easy Operation High Efficiency
Power
7KW
Power supply
380/220v
Weight
1000 KG
Product Description
The fully automatic fire extinguisher filling line is efficient and precise, with automatic filling and sealing, reducing manual intervention and improving production efficiency and consistency. When choosing, equipment performance, stability, and after-sales service should be considered. The working principle involves filling, stirring, and striking dry powder to ensure filling quality.
When choosing a fully automatic fire extinguisher filling machine, you need to consider factors such as equipment performance, stability, and after-sales service to ensure that production needs and quality requirements are met.
Taking a common dry powder fire extinguisher filling equipment as an example, its working principle is roughly as follows: place the fire extinguisher cylinder on the weighing table, align the filling nozzle with the mouth of the fire extinguisher cylinder, and then press the filling nozzle tightly against the mouth of the fire extinguisher cylinder. When the pressure applied to the weighing table by the pressing cylinder and the fire extinguisher cylinder reaches a certain value (the pressure value can be detected by the weighing sensor), the solenoid valve connected to the dry powder pipeline opens, and the dry powder starts to be poured from the dry powder tank through the dry powder pipeline into the fire extinguisher cylinder.
At the same time, the electrode head at the top of the throwing fan blade set in the filling nozzle is energized after being subjected to a certain pressure, driving the throwing fan blade to rotate. On the one hand, the throwing fan blade can break up and mix the poured dry powder or dry powder blocks evenly to prevent the blocks of dry powder from falling into the fire extinguisher or the dry powder from accumulating in the fire extinguisher to form a pyramid shape and affect the filling; on the other hand, it can further break up the dry powder blocks struck by the striking device to prevent the blocks of dry powder from entering the fire extinguisher.
In addition, when the electrode head energizes the throwing fan blades, it also energizes the micro motor of the striking device. The micro motor drives the rubber pendulum to rotate rapidly, and the rubber pendulum hits the outer wall of the dry powder pipeline during the rotation. The dry powder that may be dried and adhered to the inner wall of the dry powder pipeline is knocked down by vibration, avoiding the dry powder from blocking the dry powder pipeline and ensuring smooth filling.
When the dry powder filled reaches a certain weight, the solenoid valve is controlled to close through the feedback of the weighing sensor, and the filling is ended.
Features and advantages:
1. High degree of automation: It can automatically complete a series of operations such as quantitative filling and sealing of fire extinguishing agents, reduce manual intervention, and improve production efficiency and consistency.
2. Accurate measurement: Ensure that the filling amount of fire extinguishing agents is accurate and in compliance with relevant standards and regulations.
3. Efficient and fast: It greatly shortens the filling cycle and meets the needs of mass production.
4. Easy to operate: Equipped with an intuitive human-machine interface, it is convenient for operators to set up and monitor.
5. Safe and reliable: It has multiple safety protection mechanisms to prevent accidents during the filling process.
Product Paramenters
Model |
GY-FE500 |
||||||
Filling volume |
6-8kg/bottle |
||||||
Filling head |
4 |
||||||
Filling speed |
500bottles/h |
||||||
Power |
7kw |
||||||
Voltage |
220V/380V |
||||||
Detailed Images

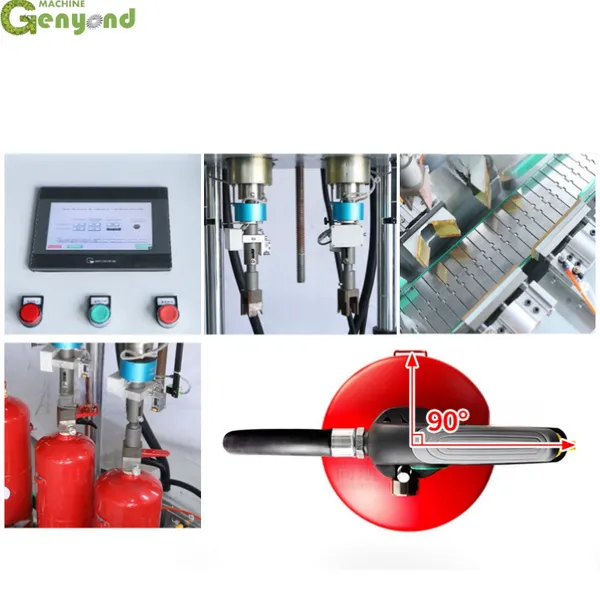

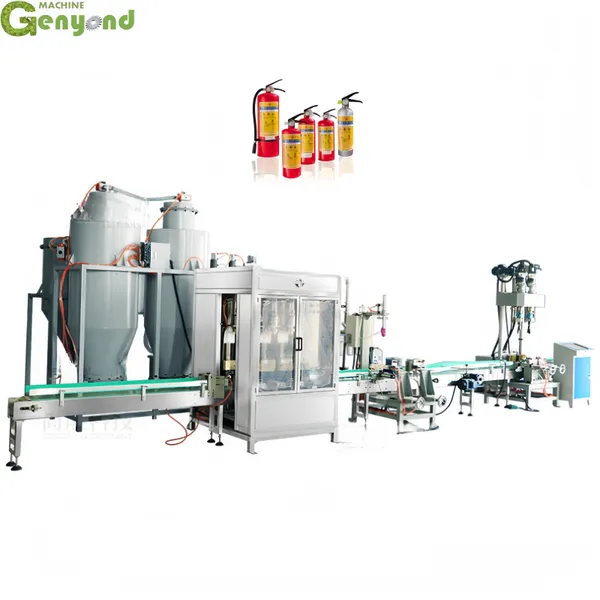

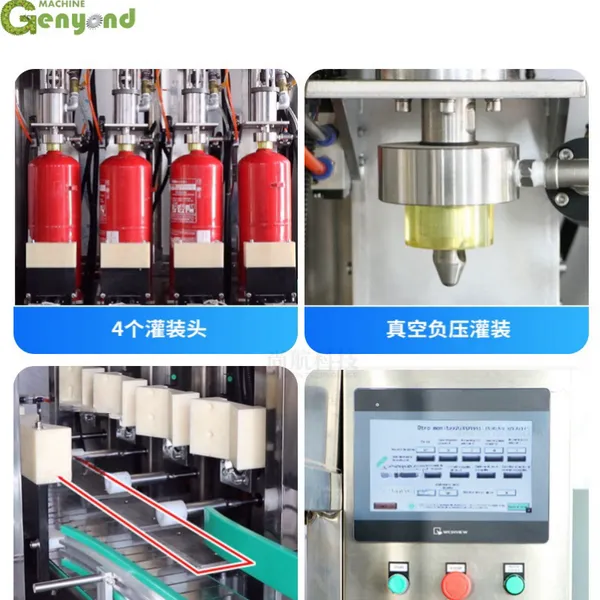

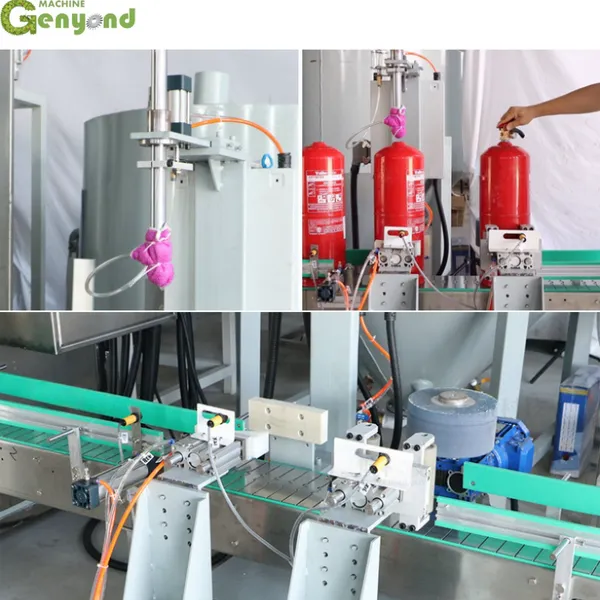

Machine picture
