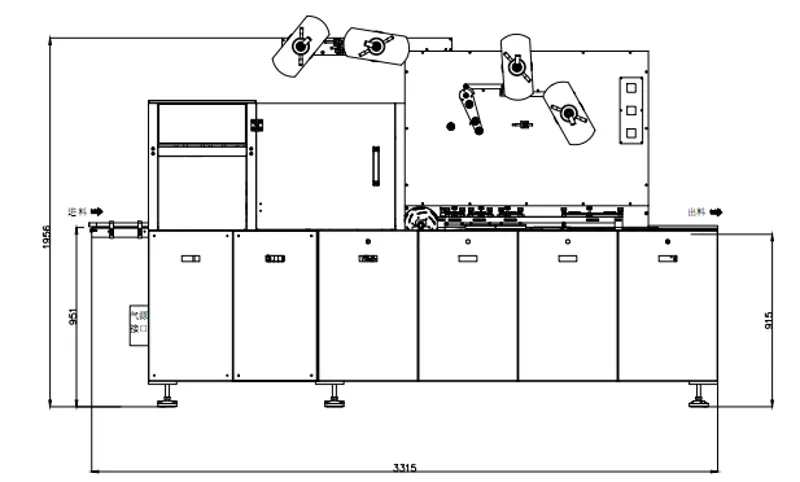

Soap bar wrapping and sealing machine
Product Detail
| Packing object | Soap |
| Packing speed | 80-120PCS/min |
| Soap Size | LxWxH=(70-140)*(35-65)*(25-37)mm |
| Packing material | Inner: white card paper; Outer: multi-layer sealable paper |
| Sealing method | Hot sealing |
| Compressed air | 0.5-0.6 Mpa, 100L/min |
| Vacuum generator | Equipped |
| Name | Automatic double-layer paper type soap packing packaging wrapping wrap |
| Product Keywords | soap bar wrapping and sealing machine |
Safety:
Personnel safety: safety protection cover, E-stop, disconnect etc. to protect personals from harms.
Equipment safety: adopt frequency control to adjust speed and overload protection.
Easy Operation
PLC integrated control is able to connect the upstream and downstream machines for communication so that the whole-line can be automatically control.
Touch screen HMI is easy for parameter adjusting and display all fault message.
The devices, like scale and parameter reader, etc, which can adjust products sizes flexibly, can be operated by 1 experienced worker in 30 minutes.
With button box for manual operation, it is easy to move the machine and convenient to control and observe its running.
Special Design

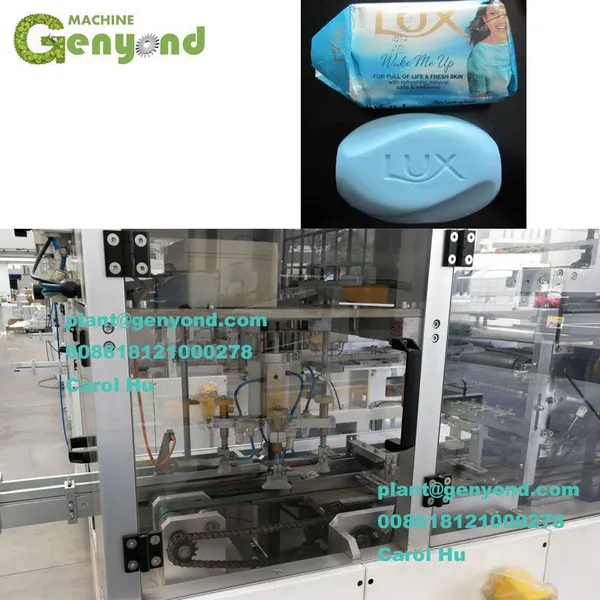

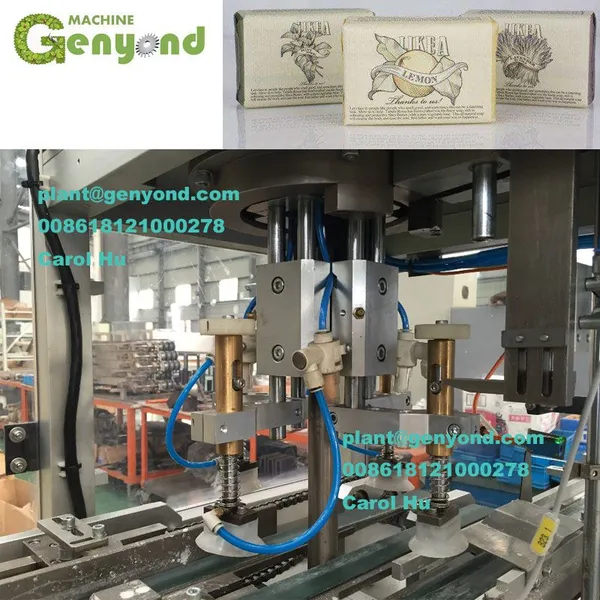

Soap suction structure of 4 stations is run by a gear divider by an independent motor and, and keep the same pace with main machine through a specially designed frequency converter.

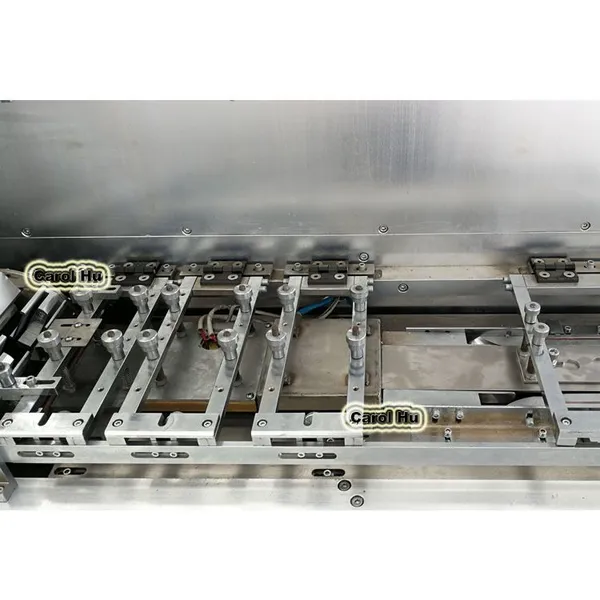

Dual chain pusher can ensure products steady during movement to ensure folding and sealing quality.

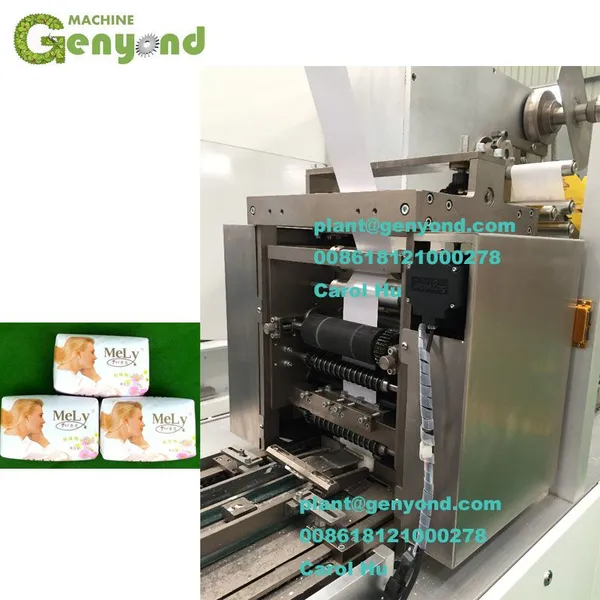

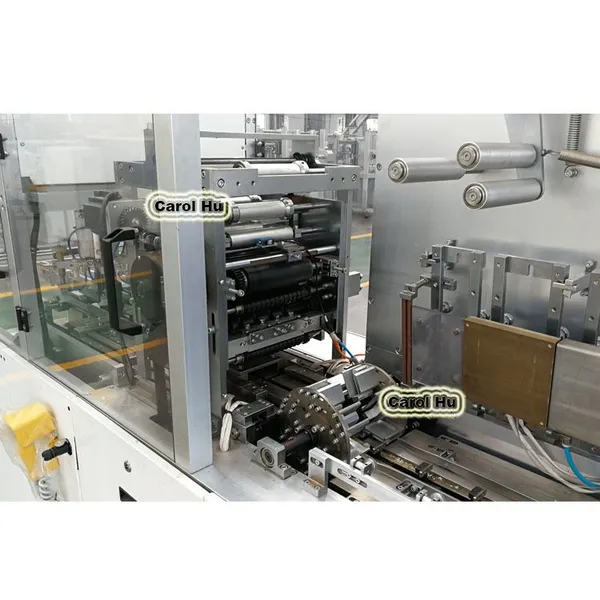

2+2 paper roll, easy for paper change-over
Adopt servo motor and color sensor to precisely locate the paper position to ensure packaging outlook quality
Main drive is equipped with synchronizing belt drive with high precision. The drive chain use hard spiral bevel gear, and has lubrication box, which greatly improve the lubrication effects and prolong the life expectancy of the machine.
Precision Manufacturing
Machine frame is manufactured by CNC gantry milling machine to guarantee the whole machine precision;
Core parts are manufactured by CNC milling and lathe for precision and spare parts replacement;
Strict Testing
The machine will go through tests of static check, 24-hour dry run product run, etc;
Will check safety, completeness, reliability, operation and products quality, etc;
Before shipment, the customer can come to our workshop for testing or we can send the test video for customer confirmation.

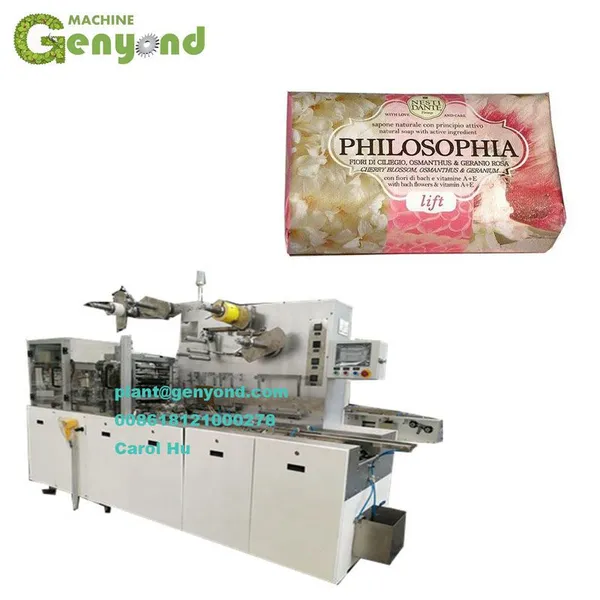

Automatic double-layer paper type soap packing packaging wrapping wrapper machine
PACKAGE:
Standard export wooden case or film packing.
DELIVERY TIME:
10-60 days after confirming order,detail delivery date should be decided according to production season and order quantity.
