Description

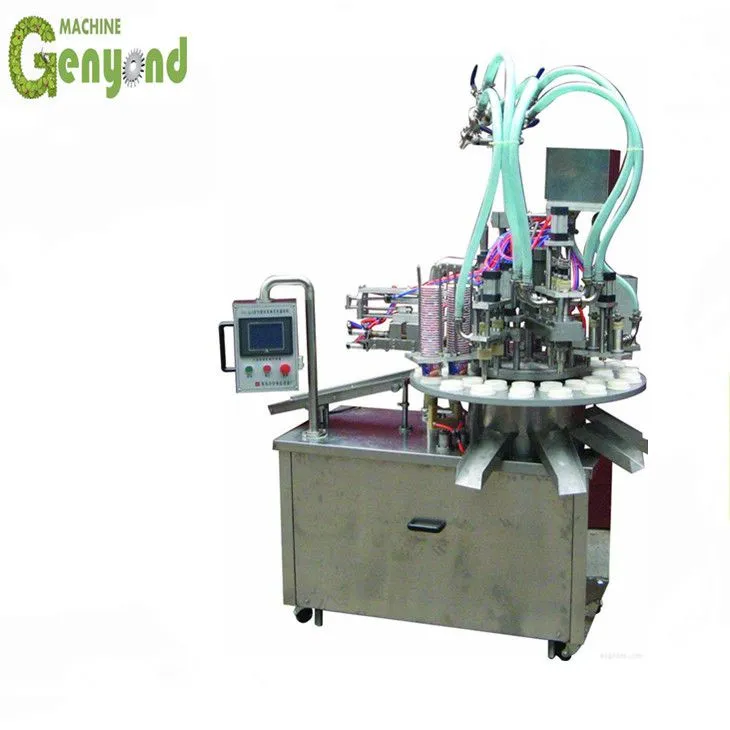

A rotary ice cream filling machine specially designed for Ice Cream auto filling and sealing.
All new design rotary ice cream filling machine.
The new technology of this machine is designed by our factory, which get the technical patent.
Function: Spray chocolate, spray nuts, depositor the fruit jam, fill 2 color ice cream
A highly automated machine. The operation cycle, from filling, putting lids, folding,to product outfeed are full automatically performed. It's a necessity in mass production line !
Suitable Containers : Plastic Cup / Plastic Bowl / Plastic Box / Paper Cup
Suitable Packing Materials : Nylon Film / Metalized Film / Alumium Lids/ Paper Lid
Available Products : Ice Cream / Jam/ Sauce
Normally functions:
1.For rolling film type:
1) cup falling 2) filling 3) date printing
4) seal twice 5) cutting 6) ordinary outputting
2.For pre-cut lid type:
1) cup falling 2) filling 3) put pre-cut lid
4) seal twice 5) date printing 6) ordinary outputting
(Functions can be added or decreased according to your requirements)
Working processing:
1. Rolling film type cup falling→filling→date printing→seal→cutting→output
2. Pre-cut lid type: cup falling→filling→put pre-cut lid→seal→date printing→output
|
Model |
Voltage V/Hz |
Power (Kw/h) |
Productive capacity |
Cup volume |
Air pressure |
Air consumption |
Dimension (cm) |
Weight (Kg) |
|
XBY50-1 |
220/50 380/50 |
2.2 |
600-800 cups/h |
10ml-350ml |
0.65-0.85MPa |
0.6m3/min |
900* 900* 1350 |
400 |
|
XBY50-2 |
3 |
1500-1800 cups/h |
0.7m3/min |
1250* 1250* 1350 |
450 |
Full Automatics Working Steps
|
1) |
Put cone/cup manually |
|
2) |

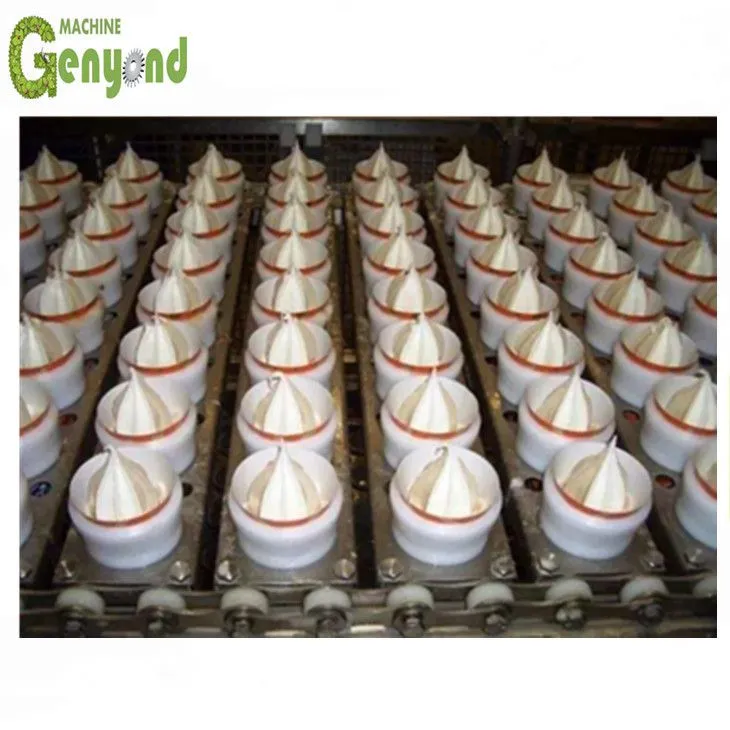

Can fill 1color ice cream, or 2 colors, or flower shaped, or others, can be customized |
|
3) |
Spray chocolate |
|
4) |
Spray nuts |
|
5) |
Depositor Fruit jam |
|
6) |
Put lid , folding collar |
|
7) |
Outfeed |
All machine materials are made of SS#304, PLC control with Touch Screen, Double Chain with best Sprocket , High Precision Speed Reducer, Pneumatic Control, Photoelectric Switch. Easy to operate, high speed to improve production efficiency and lower the production cost, reduce the labor, less Maintain, easy to clean, lower Noisy... Longer Life to 10 years ...
