As a reputable manufacturer with ISO9001 certification, Jinhua Dika Electrical Equipment Co., Ltd. specializes in producing high-quality epoxy resin pin insulators tailored for indoor electrical panels and switchgear. With annual exports valued at US$1 million to US$1.5 million, we serve diverse global markets including North America, Southeast Asia, and Europe, leveraging ports in Shanghai, Tianjin, Guangzhou, and Ningbo for efficient shipping. Our dedicated team of 11-50 employees ensures rigorous quality control, making this insulator a reliable solution for enhancing electrical safety and system longevity. Trust in our expertise to deliver products that meet stringent industry standards while optimizing your operational efficiency.
Our epoxy resin pin insulator is engineered for superior performance in demanding indoor environments. Key features include:
- Exceptional Durability: Made from premium epoxy resin, this insulator offers outstanding resistance to heat, moisture, and mechanical stress, ensuring long-term reliability in electrical panels.
- Enhanced Safety: Provides high dielectric strength and arc resistance, minimizing the risk of electrical faults and improving overall system safety.
- Versatile Applications: Ideal for use in switchgear, distribution boards, and other indoor electrical setups, where it prevents short circuits and maintains stable voltage insulation.
- Customizable Design: Available in multiple sizes and configurations to fit specific panel requirements, with options for voltage ratings tailored to your needs.
Technical specifications are detailed in the table below, highlighting common parameters based on standard models. For precise measurements, customization is available upon request.
| Parameter | Typical Value | Notes |
| Material Composition | Epoxy Resin | Ensures thermal stability up to 120°C |
| Voltage Rating | 1 kV to 35 kV | Customizable for higher voltages |

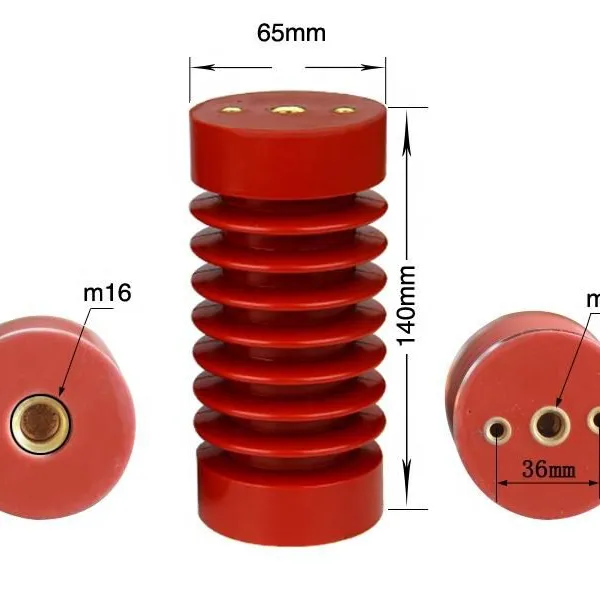

| Size Range | 50 mm to 200 mm | Dimensions vary based on application |
| Operating Temperature | -20°C to 100°C | Suited for indoor environments |
| Dielectric Strength | High (e.g., 20 kV/mm) | Provides effective insulation |
Customers benefit from reduced maintenance costs, extended equipment lifespan, and compliance with safety norms, thanks to our insulator's robust construction. Additionally, its ease of installation and compatibility with various panel designs streamline integration into existing systems.
Backed by our ISO9001 certification and extensive global presence in markets like Eastern Europe, Africa, and Oceania, Jinhua Dika Electrical guarantees consistent quality and timely deliveries through major ports. With over a decade of manufacturing excellence, we stand by our products' reliability—contact us today for a consultation or quote to experience how our epoxy resin pin insulator can elevate your electrical infrastructure.
FAQ:
- Q: What is the maximum voltage this insulator can handle? A: It can be customized for voltages up to 35 kV or higher based on specific requirements.
- Q: Is this insulator suitable for outdoor applications? A: No, it is designed exclusively for indoor use in electrical panels and switchgear to ensure optimal performance.
- Q: Are different sizes available for this product? A: Yes, we offer a range of sizes from 50 mm to 200 mm, with custom dimensions available upon request.
- Q: What certifications does this product have? A: Our manufacturing process is ISO9001 certified, ensuring high quality and consistency.
- Q: Can I request samples before placing a bulk order? A: Absolutely, samples are available upon request to evaluate the product firsthand.
- Q: What is the typical lead time for orders? A: Lead times range from 2 to 4 weeks, depending on order quantity and customization needs.
- Q: Do you provide customization options? A: Yes, we can tailor the insulator to your specifications, including voltage ratings and sizes.
- Q: How does this insulator improve electrical safety? A: Its high dielectric strength and epoxy resin material minimize leakage currents and prevent electrical failures.
