Canned Yellow Peach Whole Set Canned Food Processing Equipment Canned Sweet Corn Production Line
US$ 58000.00
1 Set
US$ 55000.00
≥2 Set
Key Specifications
Get Latest Price
brand name:
Genyond
dimension(l*w*h):
customized
place of origin:
Shanghai, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Canned Yellow Peach Full Automatic Tuna Sardines Fish Canning Line Production Making MachineUS$ 55000.00 - 58000.00MOQ: 1 Set -
Canned Yellow Peach Pre-cooked Semi-finished Bean Food Processing Production Line for Cooked FoodUS$ 55000.00 - 58000.00MOQ: 1 Set
-
Canned Yellow Peach Full Automatic Tilapia Fish Tin Cans Canning Line Production MachineUS$ 55000.00 - 58000.00MOQ: 1 Set
-
Canned Yellow Peach Automatic White Button Mushrooms Processing Line Equipment for Canning MushroomsUS$ 55000.00 - 58000.00MOQ: 1 Set
-
Canned Yellow Peach Canned Sardines Making Canning Machine Tuna Fish Canned Production LineUS$ 55000.00 - 58000.00MOQ: 1 Set
brand name
Genyond
dimension(l*w*h)
customized
place of origin
Shanghai, China
automatic grade
Automatic
voltage
380 V
Capacity
1~60 Tons, 1-60ton
key machines
Fruit & Vegetable juicer machine, Food Sterilizer, Meat Mincer, bread making machine, Fruit & Vegetable peeling machine, Pasteurizer, Sausage Stuffer, Emulsifier, Fryer, Mixer, Heat Exchanger, packing machine, bottle wash machine
product type
Vegetables, Fruit
Weight (KG)
5000
Name
canned yellow peach Processing Machine
Function
Multifunctional Fruit production line
usage
Food Industry Equipment
Keywords
Vegetable Fruits Cleaning Washing Line
Certification
CE ISO
After Warranty Service
Video technical support, Online support, Spare parts,
Application
canned pineapple peach fish
Advantage
Easy Operation High Efficiency
pack
tin can, glass jars
System Overview
Complete canned yellow peach process line
mainly equipment specification:
| Description | Cpacity | Power | ||
| Yellow peach Brush Turner | 3 | T/H | 1.1 | kw |
| Yellow peach Spiral Precooker | 2 | T/H | 1.5 | kw |
| Yellow peach Alkali Sprinkler | 3-5 | T/H | 3 | kw |
| Yellow peach Mesh Belt Continuous Precooker | 3-5 | T/H | 3 | kw |
| Yellow peach Drum Peeler | 3-5 | T/H | 0.55 | kw |
| Yellow peach splitting machine | 0.4-0.5 | T/H | 1.5 | kw |

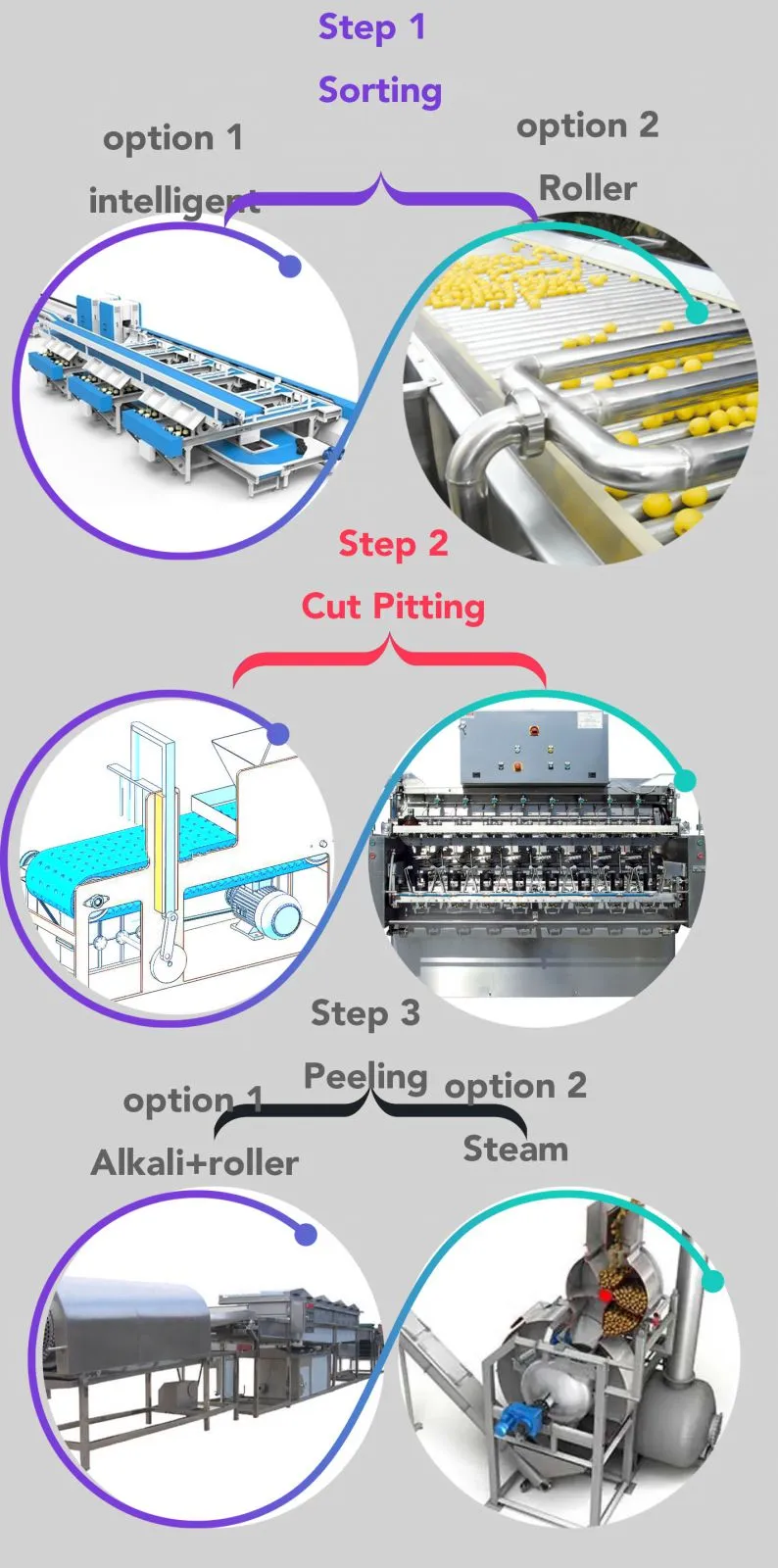

Canned yellow peach process line key equipment overview
Specification
I yellow peach soring system

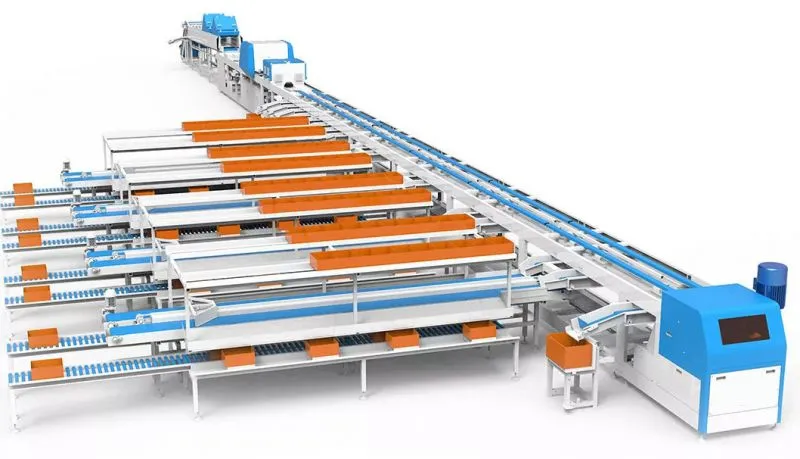

option 1 optical sorting
| Technical parameters | |
| Lane quantity | 1, 2, 4...... |
| Outputs quantity | As per demand |
| Speed | 3pcs/lane/s |
| Grading items | Size, color, exterior defect, weight, shape, interior defect, sugar brix |
I sorting and grade option 2 roller bar grading

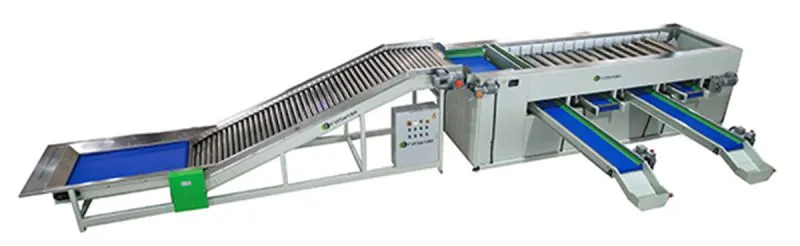

Yellow peach Roller bar grading machine specification
| Model | GG-6000B |
| Scope of application | Peach |
| Dimensions | 9800*5500*1400mm |
| Sorting level | 4 levels. |
| Working efficiency | 6-8t/h |
| Working power | 380V |
| Rated power | 2.9kw |
II Cutting and Pitting

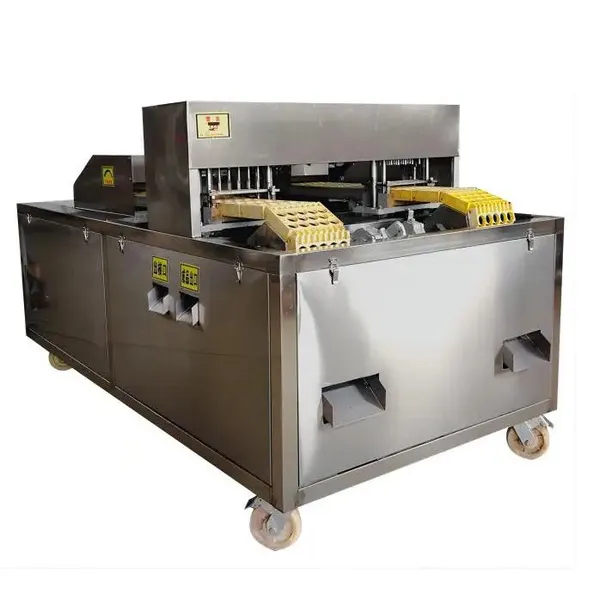

Yellow peach pitting machine specification:
| Model | Application range/Capacity | Power | Dimension | Stone Remove Rate | |||
| HGZ190 | Peach size | 20-30mm | 30-40mm | 40-50mm | 1.5kw | 2300*1280*1250mm | 100% |
|
Cpacity (PCS/H) |
58800 | 33600 | 16800 | ||||
| HGZ500 | Peach size | 30-40mm | 2.2kw | 2000*900*1230mm | 99% | ||
|
Cpacity (PCS/H) |
37800 | ||||||
III Peeling
option1 alkali plus roller
structure and advantage:
option1 alkali plus roller
structure and advantage:
|
|
1. support 3. drenches the alkali device |
Advantage:
1, the pouring alkali device of the utility model is provided with heating storage alkali jar, and heater is equipped with in heating storage alkali jar inside, can add heat alkali liquid automatically, and alkali lye high temperature is at 90-95 ºC, and pericarp scalds under the corrosiveness soaking of high temperature alkaline solution to be accelerated with the pulp separating rate.
2, the pouring alkali bottom of device of the utility model is equipped with the alkali lye retracting device, in the alkali lye retracting device filter screen is housed, and can effectively filter out solid impurities such as pericarp, and alkali lye improves the alkali lye utilization rate through reusable edible after the filtration treatment.
3, pouring alkali device of the utility model and water washing device adopt corrosion-resistant high-pressure atomization spray thrower spray, improve the atomizing effect of interior alkali lye of device and clear water, thereby have improved the contact area of fruit and alkali lye and clear water, accelerate the separating rate of pericarp and pulp.
4, the yellow peach class drupe fruit of the utility model drenches caustic peeling equipment employing two-part spray mode, and fruit sprays thorough rinsing through the high pressure clear water after spraying through alkali lye again, can effectively remove the surplus alkali and the pericarp of fruit surface, has guaranteed product quality.
5, the yellow peach class drupe fruit of the utility model drenches the integration of operation of caustic peeling equipment through transport, pouring alkali device, water washing device and alkali lye retracting device; Improved the peeling efficient of stone fruit; Production capacity is improved; Look different IPs fruit fruit difference to some extent, production capacity is at 3-5t/h.

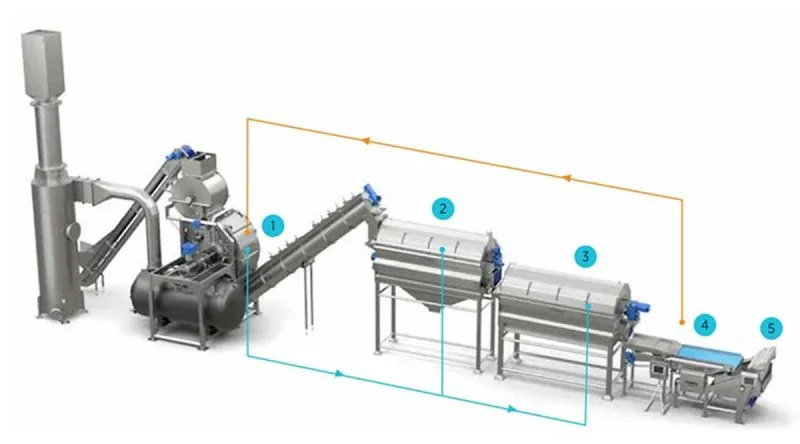

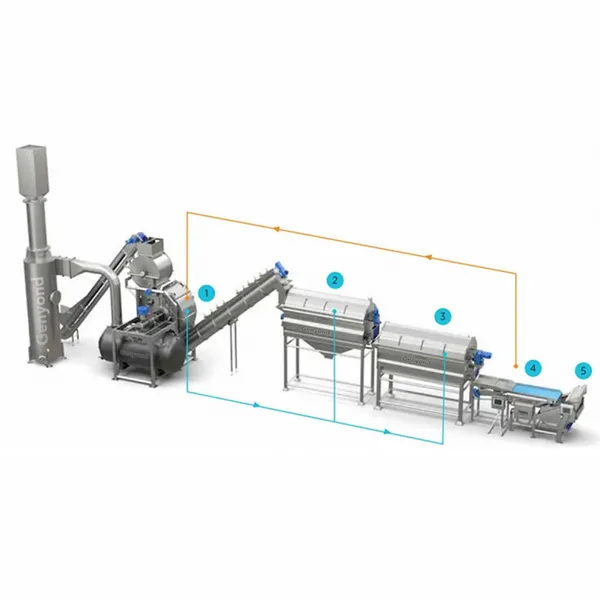

Yellow Peach peeling option2 steam peeler.
|
1. steam peeler 2. dry peel separator 3. food washing equipment 4. 5A sorter 5. peel control module |
Steam peeler speciation:
| Pressure tank volume | 0.3 m3(material:16MnR) |
| Steam working pressure | 1.2~1.5MPa |
| Pressure tank working medium | saturated steam |
| Pressure tank temperature | 250°C |
| Pressure tank speed | 8rpm |
| Capacity | 1-20T/H(raw material) |
| Each feed capacity | 100-500kg |
| Total power | 6.2kw |
| Exhaust tank volume | 1 m3(material: Q235) |
| Compressed air | pressure≤0.7Mpa, consumption:0.2m3 |
| Size | L3800*W2700*H4600mm |
| Weight | 3500kg |
Work flow
Family Overview

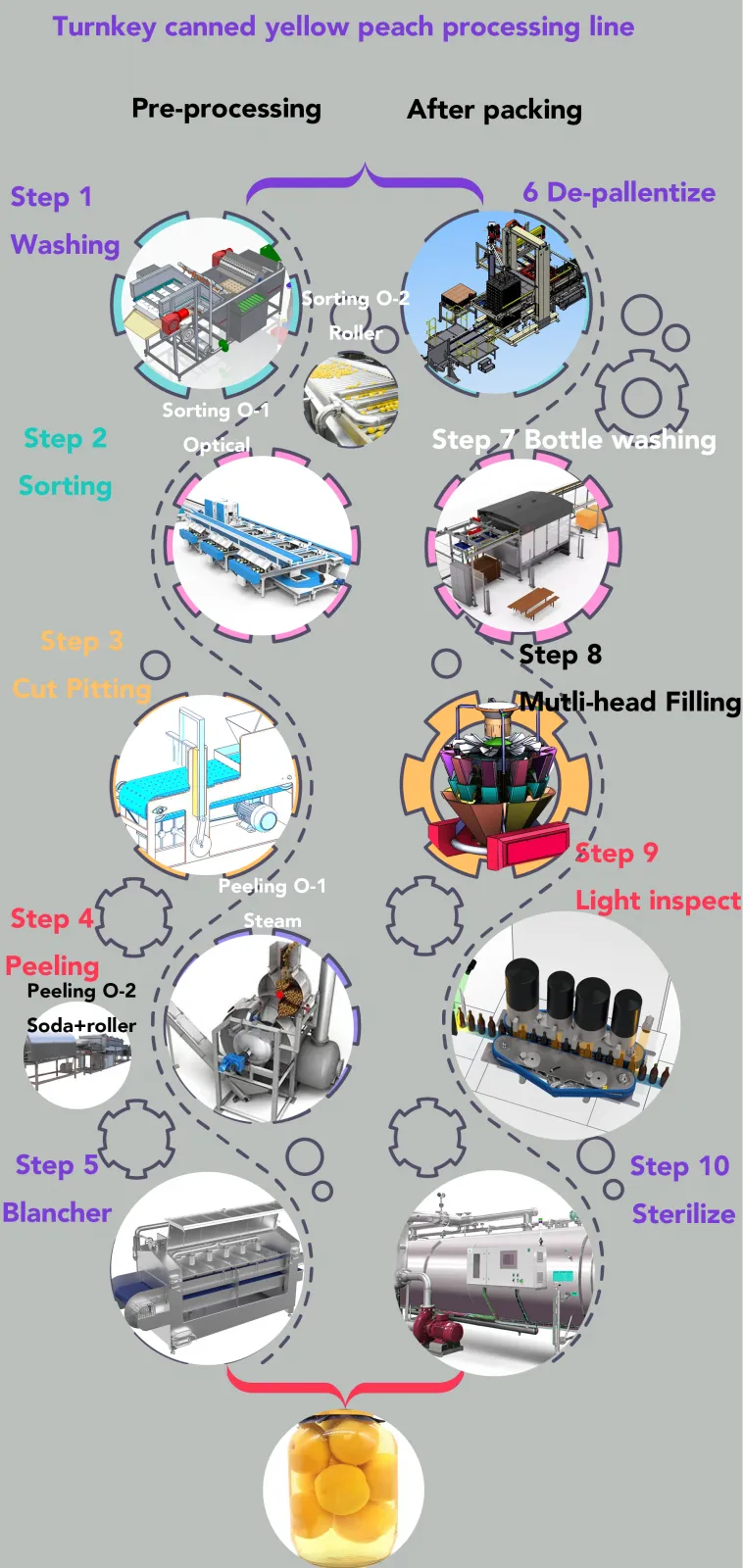

Turnkey solution with after packing work flow:
Canned Bean Production Line
Canned Cucumber Production Line
Canned Mushroom Production Line
Canned Orange Production Line
Canned Pineapple Production Line
Strawberry Canned Production Line
Canned Corn Production Line
Canned Fish Production Line
Canned Meat Production Line
Advantages
