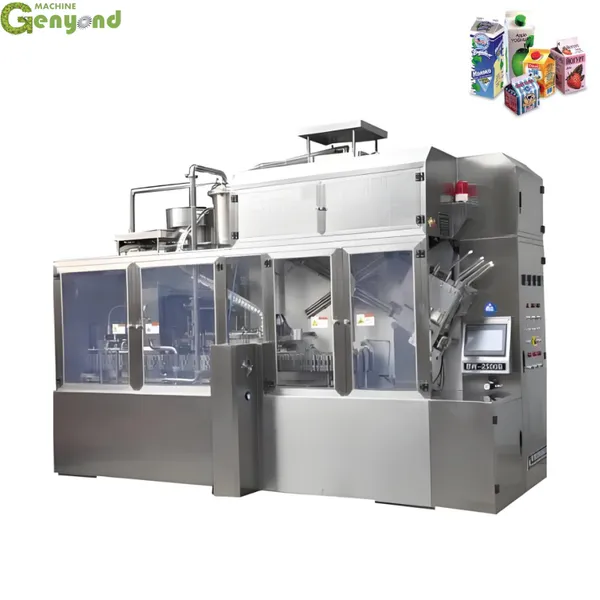

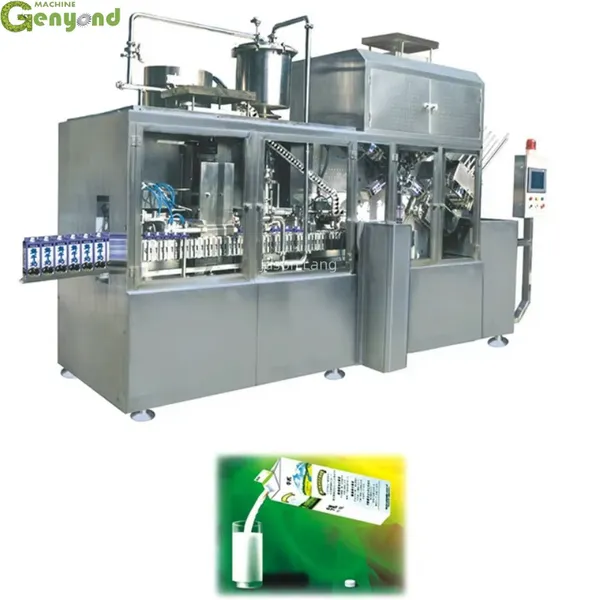

Genyond Automatic Steam Sterilize Gable Top Carton Filling Machine is automatic with top configuration. The entire machine is made of food-grade stainless steel, and the surface is special processed to be beautiful.
Work flow:
Put cardboard into carton holder (manually), Bottom preforming, Bottom heating and sealing, Ultrasonic capping (Optional), Filling, Top preforming, Top heating and sealing, Date printing, Finished product
The whole process is controlled by PLC, and only need one person to operate.
Suitable for filling:
Various kinds of juice, such as acid juice, tea drink, corn drink, pure water, etc.
Technical parameter:
(1) Capacity: 250--1000ml / 1000ml-2000ml (can be filled by one machine)
(2) Output: 1800-2500 cartons/hour
(3) Packing material: Cardboard carton / aluminium foil carton
(Carton bottom size 57*57mm, 70*70mm, 95*95mm, one size for one machine)
(4) Shelf life: Depend on different product and different process
(5) Capping: With capping (Optional) cap size: φ 26-φ 36, one size for one machine
(6) Filling temperature: Hot filling: 88-92 centidegree/ cold filling: 2- 50centidegree
(7) Overall power: 25KW (three phases of electricity)
(8) Compressed air pressure: 1.0-1.4 Mpa, Flow rate: 1.4-2M3/min, without oil, water and dust
(9) Cooling water: Flow volume: Not less than 40L/ min Temperature: No higher than 30centidegree
(10)Size: (L*W*H): 3.7m*1.6m*2.8m
(11) Net Weight: 3500kg
(12) Installation requirement: Any smooth floor, such as cement, floor tile, plastic ground, etc. Do not need to
Make angle.
(13) The machine is with carton lifting function to avoid foam forming and splashing when filling juice and milk.
(14) The machine is made of food-grade stainless steel and the surface is special processed to be beautiful.
