Fruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production Line

Fruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production Line thumbnail-1
Fruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production Line thumbnail-2
Fruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production Line thumbnail-3
Fruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production Line thumbnail-4
Fruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production Line thumbnail-5
Fruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production Line thumbnail-6
Fruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production Line photo-1
Fruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production Line photo-2
Fruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production Line photo-3
Fruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production Line photo-4
Fruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production Line photo-5
Fruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production Line photo-6
US$ 500000 - 800000 MOQ: 1 Set
Key Specifications
Get Latest Price
brand name:
Genyond
dimension(l*w*h):
customized
place of origin:
Shanghai, China
Contact Supplier Request Quote Chat Now
Zhangjiagang Genyond Machine Co Ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
brand name Genyond
dimension(l*w*h) customized
place of origin Shanghai, China
automatic grade Automatic
Capacity 1~60 Tons, 1-60ton
key machines Fruit & Vegetable juicer machine, Food Sterilizer, Meat Mincer, bread making machine, Fruit & Vegetable peeling machine, Pasteurizer, Sausage Stuffer, Emulsifier, Fryer, Mixer, Heat Exchanger, packing machine, bottle wash machine
product type Vegetables, Fruit
Name dehydrated fruit
Function Multifunctional Fruit production line
usage Food Industry Equipment
Keywords Vegetable Fruits Cleaning Washing Line
Certification CE ISO
After Warranty Service Video technical support, Online support, Spare parts,
Application canned pineapple
Advantage Easy Operation High Efficiency
Finished Products dehydrated fruit
Condition New
Weight 500 KG
Year 2023

System Overview

Fruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production LineFruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production Line

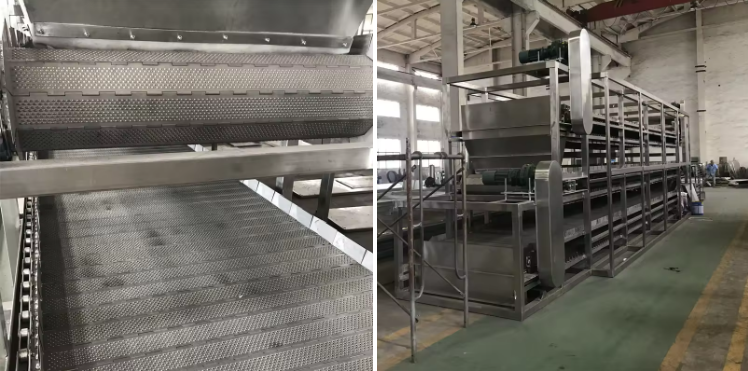

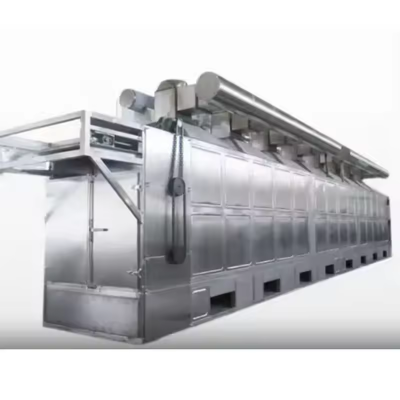

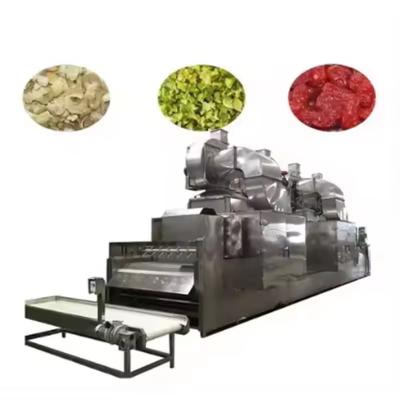

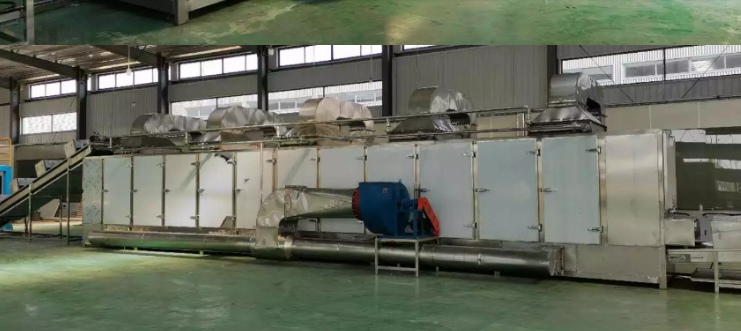

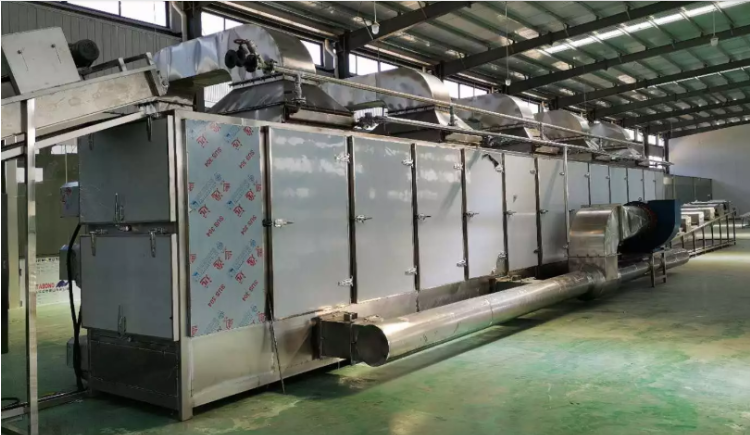

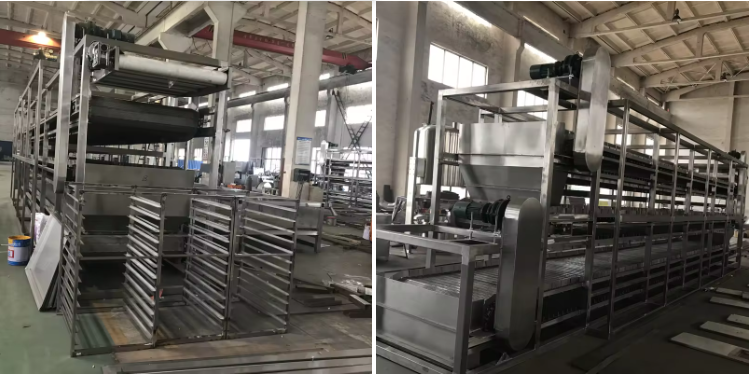

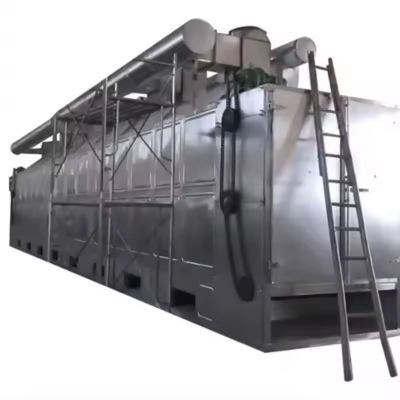

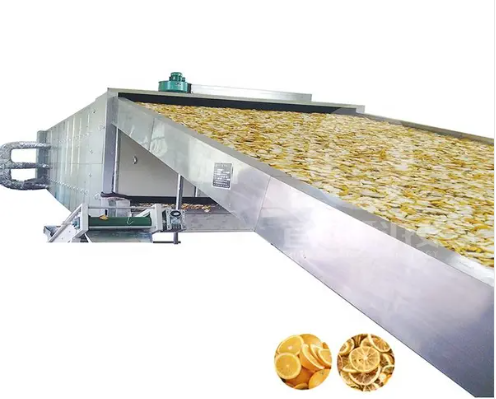

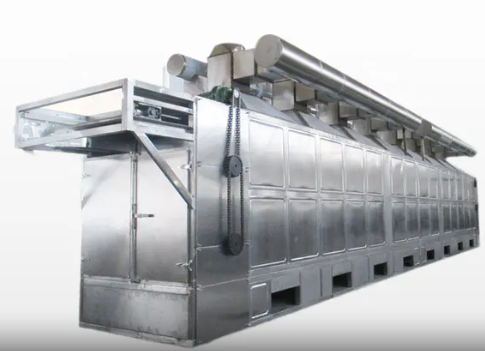

Continuous belt Conveyor Tunnel drying machine

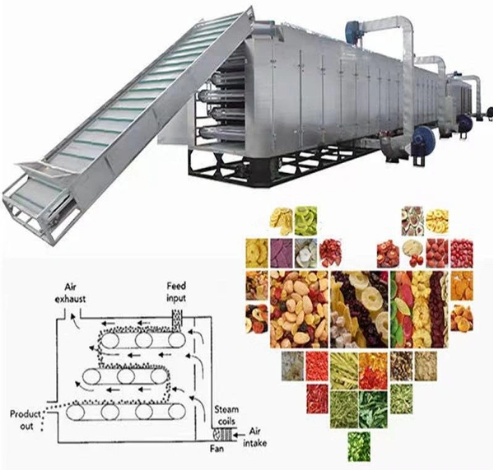

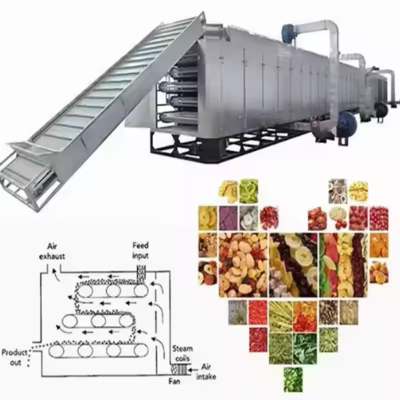

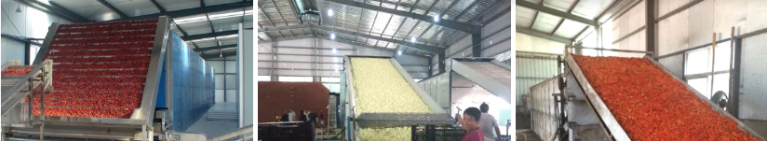

The raw material after washed should be distributed on the conveyer belt through suitable mechanism such as star distributor, swing conveyor, crusher or granulator, the conveyer passes through the channel including of one or several heating unit. Each heating unit is equipped with air heater and circle system. Each channel has one or several damp discharge systems. When the conveyer passes through it, hot air will pass through the raw material from up to down or from down to up. In this way the raw material can be dried uniformly



Description

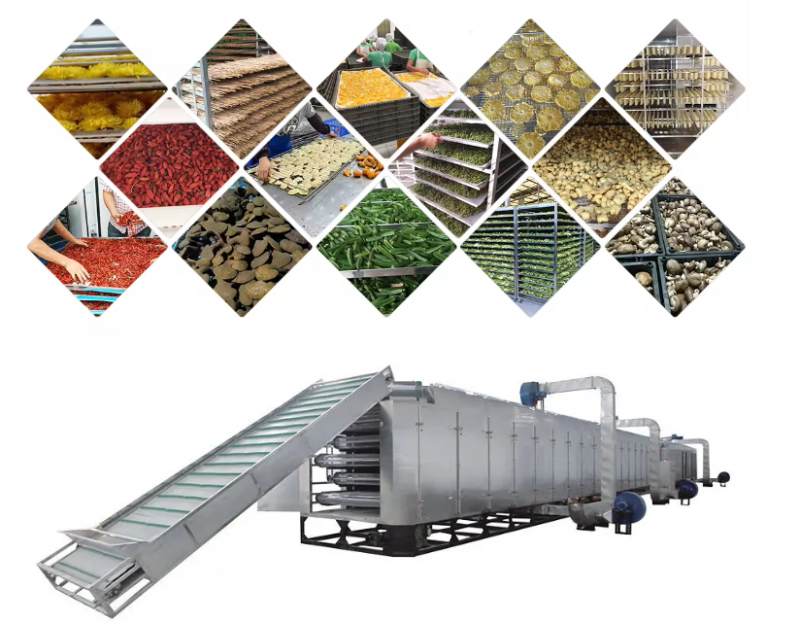

Application Scope

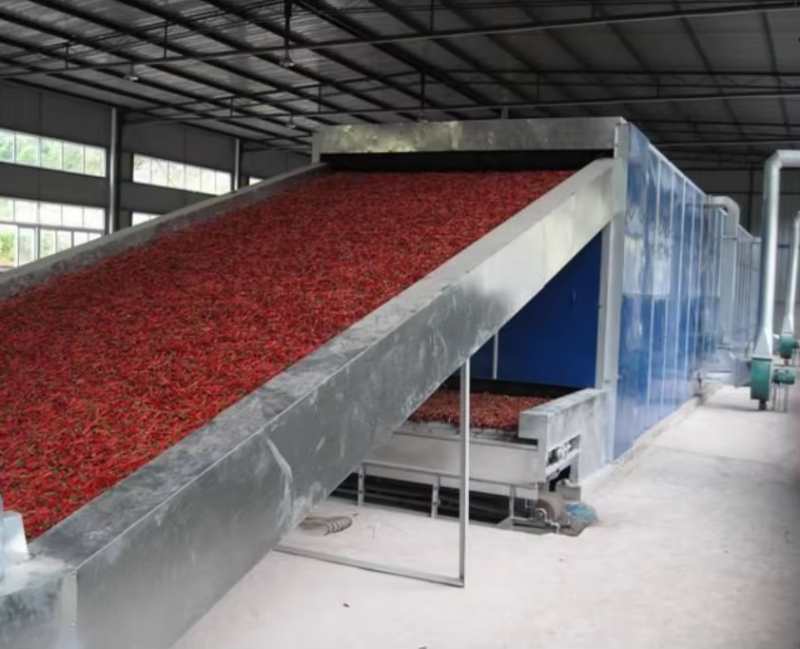

De-watering vegetable, chilli, Cassava , particle feed, gourmet powder, shredded coconut stuffing, organic color, compound rubber,

small wooden product, plastic product, aging and solidification for the electronic component and device



Fruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production LineFruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production LineFruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production Line



Specification
Model ltem DW-1.2-8 DW-1.2-10 DW-1.6-8 DW-1.6-10 DW-2-8 DW-2-10 DW-2-20
Drying Unit(Qty) 4 5 4 5 4 5 10
Mesh Belt(m) 1.2 1.2 1.6 1.6 2
Drying Length(m) 8 10 8 10 8 10 20
Material Thickness(mm) 10-80
Drying Temperature(oC) 50-140
Steam Pressure(MPa) 0.2-0.8
Steam Consumption(kg/h) 120-300 150-375 150-400 180-500 180-500 225-600 450-1200
Drying Time (h) 0.2-1.2 1.25-1.5 0.2-1.2 0.25-1.5 0.2-1.2 0.25-1.5 0.5-3
Evaporation Capacity(kg/h2o/h) 60-160 80-200 85-220 100-260 100-260 120-300 240-600
Total Power (kw) 11.4 13.6 14.6 18.7 19.7 24.5 51
Total Weight (kg) 4500 5600 5300 6400 6200 7500 14000

Fruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production LineFruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production LineFruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production LineFruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production LineFruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production LineFruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production Line

Advantages

As a group company, we have more than 10 factories in China. We have been in machines production more than 20 years. Our machines have been exported to more than 280 countries.

High quality of machine

From the raw material, we just buy the top quality product. For motor, electronic part, we use top quality brand in the world.

1

Low price in our product

For we buy high quantity raw material and spare part, we can get low price from our cooperated suppliers. So it reduce a lot cost.

2

Good after sale service

Before the machine is ship, it will test well. We will send our engineers for installation within 10 days after the goods reach your factory.

3

Warranty

We can offer 2 years warranty for free. Any problem for our machine, we can provide the spare parts for free.

4

Fruit Processing Plant Layout Large Scale Production Fruit Pulp Separator 5000KG/H Fruit Juicer Production Line
