Turnkey Project Date Paste Production Line

Turnkey Project Date Paste Production Line photo-1
Turnkey Project Date Paste Production Line photo-2
Turnkey Project Date Paste Production Line photo-3
Turnkey Project Date Paste Production Line photo-4
Turnkey Project Date Paste Production Line photo-5
Turnkey Project Date Paste Production Line photo-6
US$ 55500.00 ≥1 Set
Key Specifications
Get Latest Price
video outgoing-inspection:
Provided
machinery test report:
Provided
core components:
PLC, Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
video outgoing-inspection Provided
machinery test report Provided
core components PLC, Motor
place of origin shanghai
brand name genyond
voltage 380v
weight 6000 KG
dimension(l*w*h) custom
warranty 2 Years
Applicable Industries Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Food & Beverage Shops, Other
Showroom Location None
Marketing Type Ordinary Product
Warranty of core components 1 Year
Condition New
Year 2024

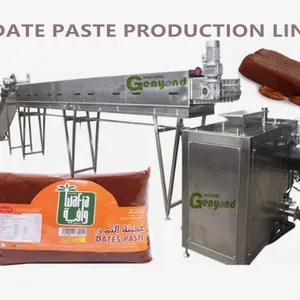

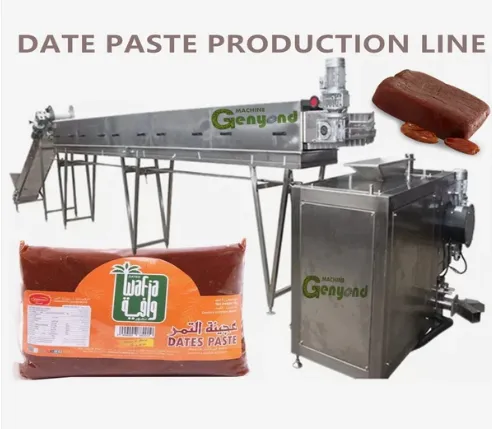

Date paste production line

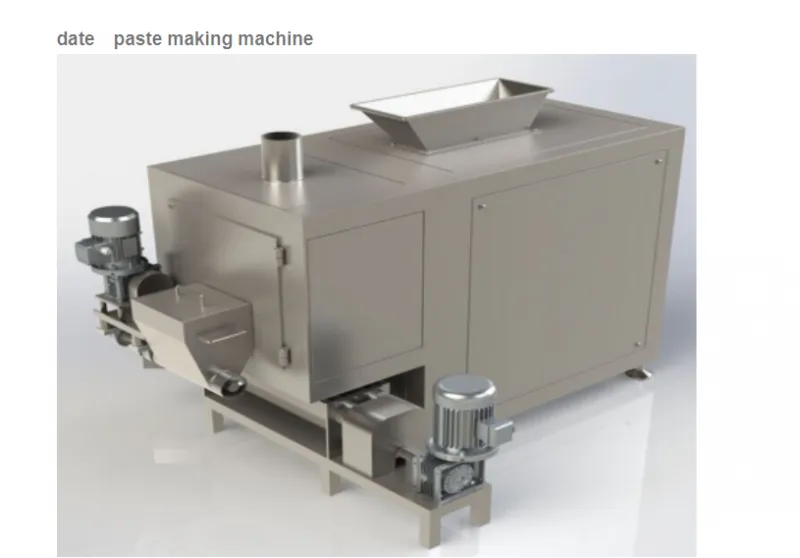

Dates Palm Paste making machine consists of steam feeding unit, feeding spiral, mud paddle, screen cylinder, slag spiral, and discharge shaping spiral. The jujube enters from the feeding port and is fed into the mud cylinder. The mud blade that is rotated by the high speed is made into a mud shape, which is thrown into the discharge plastic spiral by the mesh hole, and the jujube core is discharged by the slag spiral.

Turnkey Project Date Paste Production LineTurnkey Project Date Paste Production LineTurnkey Project Date Paste Production LineTurnkey Project Date Paste Production Line

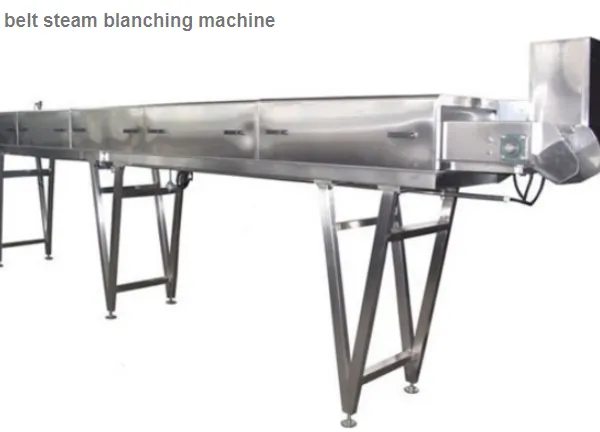

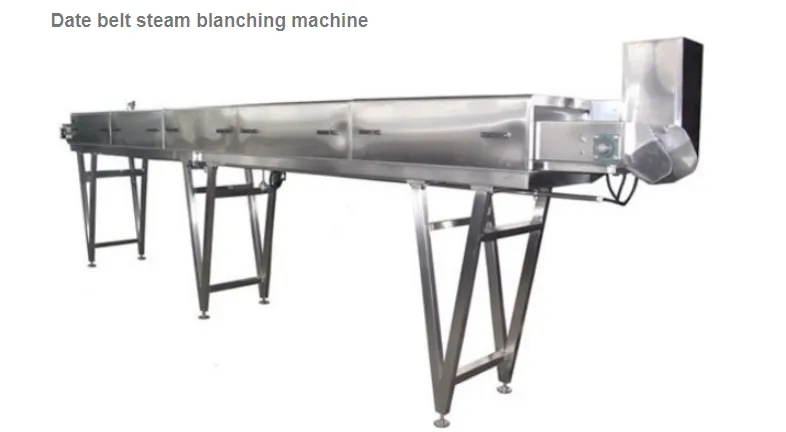

Date belt steam blanching machine

 Turnkey Project Date Paste Production Line

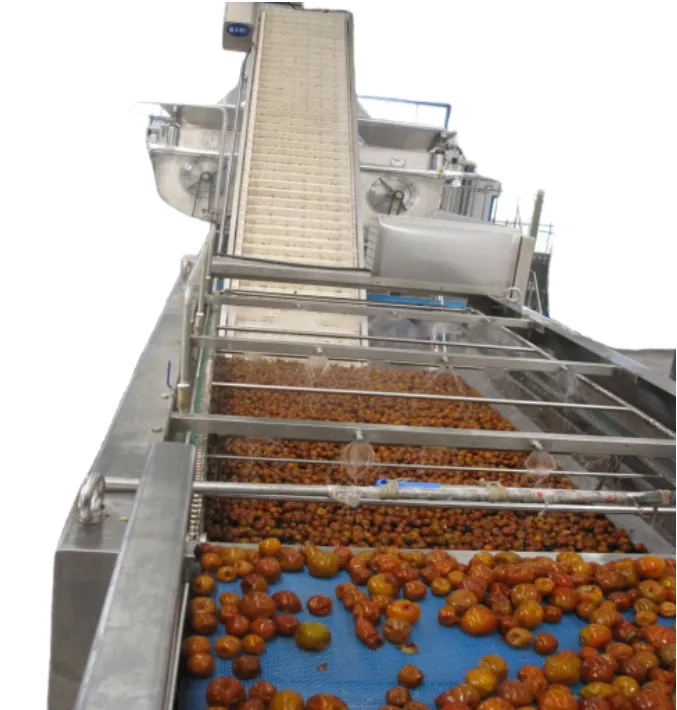

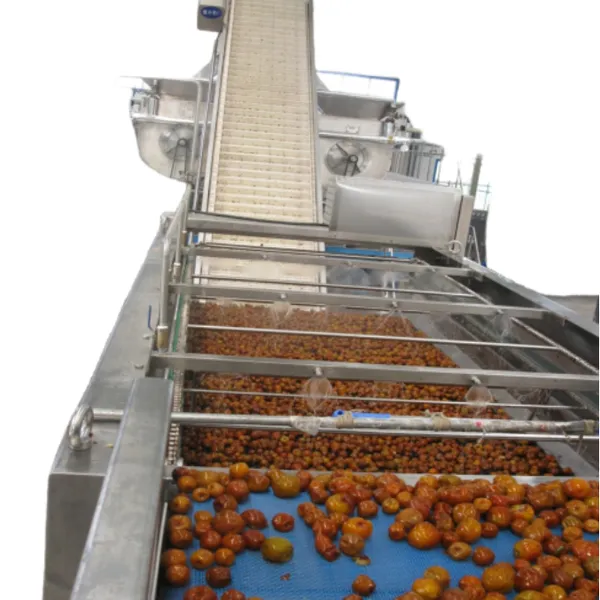

The date goes under the belt and steam down to up for blanching. Depends on different type dates, the blanching time is different.

After steam blanched, the date will be very soft and it is good for paste making.





Dates Paste machine  ,there is screw and filter in it , adopt Foreign advanced technology ,it can link with Dates Blancher ,then you can get Best Date Paste .

This equipment is used to process dates. steamed dates mashed by this device. Applicable date paste processing enterprises.

  How it works: steamed dates feed by screw conveyor, high-speed rotating blades shattered and abrasion in mesh tube wall, date paste from screen meshWaste like date pit, skin, fiber discharged another way.

Features of fruit pulp machine

1.The machine is multifunctional, can do peeling, pulping, seeds removing and slag discharging

2.Made by full stainless steel

3.Made of superior quality stainless steel, approval of the national hygienic standards, safe and healthy.

4.Full automatic, saving energy and labour

5.The rotating speed is slow, can keep orginal nutrition in fruits and vegetables

6.Pulping thickness can be adjusted as your requires

7. It is practical, convenient to clean and repair



Turnkey Project Date Paste Production LineTurnkey Project Date Paste Production Line



Product Overview
Product Overview
Turnkey project complete set of palm dates processing line Date Syrup Production line
A palm date processing line refers to a production line specifically designed for the processing of palm dates, which are fruits harvested from date palm trees. This line typically includes various machines and equipment aimed at efficiently sorting, cleaning, grading, drying, and packaging palm dates. The process starts with sorting the dates to remove any damaged or unripe ones. Then, the dates are cleaned thoroughly to remove dirt and impurities. After cleaning, the dates are generally graded based on their size and quality. Grading ensures that the dates are consistent in terms of size and appearance. Next, the dates may undergo a drying process. This can be done through natural sun drying or using specialized drying equipment. Drying helps to prolong the shelf life of the dates and improve their texture and taste. Once dried, the dates are typically packaged and labeled for distribution and sale. Throughout the processing line, various machines such as conveyors, washing machines, grading machines, drying equipment, and packaging machines are used to automate and streamline the production process. It's worth noting that the specific configuration and machinery used in a palm date processing line may vary depending on the scale of production, desired end products, and specific requirements of the manufacturer.

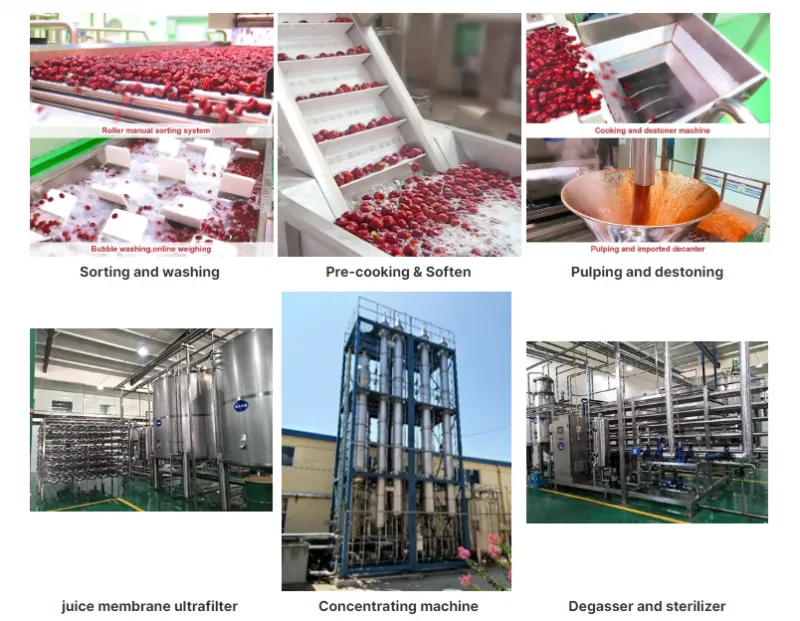

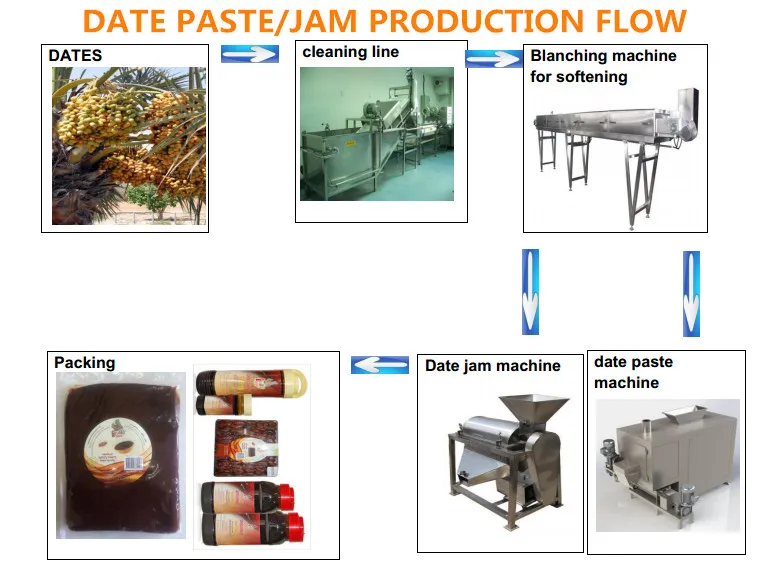

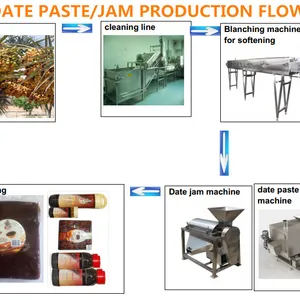

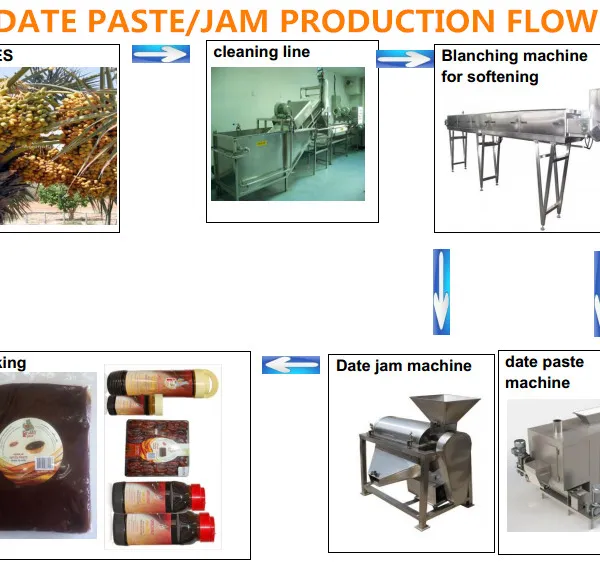

Generally regarding the Palm dates processing line, we will follow the process, washing---> pre-cooking--> pulping and destoning--> juice storage--> juice mesh filter--> juice membrane filter( or maybe there will be another filter stage needed)--> evaporting or concentrating -->pasteurizing--filling.


 Turnkey Project Date Paste Production Line

FEATURES AT A GLANCE
FEATURES AT A GLANCE
Date Syrup Production line
1.Wide range of raw fruits are available, this line is applicable for all kinds fruits with similar characteristic such as date, jujube, hawkthorn and so on. 2.There are two different procedures, one is immerse add extractor, another is destoner add pulper. 3.According to different investment value and product structure, client can require average, middle level or high level processing equipments. 4.End product with pure flavor, bright colour, and high material usage percentage; 5.Whole line with features as high level automatic, low labor intensity, easy operation, safe function and low operation cost. 6.Whole line adopt sanitary design, can be cleaned thoroughly, with high level sanitation.
Turnkey Project Date Paste Production LineTurnkey Project Date Paste Production LineTurnkey Project Date Paste Production Line

PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
No
Item
Data

1
Power
20Kw-45Kw

2
Process capacity
500kg/hr-2000kg/hr

3
Raw material
Palm dates;dry dates;fresh dates;jujube; hawkthorn etc.

4
Output percentage
90%

5
Solid content
≥90%

6
Package type
Aseptic bag/glass bottle/PET bottle/Bucket

7
Type
complete set of processing line on the basis of turnkey project
