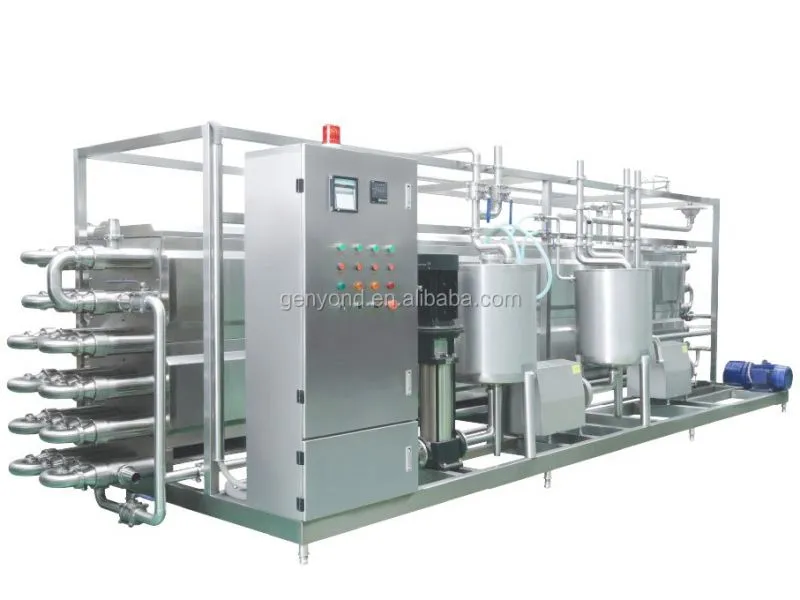

milk sterilization machine introduce:

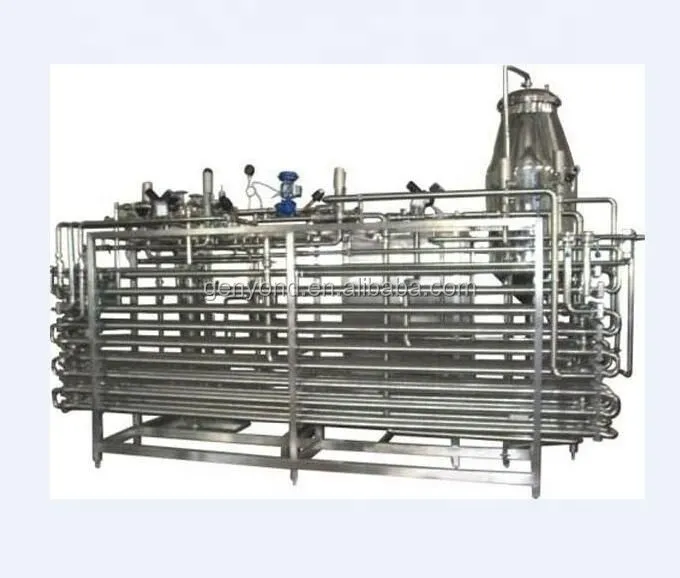

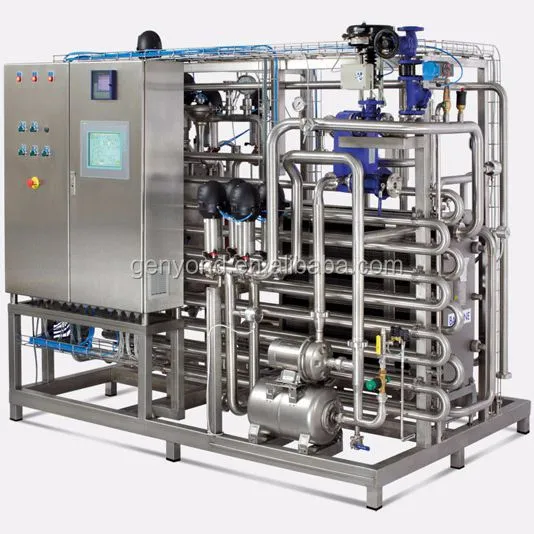

UHT milk sterilization machine adopt tube type sterilization is widely used for liquid food "aseptic" and "the sterile" heat treatment of automatic system,
the viscosity of the products range is very big, and can adapt to the fibers and particles.
our UHT milk sterilization machine series production capacity can be from 1 ~ 20t/h,
typical of the sterilization temperature of 90 ~ 140 °C, be able to connect any filling machine, aseptic or other types , sterilization machine control system installed in the chassis, control without a all adopt the international famous brand products,
including PLC program controller and engineering control screen,steam pressure reducing valve and regulator, the purge valve, valve, material pump, voltage hot water pump,
valve and pipe by other items such as all the accessories selects high fluid quality and high reliability.
The sterilization machine design for precision products/water temperature control. Products from balance pump into the pot, preheat to homogeneous temperature, and preheat to 90 ~ 95 °C, the stability of the milk proteins, and then super high temperature sterilization, finally cooled to filling temperature, the system with hot water sterilization is the circuit,
saving energy source section. The pipe diameter. Shape (straight or corrugated) and the choice of the products by bundle need to decide,
each group of heat exchanger just six O form washer (only in the medium and each year just a second look,
can choose hot filling, add 90 °C. Economic processing means, can be used to receive the same unit semi-automatic the effect.
Modle list:
|
modle |
GY-UHT-1 |
GY-UHT-2 |
GY-UHT-3 |
GU-UHT-4 |
GY-UHT-5 |
|
Production capacity(L/H) |
1000 |
2000 |
3000 |
4000 |
5000 |
|
Inlet temperature |
5°C |
5°C |
5°C |
5°C |
5°C |
|
Holding time(s) |
4-15 |
4-15 |
4-15 |
4-15 |
4-15 |
|
Sterilize temperature |
105~143°C |
105~143°C |
105~143°C |
105~143°C |
105~143°C |
|
Product outlet temperature |
20 |
20 |
20 |
20 |
20 |
|
Icewater inlet temperature |
≤2°C |
≤2°C |
≤2°C |
≤2°C |
≤2°C |
|
Steam pressure |
0.5MPa |
0.5MPa |
0.5MPa |
0.5 MPa |
0.5 MPa |
|
Steam consumption |
~150Kg/h |
~210Kg/h |
~280Kg/H |
~350Kg/h |
~420Kg/h |
|
Compressed air pressure |
0.6MPa |
0.6MPa |
0.6MPa |
0.6MPa |
0.6MPa |
|
Compressed air consumption |
50L/H |
50L/H |
60L/H |
60L/H |
70 L/H |
|
External dimension (homogenizer excluded) |
3500×2000×2500 |
3500×2000×2500 |
4500×2500×2200 |
5000×2000×2200 |
5000×2000×2200 |
|
Total weight of machine |
1700kg |
2000Kg |
2200 Kg |
2500Kg |
2800kg |

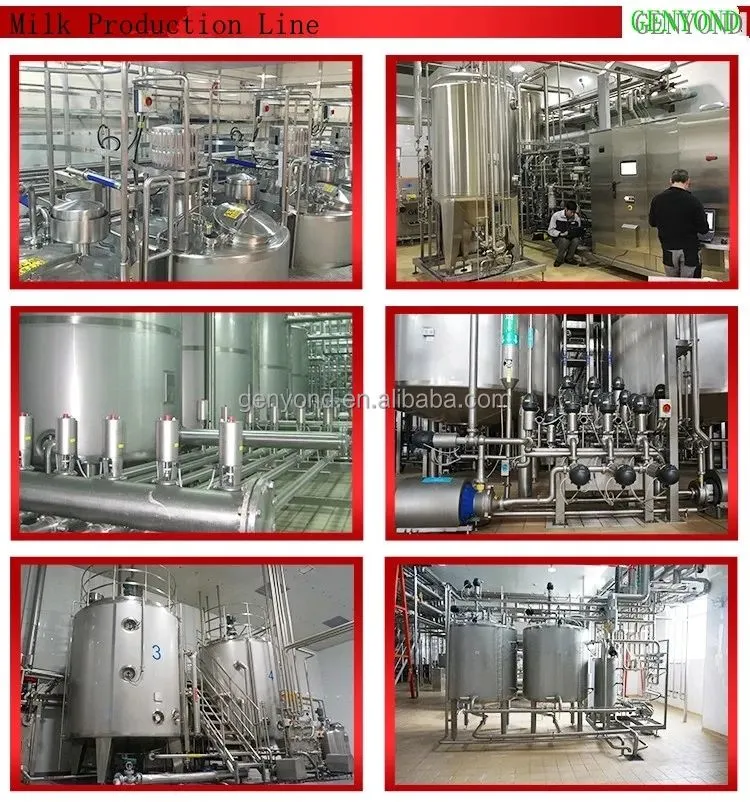

Small /Mini /Indusrial Big Milk Processing Line features:

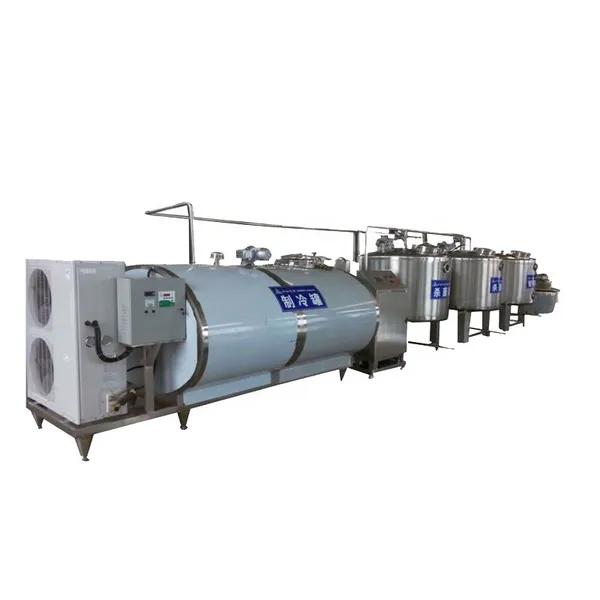

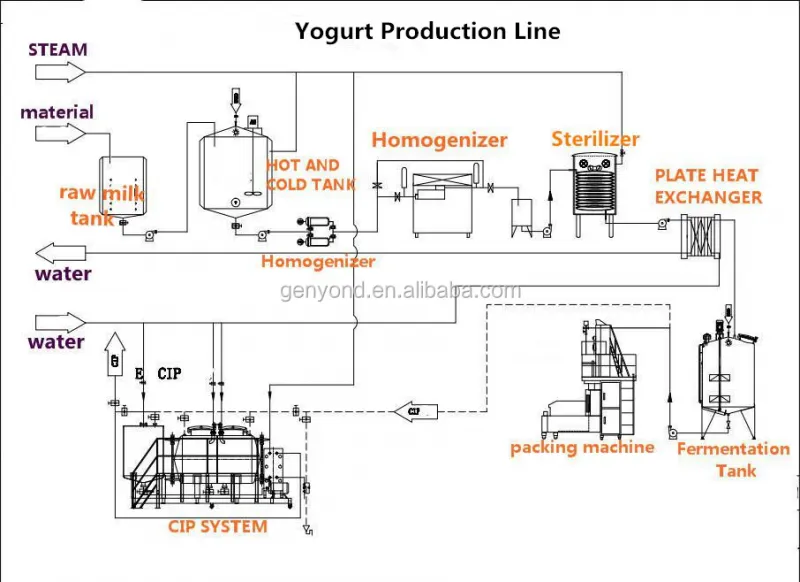

1) This Line is composed of milk discharging machine,cooling machine, filtering machine, preheating machine, homogenizing machine, pasterizing machine,cooling machine, milk pump, distribution box, semi-automatic filling machine, conveyor line, film shrinking machine.
2) This line uses tankstructure, all systems are matched through circulating milk pump and stainless steel pipes. CIP cleaning balls are installed, which features easy-operation, low labor intensity, easy throughly cleaning.
3) Preheating system, pasteurizing system, cooling system and filling system could be started simultaneously and separately, it doesn't involve each other. This improves containous production capacity and makes it more easily to use.
4) Fast production speed, standard processing steps, good combination of euqipment performance and price
5) Is suitable for small dairy production places such as small and middle farms, processing center, canteen, kitchen.

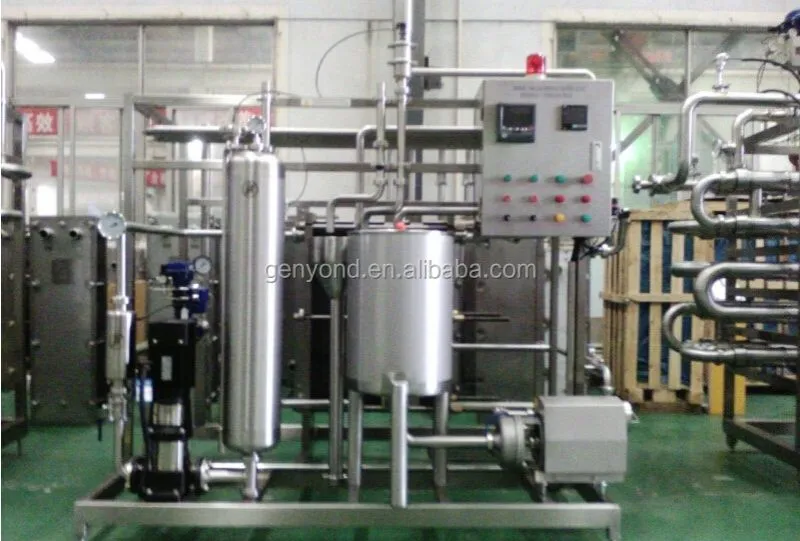

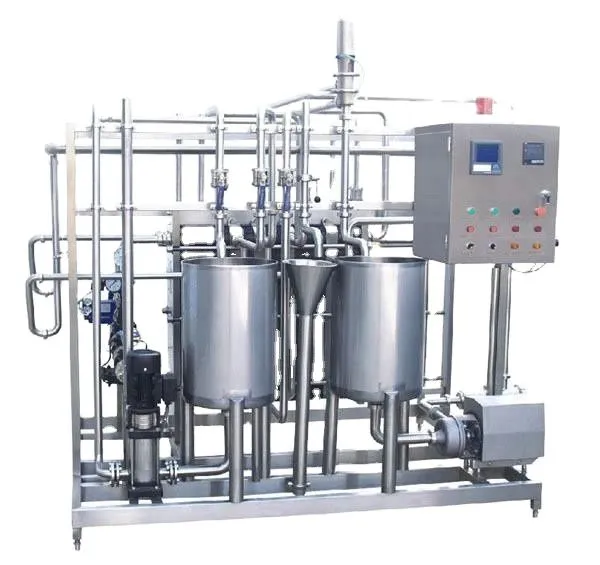

Details of Small Milk Processing Line:

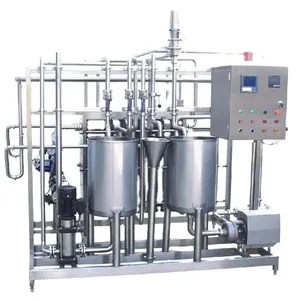

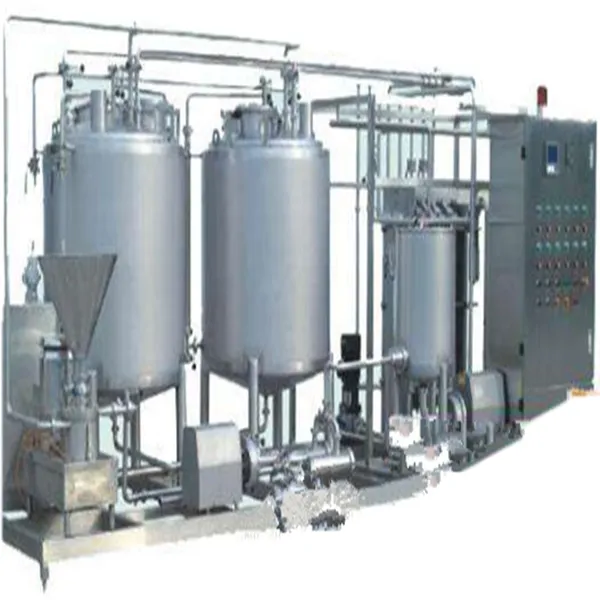

CASE 200L Tank type Pasteurized /UHT Milk Production Line
