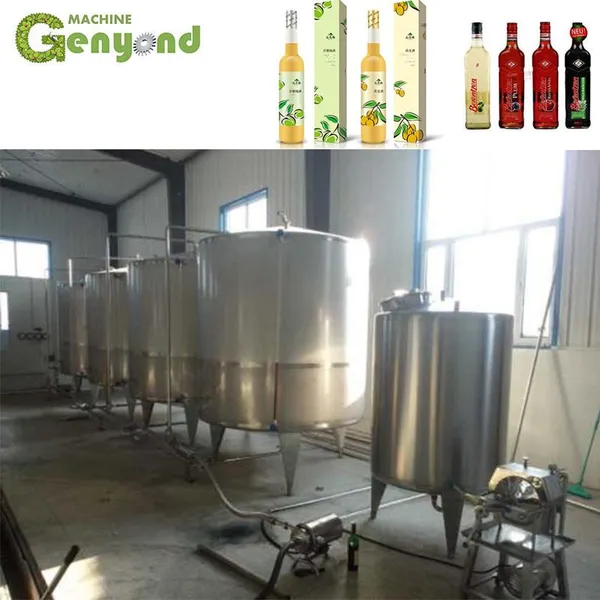

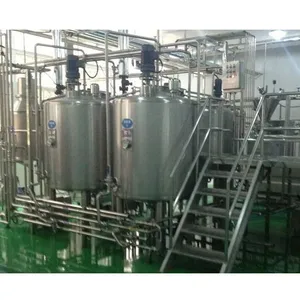

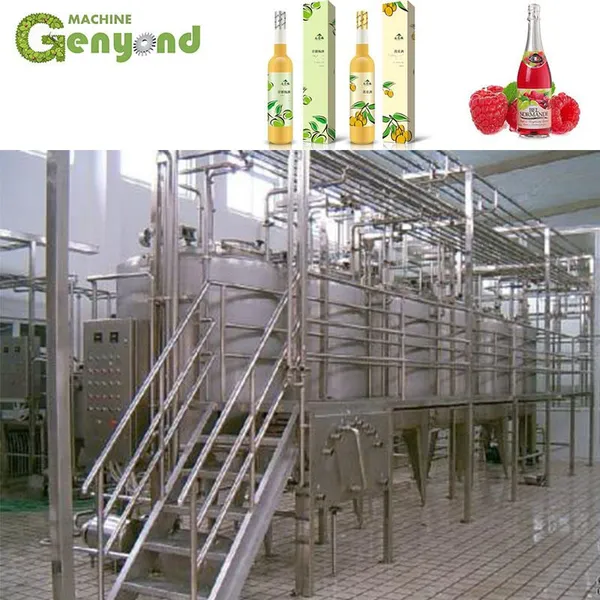

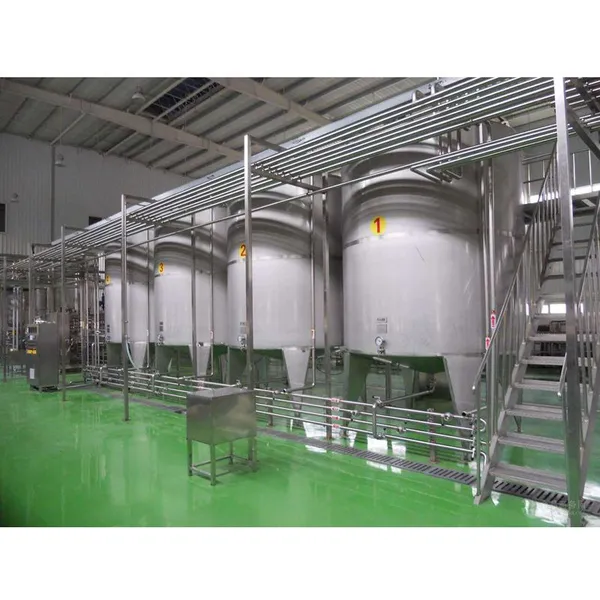

Juice manufacturing plant production line
Product details
| Raw material | fresh fruit or concentrated juice |
| Capacity | 500L-10000 L per hour |
| Machine material | 304 stainless steel |
| Feature | Fully automatic, high eefficient |
| Color | Stainless steel sliver |
| Package | Aseptic carton box, glass bottle or plastic bottle |
| Manufacturing time | 30 to 90 days |
| Control type | PLC control |
| Final product | fruit juice or concentrated juice |
| Item name | cost of juice manufacturing plant production line price |
| Product Keywords | pineapple juice machine |
Juice Drinks Introduction
Use fruit power or jam and other raw materials,production processes through the deployment of reduced juice drinks. By comparison with fresh fruit peeled, Juice production processes raw fruit production line. With the feature of less investment, small footprint, easy to manage, quick and so on.
Juice Beverages
1.Apple juice 2.Strawberry pulp juice 3. Rosa roxburghii tratt juice drinks 4.Pear fruit drinks 5.Red grape juice 6.Hawthorn juice 7.Seabuckthorn beverage 8.Kiwi fruit drinks 9.Shaddock juice drinks 10.Watermelon juice drinks 11.mango juice drinks 12.Carrot juice drinks 13.Bamboo shoot juice drinks 14.Peach juice drinks 15.Winter melon juice drinks
Working Process
Material - Deployment of constant volume - Filter - Homogeneous-UHT-Filling - Capping - Light inspection - Cold bottle - Dry - Coding - Packing palletizing - Storage
Preparation of juice process is as follows:
Pulp type (cloudy juice)
Raw material → washing → (peeled) → crushing → softening → multi-channel multi-effect concentration beating → high temperature instant sterilization-Aseptic filling
Juice Type
Raw material → washing → (peeled) → crushing → Enzymatic clarification → Filter → high temperature instant sterilization-Aseptic filling
Drink fruit juice process is as follows:
Juice concentrate → Miniaturization → Mix → Degassing → Homogeneous → UHT → Filling&Sealing
Production Technical Patameters
| Name | Component |
| Washer | Spraying/brush washer |
| Selector | Rolls Selector |
| Sorter | Automatic Sorter |
| Juice extractor | Bowl juice extractor |
| Separator | Horizontal/disc centrifuge |
| Evaporator | Fall film multi-effect evaporator |
| Sterilization machine | Pipe sterilization machine |

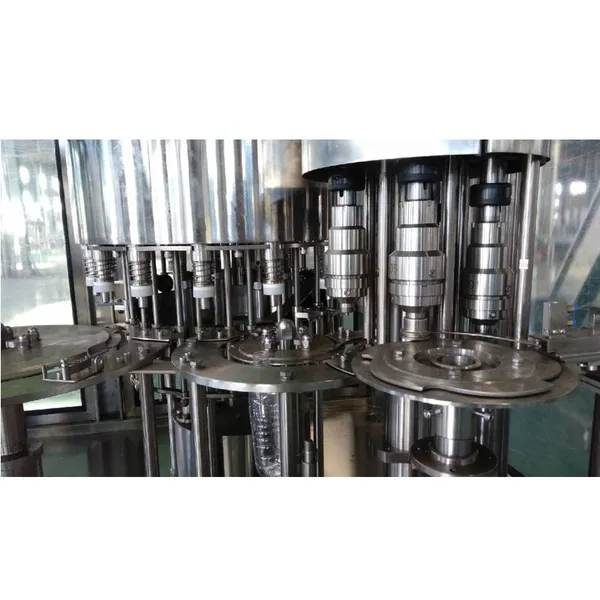

| Filling machine | Aspetic filling machine |
