Large Capacity Belt Juicer for Apple Pear Pineapple Carrot Cactus Belt Press Filter Juice Extractor
US$ 13600.00
≥1 Set
Key Specifications
Get Latest Price
Voltage:
220v/380v
video outgoing-inspection:
Provided
machinery test report:
Provided
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Juice Yield Fruit and Vegetable Press Juicer Belt TypeUS$ 13700.00MOQ: 1 Set -
Zhangjiagang Genyond Industrial Small Belt Press Fruit Juice Crushed Extracting Juicer for Orange Pear ApplesUS$ 22200.00MOQ: 1 Set
-
Automatic 5t/H Fresh Fruit and Vegetable Belt Press JuicerUS$ 17000.00MOQ: 1 Set
-
High Quality Industrial Belt Juice Squeezer / Industrial Cold Press JuicerUS$ 9500.00MOQ: 1 Set
-
Food Processor Lemon Pear Pomegranate Orange Slow Cold Belt Press Juicer Juice ExtractorUS$ 22115.00MOQ: 1 Set
video outgoing-inspection
Provided
machinery test report
Provided
core components
PLC, Engine, Motor
model number
GY-BJ
brand name
Genyond
place of origin
Shanghai, China
voltage
220v/380v
power(w)
5kw
dimension(l*w*h)
2800*1500*1600mm
weight
500 KG
warranty
1 Year
application fields
Fruit Processing Plant, Vegetable Processing Plant
machinery function
Belt type juice extraction
raw material
Fruit, Vegetables
output product name
juice
key selling points
Long Service Life
Product name
Belt Juicer Extractor Machine
Material
304 Stainless Steel
Capacity
100-2000 KG/H
Certification
CE
Application
Fruit Processing Line
Function
Extracting Juicer
Usage
Juicer Extrator
Final product
Juice
Belt speed
2-10m/min
Product Description
Working principle
The fruit pulp (solid-liquid mixture) broken to be pressed from the feeding box is continuously and evenly sent between the lower filter belt and the upper filter belt, and is moved forward by the two filter belts. In the lower curved wedge area, a large amount of juice is slowly pressed out to form a filter cake that can be pressed. When entering the press zone, the juice is further pressed out due to the tension of the filter belt and the action of the press roller with the L-shaped laminate. Later, as the diameter of the press roller decreases, the surface pressure and shear force of the filter cake between the filter belt increase, ensuring the best press effect.
Cold press juice extractor
Belt press is the use of two ring mesh belt(filter press belt) to hold the pulp after by passing the multistage diameter of the press roller, due to the role of the mesh belt tension, so that the external press filter belt around the press roller on the pulp between the two belts to produce pressure, so that the juice through the press filter belt discharged, so as to achieve the effect of juicing. It is mainly composed of three parts: the homogenizing area, the wedge area and the pressing area, of which the pressing area is the core functional area of the machine.
Product Introduce
Using Scope
As a effecitive juice extractor,the model belt press is widely used in the juice extracting of bacca,drupe,and variousof vegetable.The belt press is high juice rate,widely application, and easy for mainintenance.Matched with the washing water
recyle.It is water savage.
Production Features
recyle.It is water savage.
Production Features
1. Press cake with the lowest moisture content;
2. Advanced slurry distribution unit;
3. Reliable and stable in operation;
4. Longer service time and Low erengy consumption;
5. Anti-abrasion and anti-corrosion protection;
6. Easy to operate and maintenance
7. Full-automatic belt deviation correction performance is very stong.
Product Paramenters
Product Name |
Fruit belt press juicing machine |
Capacity |
500KG/H, 1000KG/H, 2000KG/H, 3000KG/H, 5000KG/H |
Function |
Juice extracting for fruits & vegetables Belt press filtration
Dehydration (water separate) |
Application |
Apple, pear, pineapple, guava, coconut , grape, kiwi, melon , berry fruit, tomato, carrot, ginger etc. |

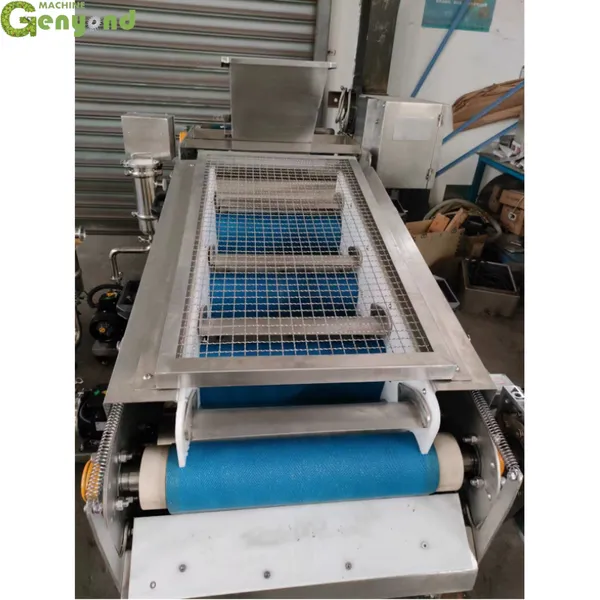

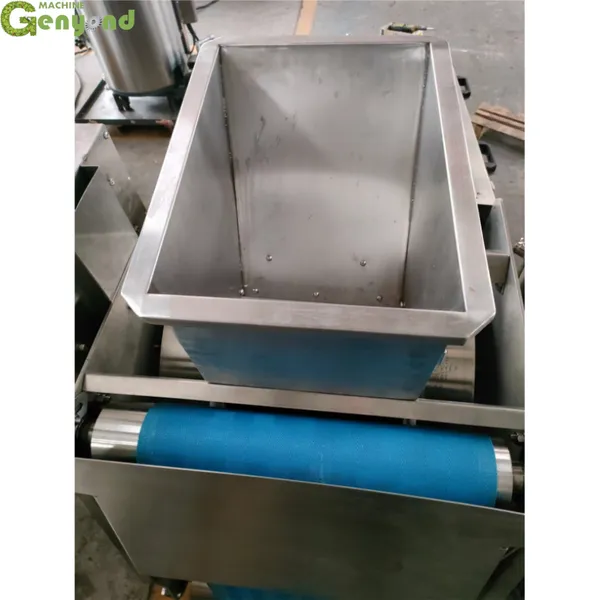

Detail Pictures
