US$ 2000.00 ≥1 Set
Key Specifications
Get Latest Price
video outgoing-inspection:
Provided
machinery test report:
Provided
core components:
PLC
Contact Supplier Request Quote Chat Now
Zhangjiagang Genyond Machine Co Ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
video outgoing-inspection Provided
machinery test report Provided
core components PLC
place of origin Shanghai, China
brand name GENYOND
type whole line
voltage 380/440v
power(w) different power
weight KG
dimension(l*w*h) different size
warranty 12 month
After-sales Service Provided Engineers available to service machinery overseas
GRADE FOOD GRADES
After Warranty Service Video technical support
Certification ISO 9001
Applicable Industries Food & Beverage Factory
Showroom Location None
Marketing Type New Product 2020
Warranty of core components 1 Year
Condition New
Year new

Fruit vinegar liquid fermentation process line

 Factory Shanghai Genyond Fruit Wine Fermentation Equipment Making Machine Fruit Vinegar Production Plant Process Line

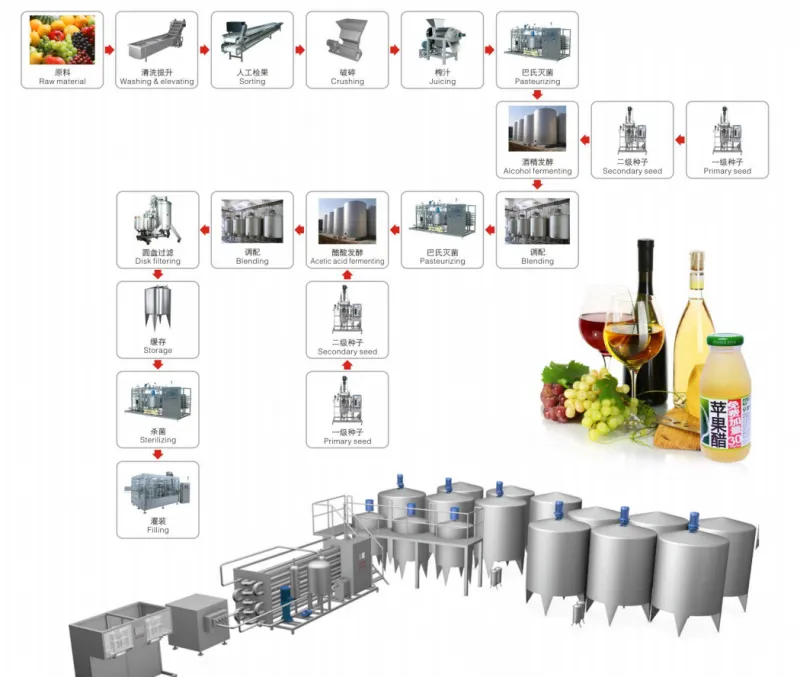

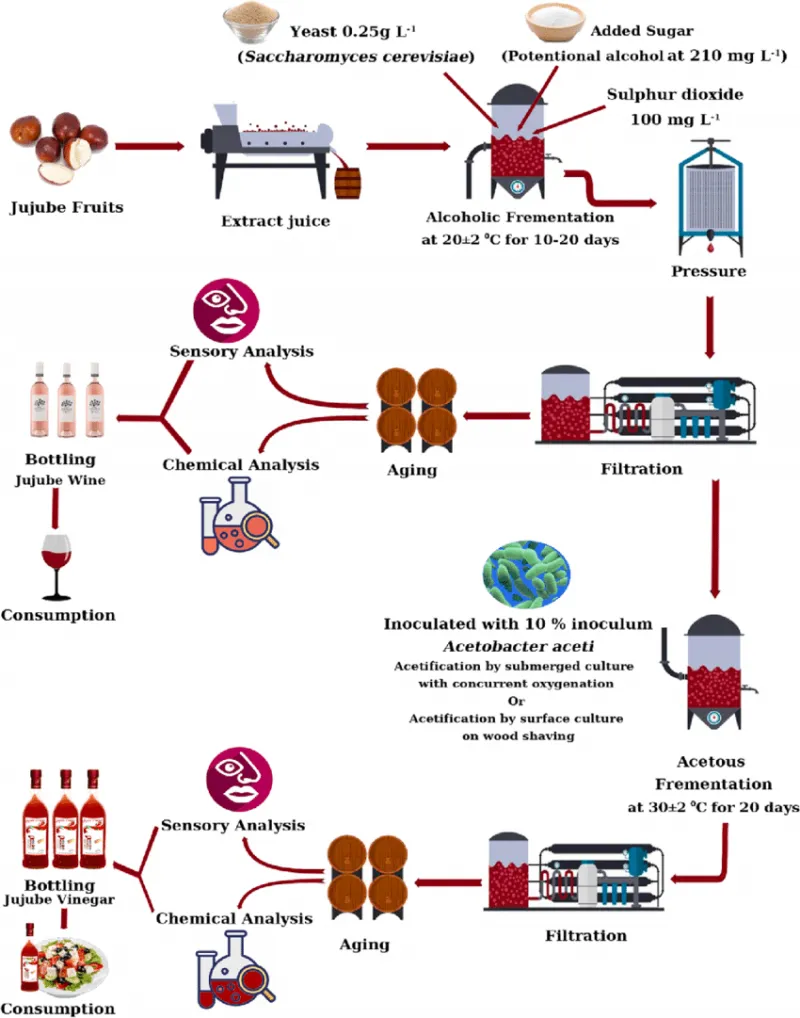

Process: juice(choose by client)--enzyme alcohol fermentation -- mixing - acetic acid fermentation-- --vinegar machine----mixing---filtration sterilization(choose by client) - packing(choose by client).

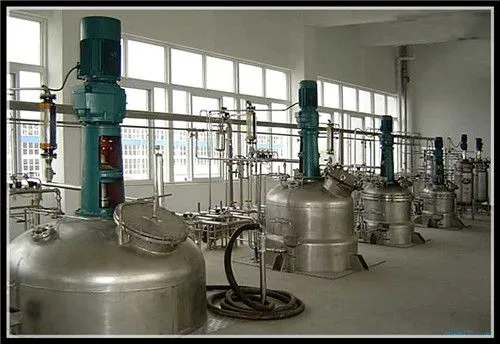

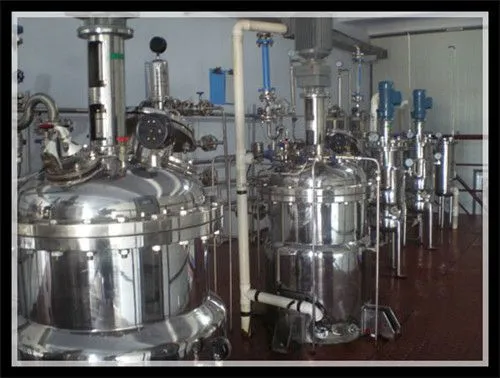

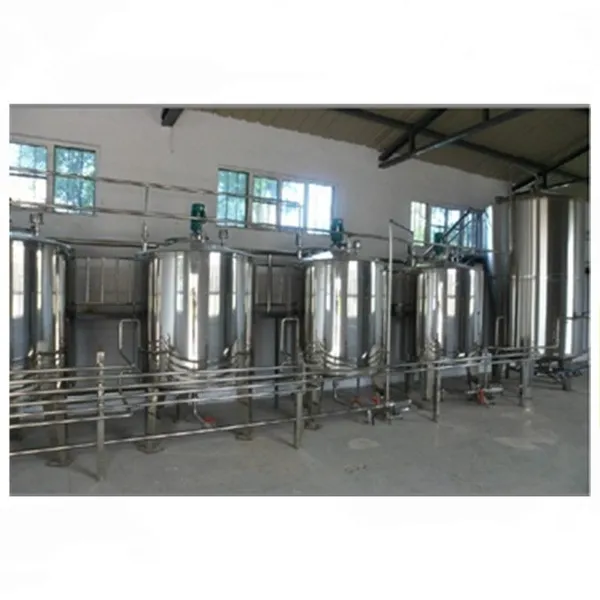

  1. Tanks system : rotating axis and horizontal tanks , SUS316L material is used, and it is processed by polishing inside and outside. Designed pressure is 0.25Mpa, operating pressure is 0.01-0.07Mpa, heat is transmit- ted by inner bushing with big vaccination, out-off-band jacket, special security ventilation, exhaust and sample port.
  2. Mixing system : mechanical agitation, double propellers blades; speed control: timed positive --negative operation , 0-99 minutes adjustable.
  3. Temperature control : Cooling water +5°C. Pt--100 temperature and electrode, fuzzy PID intelligent controller.
  4. Ventilation flow : 0--1VVM (rotermeter.) 0.2μm asepsis air filter, tank pressure: 0-0.3Mpa, pressure gauge indication, manually operation adjustment.
  5. Regnant vaccination and blending : Uniform vaccination by regnant tinder and flame. Stable and even fermentation happens with blending material in the tank and crushing system in the biochemical reaction process
  6. Disinfection and smoked grains : Steam is accepted externally and manually controlled, mature vinegar grains is ventilated with steam directly in fermentation tank with special mixing system in order to reach regnant disinfection and smoked grains.

 Factory Shanghai Genyond Fruit Wine Fermentation Equipment Making Machine Fruit Vinegar Production Plant Process Line

•♦C2H5OH+[O]→CH3CHO+H2O •♦       CH3CHO+H2O→CH3CH(OH)2 •♦                CH3CH(OH)2+[O]→CH3COOH+H2O

Factory Shanghai Genyond Fruit Wine Fermentation Equipment Making Machine Fruit Vinegar Production Plant Process LineFactory Shanghai Genyond Fruit Wine Fermentation Equipment Making Machine Fruit Vinegar Production Plant Process Line

 Factory Shanghai Genyond Fruit Wine Fermentation Equipment Making Machine Fruit Vinegar Production Plant Process Line



Item



300T/year

600T/year

1000T/year

2000T/year

3000T/year

sugaring equipment

FVPL--1500

FVPL--2500

FVPL--3500

FVPL--6500

FVPL--10000

Enzymolysis equipment

FVPL--1500

FVPL--2500

FVPL--3500

FVPL--6500

FVPL--10000

Alcohol fermentation equipment

FVPL--1500

FVPL--2500

FVPL--3500

FVPL--6500

FVPL--10000

Alcohol fermentation equipment

FVPL--1500

FVPL--2500

FVPL--3500

FVPL--6500

FVPL--10000

Vinegar equipment

FVPL-1000

FVPL-1000

FVPL-1000

FVPL-1000

FVPL-1000

storage tank

5m3

5m3

5m3

6.5m3

10m3



 Factory Shanghai Genyond Fruit Wine Fermentation Equipment Making Machine Fruit Vinegar Production Plant Process LineFactory Shanghai Genyond Fruit Wine Fermentation Equipment Making Machine Fruit Vinegar Production Plant Process LineFactory Shanghai Genyond Fruit Wine Fermentation Equipment Making Machine Fruit Vinegar Production Plant Process Line Factory Shanghai Genyond Fruit Wine Fermentation Equipment Making Machine Fruit Vinegar Production Plant Process Line Factory Shanghai Genyond Fruit Wine Fermentation Equipment Making Machine Fruit Vinegar Production Plant Process LineFactory Shanghai Genyond Fruit Wine Fermentation Equipment Making Machine Fruit Vinegar Production Plant Process LineFactory Shanghai Genyond Fruit Wine Fermentation Equipment Making Machine Fruit Vinegar Production Plant Process Line
