Grape Sorting Machine Grape Processing Separation Machine

Grape Sorting Machine Grape Processing Separation Machine photo-1

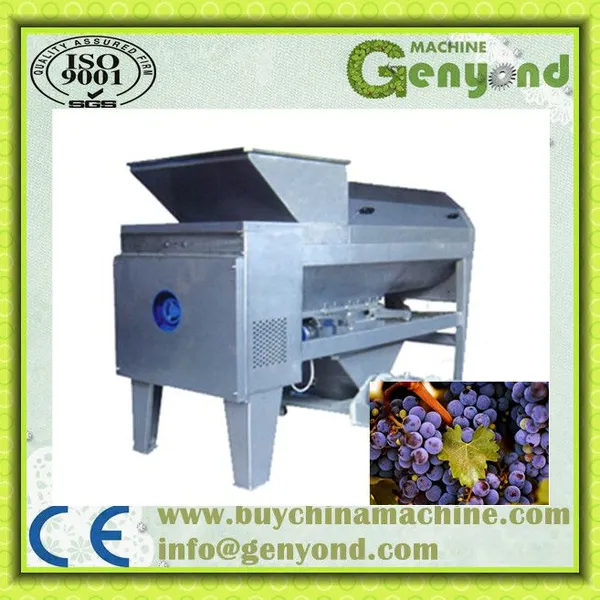

Grape Sorting Machine Grape Processing Separation Machine photo-2
Grape Sorting Machine Grape Processing Separation Machine photo-3
Grape Sorting Machine Grape Processing Separation Machine photo-4

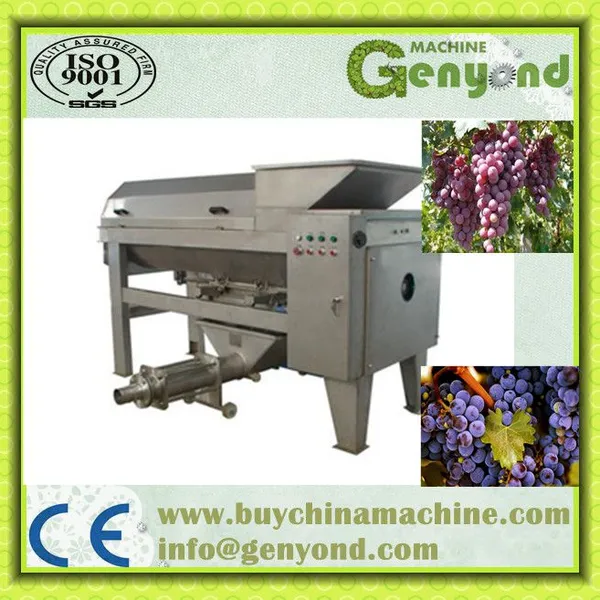

Grape Sorting Machine Grape Processing Separation Machine photo-5
Grape Sorting Machine Grape Processing Separation Machine photo-6
US$ 29000.00 1 Set
US$ 26000.00 ≥2 Set
Key Specifications
Get Latest Price
video outgoing-inspection:
Provided
machinery test report:
Provided
core components:
Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
video outgoing-inspection Provided
machinery test report Provided
core components Motor
place of origin Shanghai, China
brand name GENYOND
type juice machine
voltage 220V/380V
warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas, Online support
After Warranty Service Video technical support, Online support
Local Service Location None
Certification ISO 9001
Applicable Industries Manufacturing Plant, Food & Beverage Factory, Farms
Showroom Location None
Marketing Type Hot Product 2019
Warranty of core components 1 Year
Condition New
Product Description

Specifications



1.Can both stemmer and crusher the grapes
2.high efficiency with advance designed
3.easy to operate
4.save worker



 Performance characteristics

Grape destemming and crushing machine is adopted the French,Italy advanced technique and designed special for the drinks industry.



Main Technical Characteristics

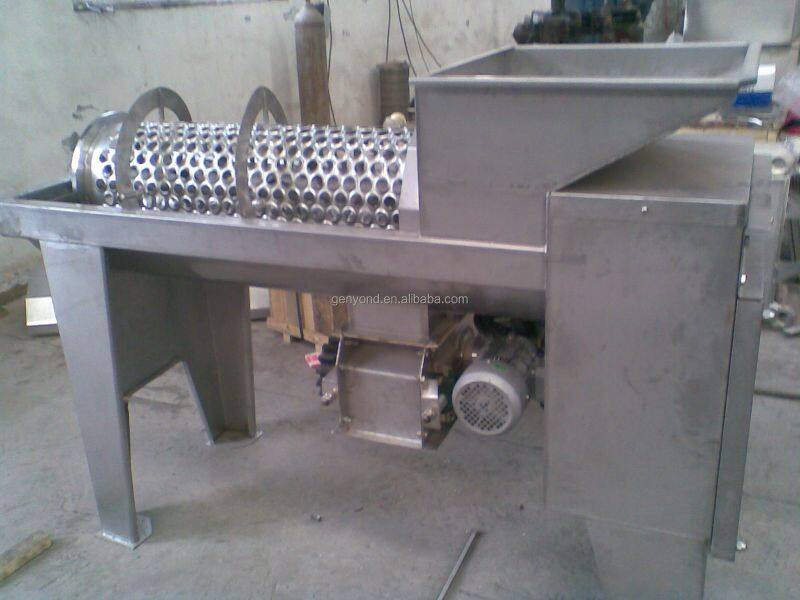

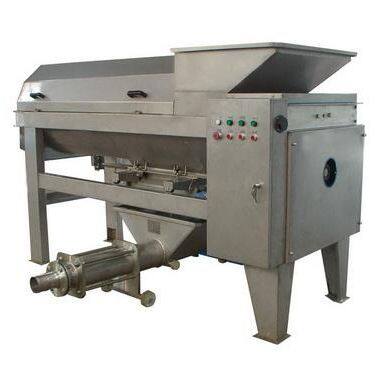

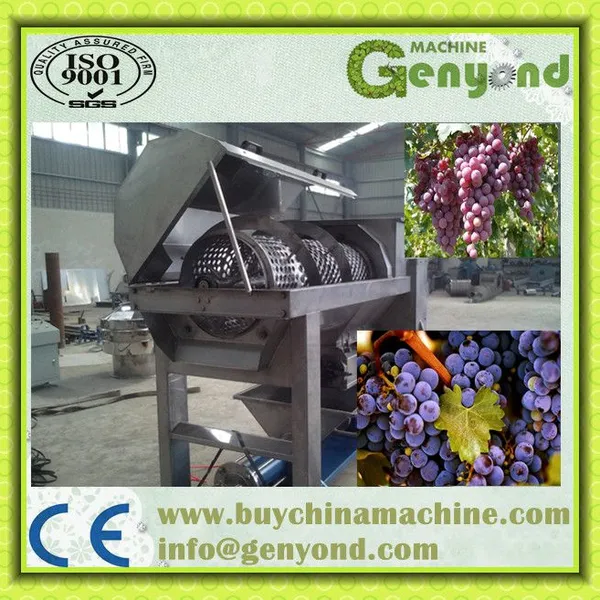

1.This machine frist to rremove the stems,then to smash the grapes.Moblie single screw pump to convey the mashed fruit.

2.The screw pump can be fixed feeding mashed fruit

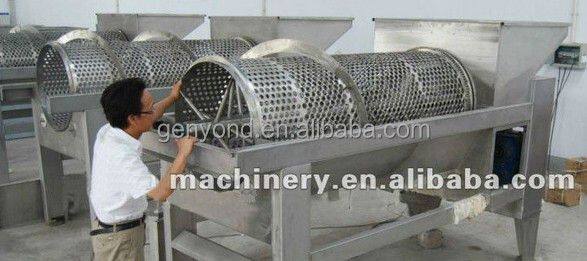

3.The stem removing equipment can adjust the rotary speed according the different grade of grapes.

4.Grape destemmer main parts are made of stainless steel 304.The crusher roller is made of for non-toxic,high elastic rubber.

5.The smashing mashine is easy to operate.Its rollers are rubber roller ,do not hurt the grapes and cores.

6.The size of the screen according the size of the garpes,beore order the machine ,pls confirm the max and min size of the garpes.



Main Technical Characteristics

Model

GY-GR101

GY-GR102

GY-GR103

GY-GR104

GY-GR105

Capacity

5-7t/h

8-10t/h

18-22t/h

30-35t/h

45-50t/h

Slurry pump discharge

90mm

100mm

100mm

125mm

125mm

Crushing power

0.75kw

1.1kw

1.1kw

3.0kw

3.0kw

Host power

1.5kw

2.2kw

4.0kw

5.5kw

5.5kw

Slurry pump power

4.0kw

5.5kw

7.5kw

15kw

15kw

Weight

690kg

850kg

1000kg

1800kg

1950kg

Dimension (mm)

1900*720*1350

2200*900*1600

2550*910*1630

3150*1200*2000

3200*1250*2000



More pictures
