Commercial Mango Peeling Machine/Mango Peeler Machine/Mango Skin Removing Machine
Introduction:
1. The Machine is used to peel oranges,apples and other fruit and vegetable.With high peeling rate,it is suitable for various shapes of fruit and vegetable.It is multifunctional with six functions together,includes peeling,ends cutting,coring,slicing,separation and color protecting.It is also applicable to 20 kinds of fruit and vegetable includes kiwi, pear, persimmon, citrus, lemon, kohlrabi, mango, avocado, grapefruit, guava,etc.
2. This machine can figure out fruit height and diameter automatically,so it adopts well to irregular-shaped fruits.Paring knives can automatically track changes in fruit shape and thus causing little fruit damage.The main material of the whole machine frame is high quality stainless steel,wholly computer-controlled,PLC and other electronic components are products of Japan Omron.This product has won European CE certificate. It is essential for fruit and vegetable processing.
Structure and Principle:

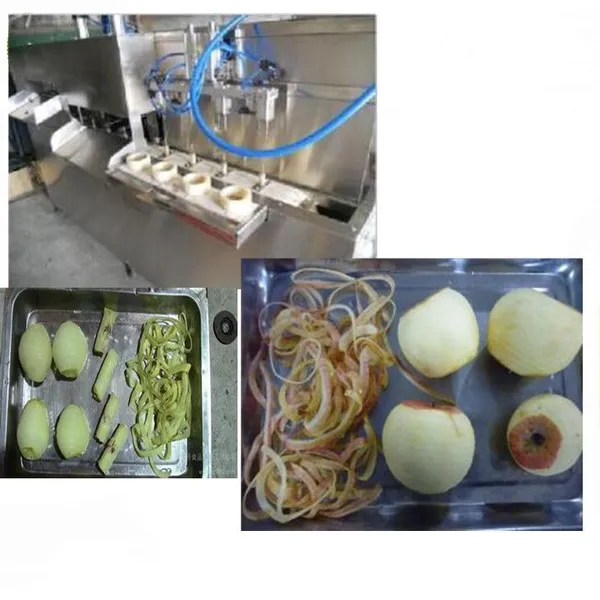

The equipment is consist of many parts,including outer shell,body frame,fruit bases,fruit passing fork,conveyor,fruit setting bases,main motor,paring knife,end cutter,coring knife,PLC,touch screen and other parts.It is able to peel,cut ends,core,slice at the same time or separately.It fits fruit diameter and height automatically,and the peeling thickness is adjustable.
Firstly,choose fruits according to diameters,eliminate super high,super soft and super smallfruits,sample 1-3 fruit ready to peel,then start the equipment to determine the thickness ofpeeling and ends cutting.Regulate all the actuators,set up actions and parameters.Put fruit one by one,right into the fruit bases,then they can be peeled,cut ends,cored.Finally fruit pulp,skin,end skin and cores go out from three separate holes.
Main Technical Parameter:
|
Overall dimension |
1700*855*1700mm |
|
Weight |
320kg |
|
Output |
13 pcs/min |
The output: take orange,apple for example,adjust for specially shaped fruit and vegetable according to actual output,with the condition of optimum peeling effect,such as kohlrabi.
very perfectly.
2. High peeling speed, even peeling effect, wide application.
3. After peeling, there will be a device that can push the material to come out automatically.
4. Mainly suitable for fruit or vegetable processing factory, big canteen or food distribute center
5. This machine has a button for automatic discharging.
2.The whole working is controlled by the computer automatically.
3.The machine is made of 304 stainless steel.
4.Lower flesh waste.Can achieve best peeling according to different
fruit shapes.
5.You just need to put the fruit into the feeder,the machine will
automatically peel.
6.The fruit after peeling and peels will be sent out from different outlets.
