Shanghai Factory Industrial Soybean Milk Production Processing Line Low Price
US$ 20600.00
≥1 Set
Key Specifications
Get Latest Price
video outgoing-inspection:
Provided
machinery test report:
Provided
core components:
Engine, Gear
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Genyond Soybean Grinding Machine Soymilk Production Line Bean Milk Production LineUS$ 20015.00MOQ: 1 Set -
Shanghai Genyond Full-auto Material Dissolving System Soya Milk Production LineUS$ 21900.00MOQ: 1 Set
-
Automatic Grinder Homogenizer Fresh Soy Protein Making Machine Texture Soya-Bean Milk Production LineUS$ 18000.00MOQ: 1 Set
-
300 L/Hour Ice Cream Freezer MachineUS$ 25000.00MOQ: 1 Plant
-
Ice Cream Wafer Cone Making MachineUS$ 56000.00MOQ: 1 Plant
video outgoing-inspection
Provided
machinery test report
Provided
core components
Engine, Gear
place of origin
Shanghai, China
brand name
Genyond
voltage
220v/380v
power(w)
10kw
weight
1000 KG
dimension(l*w*h)
12000*1890*2100mm
warranty
12 months
key selling points
Long Service Life
Name
Soybean Milk Production Line
Product name
Soybean Milk
After-sales Service Provided
Engineers available to service machinery overseas
Raw material
Fresh Soybeans
Material
SUS304
Capacity
1000L/H
After Warranty Service
Video Technical Support Online Support
Advantage
Easy Operation High Efficiency
Product Description

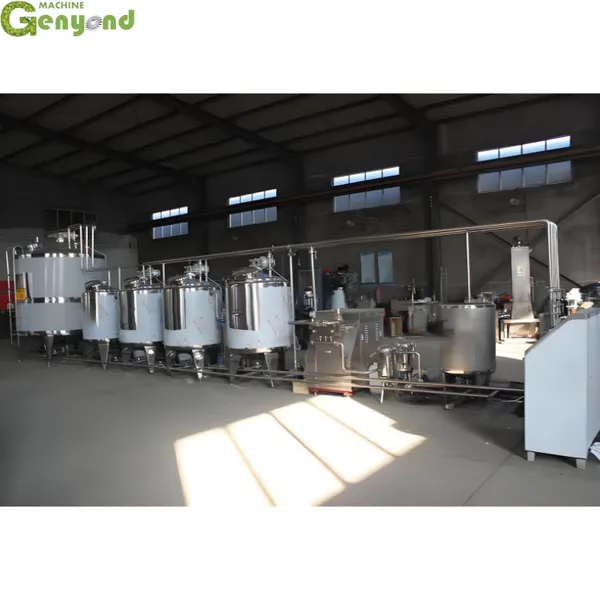

Lines and equipment especially designed for the production and aseptic filling of soy milk according to the highest quality international standards. The soy milk line production process is composed of the following phases: reception of soy beans, de hulling, dehydration, grinding, solubilization, separation, clarification, inhibition, standardization/formulation, homogenization, cooling and storage, sterilization and aseptic filling. Soy milk can also be kept for further processing in order to obtain, for example, flavored soy milk, soy drinks, beverages etc.
The separation phase allows to obtain a by product called “Okara” and generally used as animal food.
Soy milk production line may consist of following ancillary machines:
1)Screening machine and soaking machine
2)Grinding machine , mixing machine, and filtering machine
3)Homogenizer, pasteurizer and deaerator
4)Secondary sterilization using Retort sterilizer or sterilizing tunnel.
5)Filling machine and packing machine
6)CIP system and others
Product Paramenters
Working capacity |
From 1000L up to 40000L per hour |
Products |
Soy milk |
Flavored soy milk |
|
Vitamin enriched soy milk |
|
Dietary fibra enriched soy milk |
|
Soy milk based drinks with juice fruit addition |
|
Soy yogurt |
|
Soy milk based puddings and desserts |
|
Bases for soy ice cream |
|
Soy milk powder |
