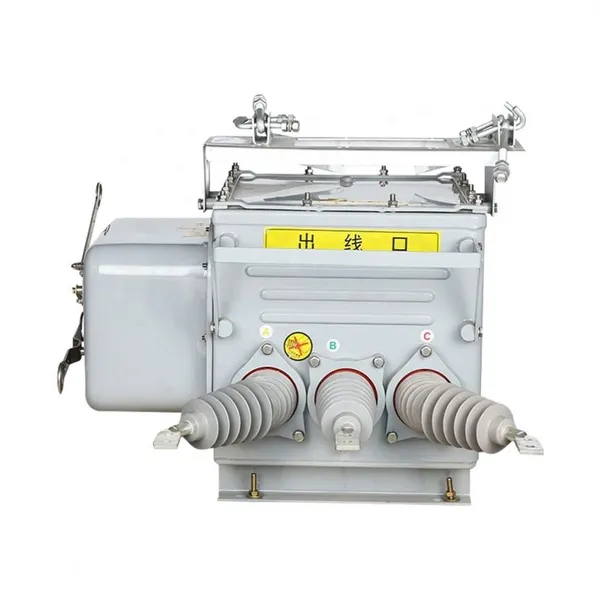

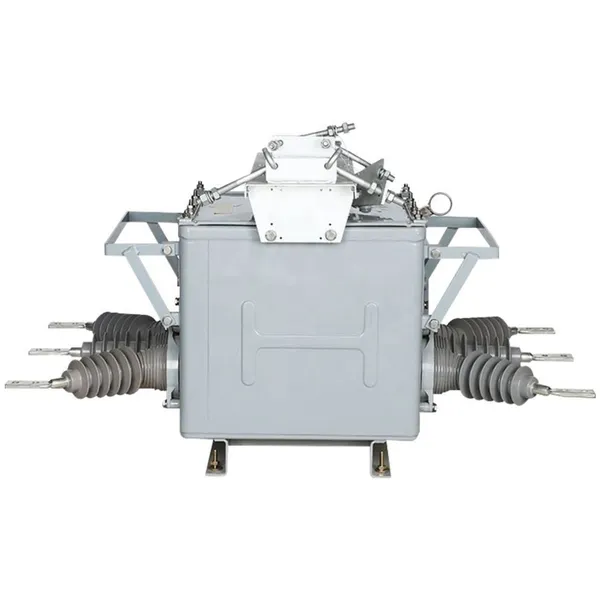

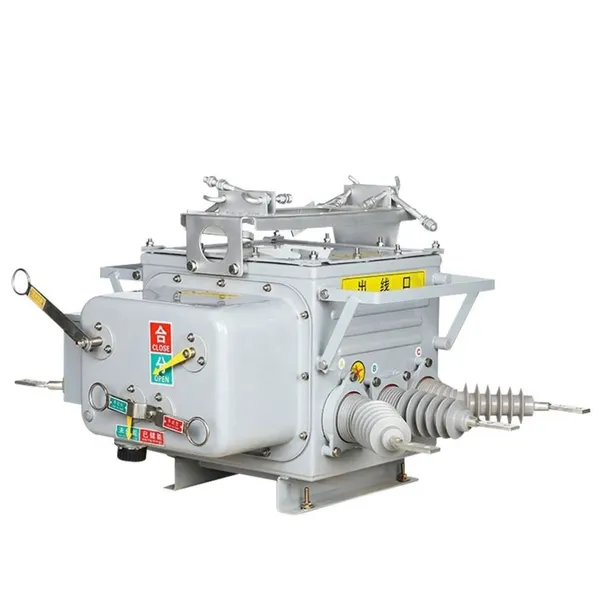

As a leading ISO9001-certified manufacturer with over $1 million in annual exports to global markets including North America, Europe, and Southeast Asia, Jinhua Dika Electric specializes in robust grid solutions. Our ZW20 10kV Smart Circuit Breaker delivers critical reliability for utility pole installations, featuring advanced remote management capabilities that significantly reduce outage times and operational costs for power distributors worldwide.

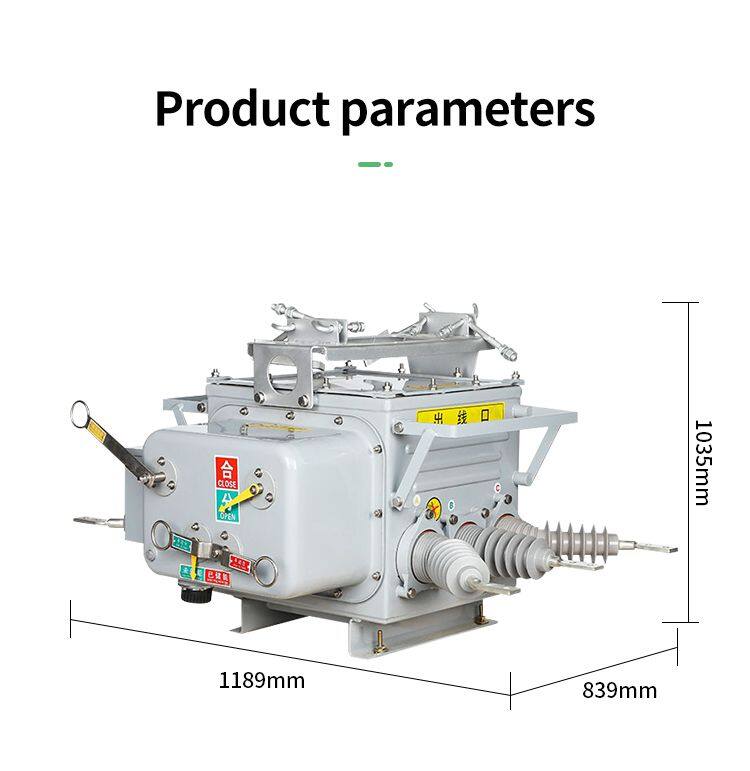

Core Technical Specifications:
| Parameter | Specification |
|---|---|
| Rated Voltage | 10kV |
| Rated Current | 630A |
| Short-Circuit Breaking Current | 20kA |
| Mechanical Life | >10,000 operations |
| Operating Temperature | -30°C to +55°C |
| Protection Class | IP65 |
Key Advantages for Grid Operators:
- Intelligent Grid Management: Integrated sensors enable real-time monitoring of current, voltage, and fault signals via SCADA systems.
- Rapid Fault Isolation: Vacuum interruption technology ensures arc-free breaking within 0.03s, minimizing damage to infrastructure.

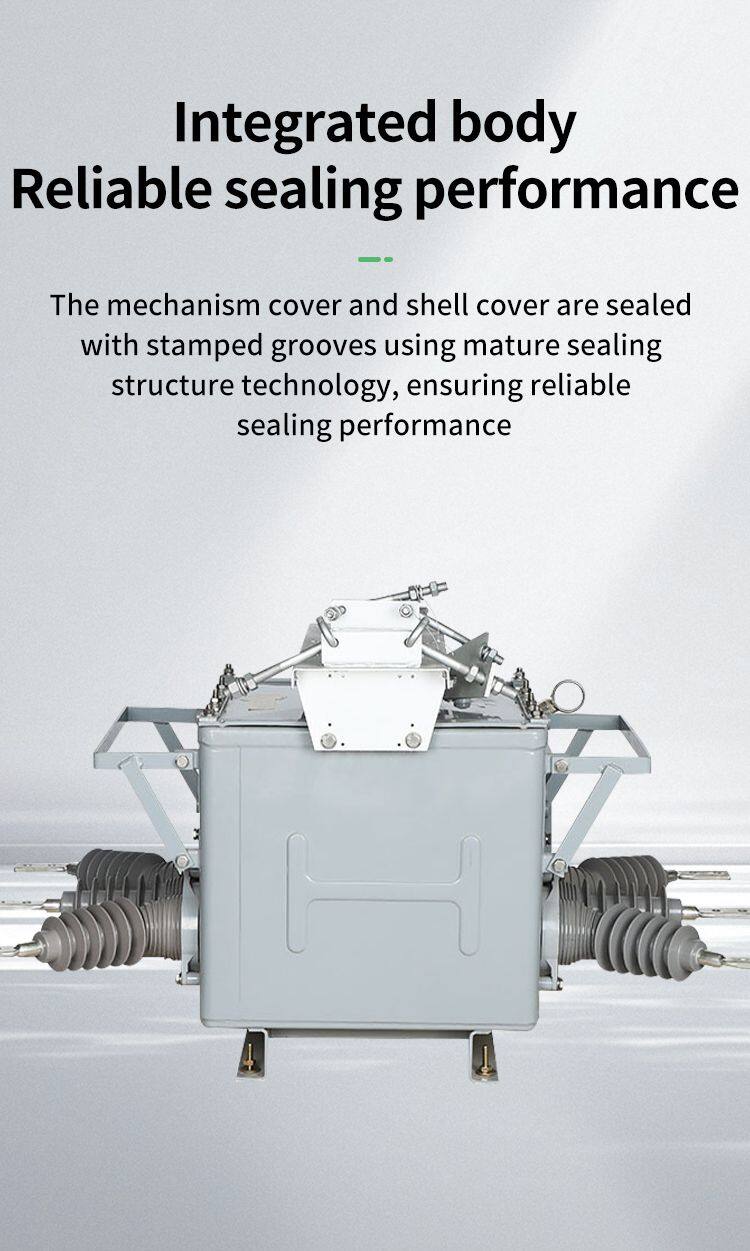

- Reduced Maintenance: Hermetically sealed pole-mounted design withstands harsh weather (dust, rain, ice) with maintenance intervals exceeding 10 years.
- Simplified Installation: Pre-assembled modular components with corrosion-resistant brackets cut installation time by 40% compared to conventional breakers.
Critical Installation Features:
- Precision-engineered mounting kit adapts to standard utility pole diameters (200-400mm)
- Color-coded terminal blocks prevent wiring errors during field installation
- Wireless test interface allows commissioning without physical panel access
- Optional bird guard prevents nesting-related faults
Trusted by utilities across 15+ global markets from Oceania to Eastern Europe, Dika Electric combines ISO9001 quality assurance with extensive experience in harsh-environment power distribution. Our direct manufacturing capability allows flexible customization of protection settings and communication protocols (IEC 60870-5-101/104, DNP3.0). Shipments are available year-round from Shanghai, Tianjin, and Ningbo ports with dedicated technical support ensuring seamless integration into your smart grid infrastructure.
FAQ
Q1: What communication protocols does this smart breaker support?
A: Standard models support MODBUS RTU. IEC 60870-5-101/104 and DNP3.0 are available upon request.
Q2: Is special equipment needed for pole installation?
A: Installation requires standard utility bucket trucks. Our patented clamping system eliminates specialized tools.
Q3: How is the device powered for remote operations?
A: It utilizes self-powered current transformers with backup supercapacitors ensuring 72+ hours of operation during outages.
Q4: Can it integrate with existing distribution automation systems?
A: Yes, our engineering team provides protocol conversion services for legacy SCADA systems at no extra cost.
Q5: What is the lead time for 50-unit orders?
A: Standard configurations ship within 3 weeks from Shanghai port. Customized orders require 5-6 weeks.
Q6: Are training materials provided for field crews?
A: Comprehensive installation videos and VR simulations are included with bulk orders.
