Factory Dairy Making Machine/mini Pasteurized Milk & Yogurt Processing Plant/long Life UHT Milk Production Line Machinery
US$ 58000.00
≥1 Set
Key Specifications
Get Latest Price
Application:
Cheese, Milk Powder
video outgoing-inspection:
Provided
machinery test report:
Provided
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
300L Continue Ice Cream MachineUS$ 2000.00MOQ: 1 Set -
Industrial Soymilk Production LineUS$ 75600.00 - 80000.00MOQ: 1 Set
-
Shanghai Factory Complete Ice Cream Mixing Freezing Filling Sealing Packing Machine Stick Cup Cone Ice Cream Production LineUS$ 39800.00 - 43000.00MOQ: 1 Set
-
Water Cup Filling and Sealing Machine/Mineral Water Cup Filling and Sealing Machine/Sauce Cup Filling Sealing MachineUS$ 30.00MOQ: 1 Set
-
Automatic Rotary Yogurt Cup Sealing Machine Yogurt Cup Filling and Sealing MachineUS$ 8800.00 - 9300.00MOQ: 1 Set
Application
Cheese, Milk Powder
video outgoing-inspection
Provided
machinery test report
Provided
core components
PLC, Gearbox, Pump
place of origin
Shanghai, China
brand name
Genyond
voltage
380V
power(w)
5-135kw
weight
23200 KG
dimension(l*w*h)
35000x1200x1800mm
warranty
3 Years
key selling points
Multifunctional
After-sales Service Provided
Engineers available to service machinery overseas
Material
SS304
fuel
electricity or steam
After Warranty Service
Video technical support
Applicable Industries
Hotels, Manufacturing Plant, Food & Beverage Factory, Restaurant, Retail, Food Shop, Food & Beverage Shops
Showroom Location
None
Marketing Type
Hot Product 2019
Warranty of core components
3 Years
Condition
New
Product Description
This Milk processing line produce several types of market milk products, i.e. whole milk, skimmed milk and standardized milk of various fat contents. This Milk processing line raw milk can be fresh milk or powder milk, the procedure method can be pasteurization or HTST pasteurizer or UHT processing.
End product package of this Milk processing line can be plastic pouches, plastic cups, plastic bottles, glass bottles, roof top box, pre-pak pouches , Tetra pak etc. for this Milk processing line according to different end product and package type, the production technology is differently designed, but commonly include the following steps:
Milk Reception → Pasteurization → Homogenization → Yogurt making →Milk Storage → Packing → Refrigeration → Hot water generator → Laboratory → Install and commissioning.
As a professional milk and juice production line supplier, we can design,
manufacture, install milk production line and milk plant for producing all kinds of dairy products, such as pure milk, flavored milk, sour milk, yogurt, milk drinking and ice cream, butter, soy milk, tea drinking, energy drinking and so on.The whole milk
Production line includes the following units:
1. Milk reception or powder & water mixing unit.
This part is to prepare and mix the raw material. If the fresh milk is in urgent need or not enough for production, powder milk can be used to replace it.
2. Mixing and sugar melting unit.
Mixing machine and heat system are needed to melt the sugar and supply hot water, and then before entering the mixing tank (blending tank) for further mixing, the syrup should be cooled.
3. Pasteurizer and homogenizer.
This part is to kill the bacteria, thus ensuring the safety of products.
The homogenizer is used to make the products more homogeneous which can help to improve the quality and prolong the shelf life of products. The degasser is used to remove the air that is mixed in the product. According to different products types and filling types, the pasteurizer is strictly chosen to suit the plant.
4. Storage or yogurt producing unit.
5. Filling or packing unit.
We can provide many kinds of filling types, such as plastic bag, PRT bottle, HDPE bottle, glass bottle, gable bottle, and plastic cups and so on. You can choose what you want.
6. CIP cleaning system.
7. After treatment equipments such as conveyer, package or pallet etc.
8. Some assistant equipments like steam boiler, air compressor and cold water unit etc.
9. Materials for the product pipes installation, power pipes installation and also electrical
End product package of this Milk processing line can be plastic pouches, plastic cups, plastic bottles, glass bottles, roof top box, pre-pak pouches , Tetra pak etc. for this Milk processing line according to different end product and package type, the production technology is differently designed, but commonly include the following steps:
Milk Reception → Pasteurization → Homogenization → Yogurt making →Milk Storage → Packing → Refrigeration → Hot water generator → Laboratory → Install and commissioning.
As a professional milk and juice production line supplier, we can design,
manufacture, install milk production line and milk plant for producing all kinds of dairy products, such as pure milk, flavored milk, sour milk, yogurt, milk drinking and ice cream, butter, soy milk, tea drinking, energy drinking and so on.The whole milk
Production line includes the following units:
1. Milk reception or powder & water mixing unit.
This part is to prepare and mix the raw material. If the fresh milk is in urgent need or not enough for production, powder milk can be used to replace it.
2. Mixing and sugar melting unit.
Mixing machine and heat system are needed to melt the sugar and supply hot water, and then before entering the mixing tank (blending tank) for further mixing, the syrup should be cooled.
3. Pasteurizer and homogenizer.
This part is to kill the bacteria, thus ensuring the safety of products.
The homogenizer is used to make the products more homogeneous which can help to improve the quality and prolong the shelf life of products. The degasser is used to remove the air that is mixed in the product. According to different products types and filling types, the pasteurizer is strictly chosen to suit the plant.
4. Storage or yogurt producing unit.
5. Filling or packing unit.
We can provide many kinds of filling types, such as plastic bag, PRT bottle, HDPE bottle, glass bottle, gable bottle, and plastic cups and so on. You can choose what you want.
6. CIP cleaning system.
7. After treatment equipments such as conveyer, package or pallet etc.
8. Some assistant equipments like steam boiler, air compressor and cold water unit etc.
9. Materials for the product pipes installation, power pipes installation and also electrical

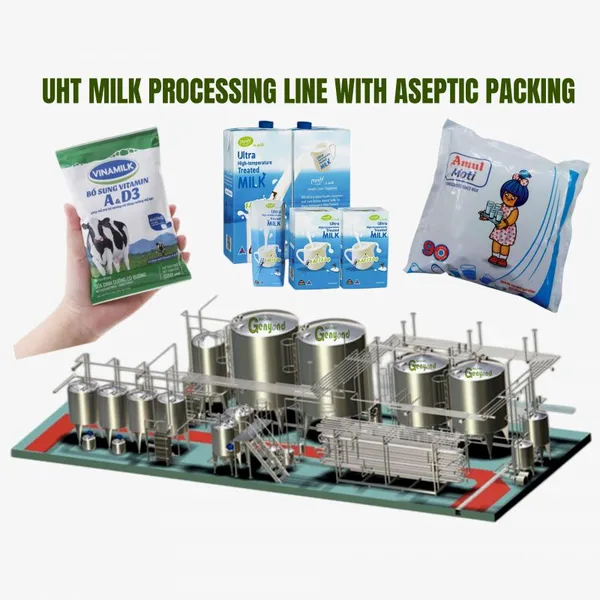

Machine picture
Specification
Raw material |
Fresh cow(goat) milk or milk powder or combined |
End product |
Various kinds of pasteurized milk, yogurt, flavored milk, milk beverage,etc |
Capacity |
2000 – 1000,000 liters per day |
End product package |
Pre-pak soft pouch, Tetra Brick, Gable Top box, plastic bottle, plastic cup, glass bottle,plastic pouch etc |
GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly. A satisfying project will be given; A long-term cooperation will come.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly. A satisfying project will be given; A long-term cooperation will come.
