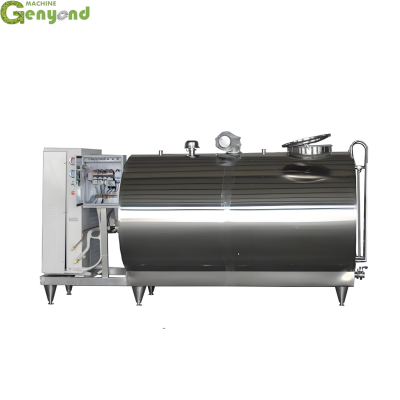

Raw Milk Storage Tank,milk Transport Tank Truck,stainless Steel Milk Storage Tank
US$ 2000.00
≥1 Set
Key Specifications
Get Latest Price
Condition:
New
processing:
Storage Tank
video outgoing-inspection:
Provided
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stainless Steel Cold Milk Storage TankUS$ 4500.00MOQ: 1 Set -
Stainless Steel Milk Cooling Storage TankUS$ 2000 - 10000MOQ: 1 Set
-
1000kg Milk Cream Separator MachineUS$ 10000.00MOQ: 1 Set
-
Automatic UHT/ Pasteurised Milk /Beverage Processing LineUS$ 200000.00MOQ: 1 Set
-
Stainless Steel Coconut Milk Extractor, Coconut ( Cokernut) Milk Machine Withfactory PriceUS$ 8300.00 - 10299.00MOQ: 1 Set
Condition
New
processing
Storage Tank
video outgoing-inspection
Provided
machinery test report
Provided
core components
PLC, Motor, Pump
place of origin
Shanghai, China
brand name
Genyond
processing types
Milk
voltage
220v/380V
power(w)
5kw
weight
500 KG
dimension(l*w*h)
2360 *1060 *1660 mm
warranty
1 Year
Product Name
Milk Colling Stroage Tank
Application
Food Processing Storage Tank
Material
Stainless Steel 304/316L
Usage
Collect Fresh Milk
Keyword
Pasteurizer Milk Cooling Tank
Capacity
100-10000L
Feature
High Efficiency Low Cost
Packing
Wooden Case
Advantage
Easy Operation Low Cost
Function
Cooling Milk
Applicable Industries
Food & Beverage Factory, Farms
Showroom Location
None
Marketing Type
Hot Product 2019
Warranty of core components
2 Years
Product Description
Using Scope:
Direct cooling milk tank is mainly used for cooling and storage of milk, can also be cooled, stored other liquid materials.
Production Structure.
1.Milk cooling tank is mainly composed of tanks, mixers, scrubbers, refrigeration units, electrical control boxes and other five major components.
2. Milk cooling tank is a horizontal oval shape. Between the inner and outer tank with a polyurethane rigid foam board.The material has low thermal conductivity, light weight, high strength, low water absorption insulation layer, Good insulation properties.
Production Features
1. Tank wall plate evaporator uses advanced refrigeration and milk direct heat.
2. Refrigeration compressor is equipped with a reliable defense midpoint, Not due to overload or burn out the motor system failure.
3. Full tank made of SUS304 or SUS316, Pressurized cleaning with automatic and manual and automatic mixing device.
4. Polyurethane foam insulation using new technology. Good insulation properties.
Product Specification
Model |
Volume |
Power |
Agitator speed |
Thermal insulation performance |
Dimension |
Weight |
GY-MT500 |
500L |
0.75kw |
25r/min |
≤1°C/4h |
1360*1060*1360mm |
510kg |
GY-MT1000 |
1000L |
1.1kw |
35r/min |
≤1°C/4h |
1760*1260*1510mm |
640kg |
GY-MT2000 |
2000L |
1.1kw |
35r/min |
≤1°C/4h |
2000*1660*1800mm |
880kg |
GY-MT3000 |
3000L |
1.1kw |
35r/min |
≤1°C/5h |
2210*1860*1960mm |
1120kg |
GY-MT5000 |
5000L |
2.2kw |
45r/min |
≤1°C/5h |
3060*2015*2060mm |
1620kg |

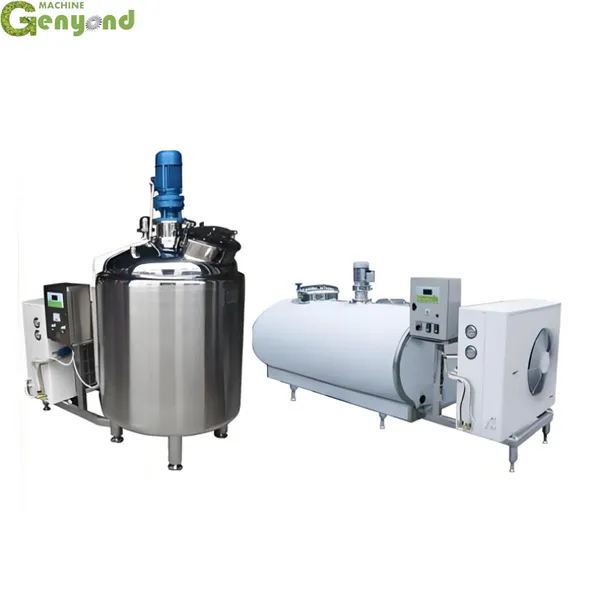

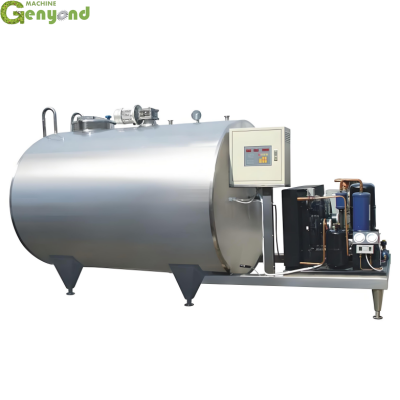

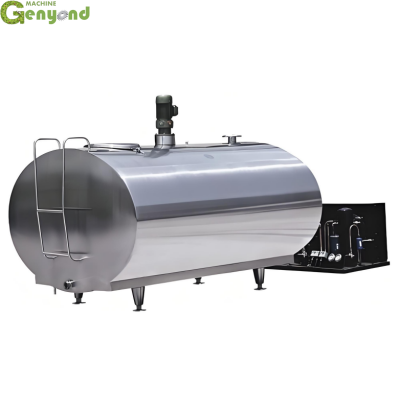

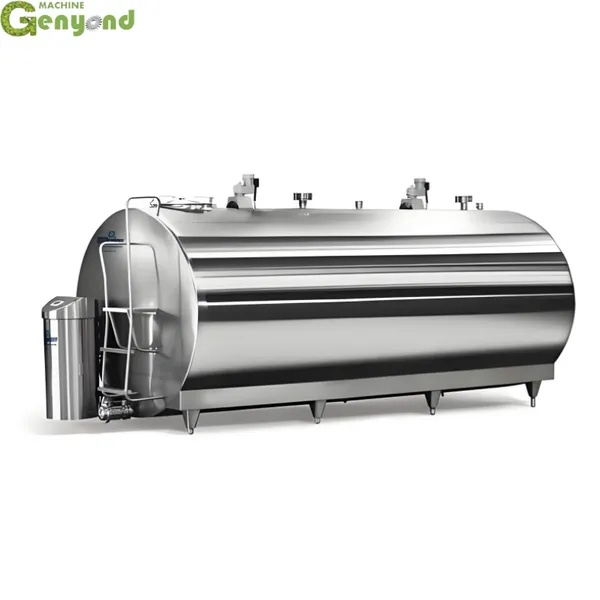

Detail Pictures
