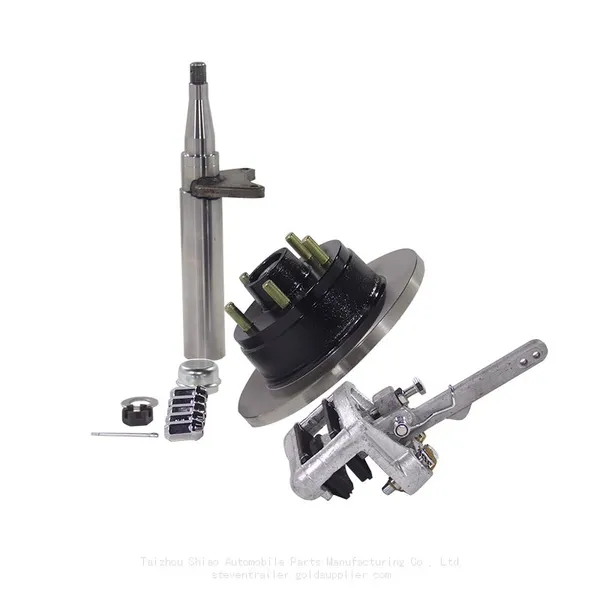

Product Name And Title
(1) Compatible Applications
Towable RV, Small Trailer / Light-duty Trailer, Food Trailer / Catering Trailer, Camping Trailer, Travel Trailer, Flatbed Trailer, Camper Trailer, Park Mdeol RV / Park Trailer, Boat Trailer, Shopping Trailer / Utility Trailer, Motorcycle Trailer, Farm Trailer / Agricultural Trailer
(2) Specific Product Name
Chassis Wheel Hub Unit Assembly, Brake Disc, Caliper Assembly, Disc Brake, Multiple disc diameters / bolt patterns / calipers available
(3) Specific Product Name
Spindle Assembly, Hub End Assembly, Brake Disc Assembly, Caliper Assembly, Disc Brake, Multiple disc diameters / bolt patterns / calipers available
(4) Specific Product Name
Chassis, Axle Assembly, Axle, Rear Axle, Straight Axle, Rear Axle, Through Axle / One-Piece Axle, Torsion Axle, Brake Disc, Caliper Assembly, Disc Brake, Multiple disc diameters / bolt patterns / calipers available
(5) Other Keywords
Shiao Trailer, Taizhou, Jiangsu; Chassis Wheel Hub Unit Assembly; Spindle / Hub End; Complete specifications in stock; professional factory customization available.
Product Selling Points
Product Features And Key Advantages:
I. Comprehensive Vehicle Compatibility, One-Stop Disc Brake Solution
This trailer-specific brake disc and caliper assembly series is engineered for towable RVs, light-duty trailers, food trailers, camping trailers, travel trailers, flatbed trailers, camper trailers, park model RVs, boat trailers, utility trailers, motorcycle trailers, and farm trailers. The product line includes chassis wheel hub unit assemblies, brake discs, caliper assemblies, spindle assemblies, and complete axle assemblies, delivering a full range of wheel-end and braking solutions for diverse trailer applications.
II. Superior Disc Brake Performance With Excellent Heat Dissipation
The disc brake design offers significantly better heat dissipation and fade resistance compared to traditional drum brakes, ensuring stable and reliable stopping power under continuous braking conditions. Two bearing configurations are available to meet regional standards: the Australian version utilizes SL bearings (LM12710/LM12749 and L68110/L68149) with 0.8661" inner and 1-3/8" outer spindle diameters; the North American version uses L44649/L44610 and L68149/L68111 bearings with 1-1/16" inner and 1-3/8" outer spindle diameters. Each assembly is rated for 3500 lb per wheel, suitable for mainstream trailer braking requirements.
III. Premium Materials And Precision Manufacturing For Long Service Life
Brake discs are manufactured from gray iron casting G3000 material in a solid disc structure, providing excellent wear resistance and minimal distortion under high-temperature operation. Calipers are mechanical type with 89.5 mm mounting bolt spacing, and brake pads utilize semi-metallic friction material for consistent friction coefficient, extended service life, and low noise. Hub units are forged from high-grade iron for dense grain structure and superior impact resistance, finished with baked paint for robust corrosion protection in outdoor and harsh environments. Bearings are sourced from reputable domestic and international brands, and spindles (hub ends) are precision-machined to ensure smooth rotation and accurate axial alignment.
IV. Flexible Customization To Meet Specific Requirements
Headquartered at Shiao Trailer's factory in Taizhou, Jiangsu, this series offers multiple disc diameters, bolt patterns, and caliper options, with the common configuration being 5 on 4.5" bolt pattern. All parameters are fully customizable per customer drawings or specifications, including spindle size (bearing inner diameter), bolt pattern, load rating, bearing type, spindle diameter and length, axle tube shape, spring center distance, overall axle assembly width, axle tube inner diameter, spindle journal diameter, and compatible suspension type. Custom orders are accepted free of charge, ensuring precise fitment with existing chassis or modified setups.
V. Ample Stock, Fast Delivery, And Eleven Years Of Industry Expertise
Standard models are kept in full stock and ship immediately, while custom orders are fulfilled within a 15-day lead time. Packaging consists of iron frame pallets and individual neutral cardboard boxes to prevent transit damage and corrosion. Taizhou Shiao Auto Parts Manufacturing Co., Ltd. brings eleven years of specialized experience in trailer chassis components, backed by 24-hour technical support and after-sales service. From chassis wheel hub units to brake disc and caliper assemblies, from spindle assemblies to complete axle assemblies, we provide one-stop supply to streamline our clients' trailer braking system integration and upgrades.
Product Specifications
(1) Brand (Trademark / Trade Name): Shiao Trailer
(2) Model (Specifications): Complete specifications in stock; professional factory customization available
(3) Origin: Jiangsu Province, China
(4) Manufacturing Method: Forging
(5) Material: Iron
(6) Drive Wheels: Driven by the towing vehicle (the trailer itself has no independent drive system)
(7) Hub Surface Finish: Baked paint
(8) Stock Availability: Yes
(9) Packaging: Iron frame pallets and individual neutral cardboard boxes
(10) Lead Time: 15 days
(11) Spindle Size (Bearing Inner Diameter): Complete specifications in stock; professional factory customization available
(12) Bolt Pattern (Number of Bolts - Diameter / PCD): Complete specifications in stock; professional factory customization available
(13) Load Capacity per Wheel: Complete specifications in stock; professional factory customization available
(14) Bearing Type: Complete specifications in stock; professional factory customization available
(15) Brake Disc Diameter: 10 mm
(16) Brake Disc Thickness: 10 mm
(17) Brake Disc Material: Gray iron casting G3000 material
(18) Brake Disc Structure: Solid disc
(19) Caliper Type: Mechanical caliper
(20) Caliper Mounting Bolt Spacing: 89.5 mm
(21) Brake Pad Friction Material Type Included in Caliper: Semi-metallic material
Product Description
1. Complete specifications in stock; professional factory customization available.
2. Full coverage of disc brake series.
3. Multiple disc diameters / bolt patterns / calipers available; custom designs accepted upon drawing submission.
4. Factory details attached below.
(1) Australian version: uses SL bearing (LM12710/LM12749 and L68110/L68149) 0.8661" and 1-3/8", capacity 3500 lbs.
(2) North American version: L44649/L44610, L68149/L68111; 1-1/16" and 1-3/8", capacity 3500 lbs.
(3) 5 on 4.5"
(4) Brake disc diameter: 10 mm
(5) Brake disc thickness: 10 mm
(6) Brake disc material: Gray iron casting G3000 material
(7) Brake disc structure: Solid disc
(8) Caliper type: Mechanical caliper
(9) Caliper mounting bolt spacing: 89.5 mm
(10) Brake pad friction material type included in caliper: Semi-metallic material
—— —— —— —— ——
Shiao Trailer
Your Professional Trailer Chassis Solution Expert
I. Company Positioning: Professional Chassis Component and One-Stop Solution Supplier
Taizhou Shiao Automotive Parts Manufacturing Co., Ltd. (Shiao Trailer), founded in 2015, is located at No. 150 Yangzijiang North Road, Diaopu Subdistrict, Gaogang District, Taizhou City, Jiangsu Province. The company integrates R&D, production, and customization, specializing in manufacturing high-quality chassis components for recreational trailers (including travel trailers, campers, utility trailers, etc.) for global clients, and provides one-stop procurement services.
II. Core Products: Full Range of Chassis Components and Integration Services
The main business is the customized production of core chassis components for recreational trailers, travel trailers, campers, and utility trailers. Specific products include: wheel hubs, brake drums, brake discs, axle shaft assemblies, rear axle beam assemblies, complete axle assemblies, etc. The company also provides parts integration and assembly services, assisting customers in procuring and integrating other components according to their needs, achieving one-stop procurement for a worry-free, time-saving, and cost-effective experience.
III. Production and Manufacturing: Large-Scale Precision Processing and Global Market Validation
The company possesses a production base exceeding 1,000,000 square meters, with an annual output value exceeding 30 million RMB. It is equipped with a complete production line, including CNC cutting machines, CNC machining centers, CNC lathes, automatic welding robots, medium-frequency electric furnaces, automatic molding and casting lines, CNC sawing machines, four-pillar hydraulic presses, and precision inspection instruments, ensuring product accuracy and performance. Thanks to consistent quality, our products have been exported to countries and regions including the United States, Canada, Australia, Japan, Southeast Asia, and the Middle East.
IV. R&D and Customization: International Technology Integration and Zero-Cost Custom Development
Advanced chassis technology is introduced from the United States and Australia. The company implements a "one-on-one communication, zero-cost customization" service model. A dedicated technical team liaises with each client, providing tailored and optimized design solutions for their unique requirements and target market standards (adapting to different road conditions and climates) without incurring any additional development fees.
V. Quality and Service: Strict Quality Control and Full-Cycle Technical Support
The company strictly implements European and American quality management systems. Products undergo multiple rigorous inspections before leaving the factory and are backed by a three-year quality guarantee. With an experienced technical team, the company provides remote guidance, installation and debugging assistance, and rapid after-sales problem response, ensuring customers have a worry-free procurement and usage experience.
VI. Location and Vision: Efficient Logistics Network and Win-Win Philosophy
The company is situated in central Jiangsu, adjacent to the Beijing-Shanghai Expressway, 237 kilometers from Shanghai Port, and approximately a 4-hour drive from Ningbo Port, ensuring highly efficient and convenient logistics. Upholding the principles of "Integrity, Pragmatism, Innovation, and Win-Win," we are committed to becoming the most trusted chassis supplier for global customers, carrying journeys with precision manufacturing and connecting the future with customized service.
