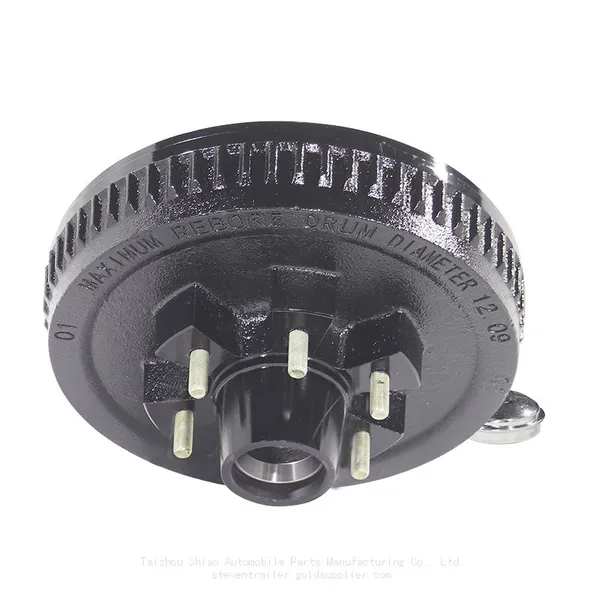

Help CenterTrailer and RV Specific Brake Drum Hub Assembly | Electric Brake, Hydraulic Brake, Hand Brake | Shiao Trailer Chassis Manufacturing Factory
Product Spotlights
Related Products
-
Trailer RV Specific Brake Drum Hub And Spindle Assembly | Electric Brake, Hydraulic Brake, Hand Brake | Shiao Trailer Chassis Manufacturing FactoryNegotiableMOQ: 1 Combo -
Trailer RV Specific Brake Drum Hub And Rear Axle Assembly | Electric Brake, Hydraulic Brake, Hand Brake | Shiao Trailer Chassis Manufacturing FactoryNegotiableMOQ: 1 Combo
-
Trailer RV Specific Brake Disc Rotor And Caliper | Caliper Assembly, Disc Brake | Shiao Trailer Chassis Manufacturing FactoryNegotiableMOQ: 1 Combo
-
Trailer RV Specific Brake Disc Rotor And Caliper | Caliper Assembly, Disc Brake, Spindle Assembly | Shiao Trailer Chassis Manufacturing FactoryNegotiableMOQ: 1 Combo
-
Trailer RV Specific Brake Disc Rotor And Caliper | Caliper Assembly, Disc Brake, Rear Axle Assembly | Shiao Trailer Chassis Manufacturing FactoryNegotiableMOQ: 1 Combo
Product Name And Title
(1) Compatible Applications
Towable RV, Small Trailer / Light-duty Trailer, Food Trailer / Catering Trailer, Camping Trailer, Travel Trailer, Flatbed Trailer, Camper Trailer, Park Mdeol RV / Park Trailer, Boat Trailer, Shopping Trailer / Utility Trailer, Motorcycle Trailer, Farm Trailer / Agricultural Trailer
(2) Specific Product Name
Electric brake, hydraulic brake, parking brake, brake drum assembly, brake drum assembly
(3) Other Keywords
Shiao Trailer, Taizhou, Jiangsu; Chassis Wheel Hub Unit Assembly; Spindle / Hub End; Complete specifications in stock; professional factory customization available.
Product Selling Points
Product Highlights & Key Advantages:
1. Complete Specifications, Large Inventory In Stock, Direct Source Factory, Free Customization Available For All Model Parameters.
2. The Product Details List 8 Common Categories And 26 Models Of Brake Drum Hubs Along With Their Spindle And Axle Assemblies For Reference. In Addition, We Also Manufacture A Full Range Of Non-Brake Hubs, Spindle And Axle Assemblies, Brake Disc Rotors, Calipers, And Related Components.
3. Suitable For A Wide Variety Of Applications Including Towable RVs, Boat Trailers, Flatbed Trailers, Farm Trailers, Camper Trailers, And More.
4. Shiao Trailer Factory Based In China, With Eleven Years Of Industry Expertise, 24-Hour Customer Response Commitment, And A Fast 15-Day Lead Time For Delivery.
Product Specifications
(1) Brand (Trademark / Trade Name): Shiao Trailer
(2) Model (Specifications): Complete specifications in stock; professional factory customization available
(3) Origin: Jiangsu Province, China
(4) Manufacturing Method: Forging
(5) Material: Iron
(6) Drive Wheels: Driven by the towing vehicle (the trailer itself has no independent drive system)
(7) Hub Surface Finish: Baked paint
(8) Stock Availability: Yes
(9) Packaging: Iron frame pallets and individual neutral cardboard boxes
(10) Lead Time: 15 days
(11) Spindle Size (Bearing Inner Diameter): Complete specifications in stock; professional factory customization available
(12) Bolt Pattern (Number of Bolts - Diameter / PCD): Complete specifications in stock; professional factory customization available
(13) Load Capacity per Wheel: Complete specifications in stock; professional factory customization available
(14) Bearing Type: Complete specifications in stock; professional factory customization available
(15) Brake Drum Size: Complete specifications in stock; professional factory customization available
(16) Electric Brake - Operating Voltage: 12V DC, 3-4 Amperes
(17) Parking Brake - Cable Connection Type: Standard Φ10mm cable attachment hole
(18) Hydraulic Brake - Line Thread Specification: 3/8-24 UNF
(19) Spindle Diameter: Complete specifications in stock; professional factory customization available
(20) Spindle Length: Complete specifications in stock; professional factory customization available
(21) Spring Center Distance (Leaf Spring Center Distance): Complete specifications in stock; professional factory customization available
(22) Overall Axle Assembly Width: Complete specifications in stock; professional factory customization available
(23) Axle Tube Shape: Round/Square, Hollow/Solid, Black/White
(24) Axle Tube Inner Diameter: Complete specifications in stock; professional factory customization available
(25) Spindle Journal Diameter: Complete specifications in stock; professional factory customization available
(26) Compatible Suspension: Complete specifications in stock; professional factory customization available
8 Common Bolt Pattern Types and 26 Model Configurations
【Common Type 1】
2000 lb, 5‑Hole
1. Full Range in Stock; Professional Factory Offers Customization.
2. Electric Brake Operating Voltage: 12V DC, 3-4A.
3. Parking Brake Cable Connection Type: Standard Φ10mm Cable Attachment Hole.
4. Hydraulic Brake Line Thread Specification: 3/8-24 UNF.
5. Note: Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.
6. Factory Details Attached Below.
Model 1:
10"×2-1/4" Brake Drum - 2000 lb, 5 on 4.25" - LM11949/LM11910 + LM67048/LM67010 dual bearing, fits 3/4" inner and 1-1/4" outer spindle
Model 2:
10"×2-1/4" Brake Drum - 2000 lb, 5 on 4.5" - LM11949/LM11910 + LM67048/LM67010 dual bearing, fits 3/4" inner and 1-1/4" outer spindle
Model 3:
10"×2-1/4" Brake Drum - 2000 lb, 5 on 4.75" - LM11949/LM11910 + LM67048/LM67010 dual bearing, fits 3/4" inner and 1-1/4" outer spindle
Model 4:
10"×2-1/4" Brake Drum - 2000 lb, 5 on 5" - LM11949/LM11910 + LM67048/LM67010 dual bearing, fits 3/4" inner and 1-1/4" outer spindle
Model 5:
10"×2-1/4" Brake Drum - 2000 lb, 5 on 5.5" - LM11949/LM11910 + LM67048/LM67010 dual bearing, fits 3/4" inner and 1-1/4" outer spindle
—— —— —— —— ——
【Common Type 2】
2000 lb, 6‑Hole
1. Full Range in Stock; Professional Factory Offers Customization.
2. Electric Brake Operating Voltage: 12V DC, 3-4A.
3. Parking Brake Cable Connection Type: Standard Φ10mm Cable Attachment Hole.
4. Hydraulic Brake Line Thread Specification: 3/8-24 UNF.
5. Note: Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.
6. Factory Details Attached Below.
Model 1:
10"×2-1/4" Brake Drum - 2000 lb, 6 on 5.5" - LM11949/LM11910 + LM67048/LM67010 dual bearing, fits 3/4" inner and 1-1/4" outer spindle
—— —— —— —— ——
【Common Type 3】
2200 lb, 4‑Hole
1. Full Range in Stock; Professional Factory Offers Customization.
2. Electric Brake Operating Voltage: 12V DC, 3-4A.
3. Parking Brake Cable Connection Type: Standard Φ10mm Cable Attachment Hole.
4. Hydraulic Brake Line Thread Specification: 3/8-24 UNF.
5. Note: Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.
6. Factory Details Attached Below.
Model 1:
7" Brake Drum - 2200 lb, 4 on 4" - L44649/L44610 + L44649/L44610 dual bearing, fits 1-1/16" inner and 1-1/16" outer spindle
—— —— —— —— ——
【Common Type 4】
3500 lb, 5‑Hole
1. Full Range in Stock; Professional Factory Offers Customization.
2. Electric Brake Operating Voltage: 12V DC, 3-4A.
3. Parking Brake Cable Connection Type: Standard Φ10mm Cable Attachment Hole.
4. Hydraulic Brake Line Thread Specification: 3/8-24 UNF.
5. Note: Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.
6. Factory Details Attached Below.
Model 1:
10"×2-1/4" Brake Drum - 3500 lb, 5 on 4.25" - LM12710/LM12749 + L68110/L68149 dual bearing, fits 0.8661" inner and 1-3/8" outer spindle
Model 2:
10"×2-1/4" Brake Drum - 3500 lb, 5 on 4.25" - L44649/L44610 + L68149/L68111 dual bearing, fits 1-1/16" inner and 1-3/8" outer spindle
Model 3:
10"×2-1/4" Brake Drum - 3500 lb, 5 on 4.5" - LM12710/LM12749 + L68110/L68149 dual bearing, fits 0.8661" inner and 1-3/8" outer spindle
Model 4:
10"×2-1/4" Brake Drum - 3500 lb, 5 on 4.5" - L68110/L68149 + L68110/L68149 dual bearing, fits 1-3/8" inner and 1-3/8" outer spindle
Model 5:
10"×2-1/4" Brake Drum - 3500 lb, 5 on 4.5" - L44649/L44610 + L68149/L68111 dual bearing, fits 1-1/16" inner and 1-3/8" outer spindle
Model 6:
10"×2-1/4" Brake Drum - 3500 lb, 5 on 4.75" - L68110/L68149 + L68110/L68149 dual bearing, fits 1-3/8" inner and 1-3/8" outer spindle
Model 7:
10"×2-1/4" Brake Drum - 3500 lb, 5 on 4.75" - L44649/L44610 + L68149/L68111 dual bearing, fits 1-1/16" inner and 1-3/8" outer spindle
Model 8:
10"×2-1/4" Brake Drum - 3500 lb, 5 on 4.75" - LM12710/LM12749 + L68110/L68149 dual bearing, fits 0.8661" inner and 1-3/8" outer spindle
Model 9:
10"×2-1/4" Brake Drum - 3500 lb, 5 on 5" - LM12710/LM12749 + L68110/L68149 dual bearing, fits 0.8661" inner and 1-3/8" outer spindle
Model 10:
10"×2-1/4" Brake Drum - 3500 lb, 5 on 5" - L68110/L68149 + L68110/L68149 dual bearing, fits 1-3/8" inner and 1-3/8" outer spindle
Model 11:
10"×2-1/4" Brake Drum - 3500 lb, 5 on 5" - L44649/L44610 + L68149/L68111 dual bearing, fits 1-1/16" inner and 1-3/8" outer spindle
Model 12:
10"×2-1/4" Brake Drum - 3500 lb, 5 on 5.5" - LM12710/LM12749 + L68110/L68149 dual bearing, fits 0.8661" inner and 1-3/8" outer spindle
Model 13:
10"×2-1/4" Brake Drum - 3500 lb, 5 on 5.5" - L68110/L68149 + L68110/L68149 dual bearing, fits 1-3/8" inner and 1-3/8" outer spindle
Model 14:
10"×2-1/4" Brake Drum - 3500 lb, 5 on 5.5" - L44649/L44610 + L68149/L68111 dual bearing, fits 1-1/16" inner and 1-3/8" outer spindle
—— —— —— —— ——
【Common Type 5】
3500 lb, 6‑Hole
1. Full Range in Stock; Professional Factory Offers Customization.
2. Electric Brake Operating Voltage: 12V DC, 3-4A.
3. Parking Brake Cable Connection Type: Standard Φ10mm Cable Attachment Hole.
4. Hydraulic Brake Line Thread Specification: 3/8-24 UNF.
5. Note: Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.
6. Factory Details Attached Below.
Model 1:
10"×2-1/4" Brake Drum - 3500 lb, 6 on 5.5" - L68110/L68149 + L68110/L68149 dual bearing, fits 1-3/8" inner and 1-3/8" outer spindle
Model 2:
10"×2-1/4" Brake Drum - 3500 lb, 6 on 5.5" - LM12710/LM12749 + L68110/L68149 dual bearing, fits 0.8661" inner and 1-3/8" outer spindle
—— —— —— —— ——
【Common Type 6】
6000 lb, 6‑Hole
1. Full Range in Stock; Professional Factory Offers Customization.
2. Electric Brake Operating Voltage: 12V DC, 3-4A.
3. Parking Brake Cable Connection Type: Standard Φ10mm Cable Attachment Hole.
4. Hydraulic Brake Line Thread Specification: 3/8-24 UNF.
5. Note: Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.
6. Factory Details Attached Below.
Model 1:
12"×2" Brake Drum - 6000 lb, 6 on 5.5" - 15123/15245 + 25580/25520 dual bearing, fits 1-1/4" inner and 1-3/4" outer spindle
—— —— —— —— ——
【Common Type 7】
7000 lb, 6‑Hole
1. Full Range in Stock; Professional Factory Offers Customization.
2. Electric Brake Operating Voltage: 12V DC, 3-4A.
3. Parking Brake Cable Connection Type: Standard Φ10mm Cable Attachment Hole.
4. Hydraulic Brake Line Thread Specification: 3/8-24 UNF.
5. Note: Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.
6. Factory Details Attached Below.
Model 1:
12"×2" Brake Drum - 7000 lb, 6 on 5.5" - 25590/25520 + 25590/25520 dual bearing, fits 1-13/16" inner and 1-13/16" outer spindle
—— —— —— —— ——
【Common Type 8】
7000 lb, 8‑Hole
1. Full Range in Stock; Professional Factory Offers Customization.
2. Electric Brake Operating Voltage: 12V DC, 3-4A.
3. Parking Brake Cable Connection Type: Standard Φ10mm Cable Attachment Hole.
4. Hydraulic Brake Line Thread Specification: 3/8-24 UNF.
5. Note: Parameters for Each Model, such as Spindle Diameter, Spindle Length, Spindle Shape (Round or Square), Spring Center Distance, Overall Axle Assembly Width, Axle Tube Hollow or Solid, Axle Tube Inner Diameter, Spindle Journal Diameter, Compatible Suspension, etc., are All Customizable per Customer Requirements Free of Charge.
6. Factory Details Attached Below.
Model 1:
12"×2" Brake Drum - 7000 lb, 8 on 6.5" - 25590/25520 + 25590/25520 dual bearing, fits 1-13/16" inner and 1-13/16" outer spindle
—— —— —— —— ——
Shiao Trailer
Your Professional Trailer Chassis Solution Expert
I. Company Positioning: Professional Chassis Component and One-Stop Solution Supplier
Taizhou Shiao Automotive Parts Manufacturing Co., Ltd. (Shiao Trailer), founded in 2015, is located at No. 150 Yangzijiang North Road, Diaopu Subdistrict, Gaogang District, Taizhou City, Jiangsu Province. The company integrates R&D, production, and customization, specializing in manufacturing high-quality chassis components for recreational trailers (including travel trailers, campers, utility trailers, etc.) for global clients, and provides one-stop procurement services.
II. Core Products: Full Range of Chassis Components and Integration Services
The main business is the customized production of core chassis components for recreational trailers, travel trailers, campers, and utility trailers. Specific products include: wheel hubs, brake drums, brake discs, axle shaft assemblies, rear axle beam assemblies, complete axle assemblies, etc. The company also provides parts integration and assembly services, assisting customers in procuring and integrating other components according to their needs, achieving one-stop procurement for a worry-free, time-saving, and cost-effective experience.
III. Production and Manufacturing: Large-Scale Precision Processing and Global Market Validation
The company possesses a production base exceeding 1,000,000 square meters, with an annual output value exceeding 30 million RMB. It is equipped with a complete production line, including CNC cutting machines, CNC machining centers, CNC lathes, automatic welding robots, medium-frequency electric furnaces, automatic molding and casting lines, CNC sawing machines, four-pillar hydraulic presses, and precision inspection instruments, ensuring product accuracy and performance. Thanks to consistent quality, our products have been exported to countries and regions including the United States, Canada, Australia, Japan, Southeast Asia, and the Middle East.
IV. R&D and Customization: International Technology Integration and Zero-Cost Custom Development
Advanced chassis technology is introduced from the United States and Australia. The company implements a "one-on-one communication, zero-cost customization" service model. A dedicated technical team liaises with each client, providing tailored and optimized design solutions for their unique requirements and target market standards (adapting to different road conditions and climates) without incurring any additional development fees.
V. Quality and Service: Strict Quality Control and Full-Cycle Technical Support
The company strictly implements European and American quality management systems. Products undergo multiple rigorous inspections before leaving the factory and are backed by a three-year quality guarantee. With an experienced technical team, the company provides remote guidance, installation and debugging assistance, and rapid after-sales problem response, ensuring customers have a worry-free procurement and usage experience.
VI. Location and Vision: Efficient Logistics Network and Win-Win Philosophy
The company is situated in central Jiangsu, adjacent to the Beijing-Shanghai Expressway, 237 kilometers from Shanghai Port, and approximately a 4-hour drive from Ningbo Port, ensuring highly efficient and convenient logistics. Upholding the principles of "Integrity, Pragmatism, Innovation, and Win-Win," we are committed to becoming the most trusted chassis supplier for global customers, carrying journeys with precision manufacturing and connecting the future with customized service.
