Help CenterChina Manufacturer Wholesale Automatic Short Path Hemp Oil Wiped Film Evaporator Molecular Distillation Equipment
Related Products
-
Industrial Short Path Distillation Kit Steam Oil Molecular Vacuum Distillation Equipment Essential Oil DistillerUS$ 15200.00MOQ: 1 Box -
Rose Water Distiller Industrial Essential Oil Distiller Wiped Film Stainless Steel Molecular Distillation UnitUS$ 15200.00MOQ: 1 Box
-
Oil Wiped Film Distillation Oil Wiped Film Evaporator Lab Molecular Distillation Closed Loop ExtractorUS$ 15200.00MOQ: 1 Box
-
Laboratory Shortpath Herb Oil Wiped Film Molecular Evaporator Distillation Unit Molecule Distiller MachineUS$ 15200.00MOQ: 1 Box
-
Molecular Distillation Industrial Spinning Band Distillation GMD150 Distillation Machine for OilUS$ 15200.00MOQ: 1 Box
Extraction of Oil
Pharmaceuticals
Concentration of Plant Essential Oil
Separation of Vitamin / Nutritional Essential Oil
Chemical Research

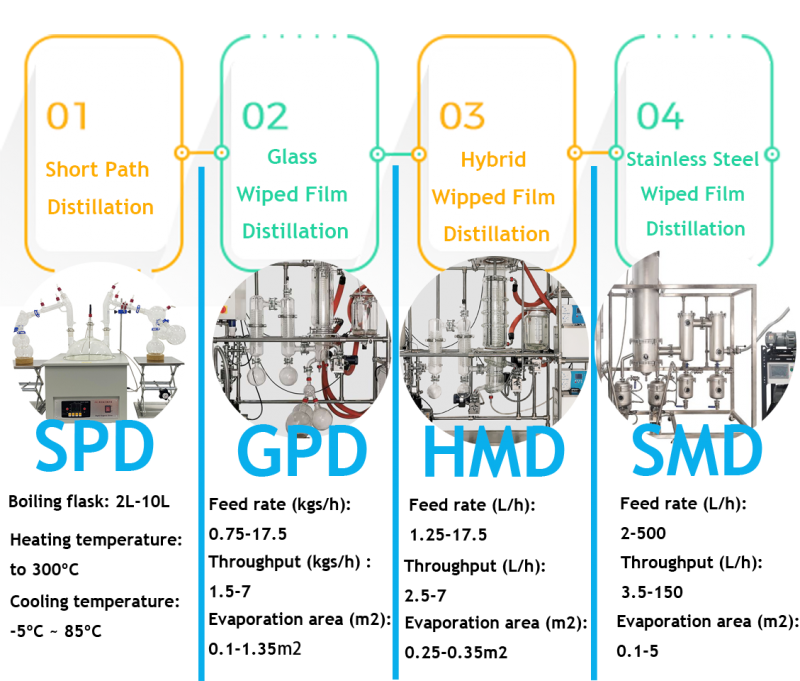

Molecular distillation series including:
1. Short Path Distillation, SPD series
2.Glass Wiped Film Distillation, GPD series
3.Hybrid Wipped Film Distillation, HMD series
4.Stainless Steel Wiped Film Distillation, SMD series

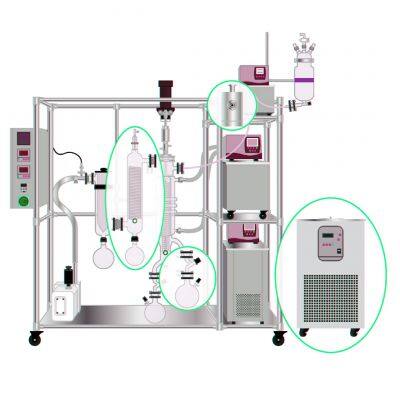

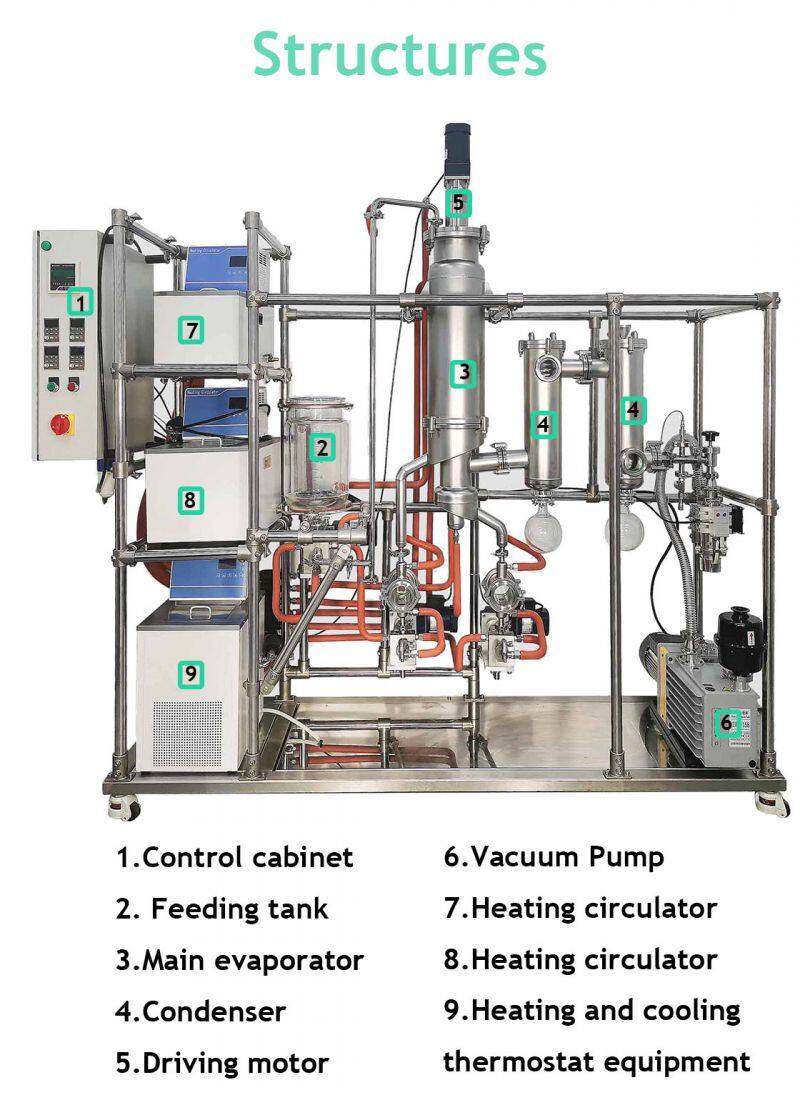

Including:

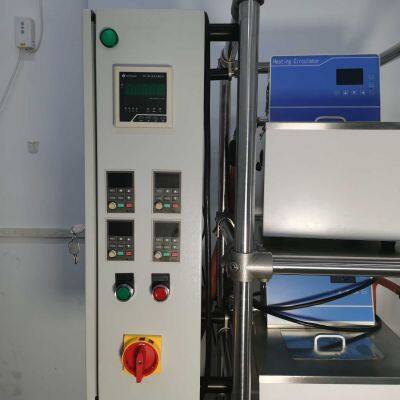

1.Control cabinet
2.Feeding tank
3.Main evaporator
4.Condenser
5.Driving motor thermostat equipment
6.Vacuum Pump
7.Heating circulator
8.Heating circulator
9.Heating and cooling
|

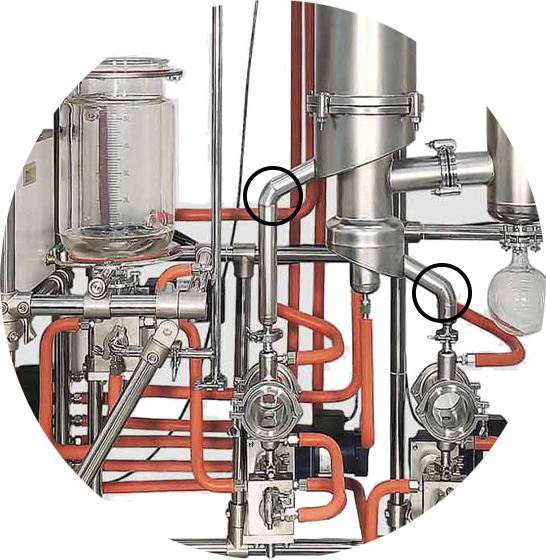

1.Heat protection
Jacketed pipes are better at heat preservation. |
|

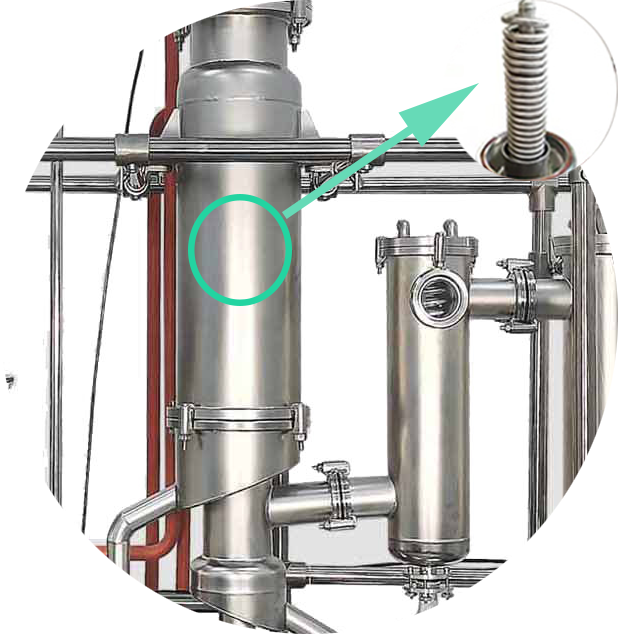

2. Main evaporator
Use built-in condenser, three layer insulation design
|
|

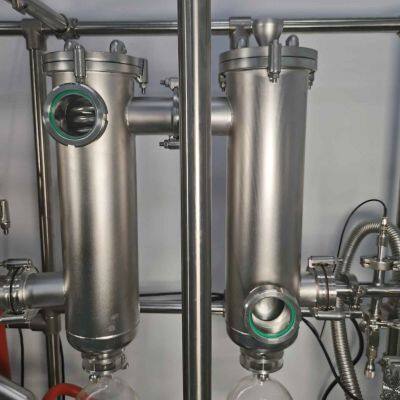

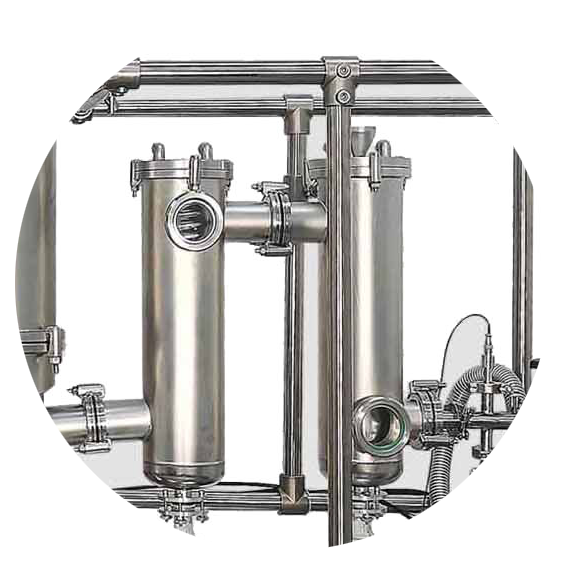

3. Dual cold trap
Dewar type cold trap and cooling coil cold trap are suitable for this system.
|
|
4. Visualization
Use glass windows, more convenient to monitor the distillation process. |
|

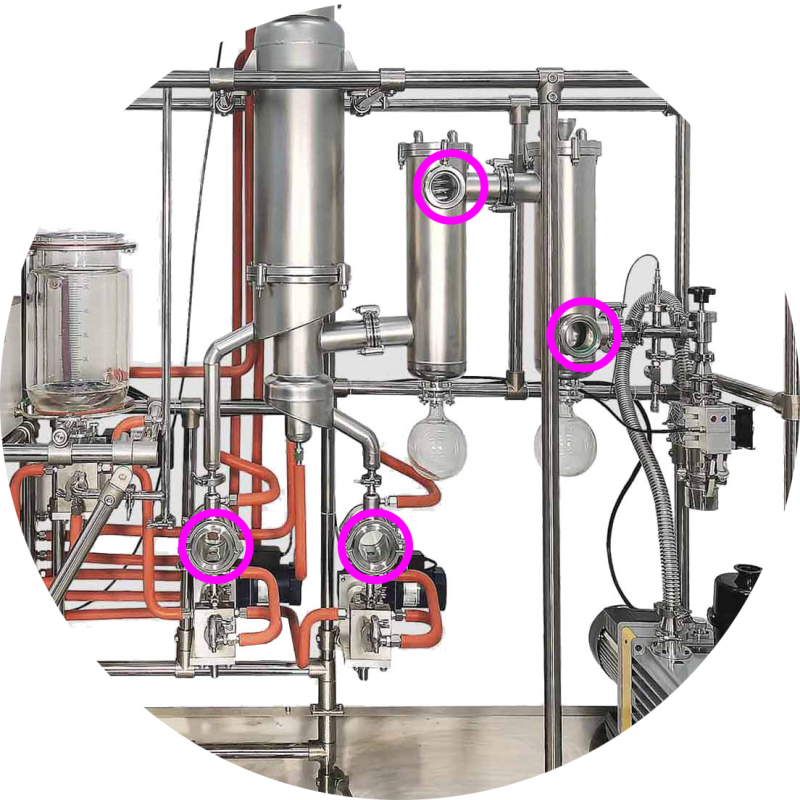

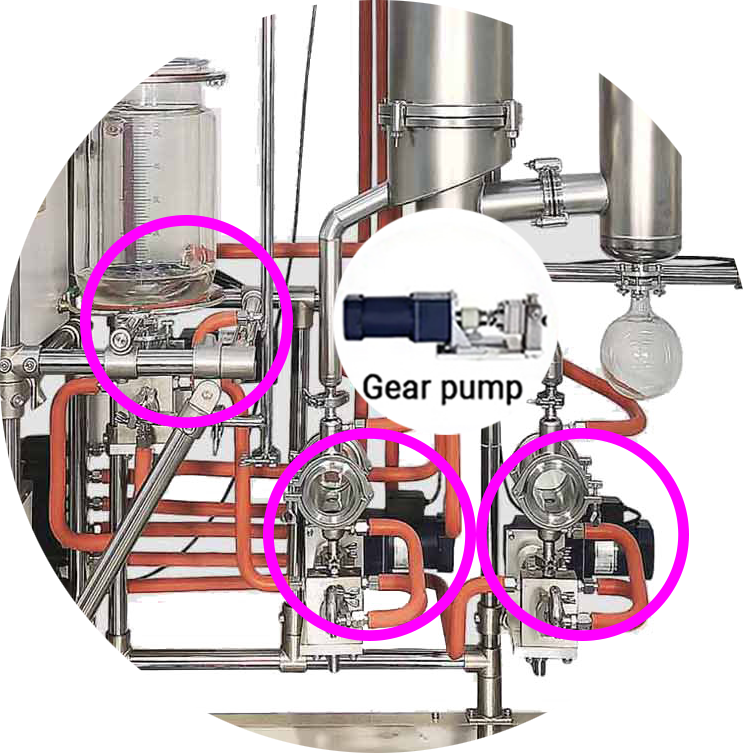

5. Gear pump
With high precision gear pumps, you can continuous feeding and discharging. |
Comparision principal of short path and wiped film distillation

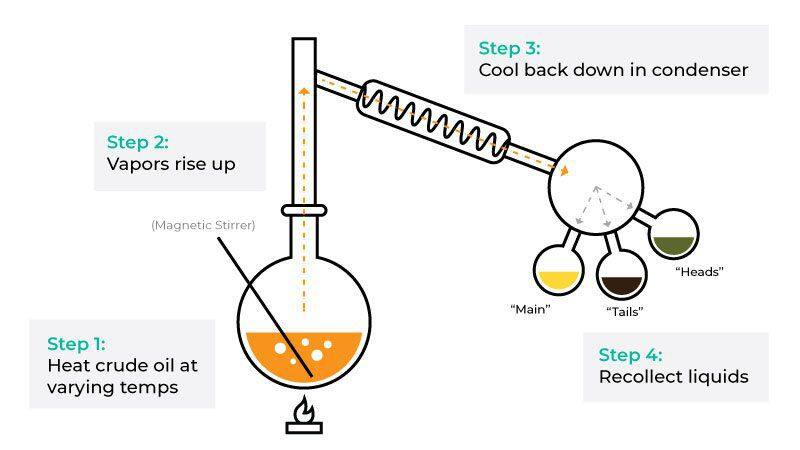

Short Path
|
Pros of Short Path Distillation
Short path distillation produces a high-quality product. You can get multiple fractions during the distillation process, depending on how high you raise the temperature. The multi-position flask collects the different fractions into different flasks, which allows for easy distillation. Like most distillation processes, short path requires an experienced operator to efficiently get a high-quality product. It is limited in scale and production, so it's not ideal for large-scale operations |
|

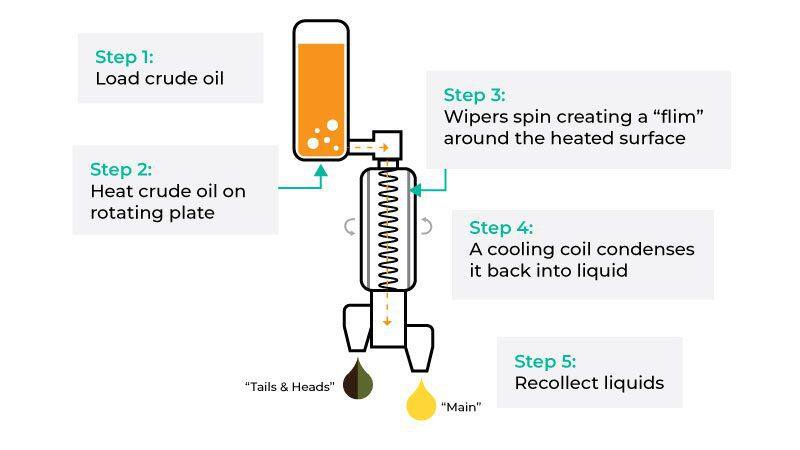

Wiped Film
|
Pros of Wiped Film Distillation Wiped film has an extremely efficient and even heat transfer due to its thin film of oil, no matter how viscous the fluid is. This results in a high-quality product. The process can easily be used for large-scale productions, so it's ideal for large batches of distillation. If you run in a continuous mode, it also reduces the exposure time of the oil and increases productivity. Cons of Wiped Film Distillation Two passes are required through the system to achieve a high-quality distillate. After the first pass, there are still some leftover terpenes and volatiles. The second distillation requires a little more time, but results in a higher-quality end product. |
|

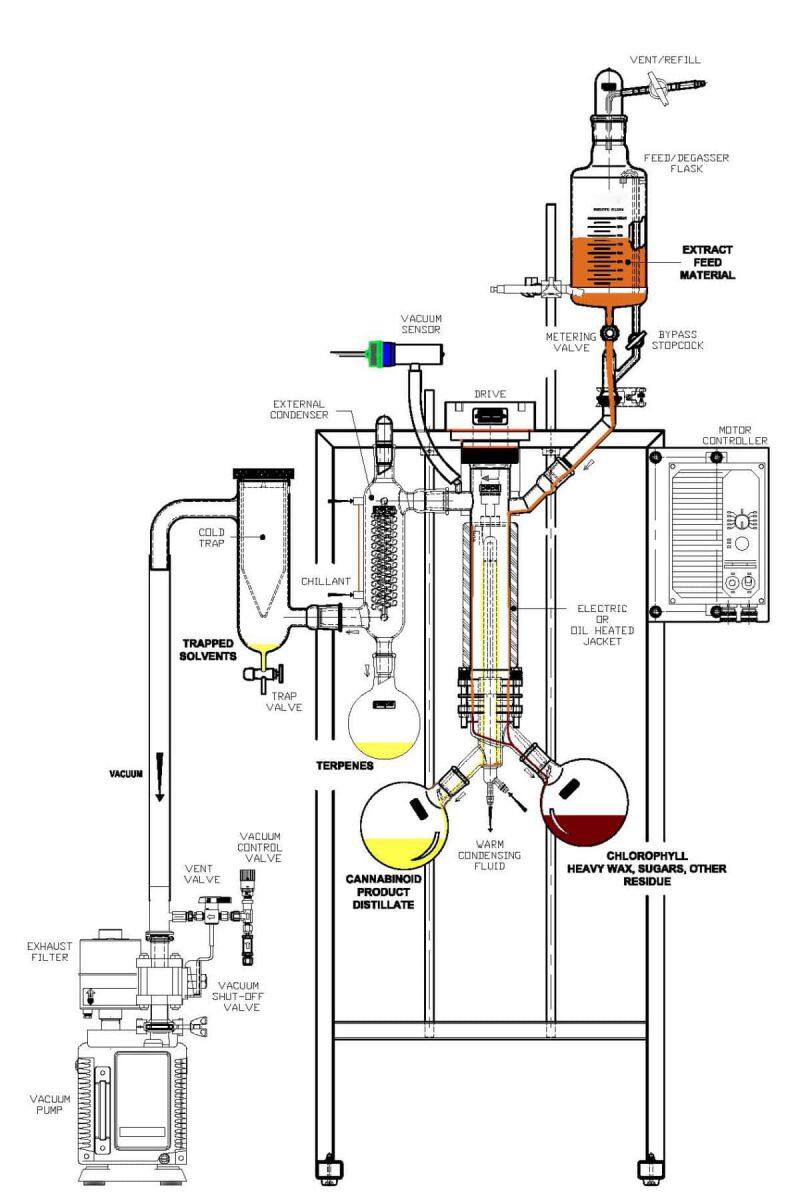

wipe film distillation work flow:
| Model | Feed rate (L/h) | Throughput (L/h) | Evaporation area (m2) |
| GMD - 100A | 0.75 - 7.5 | 1.5 - 3 | 0.1 |
| GMD - 150A | 1.25 - 12.5 | 2.5 - 5 | 0.25 |
| GMD - 200A | 1.75 - 17.5 | 3.5 - 7 | 0.35 |
| HMD - 150 | 1.25 - 12.5 | 2.5 - 5 | 0.25 |
| HMD - 200 | 1.75 - 17.5 | 3.5 - 7 | 0.35 |
| SMD - 01 | 2 - 10 | 3.5 - 7 | 0.1 |
| SMD - 03 | 5 - 25 | 10 - 20 | 0.3 |
| SMD - 05 | 10 - 50 | 18 - 36 | 0.5 |
| SMD - 10 | 20 - 100 | 30 | 1 |
| SMD - 25 | 50 - 250 | 75 | 2.5 |
| SMD - 50 | 100 - 500 | 150 | 5 |
