Home > Industrial Equipment & Components > Valve > Solenoid Valve > Carbon Steel Hydraulic Solenoid Valve Fittings New 1 Year Warranty SV10 Valve
Carbon Steel Hydraulic Solenoid Valve Fittings New 1 Year Warranty SV10 Valve
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Industrial Usage
Usage:
Safety, Flow Control
Standard:
DIN
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SV10-20 Carbon Steel Hydraulic Solenoid Valve 2-Way 2-Position Cartridge Structure 210bar Pressure New 1 Year WarrantyNegotiableMOQ: 10 Sets -
SV08-34 Four-Way Three Position Cartridge Solenoid Valve (Spool Type) Hydraulic Valves ProductNegotiableMOQ: 10 Pieces
-
Customised Hydraulic Solenoid Cartridge ValveNegotiableMOQ: 10 Pieces
-
Hydraulic Valves Normally Closed Solenoid Valve 18mm Shaft 2554131H Valve Manual Override High Pressure ValveNegotiableMOQ: 10 Pieces
-
Four-Way Hydraulic Cartridge Solenoid Valve With Directional & Pressure Control 250 Bar Max Pressure 1/4 in Port SV-08-4NCNegotiableMOQ: 10 Pieces
Application
Industrial Usage
Usage
Safety, Flow Control
Standard
DIN
Power Supply
AC Solenoid Valve

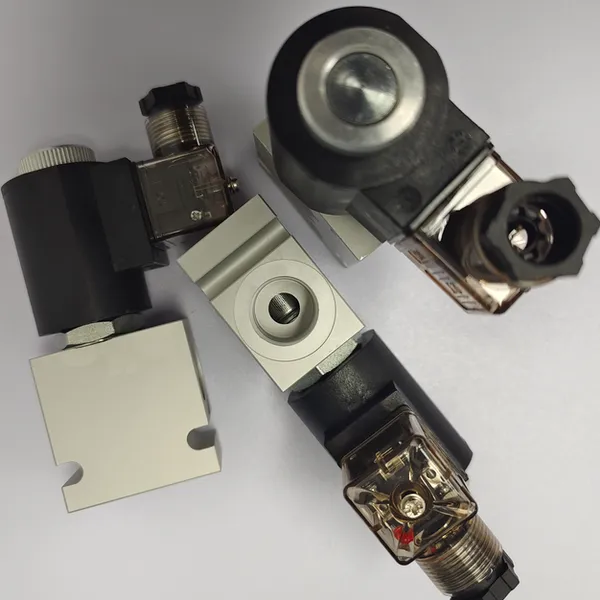

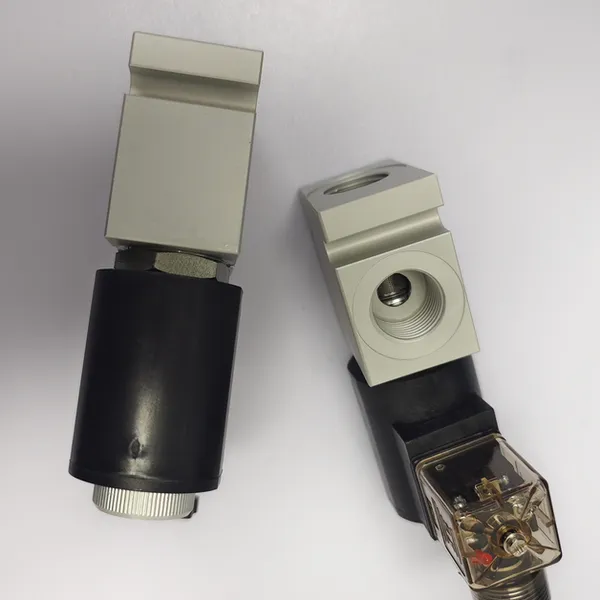

hydraulic solenoid valve wtih aluminium block
The material block is aluminium or steel, it can be produced as per customer's requirement.
When coil de-energized, the valve acts as a check valve, allowing the flow from 2 to 1, while blocking flow from 1 to 2.
When coil energized, the poppet lifts to open the 1 to 2 flow path. In this mode, flow is also allowed from 2 to 1.
The customer can order only valve or the valve with block
Contact with us to know more information.
| item | SV-10-2NCP-T |
| Warranty | 1 Year |
| Valve type | Hydraulic Solenoid Control Valve |
| type | Normally closed |
| Place of Origin | China |
| - | Zhejiang |
| Weight | 0.5 |
| Brand Name | hongshan |
| Solenoid coil voltage | 12VDC/24VDC/110VAC/220VAC |
| Oil port size | as per customer's requirement |
| Power | HYDRAULIC |
| Dimension(L*W*H) | 150x48x35mm |
| Maximum pressure | 210 bar |
| Maximum Flow Rate | 40L/min |
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2019
Factory Size
3,000-5,000 square meters
Product Certifications
ISO9001
