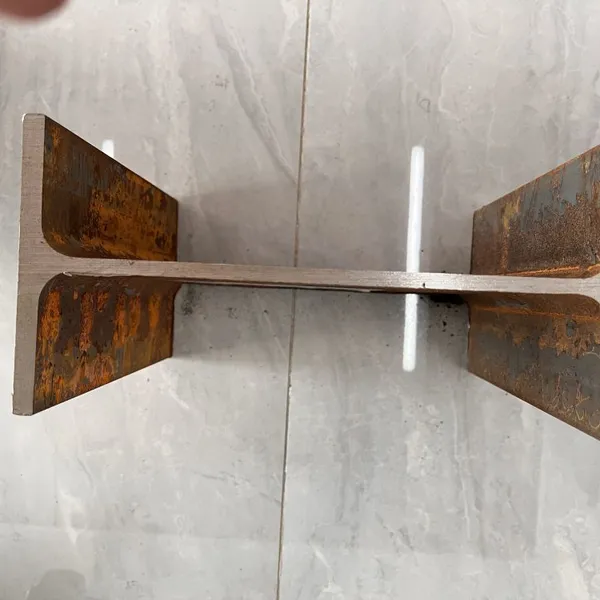

Help CenterASTM A36 H Beam 250×250mm Flange & Web Thickness Customized Structural Steel
Product Spotlights
Related Products
-
Carbon Steel H Beam SS400 300×300mm Size Hot Rolled H Section Steel for BuildingUS$ 585 - 610MOQ: 10 Tons -
Heavy Duty H Beam Steel A572 Grade 50 400×400mm Flange Thickness 16mm for BridgeUS$ 585 - 610MOQ: 10 Tons
-
Mild Steel H Beam Q355B 125×125mm Web Thickness 5mm Construction Steel ProfileUS$ 585 - 610MOQ: 10 Tons
-
Series H Beam W8×W10 ASTM A992 200×150mm Size Hot Dipped H Beam SteelUS$ 585 - 610MOQ: 10 Tons
-
Structural Steel H Beam S275JR 350×175mm Width Thickness 9mm for Steel StructureUS$ 585 - 610MOQ: 10 Tons
H-beams are commonly used in steel structures. The national standard grades are generally Q235 and Q345, specifically grades B, C, and D. Grade E is used in colder northern regions, but this is extremely rare. The most common Japanese grades are SS400, SM490A/B, and SN490A/B. European standards commonly use S235 and S355, specifically grades JR, J0, and J2.
H-shaped steel is a high-efficiency profile with a more optimized cross-sectional area distribution and a more reasonable strength-to-weight ratio. Since all parts of the H-shaped steel are arranged at right angles, the H-shaped steel has the advantages of strong bending resistance in all directions, simple construction, cost saving and light structural weight, and has been widely used.
ASTM standard American standard H-beam has three main quality grades: A36, A572, A992, etc. A36 material and A572 material represent carbon structural steel, and A992 is low alloy steel.
European standard section steel UB series - British standard H section steel, used in various steel structure buildings, marine engineering, energy. Available in European standard angle steel, European standard channel steel, European standard H-beam, also used in the overall structure construction of offshore oil platforms, LNG, refinery and other modular steel structures.
1. Specification implementation standard:
BS EN 10365-2017 replaces the old standard EN10034-1993
2. Material implementation standard:
Material: S235JR/J0/J2, S275JR/J0/J2, S355JR/J0/J2/K2, S450J0
| Size | G(kg/m) | h | b | tw | tf | r | A | hi | d | Ø | pmin |
| IPE 80 A•/* | 5,0 | 78 | 46 | 3,3 | 4,2 | 5 | 6,38 | 69,6 | 59,6 | - | - |
| IPE 80* | 6,0 | 80 | 46 | 3,8 | 5,2 | 5 | 7,64 | 69,6 | 59,6 | - | - |
| IPE A 100•/* | 6,9 | 98 | 55 | 3,6 | 4,7 | 7 | 8,78 | 88,6 | 74,6 | - | - |
| IPE 100* | 8,1 | 100 | 55 | 4,1 | 5,7 | 7 | 10,3 | 88,6 | 74,6 | - | - |
| IPE O 220+ | 29,4 | 222 | 112 | 6,6 | 10,2 | 12 | 37,4 | 201,6 | 177,6 | M 10 | 58 |
| IPE A 240• | 26,2 | 237 | 120 | 5,2 | 8,3 | 15 | 33,3 | 220,4 | 190,4 | M 12 | 64 |
| IPE 240 | 30,7 | 240 | 120 | 6,2 | 9,8 | 15 | 39,1 | 220,4 | 190,4 | M 12 | 66 |
| IPE O 240+ | 34,3 | 242 | 122 | 7 | 10,8 | 15 | 43,7 | 220,4 | 190,4 | M 12 | 66 |
| IPE A 270• | 30,7 | 267 | 135 | 5,5 | 8,7 | 15 | 39,2 | 249,6 | 219,6 | M 16 | 70 |
| IPE 270 | 36,1 | 270 | 135 | 6,6 | 10,2 | 15 | 45,9 | 249,6 | 219,6 | M 16 | 72 |
| IPE O 270+ | 42,3 | 274 | 136 | 7,5 | 12,2 | 15 | 53,8 | 249,6 | 219,6 | M 16 | 72 |
| IPE O 330+ | 57,0 | 334 | 162 | 8,5 | 13,5 | 18 | 72,6 | 307 | 271 | M 16 | 80 |
| IPE A 360• | 50,2 | 357,6 | 170 | 6,6 | 11,5 | 18 | 64,0 | 334,6 | 298,6 | M 22 | 86 |
| IPE 360 | 57,1 | 360 | 170 | 8 | 12,7 | 18 | 72,7 | 334,6 | 298,6 | M 22 | 88 |
| IPE O 360+ | 66,0 | 364 | 172 | 9,2 | 14,7 | 18 | 84,1 | 334,6 | 298,6 | M 22 | 90 |
| IPE A 400• | 57,4 | 397 | 180 | 7 | 12 | 21 | 73,1 | 373 | 331 | M 22 | 94 |
| IPE 750 x 196+ | 196 | 770 | 268 | 15,6 | 25,4 | 17 | 251 | 719,2 | 685,2 | M 27 | 106 |
| IPN 80* | 5,9 | 80 | 42 | 3,9 | 5,9 | 3,9 | 2,3 | 7,58 | 59 | - | - |
| IPN 240* | 36,2 | 240 | 106 | 8,7 | 13,1 | 8,7 | 5,2 | 46,1 | 192,5 | M 10 | 54 |
| IPN 260* | 41,9 | 260 | 113 | 9,4 | 14,1 | 9,4 | 5,6 | 53,3 | 208,9 | M 12 | 62 |
| IPN 280* | 47,9 | 280 | 119 | 10,1 | 15,2 | 10,1 | 6,1 | 61,0 | 225,1 | M 12 | 68 |
| IPN 300* | 54,2 | 300 | 125 | 10,8 | 16,2 | 10,8 | 6,5 | 69,0 | 241,6 | M 12 | 70 |
| IPN 320* | 61,0 | 320 | 131 | 11,5 | 17,3 | 11,5 | 6,9 | 77,7 | 257,9 | M 12 | 70 |
| IPN 340* | 68,0 | 340 | 137 | 12,2 | 18,3 | 12,2 | 7,3 | 86,7 | 274,3 | M 12 | 78 |
| IPN 360* | 76,1 | 360 | 143 | 13 | 19,5 | 13 | 7,8 | 97,0 | 290,2 | M 12 | 78 |
| IPN 450* | 115 | 450 | 170 | 16,2 | 24,3 | 16,2 | 9,7 | 147 | 363,6 | M 16 | 92 |
| IPN 600* | 199 | 600 | 215 | 21,6 | 32,4 | 21,6 | 13 | 254 | 485,8 | M 24 | 126 |
Shandong Anli Metal Co., Ltd. is a leading comprehensive enterprise integrating various metal products. Our portfolio includes hot-rolled steel coils, cold-rolled steel coils, galvanized steel coils, color-coated steel coils, steel sections, steel pipes, heat exchange pipes, automobile exhaust pipes, anchor rods, steel wires, and metal mesh. Additionally, we offer stainless steel, aluminum, copper, and metal raw materials such as billets, aluminum ingots, zinc ingots, magnesium ingots, and lead ingots.
With five production and sales bases strategically located in Binzhou, Liaocheng, Wuxi, Tianjin, Jinan, and Tai'an, we boast over 100 production lines. Our group company has imported the most advanced technology from Germany, Japan, Belgium, the United States, and the United Kingdom for iron-smelting and steel processing. Equipped with a complete automatic system, we have become one of the largest and most advanced professional manufacturers in China.
We possess four nationally recognized laboratories, two technical engineering centers, and five corporate technology centers, ensuring the highest quality standards. Our products are exported to more than 50 countries and regions worldwide, including North America, South America, Europe, the Middle East, Russia, Africa, and others.
Company Philosophy:
• Quality First: We adhere strictly to production standards during production and inspection.
• Price Advantage: We offer discounts based on real market prices.
• Transaction Security: Customer funds are always protected.
• After-Sales Guarantee: We treat customer problems as our own.
• Long-Term Cooperation: Our quality assurance, price advantage, and sincere service ensure lasting partnerships.
Shandong Anli Metal, with quality as the foundation and technology as the leader, sincerely invites friends from all walks of life to join us creating a brilliant chapter in the metal manufacturing industry!
