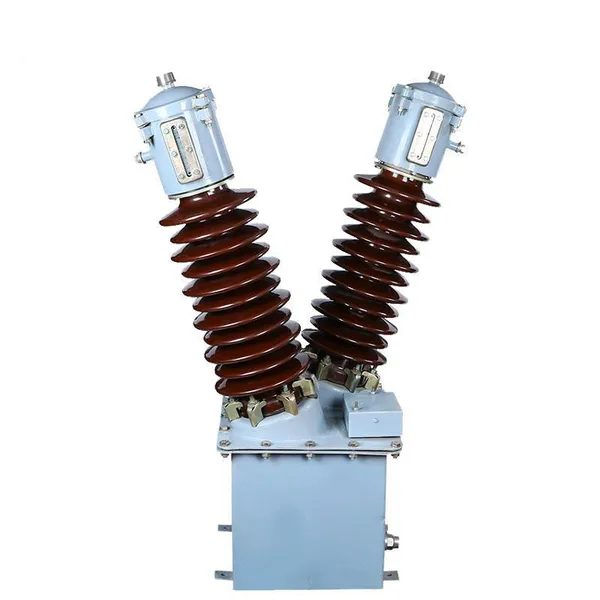

Help CenterSingle-Phase Oil-Immersed Current Transformer for HV Substations 35/0.1kV
Product Spotlights
Related Products
-
Factory Direct Oil-Immersed HV CT Transformer 35kV Class 0.2 AccuracyUS$ 500MOQ: 5 Units -
35/0.1kV Single-Phase HV Current Transformer With IEC Standard CompliantUS$ 500MOQ: 5 Units
-
CT HV Oil-Immersed Single-Phase Factory Transformer 35kV 50/60HzUS$ 500MOQ: 5 Units
-
Plateau-Type Oil-Immersed Single-Phase CT Transformer With 5-Year WarrantyUS$ 500MOQ: 5 Units
-
Single-Phase 35kV Oil-Filled CT Transformer With Onsite Technical SupportUS$ 500MOQ: 5 Units
As a dedicated manufacturer with ISO9001 certification, Jinhua Dika Electrical Equipment Co., Ltd. proudly introduces our Single-Phase Oil-Immersed Current Transformer, engineered for high-voltage substations to deliver precise and reliable current measurement. With an annual export value of US$1 million to US$1.5 million and a global presence across markets like North America, Southeast Asia, and Europe, we ensure top-tier quality and performance for demanding electrical applications. Our product excels in providing accurate data for protection and metering systems, backed by over a decade of industry expertise and a commitment to innovation. Based in Jinhua, Zhejiang, China, we leverage efficient production processes to offer cost-effective solutions that meet international standards, ensuring seamless integration into your substation infrastructure.
This current transformer features a robust oil-immersed design that enhances insulation and durability, making it ideal for harsh environments. Key technical specifications include:
- High Accuracy: Achieves precision with accuracy classes of 0.2 or 0.5, ensuring minimal error in current sensing for critical operations.
- Enhanced Safety: Oil immersion provides superior dielectric strength, reducing risks of short circuits and improving long-term reliability.
- Versatile Compatibility: Designed for 50/60Hz systems, it supports various substation configurations without compromising performance.
- Easy Installation: Compact and lightweight construction allows for straightforward mounting in confined spaces, saving time and labor costs.
- Low Maintenance: The sealed oil-filled unit minimizes upkeep requirements, extending service life and reducing total ownership costs.
For detailed technical parameters, refer to the table below:
| Parameter | Value |
|---|---|
| Rated Voltage | 35kV/0.1kV |
| Frequency | 50/60Hz |
| Accuracy Class | 0.2 or 0.5 |
| Insulation Level | Oil-Immersed |
| Temperature Range | -25°C to +55°C |
| Burden | 5-20VA (customizable) |
The benefits to customers include improved grid stability, reduced downtime through reliable performance, and compliance with industry norms. By choosing this transformer, you gain a solution that optimizes energy efficiency and supports scalable power systems.
Trust in our proven track record: with shipments from key ports like Shanghai, Tianjin, and Guangzhou, and a presence in over 15 global regions including Oceania and Mid East, our products reach you efficiently. Our team of 11-50 skilled employees ensures rigorous quality control, making this transformer a dependable choice for substations worldwide. For inquiries or orders, contact us today to experience the advantages of our ISO9001-certified manufacturing.
Frequently Asked Questions (FAQ):
-
Q: What is the typical installation process for this current transformer?
A: It is designed for straightforward mounting in HV substations, with options for bushing or support structures; detailed guidelines are provided in the manual. -
Q: Can this transformer handle different voltage levels beyond 35kV?
A: The rated voltage is fixed at 35kV/0.1kV, but customization for other ranges is available upon request. -
Q: How often is maintenance required for the oil-immersed design?
A: Due to its sealed construction, maintenance is minimal, typically involving periodic oil checks every 5-10 years. -
Q: What certifications support the product's safety and quality?
A: It is ISO9001 certified, ensuring adherence to international quality management standards. -
Q: Is the transformer suitable for use in extreme weather conditions?
A: Yes, the oil immersion provides excellent thermal stability, making it operable in temperatures from -25°C to +55°C. -
Q: What is the lead time for delivery to international markets?
A: Standard orders ship within 4-6 weeks from ports like Ningbo, with expedited options possible. -
Q: Can I get a customized model for specific substation needs?
A: Absolutely, we offer customization on parameters like burden and accuracy class; contact us for details. -
Q: How does this product compare to dry-type transformers?
A: Oil immersion offers better insulation and durability for high-voltage applications, reducing failure risks.
