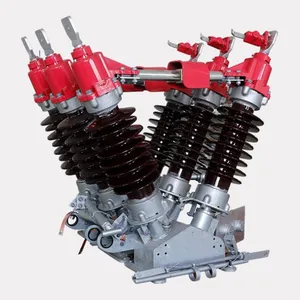

Help Center33KV Rated Outdoor Isolation Switch With 3-Pole Design for Substations
Product Spotlights
Related Products
-
Outdoor Isolation Switch for Power Grids and Substations up to 33KVUS$ 800MOQ: 1 Unit -
3-Pole High Voltage Isolation Switch for 11KV, 24KV, and 33KV ApplicationsUS$ 800MOQ: 1 Unit
-
11/24/33KV High Voltage Isolation Switch With Mill Test ReportUS$ 800MOQ: 1 Unit
-
3-Pole Outdoor Isolation Switch With 5-Year Warranty and Compliance TestingUS$ 800MOQ: 1 Unit
-
High Voltage 3-Pole Isolation Switch for 11KV to 33KV Power DistributionUS$ 800MOQ: 1 Unit
As a specialized manufacturer with over a decade of experience, Jinhua Dika Electrical Equipment Co., Ltd. delivers reliable high-voltage solutions tailored for global substation needs. Our ISO9001-certified production ensures this 33KV Outdoor Isolation Switch meets rigorous quality standards, backed by an annual export value of US$1-1.5 million across diverse markets. Designed for critical power distribution systems, this switch provides fail-safe electrical isolation to prevent accidents during maintenance. With shipments available from major Chinese ports like Shanghai and Ningbo, we offer timely delivery to support your infrastructure projects worldwide.
Core Features and Technical Specifications: Engineered for harsh outdoor environments, this 3-pole isolation switch combines robust construction with user-centric design. Key advantages include:
- Weather-Resistant Performance: Utilizes high-grade insulating materials that withstand extreme temperatures (-40°C to +55°C), UV radiation, and pollution, ensuring uninterrupted operation in coastal or industrial areas.
- Enhanced Safety Mechanism: Features visible contact gaps and double-break design to guarantee complete circuit isolation, reducing arc flash risks during switching operations.
- Flexible Operation Options: Standard manual control via rotary handle (ergonomic for reduced operator fatigue) with optional motorized actuation for remote management in unmanned substations.
- Optimized for Substation Integration: Compact 3-pole configuration minimizes footprint while supporting busbar connections up to 1250A, compatible with 33KV networks in transmission and distribution systems.
Technical parameters are summarized below:
| Parameter | Value | Remarks |
|---|---|---|
| Rated Voltage | 33KV | Standard rating |
| Rated Current | 630A-1600A | Customizable upon request |
| Insulation Level | 70KV (Impulse) | Meets IEC 62271 |
| Mechanical Life | 10,000 operations | Minimum guaranteed cycles |
These specifications translate to tangible client benefits: reduced downtime through corrosion-resistant components, lower maintenance costs via self-cleaning insulators, and compliance with international safety protocols. Installation flexibility allows vertical/horizontal mounting, while the modular design simplifies future upgrades.
Trust and Global Reach: Serving 15+ regions including North America, Europe, and Africa, our 11-50 employee team leverages Zhejiang’s manufacturing expertise to deliver consistent quality. With ISO9001 certification and ports like Guangzhou facilitating exports, we ensure traceable supply chain integrity. This switch represents a cost-effective solution for utilities seeking durable grid equipment—contact us today for volume discounts or technical consultations.
Frequently Asked Questions:
-
Q: What maintenance is required for outdoor operation?
A: Annual visual inspections and lubrication of moving parts suffice under normal conditions; no specialized tools needed. -
Q: Can it handle high-altitude installations?
A: Yes, designs are tested for altitudes up to 3000m with derating options available. -
Q: Is motorized operation standard?
A: Manual is default; motorized versions are optional for automation integration. -
Q: How does it perform in seismic zones?
A: Anti-vibration mounts absorb shocks, meeting Zone 3 seismic requirements when specified. -
Q: What certifications accompany delivery?
A: ISO9001 factory certification is provided; additional local certifications can be arranged. -
Q: Are spare parts readily available?
A: Critical components like contacts are stocked globally for rapid dispatch. -
Q: What’s the lead time for bulk orders?
A: Typically 30-45 days post-confirmation, expedited via Shanghai/Tianjin ports.
