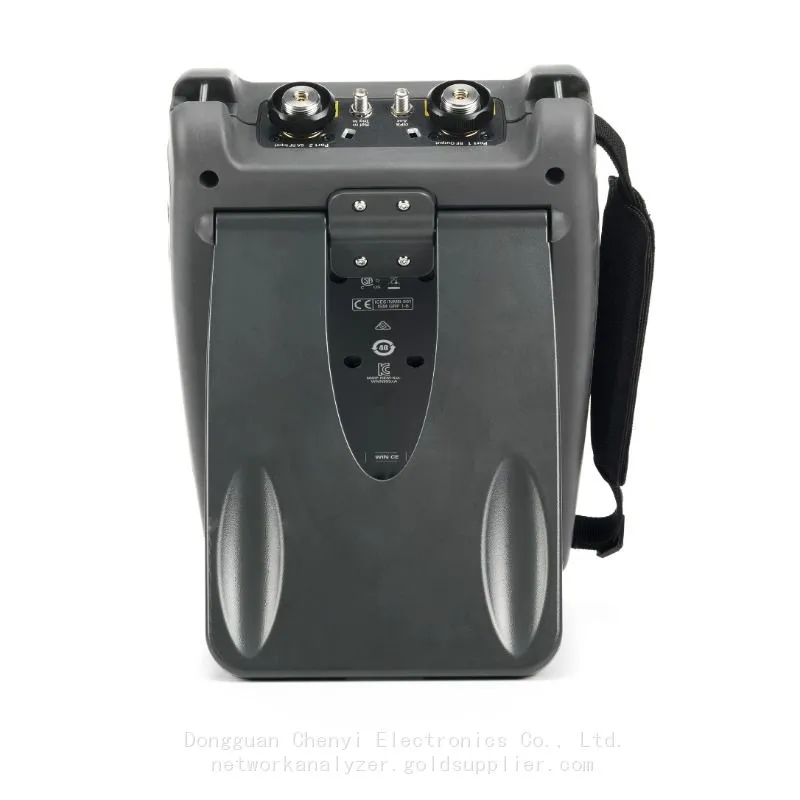

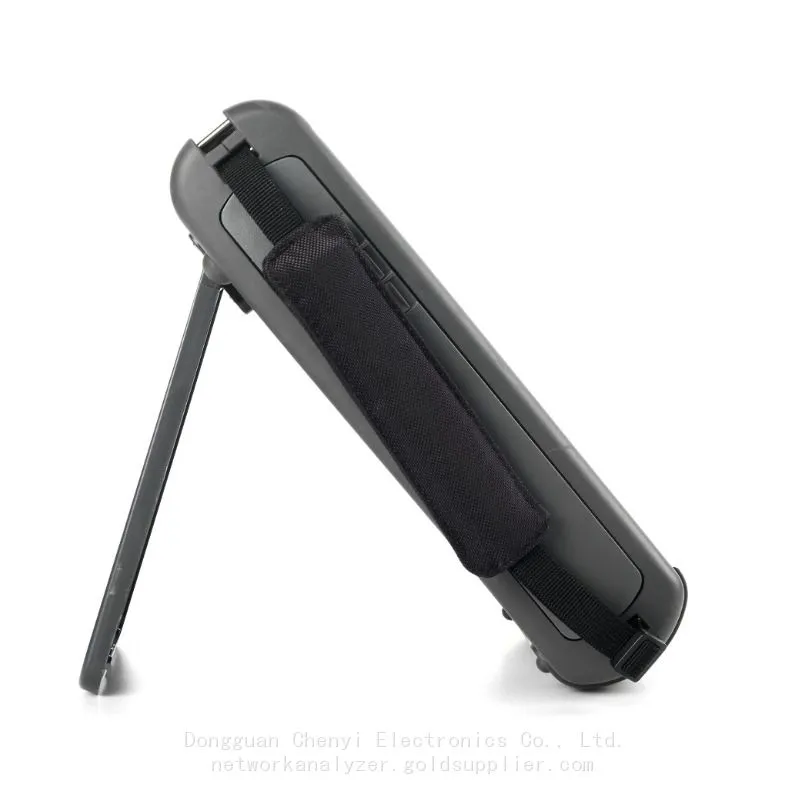

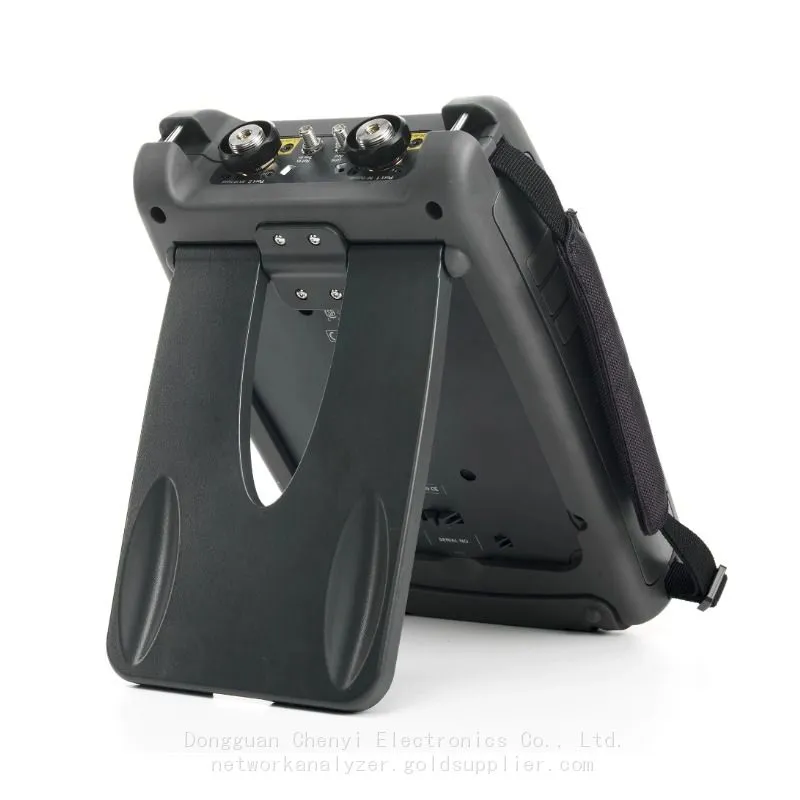

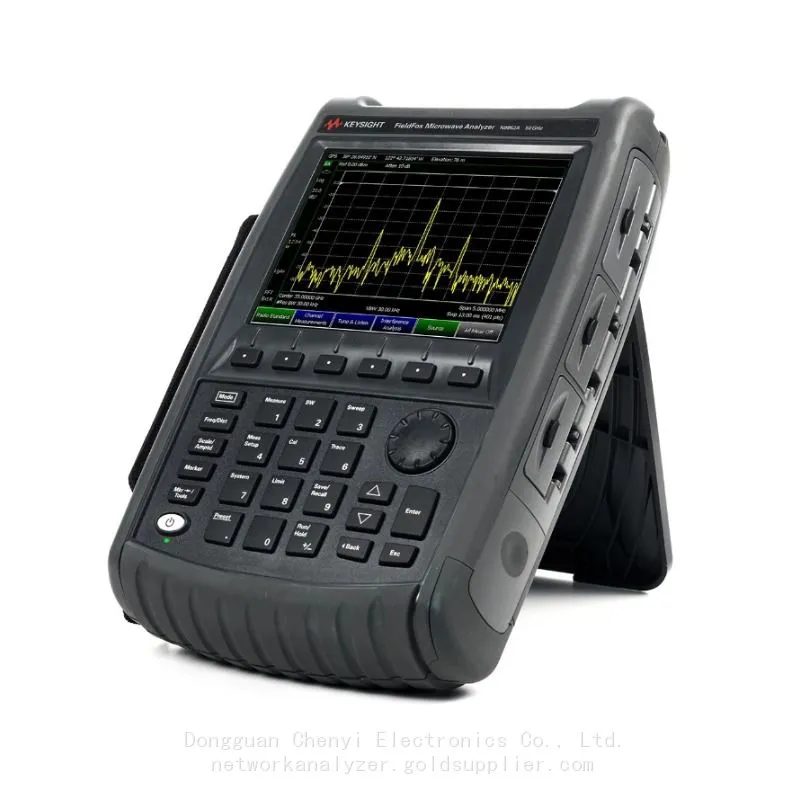

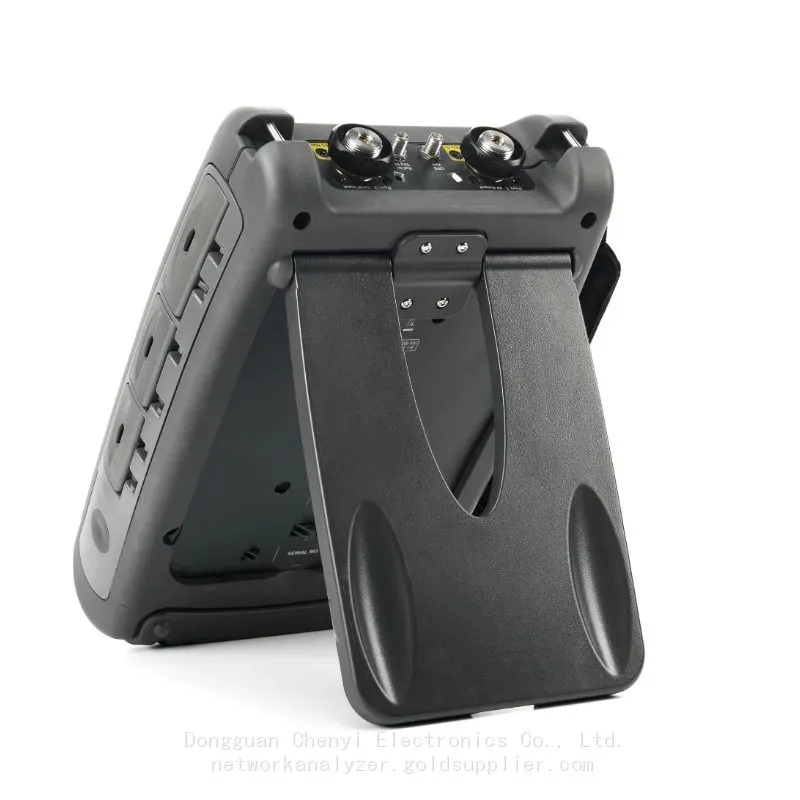

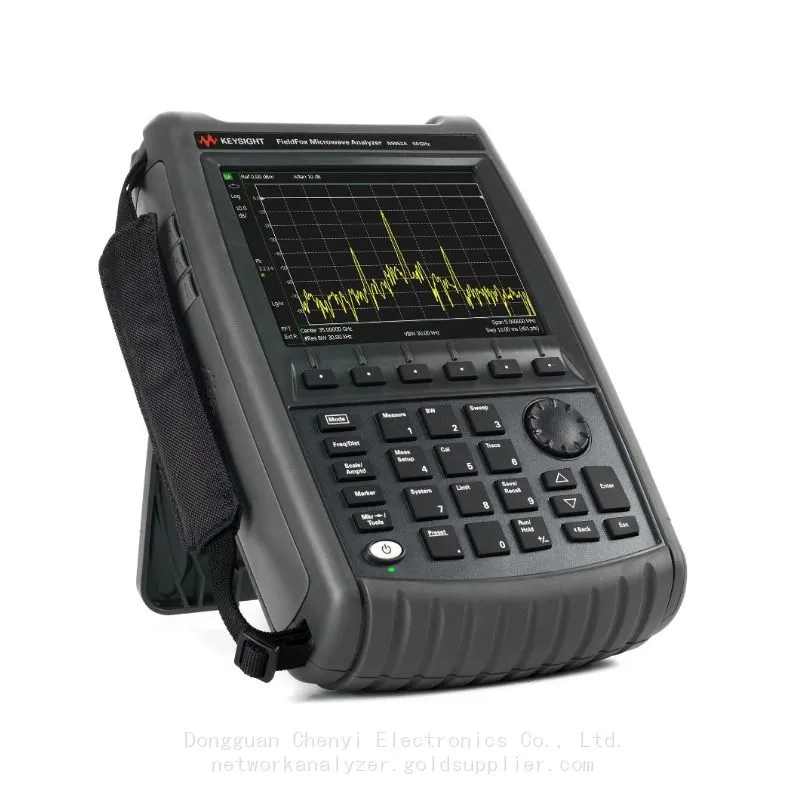

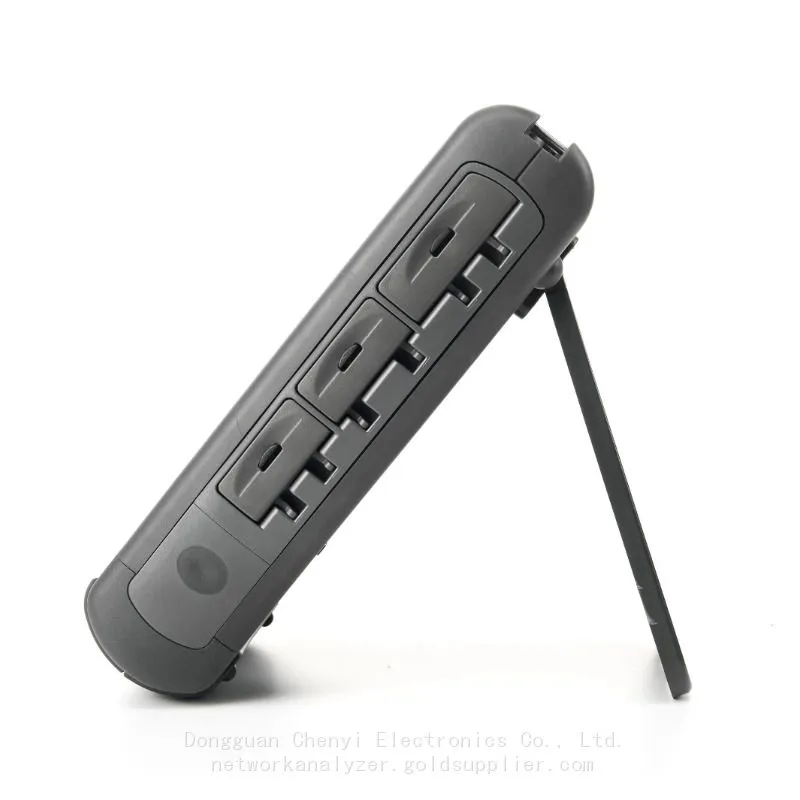

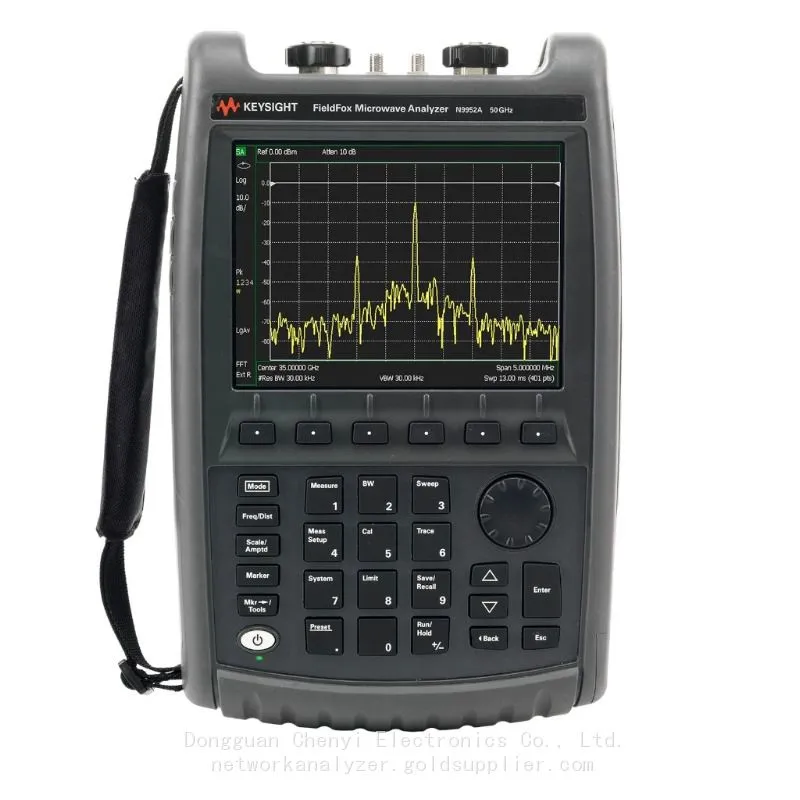

Keysight N9952A FieldFox Handheld Microwave Analyzer, 300 kHz to 50 GHz
FieldFox Handheld Microwave Analyzer N9950A ：300 kHz to 32 GHz
FieldFox Handheld Microwave Analyzer N9951A ：300 kHz to 44 GHz
FieldFox Handheld Microwave Analyzer N9952A ：300 kHz to 50 GHz
A lightweight, durable, cable and antenna analyzer, spectrum analyzer, network analyzer, and more
Highlights
Never Sacrifice Capability Or Portability
Keysight's FieldFox handheld analyzers are equipped to handle your toughest working environments during routine maintenance, in-depth troubleshooting, and anything in between. Choose the Keysight FieldFox configuration that best meets your needs.
• Standard model includes cable and antenna analyzer.
• Expand capabilities with optional VNA, spectrum analyzer, built-in power meter, vector voltmeter, and more.
• Save time by measuring DTF and TDR in the same sweep.
• Measure all four S-parameters simultaneously.
• Make accurate spectrum analyzer measurements (± 0.5 dB) without warm-up.
• Calibrate easily with QuickCal.
• Use the industry's lightest all-in-one analyzer at only 3.2 kg (7.1 lb).
What's included:
• AC/DC adapter
• Localized power cord
• Rechargeable Li-ion battery
• Soft carrying case with backpack and shoulder strap
• Quick Reference Guide
Data Sheets
Specification (spec)
Specifications include guardbands to account for the expected statistical performance distribution,
measurement uncertainties, and changes in performance due to environmental conditions. Specifications are warranted performance. FieldFox must be within its calibration cycle. No warm-up required for the spectrum
analyzer specifications listed on pages 25 through 50.
Typical
Describes additional product performance information not covered by the product warranty. It is performance beyond specifications that 80% of the units exhibit with a 90% confidence level over the temperature range
23 ± 5°C, unless otherwise noted. Typical performance does not include measurement uncertainty. FieldFox
must be within its calibration cycle.
Nominal
A general, descriptive term or design parameter. It is not tested, and not covered by the product warranty.
FieldFox must be within its calibration cycle.
Test port output specifications
High power in N991xA and N992xA refers to the target output power level of the analyzer when the Power
Setting is set to High. As an example, if you have a frequency sweep from 3 to 6.5 GHz, the analyzer will achieve
the power level of -1 dBm across the band.
Low power level for N991xA and N992xA analyzers is a flat -45 dBm across the whole frequency band and is the output of the analyzer when the Power Setting is set to Low.
High power in the N995xA refers to the target output power level of the analyzer when the Power Setting is set
to High. As an example, if you have a frequency sweep from 39 to 46 GHz, the analyzer will achieve the power
level of -2 dBm across the band.
Low power level for N995xA analyzers is the lowest power level that can be set and is the output of the analyzer
when the Power Setting is set to Low.
Max leveled power in the N995xA refers to the maximum leveled (flattened) power that can be achieved across
the designated frequency range. For example, if you have a frequency sweep from 32 to 44 GHz and set up the analyzer to measure all four S-parameters, needing both ports 1 and 2, the maximum power the analyzer can be
set to is -6 dBm.
