Ericsson Radio 4428 B3 KRC 161 713/1

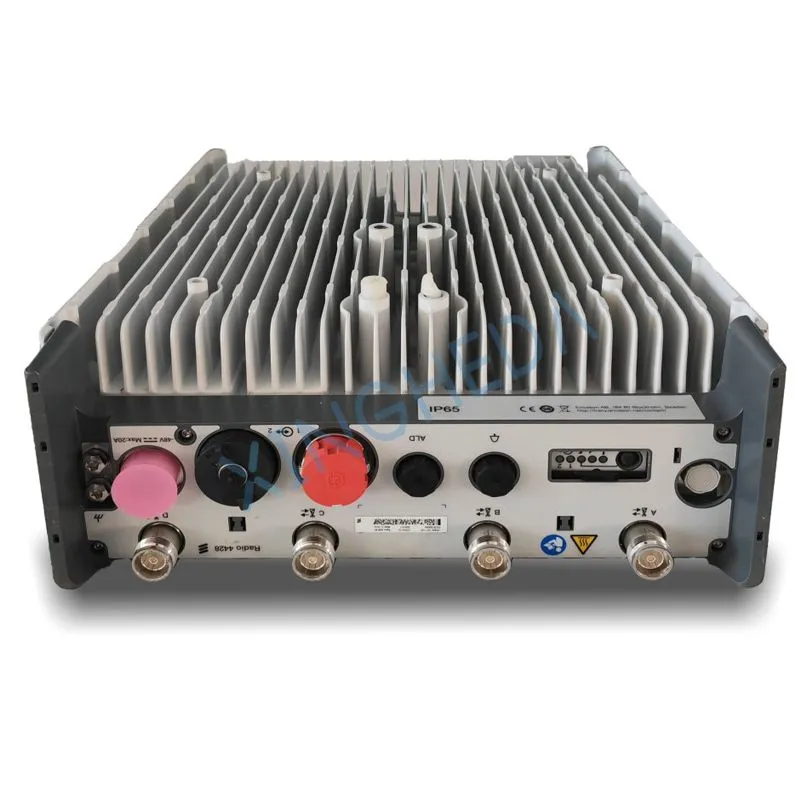

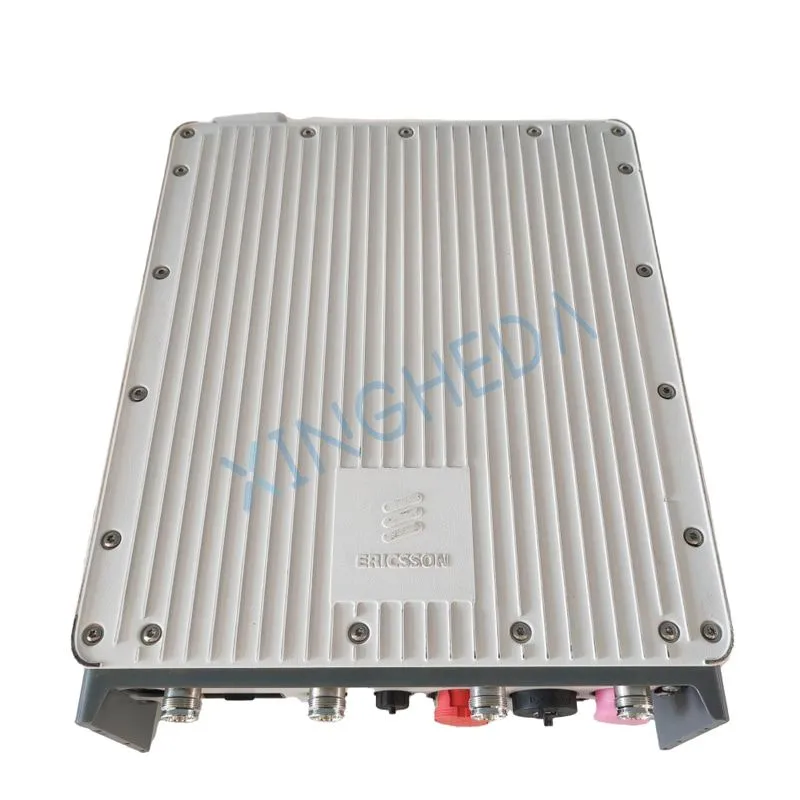

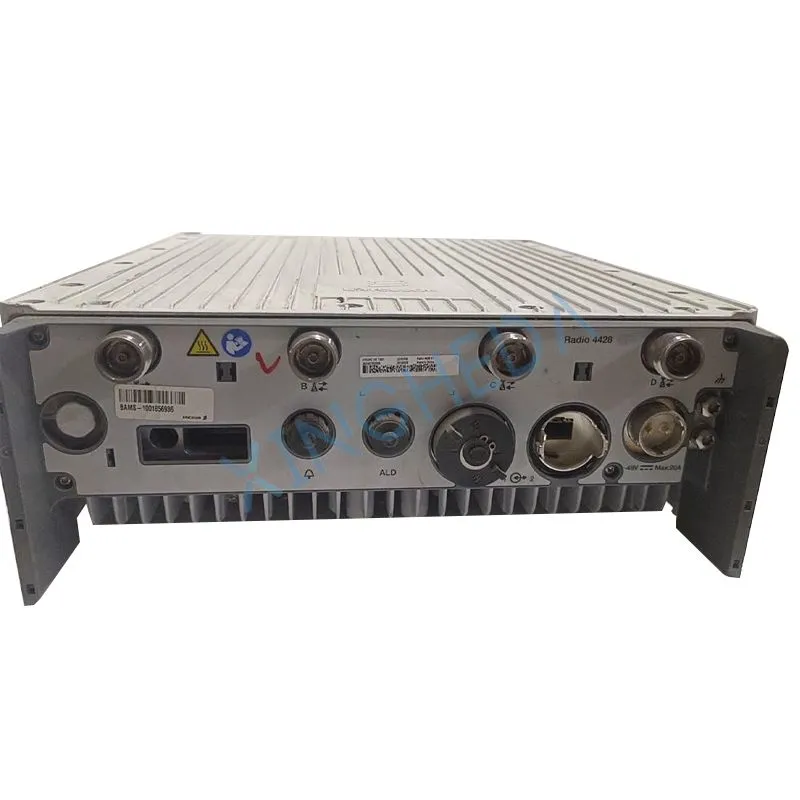

The Ericsson Radio 4428 B3 (KRC 161 713/1) is a high-performance, multi-standard outdoor Remote Radio Unit (RRU) engineered for FDD LTE/WCDMA/5G NSA networks operating in the 1800 MHz (Band 3) spectrum. It delivers robust coverage and high capacity for dense urban, suburban, and rural macro cellular deployments.
Key Specifications

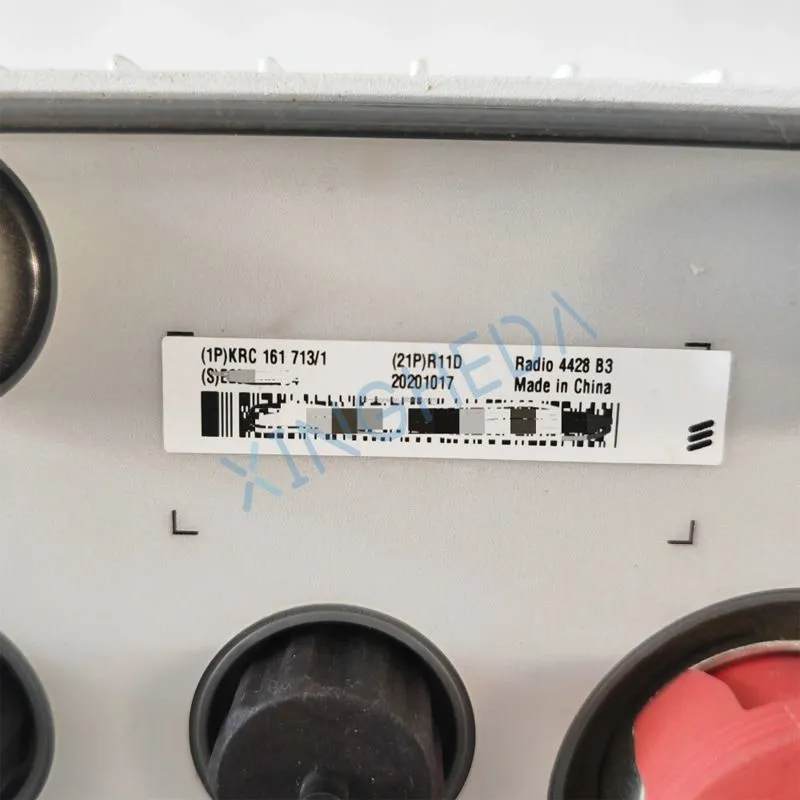

Part Number (P/N): KRC 161 713/1
Frequency Band: Band 3 (1800 MHz FDD)
Uplink (Rx): 1710 – 1785 MHz
Downlink (Tx): 1805 – 1880 MHz
Radio Configuration: 4T4R (4 Transmit, 4 Receive) MIMO
Transmit Power: 40 W per channel (4 × 40W)
Supported Technologies: GSM (EDGE), WCDMA, LTE FDD, 5G NSA
Power Supply: -48 V DC
Interface: CPRI (Common Public Radio Interface) for baseband connection
Operating Temperature: -33°C to +50°C
Form Factor: Compact, rugged, IP65/IP67 weatherproof housing
Mounting: Pole/wall mountable for outdoor installation
Compatibility: Ericsson RBS 6601, RBS 6701, and other 6000-series baseband units
Application: High-capacity mobile network coverage, capacity expansion, and seamless multi-RAT operation
Core Features
Multi-Mode & Multi-Band Capability
Simultaneously supports 2G/3G/4G/5G NSA for flexible network evolution and resource sharing.
High-Power 4T4R MIMO
Delivers 4 × 40W output with 4×4 MIMO to enhance signal penetration, network throughput, and spectral efficiency.
Compact & Rugged Design
Lightweight, durable outdoor build with wide environmental tolerance, simplifying deployment and reducing site costs.
Energy-Efficient Performance
Optimized power consumption to lower operational expenditure (OPEX) for mobile network operators.
Seamless Integration
-
Fully compatible with Ericsson RBS 6000-series base stations, enabling easy installation and integration into existing infrastructure.
