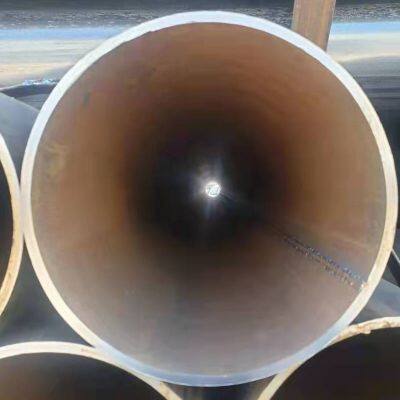

Help CenterAPI 5L Gr.B Carbon Steel Spiral Welded Pipes 6m ERW Square Cold Rolled Black ASTM A252 for Oil/Gas Drill Pipeline Welded Steel Pipe
Product Spotlights
Related Products
-
Hot Sale ERW Welded Steel Pipe 1/2"-6" ASTM Q195-Q345 Grade for Construction & Plumbing Carbon Welded Steel PipeUS$ 450 - 500MOQ: 10 Tons -
Q235 Q345 Q355 Erw Carbon Steel Welded Pipes Square and Rectangular Steel Pipes and Tubing Carbon Steel Welded PipesUS$ 450 - 500MOQ: 10 Tons
-
Large Diameter Straight Welded & SSAW Steel Pipes | API 5L Gr.B, ASTM A53 / ASTM A106US$ 450 - 500MOQ: 10 Tons
-
Large Diameter Straight Seam Welded & SSAW Steel Pipes | API 5L Gr.B, ASTM A53/A106US$ 450 - 500MOQ: 10 Tons
-
6-meter Welded Erw Steel Pipe, Carbon Spiral Welded PipeUS$ 450 - 500MOQ: 10 Tons
Welded steel pipe, also known as welded pipe, is a steel pipe made by welding steel plates or strips after being rolled and formed. Welded steel pipes are divided into straight seam welded pipes and spiral welded pipes according to the form of welds. Classified by production method: arc welded pipe, resistance welded pipe, (high-frequency, low-frequency) gas welded pipe, furnace welded pipe. The production process of straight seam welded pipe is simple, with high production efficiency, low cost, and rapid development. The strength of spiral welded pipes is generally higher than that of straight seam welded pipes. Narrow billets can be used to produce larger diameter welded pipes, and billets of the same width can also be used to produce welded pipes of different diameters. However, compared to straight seam pipes of the same length, the weld length increases by 30-100% and the production speed is lower. Thick wall coil products include: large coil, large diameter thick wall coil, various materials thick wall coil, hot rolled thick wall coil, cold rolled thick wall coil, etc.
All welded pipes can be made into galvanized welded pipes, which can be found through product consultation on the homepage.
The production process of straight seam welded pipe is simple, with high production efficiency, low cost, and rapid development. The strength of spiral welded pipes is generally higher than that of straight seam welded pipes. Narrow billets can be used to produce larger diameter welded pipes, and billets of the same width can also be used to produce welded pipes of different diameters. However, compared to straight seam pipes of the same length, the weld length increases by 30-100% and the production speed is lower. Therefore, smaller diameter welded pipes mostly use straight seam welding, while larger diameter welded pipes mostly use spiral welding.Straight seam welded pipes are divided into longitudinal submerged arc welding (LSAW) and electric resistance welding (ERW).
DN |
Welded steel pipe (ordinary) |
Welded steel pipe (thickened) |
Seamless steel pipe (hot rolled) |
Spiral welded steel pipe |
||||
pg≤1.0Mpa |
pg≤1.6Mpa |
pg≤2.5Mpa |
pg≤1.6Mpa |
|||||
D×∮ |
(Kg/m) |
D×∮ |
(Kg/m) |
D×∮ |
(Kg/m) |
D×∮ |
(Kg/m) |
|
DN15 |
21.3*2.75 |
1.25 |
21.3*3.25 |
1.44 |
---- |
---- |
---- |
---- |
DN20 |
26.8*2.75 |
1.63 |
26.8*3.5 |
2.01 |
---- |
---- |
---- |
---- |
DN25 |
33.5*3.25 |
2.42 |
33.5*4 |
2.91 |
32*3.5 |
2.46 |
---- |
---- |
DN32 |
42.3*3.25 |
3.13 |
42.3*4 |
3.77 |
38*3.5 |
2.98 |
---- |
---- |
DN40 |
48*3.5 |
3.84 |
48*4.25 |
4.58 |
45*3.5 |
3.58 |
---- |
---- |
DN50 |
60*3.5 |
4.88 |
60*4.5 |
6.16 |
57*3.5 |
4.62 |
---- |
---- |
DN65 |
75.5*3.75 |
6.64 |
75.5*4.5 |
7.88 |
73*4 |
6.81 |
---- |
---- |
DN80 |
88.5*4 |
8.34 |
88.5*4.75 |
9.81 |
89*4 |
8.38 |
---- |
---- |
DN100 |
114*4 |
10.85 |
114*5 |
13.44 |
108*4 |
10.26 |
---- |
---- |
DN125 |
140*4.5 |
15.04 |
140*4.5 |
18.24 |
133*4 |
12.72 |
---- |
---- |
DN150 |
165*4.5 |
17.81 |
165*5.5 |
21.63 |
159*4.5 |
17.14 |
168*5 |
20.1 |
