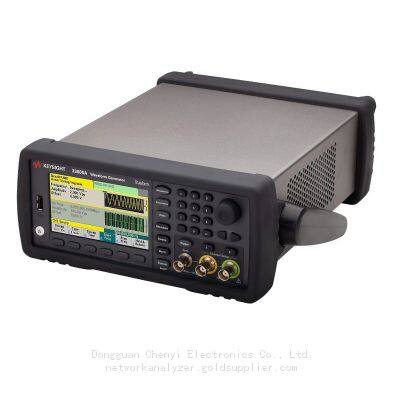

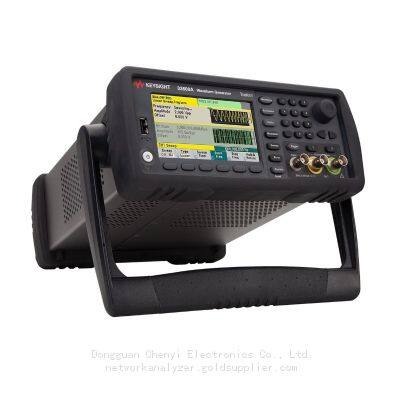

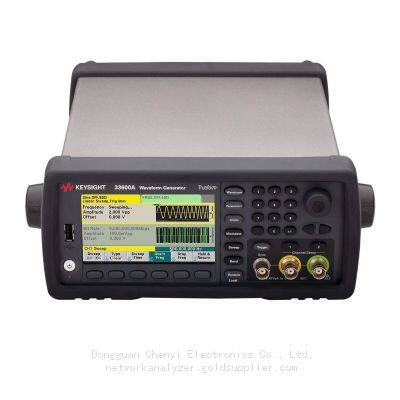

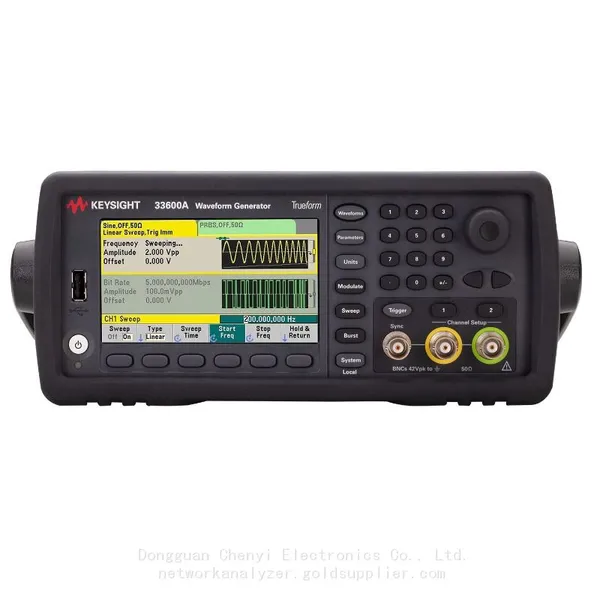

The 33611A waveform generator provides Keysight’s exclusive Trueform technology that offers unmatched capabilities for generating a full range of signals for your most demanding measurements.
Highlights
Exclusive Trueform technology
• Unmatched capabilities for generating a full range of signals for your most demanding measurements
• Sine waves with 5x lower harmonic distortion for more pure signals
• Pulses up to 80 MHz with
Instrument features
• 660 MSa/s sampling rate for higher time resolution arbitrary waveforms
• 14-bit resolution with 1 mVpp to 10 Vpp amplitude for greater amplitude accuracy
• 4 MSa/channel standard waveform memory, optional 64 MSa/channel for your longest waveforms

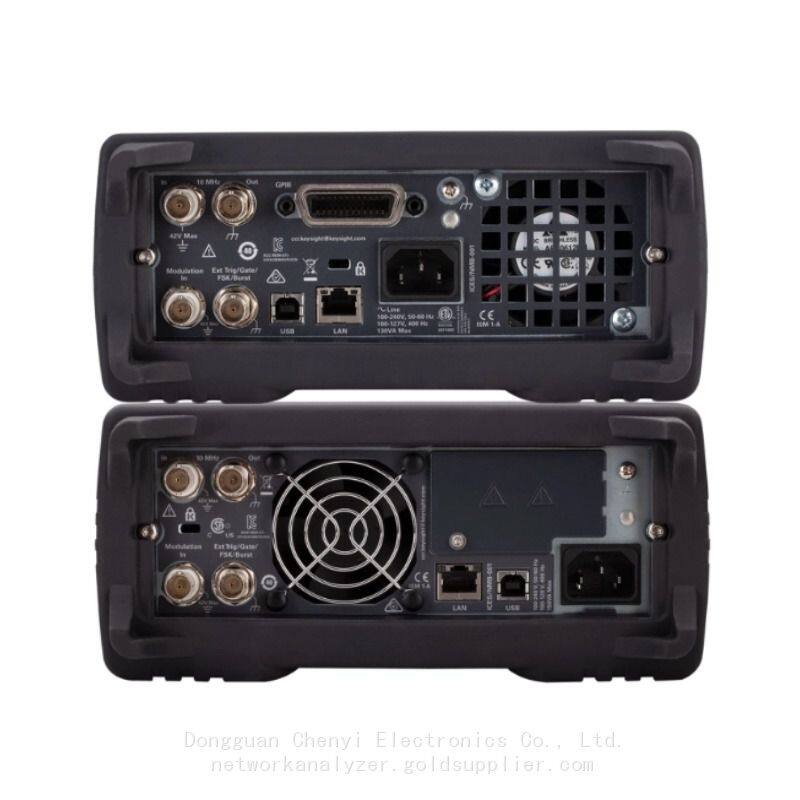

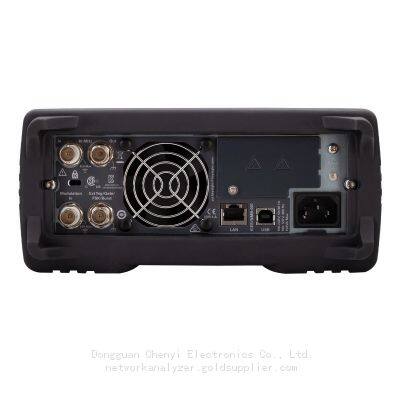

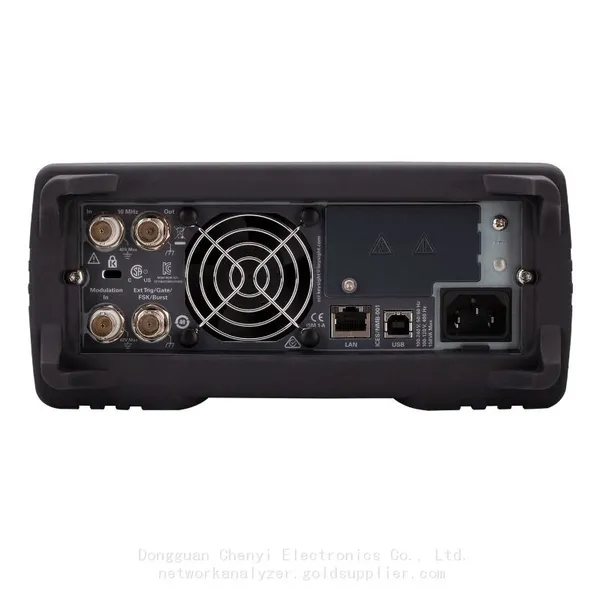

• USB, LAN (LXI-Core), GPIB optional for quick and easy connectivity to PC or network
Waveform creation and editing
• Create a waveform from the front panel using the built-in editor
• Capture a waveform from an oscilloscope and download it to the generator
• Create a waveform in MATLAB or Microsoft Excel and download it to the generator
• Download BenchVue Basic app for free to control your instruments

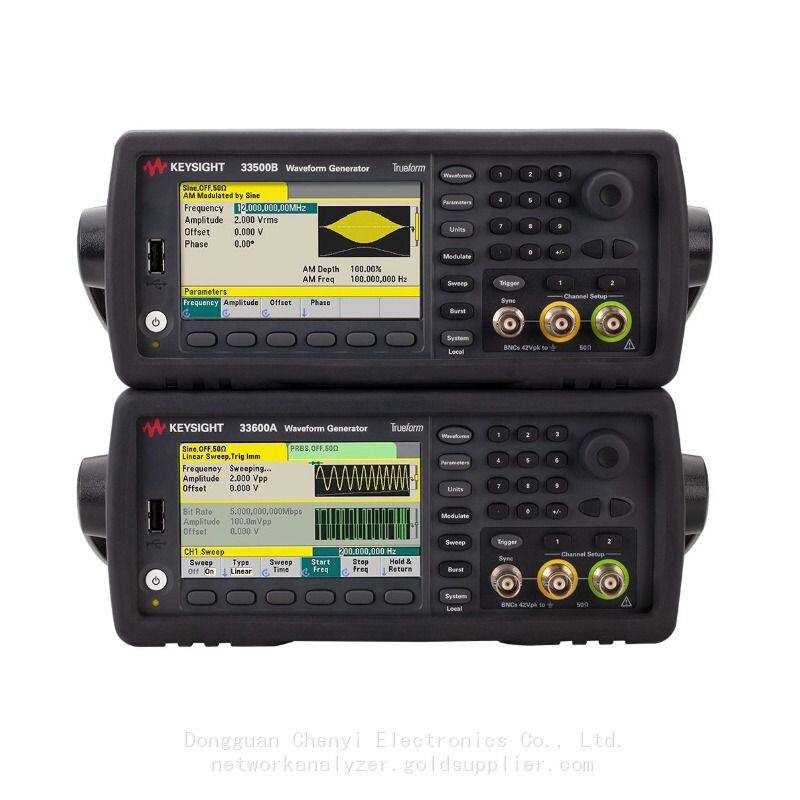

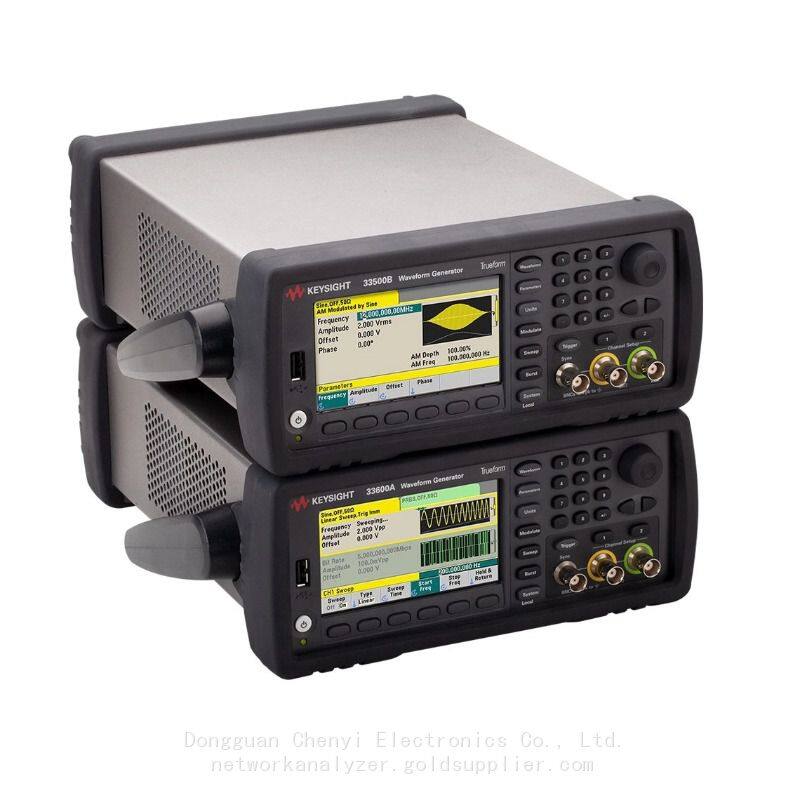

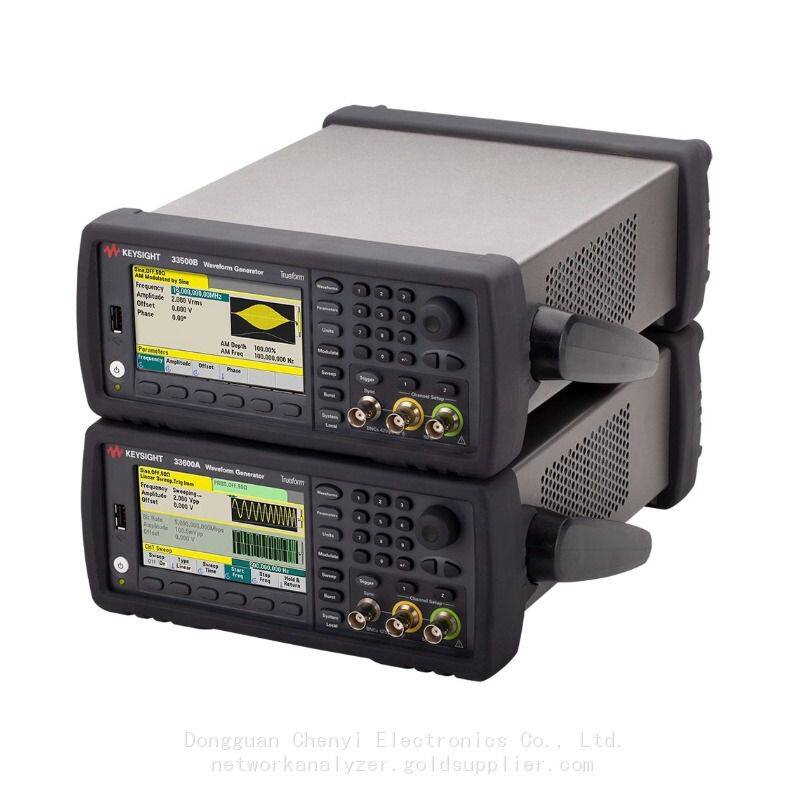

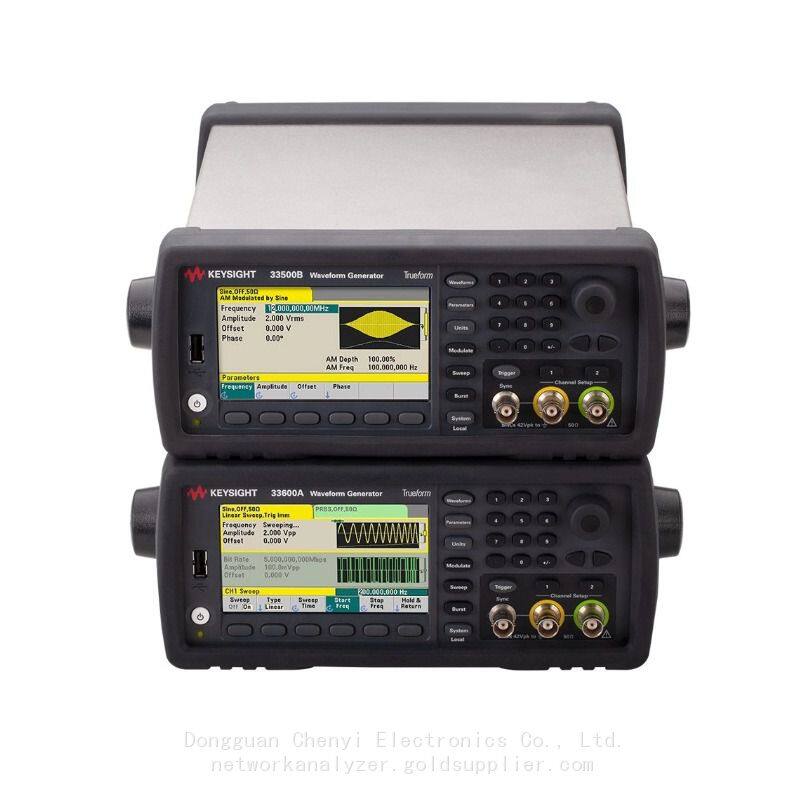

Keysight 33600A Series waveform generators with exclusive Trueform signal generation technology offer more capability, fidelity, and flexibility than previous generation DDS generators. Easily generate the full range of signals you need with confidence that the signal generator is outputting the signals you expect.
The 33611A can be easily upgraded as your needs change.
NOTE: 1-channel generators cannot be upgraded to 2-channel generators.
Modulation and built-in waveforms
17 arbitrary waveforms built-in, including standard waveforms such as sine, square, ramp, PRBS and Gaussian
Noise. As well as specialty waveforms: Cardiac, Haversine, and Lorentz. Built-in modulations include AM, FM,
PM FSK and PWM.
Waveform summing and combining capability
Add noise to your signal for margin and distortion testing using only a single channel. You can create dual-tone
multi-frequency signals without a dual-channel generator, which means you can preserve your budget for other
test needs. On a two-channel model, you can sum and combine up to four signals.
Signal Integrity: Outputting the Signals You Expect
If your generator is introducing spurious signals or harmonics, you’ll have a hard time producing reliable designs.
To be successful, you need to test with clean, precise, low-noise signals. Keysight Trueform function / arbitrary waveform generators offer the highest signal fidelity so you can generate the exact waveforms you need for your most challenging measurements. You can be confident you are seeing your design’s characteristics, and not that
of your waveform generator, in your measurements.
Lowest jitter
With jitter as low as 1 ps, Trueform function / arbitrary waveform generators offer exceptional edge stability. You
can even use them as a system clock for timing and triggering your other instruments. With better jitter performance, you can place edges more accurately, helping you reduce timing errors in your circuit design.
Lowest harmonic distortion
With total harmonic distortion of just 0.03%, Trueform waveform generators offer up to 5x better fidelity than other generators. Clean, spurious-free signals don’t introduce noise or artifacts. See your design’s characteristics, not the waveform generator’s, in your measurements.
Trueform Arbs: Generating a Full Range of Signals for the Most Demanding Requirements
Trueform function / arbitrary waveform generators use a technology that plays every point in your signal exactly
as you designed it. That means to test the robustness of your design, you can create a specific signal with noise, overshoots, spikes and dropouts just where you need them.
Non aliasing
Define any waveform shape and any waveform length using the Trueform arbitrary waveform capability. Play your signals as defined, at your exact sample rate, without the chance of missing short-duration anomalies that are critical for testing device reliability.
Standard deep memory
If you want to test your design with long, complex waveforms with a variety of anomalies, you need to make sure
your waveform generator has sufficient memory. The 33500B and 33600A Series come standard with 1 M Samples and 4 M Samples deep memory respectively. Typical DDS generators offer only a fraction of that capacity. In
addition to this, higher memory options up to 64 MSamples are available to handle your most complex waveforms.
Pulse Generator with Fast Edge Times
Create pulses up to 100 MHz with the Trueform function / arbitrary waveform generators. Most DDS-based generators offer reduced bandwidth when generating pulses. Trueform waveform generators produce higher harmonic content, allowing for rapid transitions. Like a dedicated pulse generator, edge times can be set independently down to 2.9 ns, which is twice as fast as a typical function generator.
Channel Coupling with Baseband Generation Capability
Channel coupling simplifies the operation of a two-channel function generator. Both channels can be controlled
with a single parameter for phase, amplitude, or frequency, making it simple to create differential or tracking
signals. In addition, IQ signal generation has now been made easier with the IQ Baseband Signal Player for
Trueform function / arbitrary waveform generators.
The IQ Baseband Signal Player configures and controls both channels as if they were a single channel. It also keeps
the phase of each channel in nominal IQ range. Quickly, go from simulation to signal generation to test your RF component or system design.
Select the Capabilities You Need Now, Then Upgrade Easily When Your Needs Change
With most waveform generators, you get what you pay for when you buy your instrument. However, with the
33500B and 33600A Series function / arbitrary waveform generators, there are four different models to choose from so you can purchase the capability you need now and simply upgrade later when your project needs change. Your investment in test equipment is protected. If you need deeper memory for generating more complex signals, you can easily add the capability later with software upgrades. And there’s no price penalty for adding the capability later.
