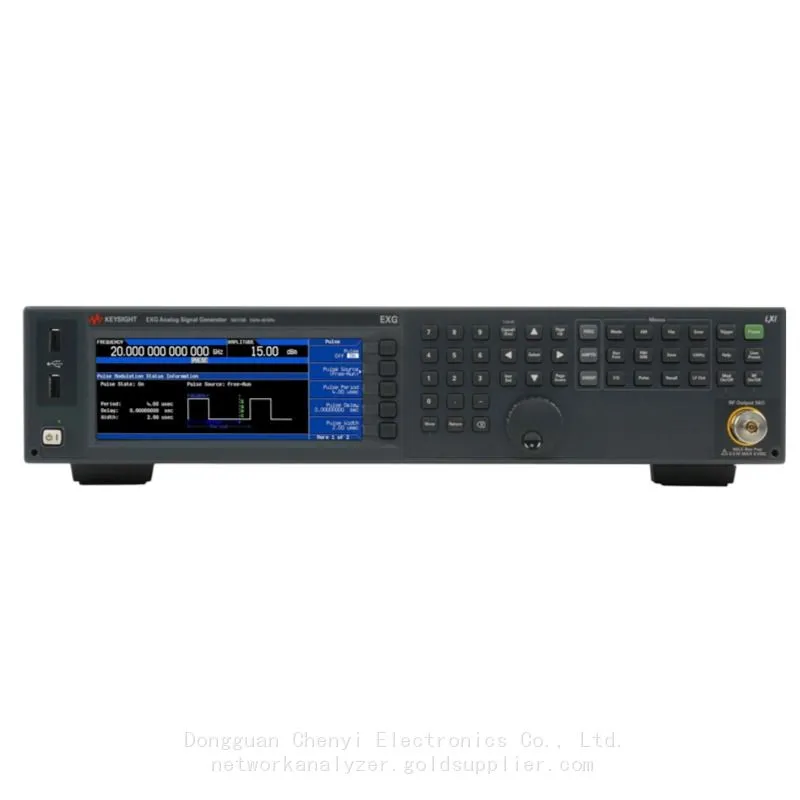

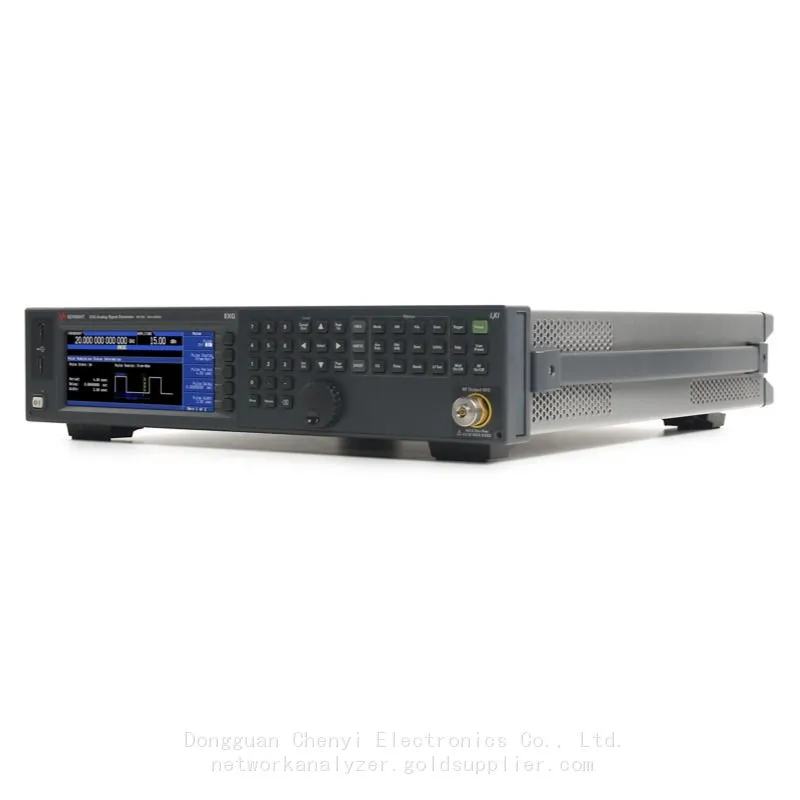

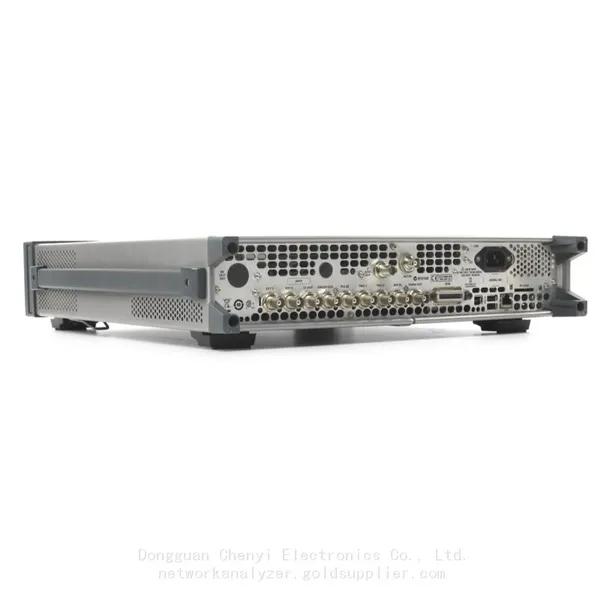

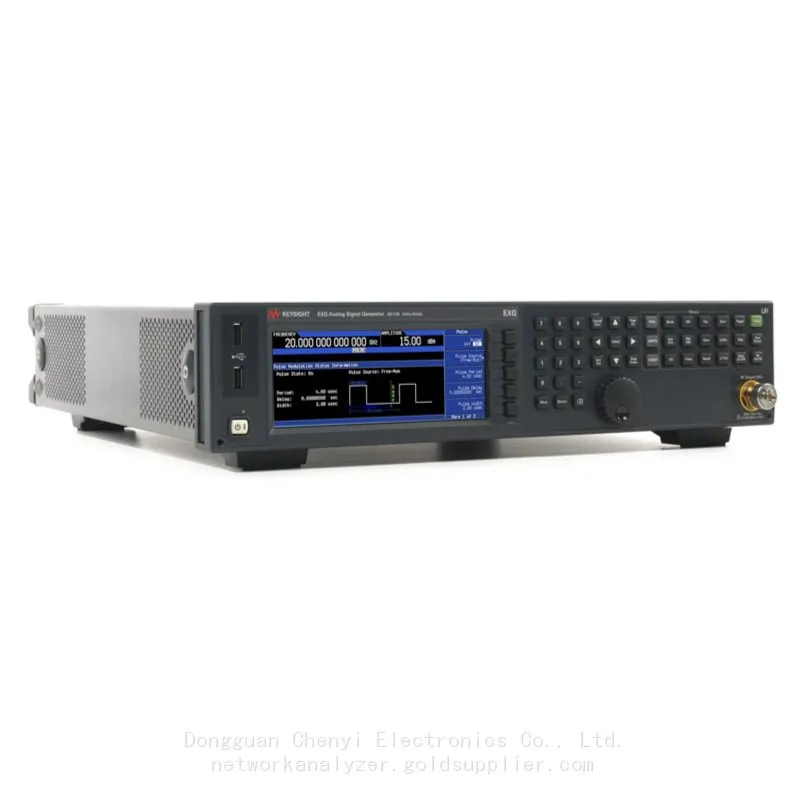

Keysight N5173B EXG X-Series Microwave Analog Signal Generator, N5173B-Option 513, 9 kHz to 13 GHz
N5173B-Option 513： 9 kHz to 13 GHz
N5173B-Option 520： 9 kHz to 20 GHz
N5173B-Option 532： 9 kHz to 31.8 GHz
N5173B-Option 540： 9 kHz to 40 GHz
Offers 9 kHz to 40 GHz frequency coverage and is the cost-effective choice when you need to
balance budget and performance
Highlights
Balance budget and performance with the cost-effective EXG microwave analog signal generator
N5173B EXG microwave analog signal generator is the cost-effective choice when you need to balance budget and performance. It provides the essential signals that address parametric testing of broadband filters, amplifiers, receivers, and more. Perform basic LO up conversion or CW blocking with low-cost coverage to 13, 20, 31.8, or 40 GHz. Characterize broadband microwave components such as filters and amplifiers with the best combination of output power (+20 dBm at 20 GHz), low harmonics (≤ –55 dBc), and full step attenuation. Use as a high-stability system reference with standard high-performance OCXO at an aging rate of less than ± 5 parts per billion per day.
• Balance budget and performance to address parametric testing of microwave components and receivers.
• Address parametric testing of microwave components and receivers.
• Perform LO up conversion for microwave backhaul links or CW blocking for receiver testing.
• Maximize test throughput with 600-µs frequency switching.
• Characterize microwave filters and amplifiers with the best combination of output power, low harmonics,
and full-step attenuation.
• Use as a high-stability system reference: the standard high-performance OCXO has an aging rate of
5x10-10 parts / day.
Options
General Performance Features
N5173B-UW2： Narrow pulse modulation up to 31.8 GHz
N5173B-UNZ： Fast frequency switching
N5173B-UNW： Narrow pulse modulation
N5173B-UNT： AM, FM, phase modulation
N5173B-303： Multifunction generator
N5173B-1ER： Flexible reference input (1-50 MHz)
N5173B-1EA： High output power
N5173B-1E1： Step attenuator, 115 dB
N5173B-UZ2： Fast frequency switching greater than 1.15 ms and +/-0.05 percent of final frequency
N5173B-006： Instrument security and removable memory card
N5173B-SD0： No internal non-volatile memory/solid state drive
Connector Type
N5173B-1ED： Type-N (f) RF output connector
Connector Configuration
N5173B-1EM： Move all connectors to rear panel
Calibration Documentation
N5173B-UK6： Commercial calibration certificate with test data
N5173B-A6J： ANSI Z540-1-1994 Calibration
N5173B-AMG： Calibration + Uncertainties + Guardbanding (Accredited)
Accessories
N5173B-AXT： Hard transit case
U2053XA： USB wide dynamic range average power sensor 10MHz - 33GHz
U2054XA： USB Average Power Sensor 10MHz - 40GHz
U2052XA： USB Wide Dynamic Range Average Power Sensor 10MHz - 18GHz
N5173B-CVR： Front panel cover
Software with Subscription
N5180320B： Pulse train generator
Bundle Adjustment Option
N5173B-010： Good Value Bundle Discount: Includes Options 1EA, UNW, UNZ
