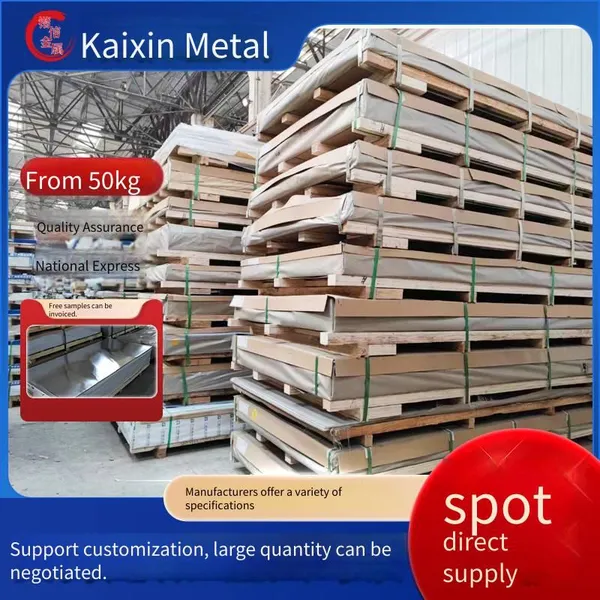

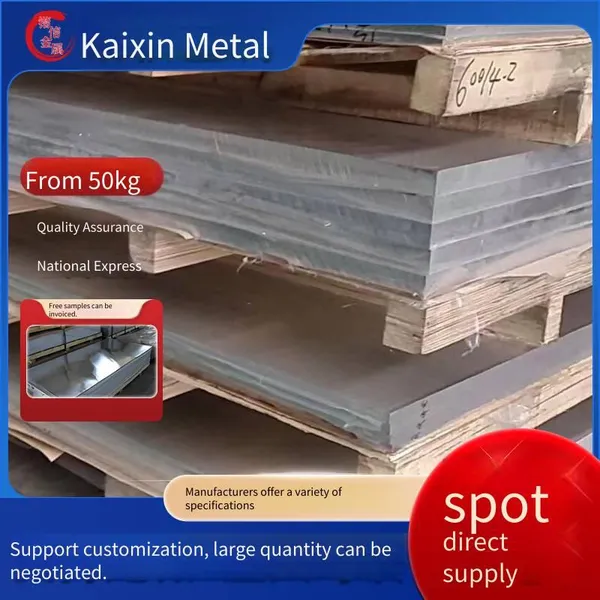

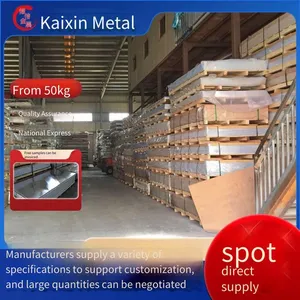

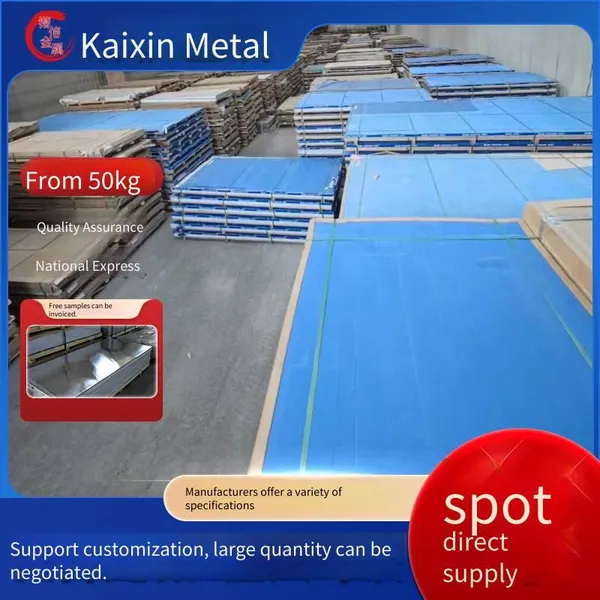

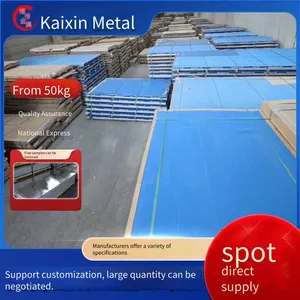

Help CenterKaixin Supplies In-stock 5052 Aluminum Plates, Shippable on the Same Day
Related Products
-
Supply of In-stock 3003 Aluminum Foil, Applicable Scope: Soft-state Aluminum FoilUS$ 3.08 - 4.31MOQ: 50 Kilograms -
Supply In-stock 3003-0 Aluminum Foil for Wholesale and RetailUS$ 3.08 - 4.31MOQ: 50 Kilograms
-
Wholesale and Retail of 1235 Aluminum Foil, Soft Aluminum Foil, and Hard Aluminum FoilUS$ 3.08 - 4.31MOQ: 50 Kilograms
-
1235 Aluminum Foil, Double Zero Aluminum Foil, Packaging Aluminum Foil in StockUS$ 3.08 - 4MOQ: 50 Kilograms
-
Newly Arrived Inventory of 1100 Aluminum Foil. the 1100-0 Aluminum Foil Can be Cut to Any Width.US$ 3.08 - 4MOQ: 50 Kilograms
Al-Mg series alloy aluminum plates. Magnesium is the main alloying element in 5052 alloy aluminum plates. It is the most widely used anti-rust aluminum. This 5052 aluminum plate alloy has high strength, especially high fatigue strength. It has high plasticity and corrosion resistance and cannot be strengthened by heat treatment. Its plasticity is still good during semi-cold work hardening, but low during cold work hardening. It has good corrosion resistance, good weldability, poor machinability, and can be polished.
The aluminum-magnesium alloy also contains small amounts of manganese, chromium, beryllium, titanium, etc. Most of the manganese in the alloy forms MnAl6 except for a small amount in solid solution. In 5052 aluminum plates, the role of chromium is similar to that of manganese. It improves the resistance to stress corrosion cracking, enhances the strength of the base metal and the weld, and reduces the tendency of welding cracks.
Chemical Composition
Chemical Composition
Aluminum Al: Balance
Silicon Si: ≤0.25
Copper Cu: ≤0.10
Magnesium Mg: 2.2~2.8
Zinc Zn: ≤0.10
Manganese Mn: ≤0.10
Chromium Cr: 0.15~0.35
Iron Fe: ≤0.40
Note: Single: ≤0.05; Total: ≤0.15
Mechanical Properties
Mechanical Properties
Tensile strength (σb): 170~305MPa
Yield strength under specified conditions σ0.2 (MPa) ≥ 90
Elastic modulus (E): 69.3~70.7Gpa
Annealing temperature: 345℃.
