Railway td Spike Anchoring Agent, Cement-based Spike Anchoring Mortar, Anchoring Material for Railway Spike Replacement and Installation

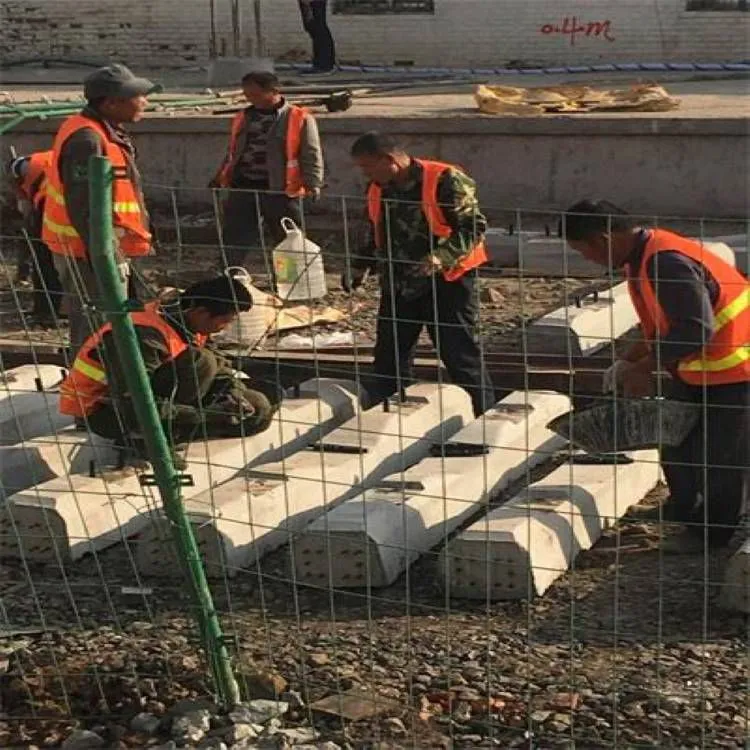

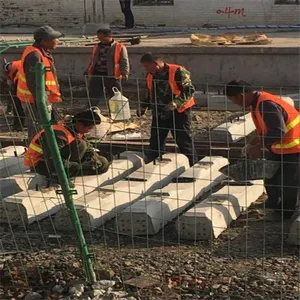

Railway td Spike Anchoring Agent, Cement-based Spike Anchoring Mortar, Anchoring Material for Railway Spike Replacement and Installation photo-1

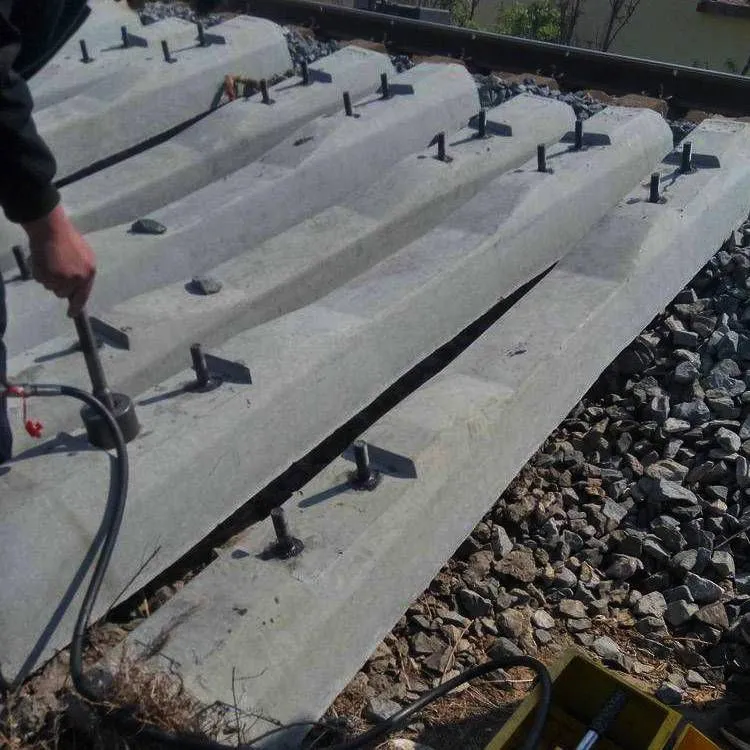

Railway td Spike Anchoring Agent, Cement-based Spike Anchoring Mortar, Anchoring Material for Railway Spike Replacement and Installation photo-2

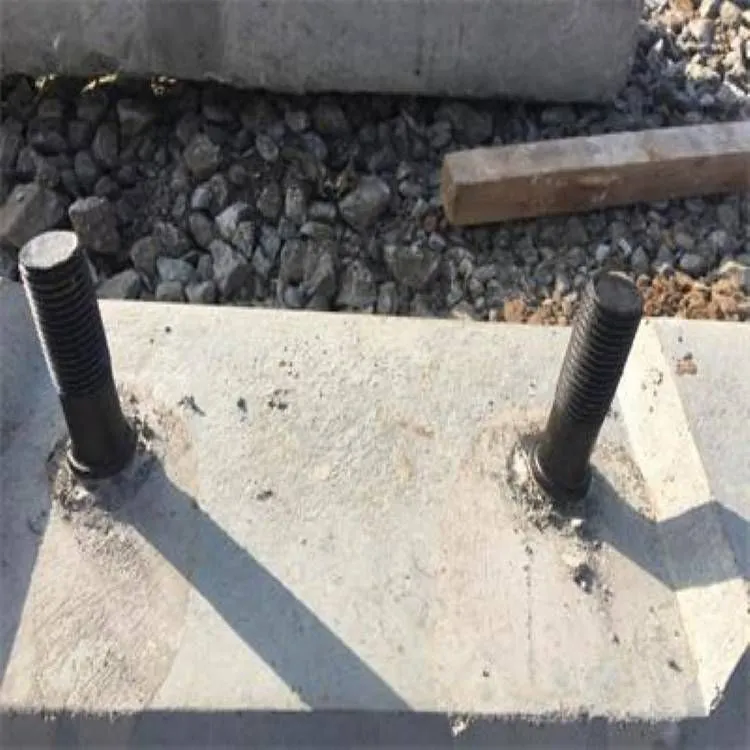

Railway td Spike Anchoring Agent, Cement-based Spike Anchoring Mortar, Anchoring Material for Railway Spike Replacement and Installation photo-3

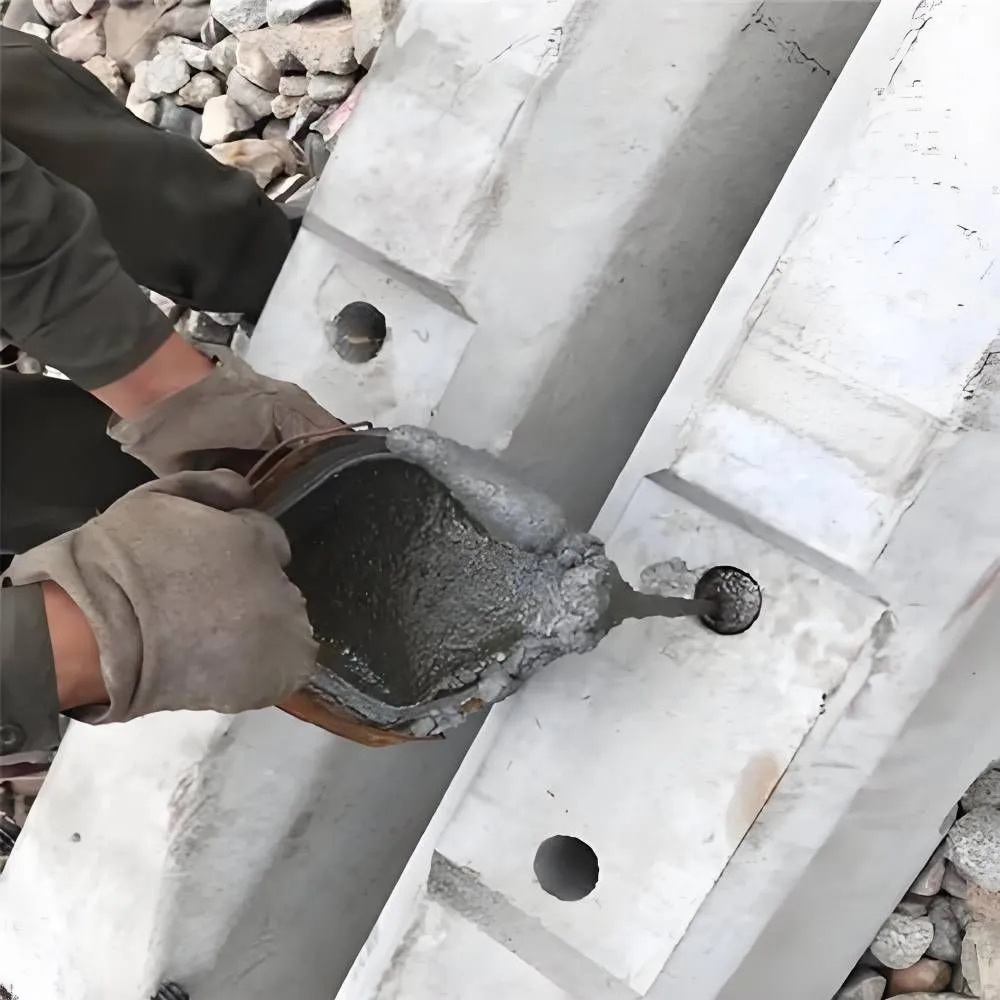

Railway td Spike Anchoring Agent, Cement-based Spike Anchoring Mortar, Anchoring Material for Railway Spike Replacement and Installation photo-4

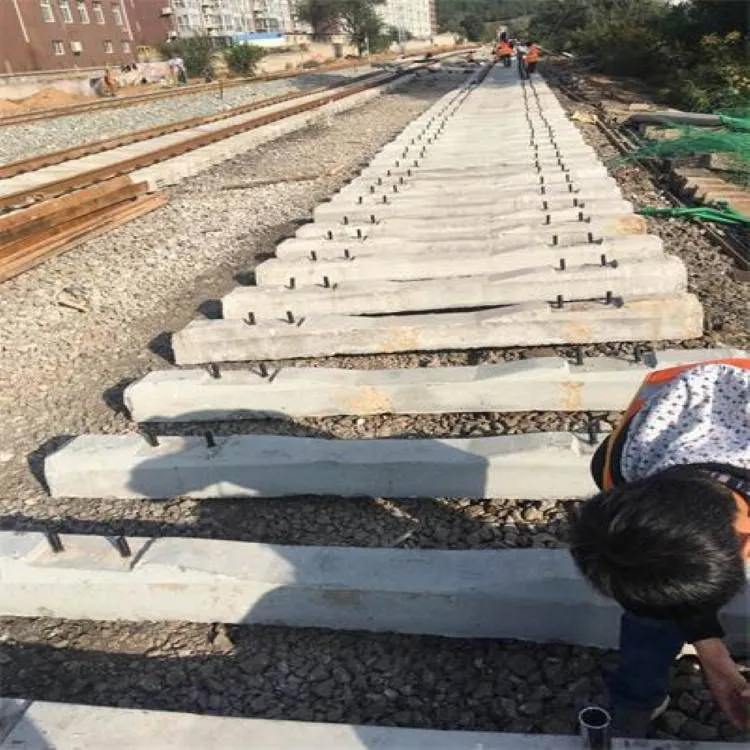

Railway td Spike Anchoring Agent, Cement-based Spike Anchoring Mortar, Anchoring Material for Railway Spike Replacement and Installation photo-5
US$ 253.85 1 - 4 Ton
US$ 246.15 ≥5 Ton
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Baoding, Hebei, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product introductionProduct introduction
Product information
  • Product category: Anchor mortar

  • Brand: Yilifang

  • Switch type: Quick construction

  • Material: Cement-based

  • Special use: Railway spike anchoring

  • Customizable: Yes

  • Origin/Manufacturer: Beijing

Product actual pictureProduct picture
Front

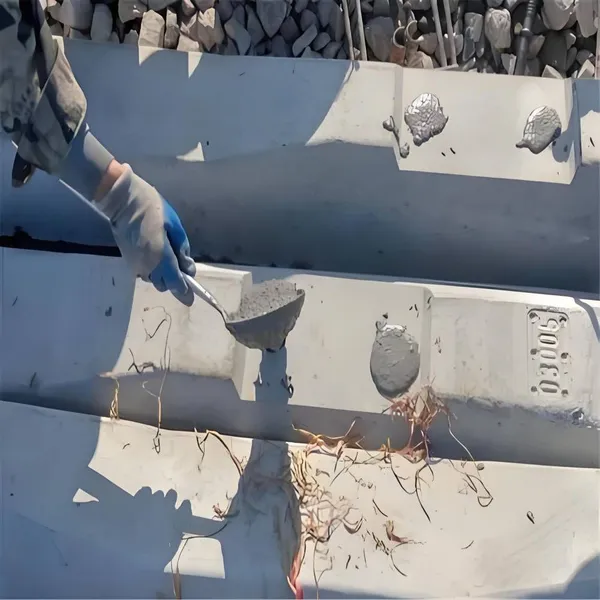

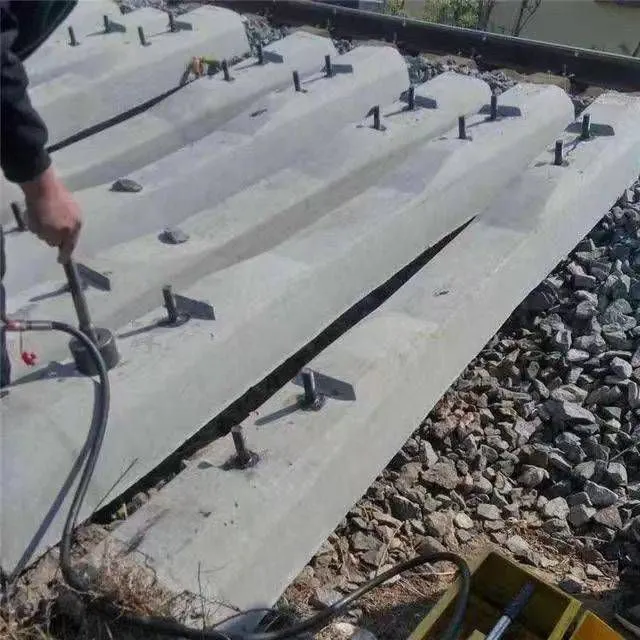

 1. Suitable for the spike anchoring of railway concrete sleepers and bridge sleepers, the cemented joints of prefabricated bridges, and the anchoring of anchor bolts for mechanical equipment.

  2. Suitable for the rapid construction of surrounding rock support with rock bolts in underground projects such as railways, tunnels, water diversion tunnels, coal mines, pier reinforcement, building earthquake resistance, and metallurgical mines, as well as the anchoring of tie nails in concrete structure reinforcement projects, and can meet the requirements of steel bar welding.


Side

 This product is an inorganic mixture, featuring rapid hardening, high strength, slight expansion, cold operation construction, and no pollution to the environment. It eliminates the need for the heating process of melting sulfur when anchoring spikes, preventing possible cracks in concrete sleepers and bridge sleepers due to local heating and reducing the service life of spikes. Construction is allowed in an ambient temperature above -10℃, and it has shown good results after 2 million fatigue tests.

Back



Compressive strength (Mpa)

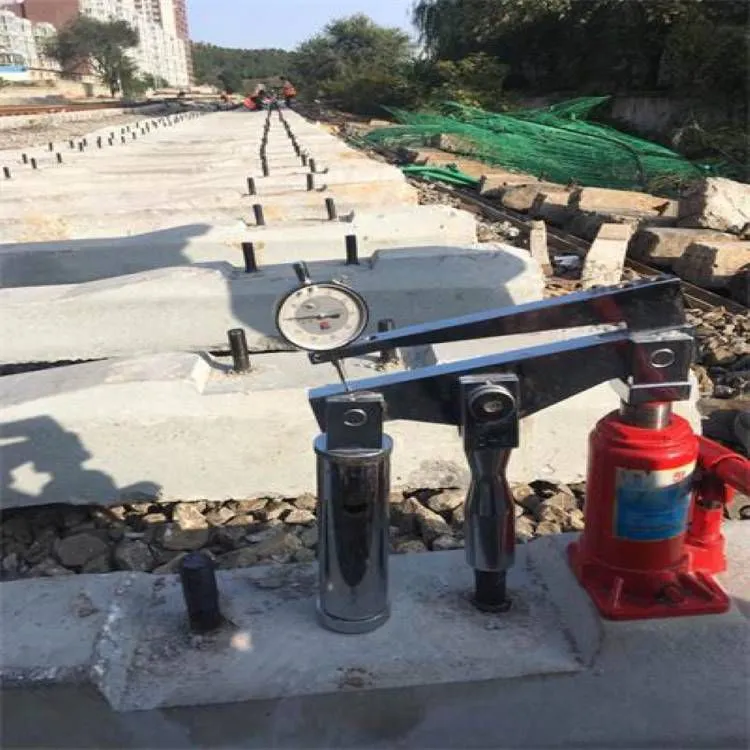

Spike pull - out force (KN)



4 hours

1 day

3 days


>30

>45

>50

>60


Bottom



Precautions

  1. It is advisable to use up the mixed slurry within 30 minutes, and the mixing time is 2 - 5 minutes. During construction, the fluidity and consistency must be well - controlled. When the fluidity decreases during the pouring process, a little water can be added for re - mixing and then continue to use. When the slurry is too thin, a little dry material can be added for re - mixing before use.

  2. In winter construction (when the minimum temperature is above -10℃), the anchoring agent can be mixed with hot water at 40 - 50℃. If necessary, plastic film or other thermal insulation materials should be covered to prevent freezing.


Product detail drawingProduct detail drawing

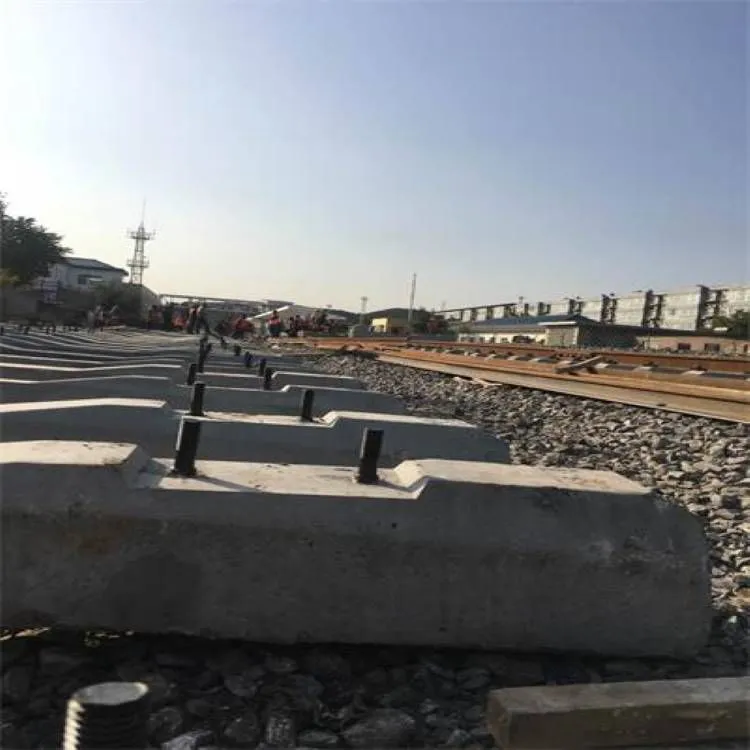

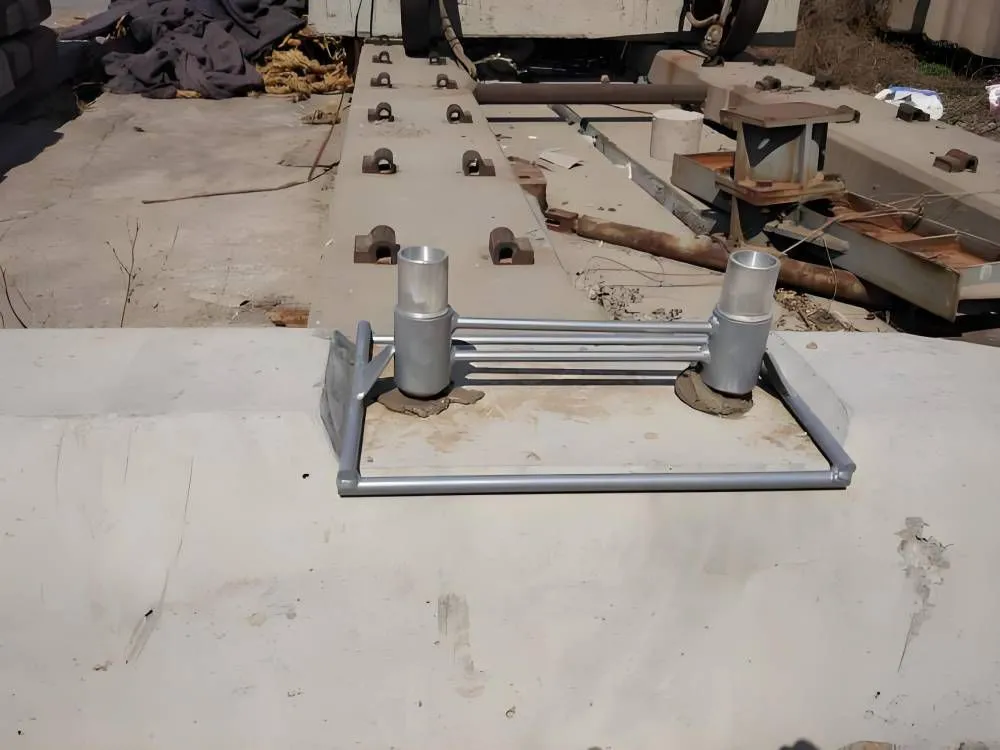

Show the product from more angles



Show the product from more angles



Show the product from more angles



Show the product from more angles

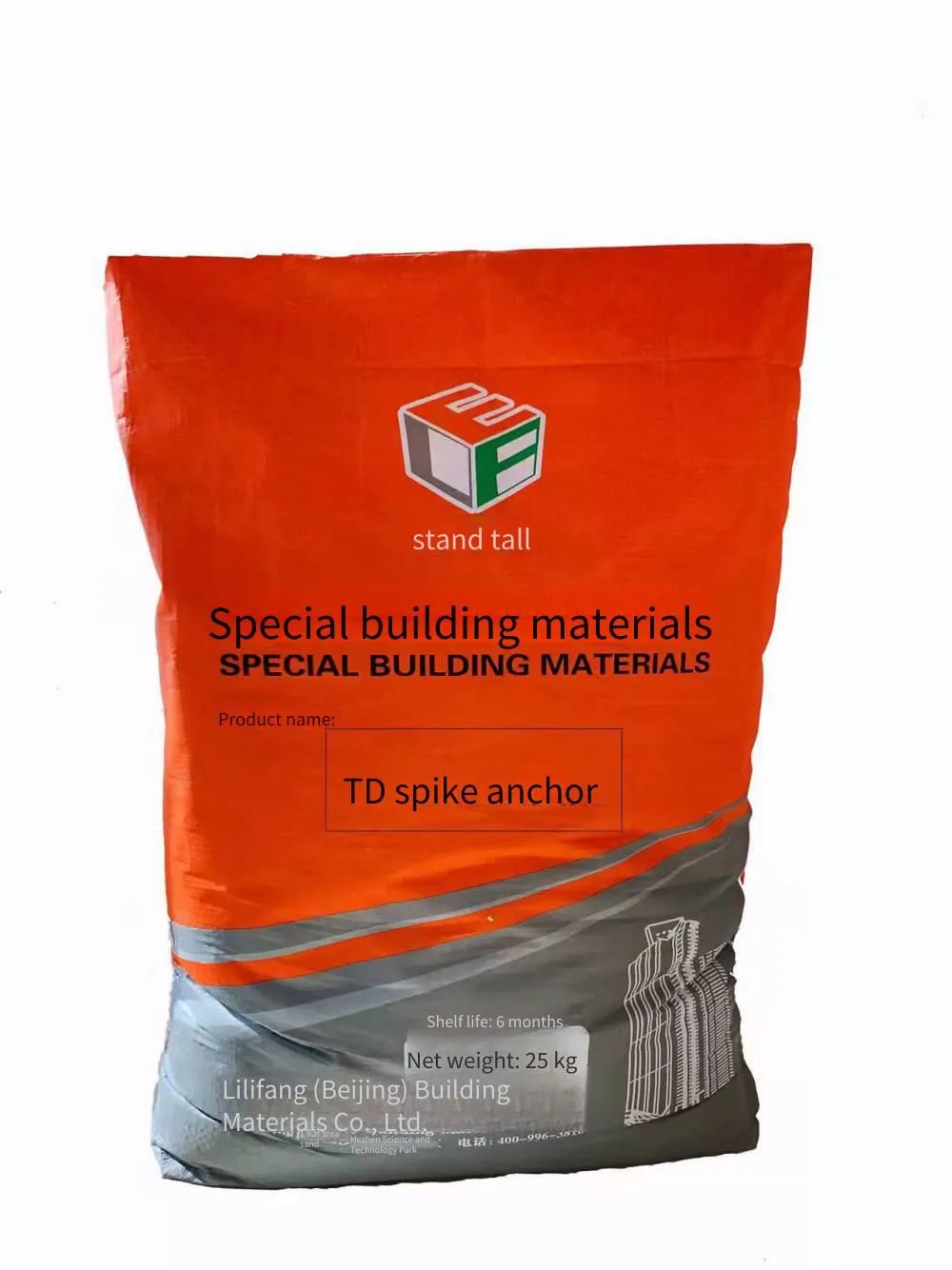

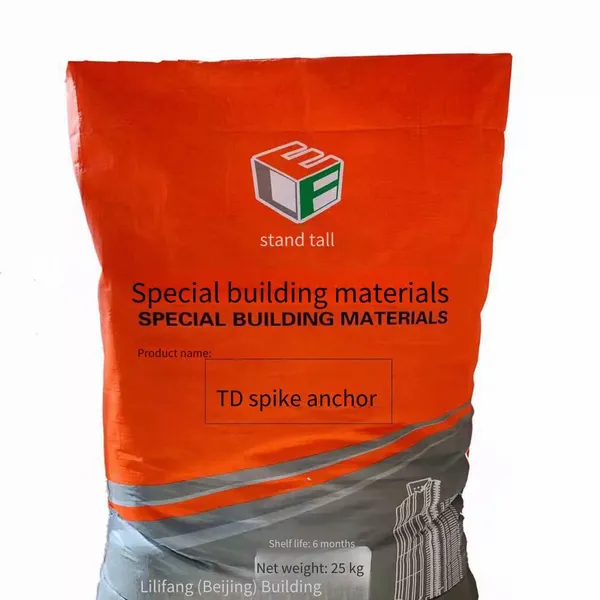

Product packagingProduct packaging



Customization instructionsConsult the company for details
Purchase noticePurchase notice
1. Source description

    In-stock, direct delivery nationwide

2. Payment method

    Consult by phone

3. Return and exchange policy

    Consult by phone

4. Invoice system

   Consult by phone: 13126994211


Product Tags: TD Spike Anchor Agent , Railway Spike Anchor Agent , Sleeper Spike Anchor Agent , Spike Replacement Anchor Agent , Spike Anchor Mortar
